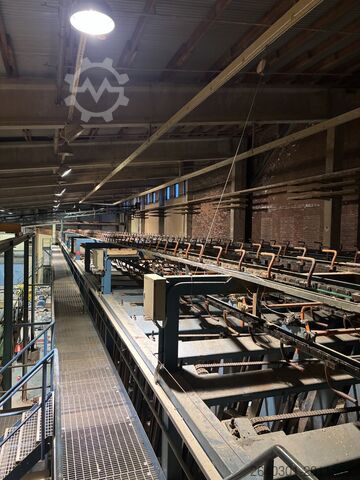

Green sorting line

Renholmen

Condition: good (used), the machine is in good condition, includes electrical cabinets, sharpening machine Bsdpfxovdyr Ne Ac Tjll

Condition: like new (used), Year of construction: 2014, functionality: fully functional, crusher SG - 500/200 - the crusher is completely overhauled and ready for operation - the crusher is also equipped with a vibrating conveyor 8 m long with a separation where sawdust is separated and equipped with a magnet with metal detection in the attachment you will find technical parameters for the machine ¨ - electrical switchboard for the machine. Blodpfx Ajwhw Iuoc Tsl

Condition: excellent (used), High speed moulder infeed comprising a freestanding flat magazine in front of a high speed moulder. The infeed magazine is driven by hydraulic motors powered by an 5.5kW hydraulic unit (max 140m/min). Bjdpfx Aewgbxzjc Tsll A buffer of feedstock is alligned laying flat side by side on the chain cross feeder. The chain feeder transports parts across to the fence. The part next to the fence is detected by a light beam and the the first roller is raised to allow entry and the transport roller then pushes the workpiece under the feed rollers of the planer. The first feed roller of the planer needs to be freewheeling roller to allow operation of the EM814.

Year of construction: 1998, condition: ready for operation (used), Volume flow: 13,600m³/h, pressure increase: 3100Pa, rotational speed: 1500/min, motor power: 18.5kW, weight: 790kg, with Chip Container STBB HAB S, including full documentation. Bjdpei A Ix Hsfx Ac Toll

Condition: ready for operation (used), Gear shaping machine STANKO 5M150 Max. diameter of gears that can be cut: 800 mm Max. module: 12 mm Max. cutter stroke: 200 mm Saddle indexing gear diameter: 360 mm Blsdpfjqcvkvox Ac Tol Distance between axes (tool and table): 0-700 mm Largest tool diameter: 200 mm Cutter arbor diameter: 44.443 mm Taper: M5 Table diameter: 800 mm Distance from floor to table: 870 mm Indexing gear diameter: 762 mm Table hole diameter: 120A mm Double stroke per minute (s.p.m.): 33-188 mm Range of table feed rates per cutter double stroke: -Circular: 0.2-1.5 mm -Radial: 1-5.4 mm Table rapid rotation speed: 1.7 rpm Table rapid travel speed: 137 mm/min Cutter rapid rotation speed: 3 rpm Main electric motor power: 4.8; 5.7; 7.5 kW Dimensions: 3100x1800x3500 mm Weight: 10200 kg

Condition: new, Year of construction: 2024, functionality: fully functional, Szárítórendszer - 1T 184 TPR Modell, (Mozgatható Szállítószalagos) Kiváló minőségű szárítórendszert kínálunk, mely ideális fafűrészpor, termény, újrahasznosítandó hulladék, ételipari alapanyagok szárítására. A szárítógép teljesen új állapotban van, eredeti csomagolásában. Bodpfx Aceua D U Is Tjll

Condition: used, Fully automatic scarf jointing line for the following dimensions: thickness: approx. 24 – 100 mm, width: approx. 80 – 240 mm, scarf joint lengths: 400 – 1,500 mm, finished length: 2.50 m – 13.50 m, infinitely adjustable. Consisting of the following plant components: - SMB vacuum stacking system, longitudinal, with 2 lifting tables and 2 package conveyor lines, year of manufacture 2013, package dimensions max. 1.20 x 1.20 x 6.00 m, 4 suction pads, Sicko system, singulation and infeed into a conveyor line for scanner feeding, board turner, diverter for too moist, too dry, diverter for B-quality, marking station or automatic operation - Bidac end-face scanner for scarf joint detection, year of manufacture 2013 - Brookhuis moisture measurement FMI 5, year of manufacture 2019 - Microtec scanner Goldeneye 502, year of manufacture 2012 with X-ray, 4 color cameras, and new optimization software - Dimter Opticut 350-2, year of manufacture 2003 with paddle ejector, year of manufacture 2009, and associated sorting belts and pneumatic ejector for 2 additional qualities - NKT packaging - NKT scarf jointing system with rotary table, special pack AH 1050, year of manufacture 2005, consisting of: milling machine, tipping station, infeed section, length 5.0 m, cycle press, length 6.00 m, crosscut saw - SMB stacking machine, year of manufacture 1998, length 2.50 – 13.50 m, divisible into 2 units (e.g. 2 x 5.0 m), 8 stacking arms, 8 stacking tongues, manually adjustable stop, infinitely adjustable, electro/hydraulically controlled, package width: max. 1200 mm, package height: max. 600 mm, hydraulic package ejector. Location: Customer Bedevvi Tyspfx Ac Tell

Condition: used, Year of construction: 2019, functionality: fully functional, table length: 8,000 mm, table width: 2,540 mm, overall weight: 8,000 kg, sheet thickness steel (max.): 100 mm, cutting length (max.): 8,000 mm, cutting width (max.): 2,540 mm, drill diameter: 40 mm, FICEP TIPO G25LG - CNC PLATE PROCESSING LINE (DRILLING, MILLING, THERMAL CUTTING) | YEAR 2019 The Ficep Tipo G25LG is a CNC plate processing line for combined drilling, milling, tapping and thermal cutting of steel plates in structural steel fabrication. Built in 2019 - a young machine in its class on the used market. All processes run in a single pass on a rigid double-bridge gantry frame. CONDITION & REFURBISHMENT Refurbished and inspected by a certified technician, ready for operation. - The exact scope of reconditioning varies from machine to machine and is disclosed individually upon serious interest. - Viewing possible by arrangement (machine reconditioned - no demonstration under power). FUNCTION & APPLICATION The vertical mono drilling unit with automatic tool changer (ISO 40) performs drilling, milling, tapping, centre-punching and countersinking. The Hypertherm XPR300 plasma torch and the integrated oxy-fuel cutting unit handle thermal cutting - from thin sheet to heavy plate. The line is operated via the Ficep Pegaso CNC control. Infeed and outfeed roller conveyors with material transfer (8 m each) ensure continuous material flow. Typical applications: structural steel fabrication, steel trading and plant engineering. TECHNICAL DATA - Manufacturer: Ficep | Model: Tipo G25LG | Year: 2019 | Serial number: 36098 - Machine type: CNC plate processing line (drilling / milling / thermal cutting) - Condition: used, refurbished by certified technician - Frame design: double-bridge gantry frame, welded | Machine weight: 8,000 kg - Plate width: max. approx. 2,540 mm, min. 200 mm - Plate thickness: max. 45 mm (plasma cutting), max. 100 mm (drilling) - Drilling heads: 1 (vertical mono drilling unit) | Tool holder: ISO 40 - Max. drilling diameter: 40 mm | Max. drilling/milling depth: 100 mm - Max. spindle speed: 7,000 rpm | Spindle power: 15 kW - Plasma cutting torch (straight): 1 | Plasma source: Hypertherm XPR300 | 300 A - Oxy-fuel cutting unit: included - CNC control: Ficep Pegaso CNC - Processes: drilling, milling (incl. straight/curved slots, Y/J weld-edge preparation), tapping, centre-punching, countersinking, marking, scribing, straight plasma cutting, oxy-fuel cutting On request (to be confirmed bindingly during inspection): processing length, tool magazine stations, min. plate thickness for drilling, min. drilling diameter, pass line height, longitudinal and cross positioning speeds, connected load and machine dimensions. SCOPE OF DELIVERY - 1 x Ficep Tipo G25LG CNC drilling, milling and thermal cutting line (year 2019) - 1 x Ficep Pegaso CNC control Blsdpfx Aeu Dw I Eoc Tol - 1 x Vertical mono drilling unit with automatic tool changer (ISO 40) - 1 x Plasma cutting torch (straight) | 1 x Hypertherm XPR300 plasma source (300 A) - 1 x Oxy-fuel cutting unit - 1 x Infeed roller conveyor with material transfer (8 m) | 1 x Outfeed roller conveyor (8 m) - 1 x Extraction system for plasma cutting LOGISTICS & LOCATION Location: Ulft (Netherlands), directly at the German border. Dismantling, transport, installation and commissioning by ASM by arrangement - individually calculated upon request. ABOUT ASM Arendsen Steel Machinery (ASM): specialist for refurbished Ficep structural-steel machinery. Further machines on request. CONTACT / INQUIRY Viewing by arrangement | Price on request. Sale exclusively to commercial customers (B2B).

Condition: good (used), functionality: fully functional, Möller Hacker / impact shredder / secondary shredder. Bsdpfx Aoxl Uiusc Tell Infeed width 835 mm. Infeed opening 310 mm. Rotor diameter 500 mm. 72 hammers. Screen perforation 16 mm. Drive motor 30 kW. Hopper with angled feed or top feed. Insensitive to foreign objects. Ideal for waste in sawmill basements.

Condition: ready for operation (used), Plant for log processing and sorting, with 2D measuring system KESAT, chain saw and loader LogLift F 165 Z. Infeed Chain conveyors, around the chain saw roller conveyors, sorting chain conveyor. Hydraulicylly driven pushing and lenght stops. Approximate dimensions 20 x 70m. Bljdpfxsw U Axwe Ac Tjl Mesick 92S log measurement frame Control and evaluation PC, Win11 operating system Data output in .csv format Manufacturer and supplier KESAT, a.s. Installation date 03/2024 LOGLIFT F 165Z - all hydraulic cylinders are refurbished.
