Used Turn Mill Center for sale (20,561)

Condition: ready for operation (used), Year of construction: 2006, operating hours: 16,212 h, functionality: fully functional, machine/vehicle number: B151104, turning length: 620 mm, turning diameter: 190 mm, travel distance X-axis: 345 mm, travel distance Y-axis: 45 mm, travel distance Z-axis: 1,240 mm, TECHNICAL DETAILS Max. turning diameter: 190 mm Max. turning length: 620 mm Chuck size: 165 mm Swing over cross slide: 190 mm Axes Travel X1/X2 axes: 345 mm / 167.5 mm Travel Z1/Z2 axes: 1,240 mm / 685 mm Y-axis travel: ±45 mm B-axis travel: ±91° Rapid traverse X1/X2 axes: 16 m/min Rapid traverse Z1/Z2 axes: 40 m/min Servo-controlled: 0.001° Hirth coupling: 1° Spindles Spindle speed: 5,000 rpm for 51 mm (L/R) Spindle speed: 4,500 rpm for 65 mm (left only) Bar capacity, left spindle: 65 mm Bar capacity, right spindle: 51 mm Drive power left: 18.5 kW Drive power right: 15.711 kW Turrets Turret for driven tools: 12 positions Turret for turning tools: 24 positions Tool size (square/round): 25 mm / 32 mm Control: Fanuc 18 iTB MACHINE DETAILS Net weight: 12,500 kg Automatic operation hours: 16,212 h Feed hours: 8,392 h Control "on" hours: 27,816 h EQUIPMENT Spiral interpolation Left side air blast IRCO interface Collision monitoring NT Nurse NC kit Spindle speed correction switch for both spindles Work area lighting Automatic central lubrication for all axes Mobile coolant tank Door interlock Transformer CE marking Chip conveyor Coolant and air blast through right spindle 5 free M-function pairs Finished parts gripper G Parts catcher tray A for material remnants Polygon turning function Electronic handwheel Spann top chuck GR 65 modular A6 Bwodpow Hyi Sjfx Adxsw 3-jaw chuck, right side

Condition: good (used), Year of construction: 2008, We are selling 1 x INDEX ABC including chip conveyor and LMI bar loader. The machine is powered and can be inspected while in operation. Bwsdsv Hmiaepfx Adxow

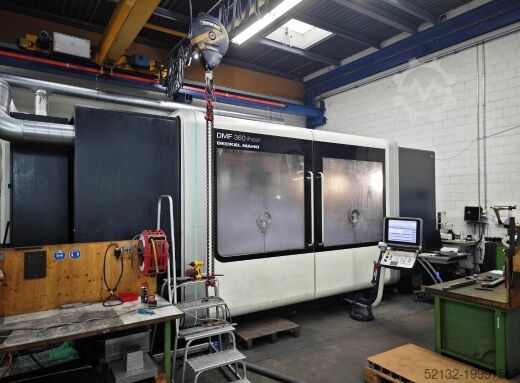

Condition: used, Year of construction: 2011, DMF360 Base Machine Gantry Milling Machine X3600 Y1100 Z900mm Siemens 840D solutionline Bodpfx Adexck Ihjxeww Fixed Table 4200 x 1100 mm Equipment / Accessories Built-in rotary table ø1050mm Swivel head as B-axis 20-18000 rpm Dynamic package X-Axis 80m/min Work area partition Measuring probe, laser tool measurement, tool breakage detection Electronic handwheel Blow air through spindle center Coolant supply 40/80 bar with band filter system, 1000 L tank Chip flushing and rinse gun Chip conveyor, discharge height 1250mm Air conditioning unit for drive and control cabinet Automatic doors A-Axis Lehmann EA420, right-side preparation Hydraulic clamping for fixed and rotary table Robot interface with contact pressure monitoring Interpolated turning High-speed settings Compcad – compressor function 3D machining, 3D tool correction Shutdown and automatic machine start Oil and emulsion mist extraction system

Condition: as good as new (ex-display), Year of construction: 2025, turning length: 1,075 mm, turning diameter: 500 mm, spindle motor power: 26 W, spindle speed (max.): 3,500 rpm, spindle bore: 86 mm, travel distance X-axis: 635 mm, travel distance Y-axis: 260 mm, Control: Siemens Sinumerik ONE Travel X1: 635 mm (+510, -125) Travel Z1: 1170 mm (95+1075) Travel Y: 260 mm (+-130) Milling head travel B: 240° (-30, +210) Travel E: 1080 mm High-pressure cooling: 48 bar Swing diameter over bed: 660 mm Max. turning diameter: 500 mm Max. turning length: 1075 mm Milling spindle: 12,000 rpm Main spindle bore: 75 mm Tool holder: HSK A63 Chuck: Kitagawa B210, air nozzle above chuck Bwedpfxoxlq S So Adxjw - Tool presetter: Renishaw Sub spindle: 76 mm with Kitagawa BR-08 chuck ATC magazine with 48 stations Interface for bar feeder magazine

Condition: ready for operation (used), Year of construction: 2014, operating hours: 812 h, functionality: fully functional, machine/vehicle number: 3097971, turning length: 2,032 mm, turning diameter: 648 mm, spindle speed (max.): 2,400 rpm, travel distance X-axis: 432 mm, travel distance Z-axis: 2,032 mm, Turn-mill center with only 812 operating hours! TECHNICAL DETAILS Working area Max. turning length: 2,032 mm Max. turning diameter: 648 mm Travel X-axis: 432 mm Z-axis: 2,032 mm Spindle Spindle nose: A2-8 Spindle speed: 2,400 rpm Spindle bore: 117 mm Bar capacity: 102 mm Spindle motor power: 30 kW Chuck size: 381 mm Tool changer Stations: 12 MACHINE DETAILS Dimensions Dimensions (L x W x H): 6,750 x 2,200 x 2,300 mm Weight: 13,400 kg Operating hours: 812 h EQUIPMENT Fully programmable servo tailstock Chip conveyor Handwheel Pallet with tools Bwjdpsw Nwq Dofx Adxsw

Condition: good (used), Year of construction: 2000, functionality: fully functional, Traub CNC Lathe TNA300Y, TX8H, Year 2000 Y-axis, C-axis, driven tool system, VDI30, through-hole chuck cylinder 65mm, Bedpfxexby N So Adxsww 185 E collet chuck, 1 VDI30 turret, tailstock, chip conveyor, LNS Hydrobar Approx. 38,000 production hours Fsdb Umgew Svfrexiogg Very well maintained, in good condition. Powered on, available for inspection until 29.08.2025

Condition: reconditioned (used), Year of construction: 2011, functionality: fully functional, turning length: 1,250 mm, turning diameter over cross slide: 500 mm, turning diameter: 500 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 450 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 1,300 mm, rapid traverse X-axis: 30 m/min, rotational speed (max.): 12,000 rpm, Equipment: documentation/manual, rotational speed infinitely variable, For sale is a CTX beta 1250TC with Siemens 840D SL control system Year of manufacture: 2011 Operating hours: 25,500 h Spindle hours: 15,000 h Function-tested and cleaned Machine geometry within new machine tolerances Control: Siemens 840D Solutionline Number of axes: 5 axes Equipment features: - Automatic tool changer - Swivel head as B-axis - Differential pressure chucking main/spindle counter - Workpiece pick-up device - Bar feeder preparation (optional available) Technical specifications: Max. turning diameter: 500 mm X-axis: 450 mm Y-axis: 100 mm Z-axis: 1300 mm B-axis: 220° Spindle speed: 5,000 rpm Spindle power: 34 kW Counter spindle speed: 6,000 rpm Counter spindle power: 20 kW Tool changer: 24 positions B-axis interface: HSK 63 B-axis spindle speed: 12,000 rpm Installation dimensions (approx.): L 7,000 / W 2,300 / H 2,300 mm Weight (approx.): 8,000 kg Chip conveyor: Yes Coolant system: Yes Bodjv Sq R Sspfx Adxjww Internal coolant supply: Yes Options: - Fully enclosed cabin - NC swivel head as B-axis - Coolant unit and chip conveyor - Documentation - Geometric accuracy within new machine tolerances Condition: - Machine is fully operational - Geometry within manufacturer’s tolerance for new machines

Condition: not inspected (used), Year of construction: 1996, functionality: unexamined, machine/vehicle number: 125853, spindle speed (max.): 3,000 rpm, overall weight: 7,300 kg, controller model: MAZATROL T PLUS, Equipment: documentation/manual, No reserve price – guaranteed sale to the highest bidder! Loading can take place on 08/09/2025 or 09/09/2025. TECHNICAL DETAILS Work Area Maximum swing: 575 mm diameter Swing over cross slide: 470 mm diameter Standard chuck size: 305 mm Bedpfx Aew Hrvwsdxoww Distance between centers: 1,527 mm Height of spindle center: 310 mm Max. load capacity with chuck work: 250 kgf Max. load capacity between centers: 1,000 kgf Max. speed of KITAGAWA power chuck: 3,000 rpm Control: MAZATROL T PLUS MACHINE DETAILS Dimensions & Weight Dimensions (L x W): 6,000 x 2,450 mm Machine weight: 7,300 kg Main motor: AC 22/30 kW (continuous/30-minute operation) Total electrical capacity: 63.6 kVA (30-minute operation) / 51.9 kVA (continuous operation) EQUIPMENT Delivered with technical documentation

Condition: used, Year of construction: 2002, functionality: fully functional, turning length: 3,000 mm, turning diameter over cross slide: 520 mm, travel distance X-axis: 600 mm, travel distance Y-axis: 150 mm, travel distance Z-axis: 3,150 mm, Turning diameter 520 mm Turning length 3000 mm Control SIN 840 D Siemens Z-axis 3150 mm Feed Z-axis 1 - 40,000 mm/min Rapid traverse Z-axis 40.00 m/min X-axis 600 mm Feed X-axis 1 - 30,000 mm/min Rapid traverse X-axis 30.00 m/min Main spindle S1 Spindle speed range 1 - 3,300 rpm Drive power at 100% load 29.00 kW Spindle nose DIN 55026 - Size A11 Bedpfxexadk Do Adxsww Spindle diameter at front bearing 160 mm Spindle bore 115 mm C-axis 360 x 0.001° Milling spindle S2 Tool holder Capto C6 Infinitely variable speed range 1 - 6,000 rpm Y-axis -100 / +150 mm B-axis -110 / +110° Tool magazine with 100 positions Total power requirement 145 kW Weight of the machine approx. 24 t

Condition: used, Year of construction: 2000, functionality: fully functional, machine/vehicle number: 500358, turning length: 1,250 mm, turning diameter: 300 mm, spindle motor power: 43 W, spindle speed (max.): 5,000 rpm, spindle bore: 65 mm, INDEX G300L with Promot gantry loader. Machine is still in production and under power. The promot loader has 2 rotary indexing belts with approx. 30 pallet spaces each. The machine is equipped with high-pressure cooling lubricant (40 bar), paper belt filter and tool changer. For further information please contact us by mail. Bjdpfx Aou Nmq Hsdxeww

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, turning diameter: 380 mm, spindle speed (max.): 4,000 rpm, travel distance X-axis: 230 mm, travel distance Z-axis: 575 mm, counter spindle speed (max.): 6,000 rpm, TECHNICAL DETAILS Machining Area Maximum turning diameter: 380 mm Bar capacity: 77 mm X-axis travel: 230 mm Z-axis travel: 575 mm Spindle Data Main spindle speed: 4,000 rpm Main spindle motor power: 22 kW Sub spindle speed: 6,000 rpm Sub spindle motor power: 7.5 kW MACHINE DETAILS Control: Mazatrol 640T Nexus EQUIPMENT 12-position turret with driven tools Interface for bar feeder magazine Short bar loader Multifeed MLI 3-jaw chuck Kitagawa B-210 3-jaw chuck Kitagawa B-206 Automatic parts catcher with conveyor belt Oil mist extraction unit High-pressure cooling: 5 bar Chip conveyor Bwedpfx Adjw Imxujxsw

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, CNC Turning and Milling Center - DMG GILDEMEISTER - CTX gamma 1250 TC YOM: 2009, until 2011 showroom machine, from 2012 operating The machine can be inspected by appointment in the factory under power. Condition: Good (high accuracy), ready for immediate use. Spindle hours (August 1st, 2025): 9.580 h The heart of the machine is the integrated traveling column with turning milling spindle and interpolating B-axis. Machine basic data: * Part hollow clamping device (hydraulic) * C-axis * Cross slide above with turning/milling spindle as motor spindle, with hydraulic clamping in turning, tool holder: Capto C6 * Y-axis: +/- 200 mm * B-axis: +/- 120° * Disc-type tool magazine Bodpfx Aow Hg Nlsdxeww * Absolute, direct measuring systems in X-, Y-, Z1-axis * USB-interface, Ethernet interface TECHNICAL SPECIFICATIONS: * Control: Heidenhain CNC Pilot 4290, 3-D path control TURN PLUS Working area: * Swing diameter over bed: 630 mm * Turning diameter: 630 mm * Spindle distance: 1.510 mm * Bar diameter max.: 65 mm Main drive I: * Drive power (100% / 40% ED): 24 / 34 kW * Speed range from - up to: - 5.000 rpm * Speed of the C-axis: - 5.000 rpm Turning/milling spindle: * Tool holder: Capto C6 * Spindle speed: - 12.000 rpm * Drive power (100% / 40% ED): 13.2 / 22 kW * Torque (100% / 40% ED): 60 / 100 Nm Tool magazine: * Number of tools: 36 * Dimensions of the machine approx. (Width/Depth/Height): 6.860 x 4.220 x 2.530 mm * Total weight of the machine approx.: 18,5 tons EQUIPMENT: * Well equipped … * No steady rest available * Documentation complete available. Detailed technical data sheet and information on equipment available on request. There is no guarantee for correctness and completeness of the technical details and and accessories.

Condition: used, Year of construction: 1991, CNC lathe multi-spindle Gildemeister GDS 65/4A -reconditioned control -5-axis machine -Year of manufacture: 1991 -2 tool turrets with 12 tool positions each -rear machining Bedpfxevx Nu Ns Adxsww -part removal flap -chip conveyor -bar loader (10 bars)

Condition: excellent (used), Year of construction: 2018, operating hours: 6,300 h, functionality: fully functional, turning length: 700 mm, turning diameter over cross slide: 420 mm, spindle motor power: 18,500 W, spindle speed (min.): 10 rpm, spindle speed (max.): 4,000 rpm, spindle bore: 80 mm, travel distance X-axis: 260 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 795 mm, Double-spindle lathe DMG MORI NLX 2500/700 with Y-axis and IRCO Simag loading magazine Year of construction: 2018 Control system: Celos with MAPPS M730UM Switch-on hours: 9,300h Program running hours: 6,300h Bwjdpjt I E U Tsfx Adxew Technical data: Main spindle speed: ISM 80, 10 - 4,000 min-1 Drive power: 18KW Chuck: Kitagawa 10" / 254mm Counter spindle speed: ISM 41, 100 - 4,500 min-1 Drive power: 11KW Chuck: Kitagawa 6" / 159mm Turret: 20 stations Speed AGW: 10 - 10.000min-1 Drive power: 5.5 KW Tool holder: BMT 40 Travel distances: - X-axis: 250mm - Z-axis: 705mm - Y-axis: 100mm (+/- 50mm) - C-axis: 0.001° Counter spindle with tailstock function Accessories: - IRCO Breuning Simag 80.1.R.II loading magazine - Chip conveyor - Coolant system (incl. counter spindle flushing) - Manual tool measuring arm - Parts ejector main and counter spindle - Workpiece conveyor belt - Automatic door - Robot interface - Safety fence Interface - Signal lamp

Condition: ready for operation (used), Year of construction: 1993, functionality: fully functional, machine/vehicle number: 364, controller model: Traub TX8F, number of axes: 7, Equipment: bar feeder, chip conveyor, CNC lathe with 7 axes, bar feeder & additional equipment! TECHNICAL DETAILS Bwodpfsw Ec Alsx Adxew Bar length: 3000 mm Number of axes: 7 Control: Traub TX8F MACHINE DETAILS Spindle 1 operating hours: 50,318 h Spindle 2 operating hours: 32,922 h EQUIPMENT Main spindle Counter spindle 2 turrets 2x C-axis 1x Y-axis Bar feeder: IEMCA CNC BOSS 542 Enclosure Coolant system Chip conveyor

Condition: good (used), Year of construction: 2008, Vertical CNC Lathe Machine type: Gildemeister CTV 400 V3 Control: Sinumerik 840D powerline (XP) Year of manufacture: 2008 TECHNICAL DATA: X-axis: 700 mm Z-axis: 340 mm C-axis Max. spindle speed: 3,500 rpm Drive power: 47 kW Torque: 1,100 Nm Direct drive Number of turrets: 1 Tool stations: 12 Driven tools: 12 Tool holder: VDI 50 Number of pallets: 15 Accessories: Bwsdew Rbcyjpfx Adxjw

Condition: refurbished (used), Year of construction: 2017, functionality: fully functional, machine/vehicle number: 510864, turning length: 200 mm, CNC lathe INDEX G200 Bwodpfx Ajulhinodxjw Overhauled: 2017 Machine number: 510864 max. turning length: 200 mm Bar loading magazine INDEX MBL Main spindle Spindle passage collet clamping: 42mm Spindle diameter in front bearing: 85mm Spindle nose ISO702/1: 5 Chuck diameter: 140/160 Max. Nominal turning diameter: 200mm Max. Rotation diameter: 420mm Power Pmax 100%: 7.5/13/20 Torque Mdmax 100%: 35/61/95 Speed: 6300 Counter spindle Spindle passage collet clamping: 42mm Spindle diameter in front bearing: 85mm Spindle nose ISO702/1: 5 Chuck diameter: 140/160 Power Pmax 100%: 7.5/13 Torque Mdmax 100%: 35/61 Speed: 6300 Min. distance collet: 15mm Longitudinal travel: 445mm Rapid traverse: 22.5mm Cross slide 1 XZ (top) XZ: 120x400mm Feed force: 5000N Cross slide 2 (bottom) XZ: 105x400mm Feed force: 5000N Further information on request!

Condition: used, TECHNICAL DETAILS - Number of axes : 5 - Number of spindles : 2 MAIN SPINDLE - Spindle power : 2.2 / 3.7 [kW] Bwodpfx Ajwd Ud Eodxow - Spindle speeds : 200 - 10000 [rpm] - Max. bar diameter : 20 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle power : 1.5 / 2.2 [kW] - Spindle speeds : 200 - 12000 [rpm] - C axis indexing precision : 0.001 [°] * X/Z stroke : 488 / 335 [mm] TURNING-MILLING SPINDLE - X/Z stroke : 289 / 305 [mm] - Y stroke : 75 (-15/+60) [mm] - B Axis stroke : 180 [°] - B axis indexing precision : 0.001 [°] - Tool type : 15T - Spindle speeds : 300 - 30000 [rpm] - Spindle power : 3.7 / 5.5 [kW] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 24 SECONDARY OPERATION Number of positions : 4 Number of positions : 3 WEIGHT & DIMENSIONS - Machine weight : 2.700 [kg] MACHINE HOURS - Number of hours under power : 12249 [h] - Number of working hours : 1816 [h] EQUIPMENT - CNC : Fanuc 31i Model B5 - 3 colors status lamp - Coolant tank - Parts catcher - Parts conveying strip - Electric transformer

Condition: used, TECHNICAL DETAILS - Number of axes : 11 - Number of spindles : 2 MAIN SPINDLE - Spindle power : 24 [kW] - Spindle speeds : 5000 [rpm] - Max. bar diameter : 65 [mm] - C axis indexing precision : 0.001 [°] Bsdpfev Ig Avox Adxjww COUNTER-SPINDLE - Spindle power : 24 [kW] - Spindle speeds : 5000 [rpm] - Max. bar diameter : 65 [mm] - C axis indexing precision : 0.001 [°] - Travel : 390 / 600 [mm] TURNING-MILLING SPINDLE - X stroke : 350 [mm] - Y stroke : ± 80 [mm] - B Axis stroke : 270 [°] - B axis indexing precision : 0.001 [°] - Tool type : HSK-T40 - Spindle speeds : 18000 [rpm] - Spindle power : 11 [kW] - Fixed tools on milling electrospindle : 6 x VDI25 LOWER TURNING-MILLING SPINDLE - Y stroke : ± 80 [mm] - B Axis stroke : 270 [°] - B axis indexing precision : 0.001 [°] - Tool type : HSK-T40 - Spindle speeds : 18000 [rpm] - Spindle power : 11 [kW] - Fixed tools on milling electrospindle : 6 x VDI25 TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 80 - Tool exchange time : 4.5 [sec] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 68 [kW] WEIGHT & DIMENSIONS - Machine height : 2500 [mm] - Machine weight : 11000 [kg] MACHINE HOURS - Spindle hours : 19781 [h] - Number of turning-milling spindle hours : 9713 [h] EQUIPMENT - CNC : Siemens Sinumerik 840D SL - Coolant tank * with high-pressure pump * with paper filtering unit * Coolant through spindle - Chips conveyor - Spindle cooling unit - Parts catcher

Condition: used, TECHNICAL DETAILS - Number of axes : 5 - Number of spindles : 1 MAIN SPINDLE - Max. bar diameter : 23 [mm] - C axis indexing precision : 0.001 [°] TURNING-MILLING SPINDLE - X/Z stroke : 250/300 [mm] - Y stroke : 200 [mm] - B Axis stroke : -15/+100 [°] Bjdpfxjvh I Uge Adxoww - B axis indexing precision : 0.001 [°] - Tool type : HSK E40 - Spindle speeds : 30000 [rpm] - Spindle power : 10 [kW] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 24 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine weight : 1700 [kg] EQUIPMENT - CNC : NUM 1050 - Coolant tank * Coolant through spindle - Oil mist extractor : Elbaron RON/A 60 - Cooling unit : MARKSA CSW100 - Unit for 6th face machining - Bar loader : Willemin - Collet chuck

Condition: used, TECHNICAL DETAILS - Number of axes : 5 - Number of spindles : 2 MAIN SPINDLE - Spindle power : 2.2 / 3.7 [kW] - Spindle speeds : 200 - 10000 [rpm] - Max. bar diameter : 20 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle power : 1.5 / 2.2 [kW] - Spindle speeds : 200 - 12000 [rpm] - C axis indexing precision : 0.001 [°] * X/Z stroke : 488 / 335 [mm] TURNING-MILLING SPINDLE - X/Z stroke : 289 / 305 [mm] - Y stroke : 75 (-15/+60) [mm] - B Axis stroke : 180 [°] - B axis indexing precision : 0.001 [°] - Tool type : 15T - Spindle speeds : 300 - 30000 [rpm] - Spindle power : 3.7 / 5.5 [kW] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 24 SECONDARY OPERATION Number of positions : 4 Number of positions : 3 WEIGHT & DIMENSIONS - Machine weight : 2.700 [kg] MACHINE HOURS - Number of hours under power : 52500 [h] - Number of working hours : 11639 [h] EQUIPMENT - CNC : Fanuc 31i Model B5 - 3 colors status lamp - Coolant tank : Hydro-Fluid HP3 * with high-pressure pump : 40 - 170 [bars] - Chips conveyor - Spindle cooling unit - Parts catcher - Parts conveying strip - Bar loader : LNS EXPRESS 220 S2 - Fire extinguisher * Bodpfsu Uu Sysx Adxeww * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Electric transformer

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Spindle power : 15 [kW] - Spindle speeds : 5500 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle power : 15 [kW] - Spindle speeds : 5500 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0.001 [°] - Travel : 330 [mm] TURNING-MILLING SPINDLE - X/Z stroke : 410/400 [mm] - Y stroke : 200 [mm] - B Axis stroke : -25/+115 [°] - B axis indexing precision : 0.001 [°] - Tool type : HSK40 - Spindle speeds : 30000 [rpm] - Spindle power : 8 [kW] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 60 - Tool exchange time : 1.2 [sec] - Number of positions : 60 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 3300 x 2900 [mm] - Machine height : 2100 [mm] - Machine weight : 5000 [kg] MACHINE HOURS - Number of working hours : 11659 [h] EQUIPMENT - CNC : Fanuc 31i model A5 - Linear scales - Coolant tank * with high-pressure pump : 70 [bars] * Coolant through spindle Bjdpfx Aouhampjdxeww - Oil mist extractor : ELBARON RON/A 100 DV - Spindle cooling unit - Workpiece probe : Renishaw OMP40-2 - Parts catcher - 1 NAKANISHI HTS1501S spindle : 150.000 [rpm] - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Bar puller

Condition: used, TECHNICAL DETAILS - Number of axes : 9 - Number of spindles : 2 MAIN SPINDLE - Spindle nose : A2-5 - Spindle power : 11 [kW] - Spindle speeds : 4500 [rpm] - Max. bar diameter : 65 [mm] - Max. turning diameter : 200 [mm] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Spindle nose : A2-5 Bsdpfouhamcsx Adxsww - Spindle power : 11 [kW] - Spindle speeds : 5000 [rpm] - Max. bar diameter : 51 [mm] - Max. turning diameter : 200 [mm] - C axis indexing precision : 0,001 [°] - Travel : 780 [mm] - Spindle / counter-spindle distance : 980 [mm] TURNING-MILLING SPINDLE - X/Z stroke : 570/1297 [mm] - Y stroke : +/- 100 [mm] - B Axis stroke : 190 (+/-95) [°] - Tool type : Capto C4 - Spindle speeds : 12000 [rpm] - Spindle power : 7,5 [kW] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 48 (2x24) LOWER TURRET - Number of positions : 24 - X/Z stroke : 130,5/658 [mm] - Live tools speed : 6000 [rpm] - Live tools power : 7,1 [kW] POWER SUPPLY - Supply voltage : 380 [V] WEIGHT & DIMENSIONS - Machine floor space : 2700x3460 [mm] - Machine height : 2857 [mm] - Machine weight : 14500 [kg] MACHINE HOURS - Number of working hours : 11000 [h] EQUIPMENT - CNC : Fanuc 31iA-5 - Coolant tank * with high-pressure pump : 25 [bars] * Coolant through spindle - Chips conveyor : Droite - Spindle cooling unit - Predisposition for barfeeder - Electric transformer - Chuck 3 jaws : SCHUNK 215 / SCHUNK 165

Condition: used, TECHNICAL DETAILS - Number of axes : 9 - Number of spindles : 2 MAIN SPINDLE - Spindle nose : A2-6 - Spindle power : 11 [kW] - Spindle speeds : 6000 [rpm] - Max. bar diameter : 61 [mm] - Max. turning diameter : 400 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle nose : A2-6 - Spindle power : 11 [kW] - Spindle speeds : 6000 [rpm] - C axis indexing precision : 0.001 [°] - Travel : 795 [mm] TURNING-MILLING SPINDLE - X/Z stroke : 410/805 [mm] - Y stroke : 140 [mm] - B Axis stroke : 225 [°] - B axis indexing precision : 0.001 [°] - Tool type : CAT 40 - Spindle speeds : 12000 [rpm] - Spindle power : 6.6 [kW] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 20 LOWER TURRET - Number of positions : 9 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 3075 X 2330 [mm] - Machine height : 2450 [mm] - Machine weight : 7500 [kg] MACHINE HOURS - Number of hours under power : 75434 [h] - Number of working hours : 49153 [h] Bwjdpfx Aeuhal Ssdxjw EQUIPMENT - CNC : Mazatrol MATRIX - Interactive programming - 3 colors status lamp - Coolant tank * Coolant through spindle - Chips conveyor - Oil mist extractor : ELBARON - Tool probe - Tool breakage detection - Parts catcher - Parts conveying strip - Bar loader : LNS QUICK LOAD - Electric transformer

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Spindle power : 14 [kW] - Spindle speeds : 6.000 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Spindle power : 9,7 [kW] - Spindle speeds : 5.000 [rpm] - C axis indexing precision : 0,001 [°] - Travel : 330 [mm] TURNING-MILLING SPINDLE - X/Z stroke : 425 / 550 [mm] - Y stroke : 200 [mm] Bwedpfxouhal Es Adxew - B Axis stroke : -105 / +105 [°] - B axis indexing precision : 0,001 [°] - Tool type : HSK40 - Spindle speeds : 25.000 [rpm] - Spindle power : 10 [kW] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 30 POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 17 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2.548 x 1.922 [mm] - Machine height : 2.686 [mm] - Machine weight : 6.500 [kg] EQUIPMENT - CNC : Num Power 1050 - Interactive programming - 3 colors status lamp - Coolant tank * with high-pressure pump - Chips conveyor - Oil mist extractor : ELBARON - Spindle cooling unit - Parts catcher - Bar loader : LNS HYDROBAR MINI-SPRINT
