Used Tapping Center for sale (13,191)

Condition: used, Year of construction: 2004, Hurco VMX24S Vertical Machining Centre with Hurco Ultimax Control, Table size 760mm x 510mm, 24 ATC, BT 40 Tooling, 8000rpm, Travel X=610mm Y= 508mm Z= 610mm, Coolant Tank. S/No. H-2S061 (2004) Location: This lot is located in Burton-on-Trent. A charge of £350 for dismantling and loading onto suitable transport will be automatically added to your invoice should you be successful in purchasing this item. Blocking and securing will be at the cost of the purchaser. Cjdsyuvt Iepfx Acvjgr

Condition: good (used), Year of construction: 2015, Table size 950 x 800mm , table load 1,000 kgs, Traverses X Y Z 1,000 x 900 x 700mm, B axis -5/+110 degrees, C axis 360 degrees Csdpfx Asyqxduecvsgr Rapid feedrates 80m/min, 60 station toolchanger, spindle taper HSK 63, spindle speed 18,000rpm, Heidenhain TNC 530 control, swarf conveyor, Through Spindle Coolant

Condition: excellent (used), Year of construction: 1995, Centre height: 330 mm Centre distance: 2000 mm Working area: Max. turning diameter over bed cover: 650 mm Max. turning diameter over cross slide: 360 mm Main spindle: Spindle diameter in front bearing: 140 mm Spindle bore: 107 mm Main drive: 58.5 kW 2-stage speed range: 4 – 750 rpm / 750 – 3060 rpm Feed drive: Rapid traverse X/Z axis: 10/10 m/min Turret: Number of tool stations: 12 Of which driven tool stations: 6 Tool shank holder: VDI 50 mm Dimensions / Weight: Required floor space (L x W x H): approx. 6400 x 2150 x 2000 mm Weight: 9400 kg Accessories / Special Features: • CNC path control HEIDENHAIN TurnPlus EP 90 with color display Codpjx Sx Htofx Acvsgr • Spindle orientation, C-axis • 12-position turret, VDI 50, including 6 driven tool stations in turret, manufacturer SAUTER, DIN 5482 B 20x17, max. speed 3000 rpm • Hydraulic 3-jaw chuck Ø 315 mm with various clamping jaws • Hydraulic tailstock with drag device • Hydraulic quill actuation • Extraction unit, manufacturer LTA • Various tool holders VDI 50 • CE-compliant In 08/2025, GILDEMEISTER service replaced the following parts: 1 servo motor, 1 AC servo controller inverter power module for 2 axes, 1 Simodrive power module, 1 line-commutated return module, 1 control insert for 1 axis, 1 controller module for 2 axes inverter servo drive, 1 Simodrive power module for 1 axis motor. Total repair cost: EUR 17,000.00 net Important note: On this very well-maintained CNC turning and milling center GILDEMEISTER CTX 600-2000 (year 1995), the positioning of the C-axis does not function and the driven milling unit rotates but does not engage. Otherwise, the machine is in perfect condition. A demonstration under power is possible at any time by prior appointment. Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Condition: good (used), Year of construction: 2012, Traverse X Y Z; 1020 x 560 x 600mm, table size 1000 x 560mm, table load 1350kgs, spindle speed 16000 rpm, spindle motor 12Kw, rapid federate 40m/min, Cgjdpeypb Dzefx Acvjr 24 station ATC, spindle taper BT40, Heidenhain TNC 530I, swarf conveyor.

Condition: good (used), Year of construction: 2011, functionality: fully functional, Technical details x-travel 450 mm y-travel 580 mm z-travel 460 mm Control Heidenhain iTNC 530 Additional information HSC Precision Machining Center HSC 55 linear NEW DMG Design Heidenhain iTNC530 3D Control SmarT.NC User Interface DMG ERGOLine® Control, 19" Screen HSC 55 linear 5-Axis Version Rotary Swivel Table Clamping Surface 400 x 400 mm Swivel Range A-Axis +10/-110 deg.; C-Axis 360 deg. Maximum Load Capacity 200 kg, Absolute Measuring Systems Including Drive Cooling for A and C Axes X = 450 mm, Y = 580 mm, Z = 460 mm 80 m/min Rapid Traverse Spindle Speed 20 – 42,000 rpm For HSK-E50 Tool Holder according to DIN 69893 AC Main Drive with 13/10 kW (40%/100% ED) Tool magazine with 60 positions Chain magazine with double gripper Active cooling unit for main spindle and linear drives Active cooling unit for control cabinet Direct absolute measuring systems including purge air Coolant/air cooling switch Renishaw laser tool measurement for measuring tool length and diameter incl. calibration mandrel with tool holder 3D quickSET Toolkit for checking and correcting the kinematic accuracy of 5-axis machine configurations (only in conjunction with optional probe) PP 60 optical infrared probe Electronic handwheel Application Tuning Cycle (ATC) software Selection of the optimal machining mode for the current operation 20-position pallet tower storage and transfer station Pallet size: UPC 320x320mm Loading door and air supply at the worktable Pallet management via machine control Including UPC-P chuck Four-color indicator light Air blower through the spindle center, selectable via M-function and softkey Maintained air with low oil content Dust extraction for graphite Rotating viewing window Operating mode 4 Cgedpfx Aoyyy Ihscver Process monitoring in production Laminated safety glass window

Condition: good (used), Year of construction: 2015, functionality: fully functional, Technical details x-travel 1050 mm y-travel 530 mm z-travel 630 mm Control Heidenhain TNC 620 table surface area 1150 x 560 mm tool taper SK 40 spindle turning speed range 10000 U/min Csdpfxjyywf Ds Acvjgr rapid traverse 24 m/min total power requirement 25 kVA weight of the machine ca. 7,8 t Additional information Working hours (date 10. February 2026): - Control on: 20811 h - Machine on: 13353 h - Programm cycle: 7412 h - Spindle hours : 5184 h Equipment: CNC control Heidenhain TNC 620 Electronic handwheel Heidenhain Tool measuring system Linear scales in all axes X/Y/Z Preparation for measuring probe 30-station tool changer Coolant equipment with paper band filter system Internal coolant supply through the spindle 20 bar Blown air through the spindle Chip conveyor Machine documentation

Condition: good (used), Year of construction: 2005, functionality: fully functional, Technical details x-travel 1040 mm y-travel 600 mm z-travel 500 mm Control Heidenhain iTNC 530 table surface area 1250 x 600 mm table load 600 kg tool taper SK 40 spindle turning speed range 1 - 8000 U/min max. torque on the spindle (S1/S6) 140/200 Nm feed range 40000 mm/min rapid power traverse in X-and Z direction 70 m/min rapid motion - y-axis 40 m/min spindle drive (100/40 % ED) 13/19 kW total power requirement 39 kVA weight of the machine ca. 8,9 t Additional information Operating hours 70278 Spindle hours 23335 Please note the enclosed geometry measurement report with the tool pull-in force measurement. Equipment: Cgjdpfx Acjyyv Rlsvor CNC control Heidenhain iTNC 530 Electronic handwheel Heidenhain HR 410 Motor spindle with increased torque Direct path measuring system in Y-Z axis Preparation for measuring probe 30-station tool changer, tool diameter 100/140 mm, length 300, weight 7 kg ROTOCLEAR Production package 2 Internal coolant supply through the spindle 20 bar Coolant system with paper belt filter Cooling device blown air through the spindle center selectable via M function Chip conveyor Bed flushing Linear drive in the X-axis Operating mode 4 Program check with extended manual intervention Machine documentation Transport dimensions: 4100 x 2500 x 3000 mm

Condition: good (used), Year of construction: 2007, functionality: fully functional, Technical details x-travel 1200 mm y-travel 600 mm z-travel 600 mm Control Heidenhain iTNC 530 spindle speed: 6000 1/min. spindle taper 50 SK spindle drive (S1) 10 kW table surface area 1300 x 600 mm table load 1200 kg feed speeds 1-10000 mm/min rapid travel x/y/z 20/20/15 m/min distance table - lower edge spindle 125-725 mm total power requirement 25 kVA weight of the machine ca. 7,5 t dimensions of machine 3600 x 2300 x 3000 mm Additional information Equipped with: * CNC control Heidenhain iTNC 530 * Electr. portable handwheel * Spindle oil cooler * Tool changer 24-pos., double arm changer - Max. tool diameter 80/150 mm - Max. tool length 250 mm - Max. tool weight 8 kg * Preparation for hydraulic machine vice * Preparation for 3-D measuring probes * Chip conveyor * Coolant system, coolant through spindle 20 bar * Machine documentation Cedpjyyvrcjfx Acvogr Working hours (date 1st. November 2024): - Control on: 60.818 h - Machine on: 59.598 h - Program cycle: 22.283 h - Spindel on: 19.522 h

Condition: excellent (used), 1 used, very well-preserved thread cutting chuck M 14-30 for cutting internal threads on switchable drilling machines, lathes and milling machines. Can be used horizontally and vertically Brand: BILZ, Origin Germany Model: DSPL 30-MK4 • With Morse taper shank and tang according to DIN 228 B • With patented double chuck (clamps shank and square) • Elastic length compensation for compression and tension • Axis-parallel pendulum device and elastic length compensation for cutting precisely aligned threads • With clockwise and counterclockwise rotation Technical specifications: Suitable for threads M 14 - 30 Morse taper size Mk 4 Clamping range diameter min. 11 mm Clamping range diameter max. 23 mm Axis length compensation 30 mm Protrusion length 230 mm Axis-parallel compensation 2 mm Weight 12 kg Cgedowimm Njpfx Acvsr Siegfried Volz Machine Tools Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Condition: used, Year of construction: 1998, pressure 25 t working area 2535 x 1280 mm plate thickness 0-8 mm Cgedeyy A Ecopfx Acver punch diameter max. 76 mm tool change unit 19 no. of strokes 600 Hub/min Max. Positioning speed 108 m/min dimensions of the machine ca. 7,5 x 7,8 x 2,4 m total connected load 35 KVA

Condition: used, Year of construction: 2005, x-axis 3000 mm y-axis 1200 mm z-axis 750 mm Control S 840 D working area 3600 x 1200 mm feed - longitudinal/cross 0- 75000 mm/min feeds vertical 0- 70000 mm/min spindle turning speed - stepless 100- 40000 U/min spindle motor 6 kW b-axis 285 ° c-axis 520 ° Cgjdpfx Ajycxc Iocvjr total power requirement 25 kW weight of the machine ca. 5 t dimensions of the machine ca. 5,2 x 2,3 x 2,5 m

Condition: good (used), Centre height: 180 mm Centre distance: 1000 mm Swing diameter over bed: 360 mm Swing diameter over cross slide: 205 mm Swing diameter in gap: 560 mm Cgsdpsykkbrefx Acver Spindle bore: 51 mm Bed width: 290 mm Speed range: 46 - 1750 rpm Feeds & threads: yes Quill stroke: 170 mm Quill diameter: 52 mm Tailstock taper: MT 4 Drive power: 3 kW Dimensions (L x W x H): 1850 x 900 x 1380 mm Weight: approx. 1,400 kg Accessories / Special Features: • 3-axis digital readout, HEIDENHAIN • 3-jaw scroll chuck, Ø 200 mm • Gap bed • Steady rest • 4-position quick-change toolpost • Bed stop • Coolant system • Hinged chuck guard • Lighting The machine comes from a training workshop and is in a very well-maintained condition. Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE – 44143 Dortmund - Wambel / Germany

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, Technical details turning diameter 820 mm turning length 6000 mm control Siemens Si 840 D sl total power requirement 155 kW weight of the machine ca. 65 t dimensions of the machine ca. 16350 x 3700 x 3850 m Additional information Purchase price EUR 1.550.000 Time recording from Feb. 2025 Operating hours = 38601 h Main spindle = 1958 h Milling spindle = 1760 h CNC control Si 840D sl Working area 6000 mm Working height 1390 mm Swing diameter over bed slide/bed 820 mm X-axis travel +850 -25 mm Csdpfx Acsyymvljvogr Z-axis travel 6820 mm C-axis, smallest increment +/-0.001° Workpiece spindle Spindle head according to DIN 55026 A15 Bathing through 160 mm Front diameter Bearing 240mm 2-stage gearbox, infinitely variable programmable Drive power at 100/60% duty cycle: 78/87kW Speed ranges: 2 Speed range I: 10-501 rpm Speed range II: 10-1750 rpm Torque I, 60% duty cycle: 8000 Nm Torque II, 60% duty cycle: 2308 Nm C-axis Holding torque with backlash-free spindle brake: 3000 Nm Speed: 0-50 rpm Maximum torque (100/60% duty cycle): 3700/4430 Nm Steady rest clamping range: 70-425 mm Turning, drilling, milling head Front diameter: Bearing 110mm Interface HSK100/C8 Tool magazine Storage locations: 2 magazines, Baluff chip system Max. tool diameter (each position/every 2nd position) 125/200mm Max. tool length 600mm Tool weight 25kg Tailstock Quick diameter 180mm Stroke 170mm Internal taper MK6 Axially force, manually adjustable 5-30 kN Quick tip height adjustment +/-0.15mm Other: Collision monitoring sensor ACS 3-ARTIS Chip conveyor system Coolant system 980l tank and more

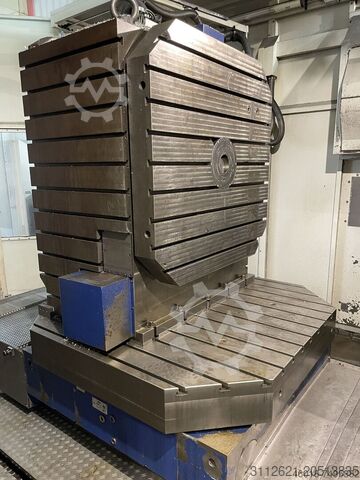

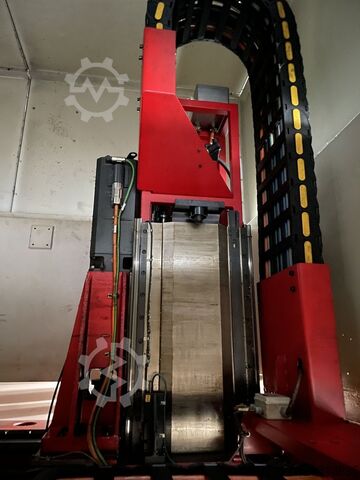

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, Universal machining center 5 axes simultaneously Original purchase price: EUR 1.295.000,- Technical details x-travel 1600 mm y-travel 1250 mm z-travel 1600 mm B-axis (table) 360.000 x 0,001° deg milling-head swivable +/- (HV) 360.000° deg pallet size: 1000 x 800 mm table load 3000 kg tool taper SK 50-B spindle turning speed range max. 8000 U/min transmission ratio 2 spindle drive (100/40 % ED) 37/50 kW feeds x/y/z -stepless 30000 mm/min total power requirement 100 kVA dimensions of the machine ca. 11555 x 7998 x 5050 mm First machine installation in September 2011. A geometry measurement report (dated 30. August 2025) is available. Equipment: CNC-control Siemens 840D Solution Line Separate handheld control unit, wired, Siemens HT-2 2-station pallet changer with safety light barrier 330-position tool changer (max. tool length 600 mm) with 2nd Siemens 840 D control panel Tool taper cleaning system Special cabin with oil mist extraction system Coolant tank 3.300 liters, pump pressure 4 bar/50 bar (Q1/Q2) Chip conveyor Workpiece measuring probe Manual books Spare part: New ball screw. Note: The machine will be sold without tool holders, tools, and clamping devices. Cjdpfx Aoyymmdjcvsgr

Condition: good (used), Year of construction: 2007, functionality: fully functional, CNC turning and milling centre with Y-axis, 2 turrets, subspindle and bar feeder. A total of over 44.000,- EUR has been invested in necessary repairs and maintenance over the last 5 years by DMG MORI (replacement of the main spindle S4, ball-screws, etc.). Technical details turning diameter 100 mm turning length 320 / 345 mm control Siemens 840 D swing diameter 145 mm spindle distance 580 mm slide I - cross travel (X1) 220 mm slide I - longitudial travel (Z1) 320 mm y-axis +/- 30 mm rapid traverse (X/Y/Z) 30/15/30 m/min slide II - cross travel (X2) 120 mm slide II - longitudial travel (Z2) 345 mm rapid traverse (X/Z) 30 m/min Travel subspindle (Z3) 380 mm vertical stroke (X3) 145 mm bar material dia. max. 36 mm rapid traverse (X/Z) 20/30 m/min Cedsyymhzspfx Acvegr power capacity (40/100 % ED) 26/21 kW spindle turning speed range 40 - 7200 U/min total power requirement 42 kVA weight of the machine ca. 5,3 t Equipment: - SIEMENS 840 D powerline CNC control - Number of controlled axes: 9 - 2 x C-axis - Y-axis in upper turret - Pick-up device with gripper - 2 SAUTER turrets with 12 tool positions (driven), VDI 25 - Tool drive with a speed range of 30 to 6000 rpm - Coolant system with paper band filter - Chip conveyor - Collet chuck on main and subspindle - Bar loading magazine, make: IEMCA BOSS 332 E 32 L, max. bar length 3180 mm

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, Technical details turning diameter 660/275 mm turning length 1498 mm control Fanuc/Mori Seiki MSX 701 total power requirement 90 kVA weight of the machine ca. 26,6 t dimensions of the machine ca. 5301 x 2997 x 2788 mm Additional information 9-axis CNC turning and milling centre * Fanuc MSX-701 CNC control * Milling spindle at top (B axis), as full 4th axis, positioning 0.0001 deg. * 40-position tool magazine * 10-position turret at bottom, all positions driven * 2 x 3-jaw quick-change chuck KNCS-N 315/91 * KNOLL high-pressure coolant system, pressure setting 12/25/35/45/55/62 and 72 bar, with maintenance-free rotary filter system * Chip conveyor * Drain system for main spindle chuck (controlled via M function) * Drain system for tool cutting edge (controlled via M function) * Coolant gun incl. accessories * Oil mist extraction * Direct measuring system X1, X2, Y-axis * Bar loader interface * Double foot switch for both spindles * Islands and pocket programming for MAPPS * High-speed fixed cycle for MAPPS * Programm memory extension to 8 MB * Programm restart * 3-stage signal lamp * 512 MB memory card (CF card) Swing diameter over cross slide (tool spindle 1): 750 mm Swing diameter over cross slide (turret 2): 400 mm Max. turning diameter (tool spindle 1): 660 mm Max. turning diameter (turret 2): 275 mm Max. machined workpiece length: 1498 mm Max. bar material: 90 mm Travels: X1 axis (tool spindle): 750 mm Y axis (tool spindle): 420 (+/- 210) mm Z1 axis (tool spindle): 1635 + 100 mm for tool change B axis (tool spindle): +/- 120 deg., full B-axis 1 deg. indexed and 0.0001 deg. braked X2 axis (turret): 195 mm Z2 axis (turret): 1525 mm SZ axis (subspindle): 1610 mm Rapid traverse: (X1,Z1) 50 m/min. / (Y,X2,Z2,SZ) 30 m/min. Main and subspindle: Spindle speeds infinitely variable (spindle 1 + 2): 30-3000 rpm. C axis (spindle 1 + 2): 0.001 deg. Cgedpfx Aeyyk R Tjcvjr Main spindle motor: 22/18.5 kW Subspindle motor: 22/18.5 kW Torque (spindle 1 + 2): 1000 Nm Disc turret: Number of tool positions: 10 Speed of driven tools: 6000 rpm. Drive power: 5.5/3.7 kW Milling spindle head: Tool holder: HSK A63 Max. speed: 12,000 rpm Drive power: 18.5/11 kW Torque: 120/44 Nm Tool changer: 40-stations Tool diameter 70/140 mm Tool length 400 mm Tool weight 8/10 kg Total power requirement 90 kVA Main dimensions Length x width x height 5301 x 2997 x 2788 mm Machine weight 26.6 t Accessories: Measuring arm (picture) tool measurement in machine Tool holder + box, reduction sleeves, driven tools Clamping jaws package Collets package

Condition: like new (used), Year of construction: 2012, operating hours: 33,525 h, travel distance X-axis: 1,250 mm, travel distance Y-axis: 620 mm, travel distance Z-axis: 620 mm, rapid traverse X-axis: 1,250 m/min, rapid traverse Y-axis: 620 m/min, rapid traverse Z-axis: 620 m/min, nominal power (apparent): 22 kVA, controller manufacturer: Heidenhain iTCN530, workpiece weight (max.): 1,000 kg, rotational speed (min.): 15,000 rpm, overall weight: 8,000 kg, spindle speed (min.): 15,000 rpm, CNC controller: Heidenhain iTCN530 Axes X-axis travel mm: 1.250 Y-axis travel mm: 620 Z-axis travel mm: 620 C-axis degrees: 360º (0,001º) B-axis degrees: ±115 (0,001º) Worktable Table dimensions mm: 1.350 x 620 Max. workpiece weight kg: 1.000 Spindle Spindle speed rpm: 15.000 Cgjdpeyybpmofx Acvor Spindle drive power kW: 22 / 17 Spindle torque Nm: 387 / 466 Tool system Tool holder: SK 40 Tool magazine slots: 60 Max. Tool Diameter: 150 Max. Tool Length mm: 220 Max tool weight kg: 7 Tool-to-tool time s: 3 Equipment Electronic Handwheel Signal lamp Tool breakage probe Paper band filter Chip conveyor with built-in scraper RENISHAW OMP 40-2 4th and 5th axis Lehmann (ø400 x 40mm x 40kg) Cooling Tank capacity: 340 L High-pressure bar: 20 Machine running times Under power: 75.294 Operating Time: 33.525 Basic machine dimensions / weight Weight kg: 8.000

Condition: good (used), Year of construction: 2014, functionality: fully functional, Technical details turning diameter 356 mm turning length 510 mm control M 730 BM travel -x axis 260 mm Cjdpfjyycggjx Acvegr travel -y axis -50 / +50 mm travel -z axis 590 mm Travel subspindle (B) 624 mm bar material dia. 65 mm main spindle speeds: 5000 transmission ratio 2 power capacity 15 / 11 kW Subspindle spindle speeds 6000 power capacity 11 / 7,5 kW rapid traverse (X,Y,Z,B) 30/10/30/30 m/min weight of the machine ca. 6,6 t Additional information * CNC control Mitsubishi M 730 BM * Mainspindle with 3-jaw power chuck KITAGAWA N-08, diameter 210 mm * Subspindle with 3-jaw power chuck HAINBUCH B-TOP 165-43 * 12-station turret, tool spindle speed 10000 rpm, power 5.5/3.7 kW * Y-axis travel * C-axis * High/low pressure chuck system for main and subspindle * MABEO high-pressure pump with 1.5 MPa filter unit * Coolant sprayer on the chuck for main and subspindle * Coolant sprayer for the machine bed cladding * Oil mist separator * Chip conveyor * Renishaw workpiece measuring system with optical signal transmission, subspindle * Cooling of the ball screw in the X-axis * Gantry loader, left-hand installation, 14-station storage, 20-pallet workpiece storage, Double gripper conveyor

Condition: excellent (used), Year of construction: 2020, functionality: fully functional, Technical details turning diameter 760 mm Cedpfx Aeyycd Eocvsgr turning length 1540 mm control Fanuc 31i-B dimensions of machine 5500 x 2700 x 3110 mm chip conveyor 6900 x 2400 mm total power requirement 94,42 kW weight of the machine ca. 15,5 t Additional information Turning center with infinitely variable swiveling milling head and Y-axis, motorized lower turret and subspindle. Condition: Very well preserved, machine comes from a company liquidation. Time recording: Control unit on: 13127 hours Runtime: 3833 hours Processing time: 2835 hours The upper head is fed by a tool magazine and can turn or mill at various angles. Even highly complex components can be completely machined without further repositioning. Fanuc 31i-B CNC control Swing diameter over bed: 1000 mm Maximum turning diameter: 760 mm Maximum turning length: 1540 mm Maximum bar diameter (manual/continuous): 76/76 mm Y-axis travel: 230 mm (±115 mm) Clamp (counter spindle) ASA interface: A2-8 Spindle speed: 4000 rpm AC motor power (cont./30 min.) 22/26 kW Turning/milling head B-axis rotation / indexing 240 deg. (±120 deg.) Tool holder Capto C6 Speed in revolutions per minute 12000 rpm AC motor power 30 min. 15/18.5 kW Number of tools 40 (Opt. 80) Tool turret Number of driven tools 12 (12) Number of driven tools 7.8 kW/30 min.

Condition: used, Year of construction: 1998, turning diameter / mm turning length / mm control / Technical Specifications Working Area Max. swing diameter: 540 mm Max. turning diameter: 540 mm Max. turning diameter over ways: 520 mm Max. turning length: 1029 mm Main Spindle Speed range: 35–5,000 rpm Main drive power: 22 kW Max. torque: 349 Nm Spindle nose: A2 – 6 inches Spindle bore: 61 mm Spindle positioning C-axis: 0°–360°/0.001° Tool turret Tool turret type: Single-spindle turret Driven tools Speed range: 15–6,000 rpm Drive power: 7.5 Kw Max. torque: 103 Nm Tool magazine Number of tool positions: 40 Cjdpfx Acoyyqthjvogr Max. tool weight: 7 kg Machine weight: approx. 5700 kg A wide range of accessories included – see photos A backup from 3 September 2012 is available

Condition: good (used), Year of construction: 1998, Table size: 1150 x 510 mm Tool holder: BT 40 Travel (X/Y/Z axes): X-axis: 800 mm, Y-axis: 510 mm, Z-axis: 510 mm Spindle speed range: max. 10,000 rpm Machine dimensions (L x W x H): 3200 x 2800 x 2497 mm Weight: 6,600 kg Accessories / Special features: • CNC path control YASNAC J300M (comparable to "SIEMENS") • 20-position tool changer • Chip conveyor • Coolant system Cjdjyyq Nijpfx Acvegr • CE compliant Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE – 44143 Dortmund - Wambel / Germany

Condition: good (used), Year of construction: 2006, 3-axis machining center Okuma MB-66 VA Control: OSP-P 200M Year of manufacture: 2006 Internal machine no.: 31 Cgsdpfx Acjylwp Sjvjr X-axis: 1,500 mm Y-axis: 660 mm Z-axis: 660 mm Tool holder: SK 40 MASBT Tool magazine: 32 positions Spindle speed: 8,000 rpm Equipment: ONE touch IGF Hinged belt chip conveyor Electronic handwheel Internal coolant supply 20 bar

Condition: new, travel distance X-axis: 850 mm, travel distance Y-axis: 820 mm, travel distance Z-axis: 610 mm, workpiece height (max.): 450 mm, workpiece weight (max.): 500 kg, number of slots in tool magazine: 60, controller manufacturer: HEIDENHAIN, overall weight: 14,000 kg, controller model: TNC 7, coolant supply: 40 bar, spindle motor power: 32 W, rapid traverse Z-axis: 48,000 m/min, rapid traverse X-axis: 48,000 m/min, rapid traverse Y-axis: 48,000 m/min, rotary table diameter: 630 mm, rotational speed (max.): 12,000 rpm, spindle nose: SK 40 BIG PLUS (BVD 40), tool diameter: 150 mm, tool length: 300 mm, tool weight: 8 g, workpiece diameter (max.): 750 mm, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, LAGUN EVZ 630 – 5-Axis Simultaneous Machining Center | HEIDENHAIN TNC 7 | Available at short notice Brand new LAGUN EVZ 630 5-axis simultaneous machining center for maximum precision and dynamics in modern metalworking. This machine impresses with its robust construction, high thermal stability, and state-of-the-art HEIDENHAIN control and drive technology. Ideal for tool and mold making, mechanical engineering, and demanding contract manufacturing. Your advantages at a glance: ✔ Installation & commissioning in Germany included ✔ Service & spare parts directly via JMT ✔ Financing / leasing options available ✔ Compact design with high stability ✔ 24-month warranty Why choose LAGUN: LAGUN is one of Spain's leading machine tool manufacturers (MAHER HOLDING), renowned for robust engineering, high dynamics, and durable machine concepts. Their machining centers impress with reliability, easy maintenance, and low operating costs. Technical specifications: Control: HEIDENHAIN TNC 7 CNC control + 19" TFT screen HEIDENHAIN motors, linear scales, and electronic handwheel HR 510 Chip management: Chip conveyor Enclosure: Fully enclosed with automatic door opening for convenient and ergonomic access to the work area Accuracy: Positioning accuracy: ± 0.005 mm Repeat accuracy: ± 0.003 mm Your advantages as a JMT customer: ✔ Official LAGUN distributor in Germany ✔ On-site technical support and service ✔ Fast spare parts delivery ✔ Training and instruction included ✔ Reference machines available in Germany Cgjdpfxsp Nnute Acvjr Contact us – we will be happy to advise you and provide a customized offer tailored to your needs.

Condition: new, power: 40 kW (54.38 HP), travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 2,000 mm, workpiece weight (max.): 10,000 kg, number of slots in tool magazine: 60, controller manufacturer: HEIDENHAIN, Equipment: CE marking, LAGUN TM 3 T-Frame Travelling Column Machining Centre The LAGUN TM 3 is a high-stability T-frame travelling column machining centre, engineered for heavy-duty and precision machining. It's ideal for both single-part manufacturing and series production with the highest demands for rigidity, accuracy, and reliability. Cgjdpfx Aehy Aunecvjr Your advantages at a glance: ✔ Installation & commissioning in Germany included ✔ Service & spare parts directly via JMT ✔ Lease-purchase / financing available ✔ No special foundation required (standard industrial flooring is sufficient) ✔ 24-month warranty Why LAGUN: LAGUN is one of Spain’s leading machine tool manufacturers (MAHER HOLDING), well known for robust construction, high dynamics, and decades of experience in building bed-type milling machines. Their machines stand out for their reliability, ease of maintenance, and cost-effective operation. Technical specifications: Control: HEIDENHAIN TNC 7 CNC path control + 19" TFT display HEIDENHAIN motors, measuring systems, and electronic handwheel HR-510 Rotary table: 1800 x 1800 mm (Max. workpiece weight 10,000 kg) Cooling: Internal coolant supply (IKZ) 36 bar Tool changer: 60-position chain magazine with double gripper Chip disposal: Double hinged belt conveyor (front and rear) Enclosure: Full enclosure (perimetric) Accuracies: Positioning accuracy: ± 0.015 mm Repeatability: ± 0.008 mm Your advantages with JMT: ✔ Official LAGUN distributor in Germany ✔ On-site technical support and service ✔ Fast spare parts supply ✔ Training and instruction included ✔ Reference machines available in Germany Contact us – we are happy to advise you and provide a customized offer.

Condition: new, power: 17 kW (23.11 HP), travel distance X-axis: 450 mm, travel distance Y-axis: 460 mm, travel distance Z-axis: 495 mm, workpiece weight (max.): 200 kg, number of slots in tool magazine: 30, controller manufacturer: HEIDENHAIN, overall weight: 6,500 kg, controller model: TNC 7, coolant supply: 20 bar, rapid traverse Z-axis: 30,000 m/min, rapid traverse X-axis: 30,000 m/min, rapid traverse Y-axis: 30,000 m/min, rotary table diameter: 320 mm, rotational speed (max.): 12,000 rpm, spindle nose: SK 40 BIG PLUS (BVD 40), tool diameter: 150 mm, tool length: 300 mm, tool weight: 8 g, Equipment: CE marking, chip conveyor, documentation/manual, rotational speed infinitely variable, LAGUN L 5AX-320 5-Axis Simultaneous Machining Center – available immediately The LAGUN L 5AX 320 machining center stands for high precision, robust construction, and efficient manufacturing. Ideal for both single-part production and series manufacturing in mechanical engineering, mold making, and contract manufacturing. Your benefits at a glance: ✔ Installation & commissioning in Germany included ✔ Service & spare parts directly through JMT ✔ Financing / leasing options available ✔ Compact design with high stability ✔ 24-month warranty Why choose LAGUN: LAGUN is one of Spain’s leading machine tool manufacturers (MAHER HOLDING) and is known for robust designs, high dynamics, and durable machine concepts. The machining centers are distinguished by their reliability, easy maintenance, and low operating costs. Technical specifications: Control: HEIDENHAIN TNC 7 CNC control + 16" TFT screen HEIDENHAIN motors, scales, and electronic handwheel HR 510 Chip disposal: Chip conveyor Enclosure: Full enclosure with side-opening inspection windows Accuracies: Positioning accuracy: ± 0.005 mm Repeatability: ± 0.003 mm Your advantages as a JMT customer: Cjdpfx Acjh Ekqysvegr ✔ Official LAGUN distributor in Germany ✔ Technical support and service on-site ✔ Fast spare parts supply ✔ Training and instruction included ✔ Reference machines available in Germany Contact us – we would be happy to advise you and provide a customized quote.
