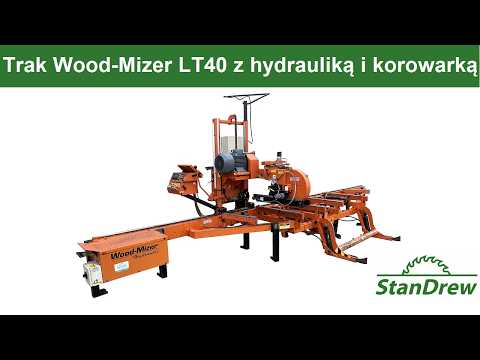

Wood-Mizer LT40 sawmill

Wood-Mizer LT 40

Condition: refurbished (used), Year of construction: 2022, operating hours: 796 h, functionality: fully functional, machine/vehicle number: LT40MG38SDH5-2.6WSW, overall weight: 2,600 kg, cutting width (max.): 840 mm, saw blade width: 32 mm, tooth pitch: 22 mm, Wood-Mizer LT40WIDE Mobile Sawmill – Professional Equipment with Hydraulics and a 38 HP Gasoline Engine For sale is a Wood-Mizer LT40WIDE mobile sawmill, ideally suited for professional sawmill operators, forestry businesses, custom sawing companies, and performance-oriented part-time operations. The proven LT40 series combines high cutting performance, robust construction, and extensive hydraulic functions for efficient operation, even with large log dimensions. The machine is powered by a reliable 38 HP gasoline engine. With a maximum cutting width of 84 cm and the ability to process logs up to 100 cm in diameter, the sawmill is excellent for the production of construction lumber, timbers, boards, and special dimensions. The standard cutting length is 6.3 meters and can be extended at any time if required by adding track extensions. The electric height adjustment, in conjunction with the SW10 cutting thickness calculator, enables precise and reproducible cuts. The electric feed system provides additional ease of operation. The extensive Hydraulic Package 5 significantly simplifies log handling and reduces the workload. The equipment includes: Hydraulic loading arm Hydraulic log clamp Hydraulic log turner Gbjdpfx Abe Ai Sxmjisw Side supports Balancing rollers, one of which is powered Pre-cutter LubeMizer system Automatic clutch Additional technical features: 38 HP gasoline engine 6.3 m cutting length (extendable) 84 cm maximum cutting width 35 cm clearance above the saw blade 100 cm maximum log diameter Saw blade length 4,330 mm Electric feed Electric height adjustment SW10 cutting thickness calculator 1 box of saw blades included The LT40WIDE is the ideal solution for users looking for a mobile and powerful sawmill with professional hydraulic equipment and who also want to process larger logs economically. Inspection and demonstration possible by appointment. Financing and transport can be arranged upon request.

Year of construction: 1998, condition: excellent (used), Press with working dimensions 4.5m X 1.9m Gedpfx Abslzi S Noisbw

Condition: used, Year of construction: 2024, operating hours: 350 h, functionality: fully functional, machine/vehicle number: LT40MG38SDHP5-2.6WSWR, cutting length (max.): 6,100 mm, total length: 8,200 mm, overall weight: 2,600 kg, height adjustment type: electric, cutting width (max.): 820 mm, Equipment: chassis, We are offering this used Wood-Mizer LT40 wide complete sawmill (mobile), manufactured in 2024. Cutting length: 6.1 m Cutting width (plank): 82 cm Maximum processable log diameter: 100 cm Year of manufacture: 02/2024, approximately 350 hours of operation. Powered by a 38 hp gasoline engine. SW10 cutting thickness calculator. Electric saw head (forward, backward, up, down). Electric clutch for the engine. Hydraulic package 5 (almost fully equipped). Log lifter, 2 pull-down clamps, 2 balancing rollers (one powered), 3 vertical stops, 1 manual vertical stop for short logs, log turner, central log clamp. Gbodpfx Ajzagkzsbiow Laser. Road approval. Unfortunately, the rear bumper is slightly bent, but it is fully functional. In addition, I have the following items available: Approximately 60 saw blades. Protective cover. Almost new CookiMizer. Log holder for short and thin logs from Hesener. And other accessories, such as spare blade guide wheels, etc.

Condition: ready for operation (used), Year of construction: 1999, A dryer Cremona is available. Sections: 6, temperature zones: 2, cooling section: 1, width: 4200mm. Production capacity: approx. 80 sheets/min. Documentation available. An on-site inspection is possible. Gbedpfjw I E Dpex Abijw

Condition: good (used), min. width of the middle prism after cutting 55mm minimum length of the cut shaft 1270mm maximum diameter of the cut shaft 350mm shaft diameter 60mm diameter of the circular saw 500mm Gbodpfxewmg Saj Abijw smooth regulation of the feed speed on the inverter power of the lower spindle drive motor 45kW power of the upper spindle drive motor 37kW power of the feed drive motor 1.50kW

Condition: ready for operation (used), Year of construction: 1990, MARKON Log house drilling machine with undercutter year 1990 manufacture Markon Lathi / Finland Length = 3550mm Width= 1500mm Height= 2910mm Engine power Drilling unit: 6 x 3 kW moulder: 1 x 5.5 kW Dimensions of the log to be pushed Height max 250mm Height min 130mm Width max 250mm Width min 60mm Length min 600mm Tool sizes and speeds Drill max diameter 40 mm Moulder max diameter 250 mm Drill length 325 mm Drill mounting arm diameter 20h7 mm Drill rotation speed 2880 rpm Moulder: rotation speed 2880 rpm AIR Suction openings dia. 160 mm 2 suction openings Drill unit suction opening diameter 90 mm Suction openings 6 pcs Air speed at the suction opening 30 m / s Air consumption 8460 m3 / h electrical connection Total power 380 V 24 kW Godpfx Ajfw Rt Rsbiebw Compressed air connection Minimum pressure 6 bar Drilling unit air demand / stroke "48 1 Total air demand ~ 2200 1 / min incl. 3,5 meter roller conveyor + 12 drillings

Condition: as good as new (ex-display), feed length X-axis: 800 mm, planing width: 800 mm, Double-sided planer. In very good working condition. Gbodpfox Rryksx Abisw

Condition: new, Year of construction: 2026, Drum chipper series ATH-220/530/3 | ATH-220/730/3 | ATH-220/1060/3 S&F chippers and drum chippers with horizontal infeed are used in many areas of the wood processing industry (sawmills, timber mills). Chippers from the ‘ATH’ series produce high-quality and homogeneous wood chips with a low proportion of fines from residual wood, for example as quality chips for the cellulose industry or as fuel chips for energy generation Series ATH-220/530/3 | ATH-220/730/3 | ATH-220/1060/3 - Feed height: 200 mm - Feed width: 500 | 700 | 1000 mm - Number of chipper knives: 2 - 4 pieces - Number of counter knives: 2 pieces - Rotor diameter:520 mm - Number of feed rollers: 3 pieces - Throughput: up to approx. 40 rm/h * - Chipping length: 5 - 50 mm - Chipper drive power: 22 - 110 kW - Drive power feed rollers: 2 x 2.2 kW - Operating/control voltage: 400/220 V, 50 Hz - Weight: 2,800 - 4,000 kg Gbjdpfxowbv Ero Abisw *depending on chipper length, kW main motor, number of knives, feed Advantages: - Maximum throughput - Low fines content - Low maintenance - Flexible use - Customised production

Condition: used, Year of construction: 2007, machine/vehicle number: 1377, SECOND HAND PNEUMATIC END CUTTING SAW STROMAB MOD. TR500 - CE RULES Gbodpfjt U Izpox Abiow - with electronic positioning stop TIGERSTOP of 4000mm - infeed roller table of 4500mm - outfeed roller table of 4500mm - blade diameter: 500mm - maximum cutting capacity: 360 mm (L) at 60 mm (H), 135 mm (H) at 280 mm (L) - 10 hp motor - 415 volts - serial number: 1377 - year 2007

Condition: new, power: 36.4 kW (49.49 HP), fuel type: diesel, chain condition: 100 %, Year of construction: 2023, operating hours: 5 h, Equipment: additional headlights, cabin, hammer hydraulics, rubber tracks, steel tracks, Comfort package cab (AutoHVAC, 7-inch display) Long dipper arm and heavy counterweight Hydraulic coupling-capable long dipper arm with pin attachment (AUX5) 2nd additional hydraulic line on the long dipper arm, quick coupling Heated, sprung seat with cover and headrest Object handling package Boom with LED lights front and rear Additional hydraulic line Swivel coupling with standard blade, LA + Aux5 E50, E55, E55z, E60, E62 / Protection Plus / 3 years or 3000h Gsdpfx Absnducmeisbw Bucket package for Bobcat E55zE2 V Quick coupler system hydr. SW GE020 - BVC125-E55z Backhoe bucket BG06-0300 SW020 OZ Backhoe bucket BG06-0600 SW020 OZ
