Used Testing Machine for sale (96,467)

Condition: used, Year of construction: 1975, max. wheel diameter 160 - 1.600 mm Itedpfx Aajt Hwptecen gear width 250 mm max. module 20 min. module 1,5 total power requirement 1 kW weight of the machine ca. 3 t dimensions of the machine ca. m

Condition: used, max. wheel diameter 0 mm gear width 0 mm max. module 40 min. module 1 weight of the machine ca. 0,05 t dimensions of the machine ca. 0,5x0,3x0,3 m pitch and run-out tester unit for gear measuring machines. Itsdovn Unyepfx Aacjn

Year of construction: 2007, condition: used, max. wheel diameter 400 mm gear width - mm max. module - workpiece dia. 36-300/400 mm Isdpfx Asgr Hareacotn axis distance 135-290 mm spindle turning speed - stepless 3000 1/min dist. between centers 100-550 mm Control weight of the machine ca. 4000 kg dimensions of the machine ca. 2000x3055x2788 mm Test method: - Single flank rolling test - Double flank rolling test - Structure-borne noise test - Heli testing in two-flank contact. Features: - Use of up to 6 test slides - Highest testing accuracy and repeatability - Machine table with workpiece drive - Swiveling pneumatic unit - Spray oil lubrication (type: Vogel) - Oil mist extraction (type: Elbaron)

Condition: used, functionality: fully functional, The bevel gear testing machine Gleason-Welter 2000 T was designed as a universal machine and is used by manufacturers of gears and transmission technologies for the single flank rolling test process of bevel and crown gears. Iodpfown D Uhjx Aacetn Technical Data Diameter: 2000 mm Spindle bore: 310/250 mm Test speed: 5-100 rpm Dimensions: approx. 4,200 x 4,500 x 2,300 m Machine weight: approx.12,500 kg *Specifications and data are non-binding, subject to prior sale Special Features: Angle-hypoid test device, suitable for testing larger sizes of bevel and hypoid gears with a diameter of up to 2,000 mm and shaft angles from 0 to 360 degrees, as well as straight, helical, and internal gearing. Deviations in gear geometry, machining errors through defective tools, as well as damage to the gears, can thus be identified and eliminated before assembly. The following parameters can be measured here: - Single flank rolling deviation Fi', fi', fl', fk' - Pitch deviations Fp, fp, fu - Runout and roundness - Runout error Fr - Backlash - FFT analysis For technical questions and further information, you can contact us at any time.

Condition: used, Year of construction: 2010, max. wheel diameter 180 mm gear width 40 mm max. module 4 min. module 1 M62 is a manually operated go/no go measuring station for checking the usual gear parameters on gear wheels. Due to the high-precision measuring tools and its robust design, the M62 Flex is ideal for monitoring the quality of gears Isdpfx Asvzh Nqjacetn under workshop conditions during production. M62 provides an accurate and robust solution for quick inspection ofgear teeth after machining, such as hobbing, shaving, grinding and honing on the production line. MARPOSS Industrial PC E9066 N with WINDOWS XP with 15" LCD display with 8 or 12 measuring ports for connecting 12 measuring sensors. Machine dealer with own stock of 1600 m².

Condition: excellent (used), Year of construction: 1986, max. wheel diameter 600 mm gear width 410 mm max. module 20 min. module 0,1 clamping length max. 870 mm Itsdpfxovvciuj Aacsn workpiece weight max. 800 kg weight of the machine ca. 2,1 t dimensions of the machine ca. 1,8 x 1,4 x 2,2 m Checking the dentation Checking the contact line on inclined tooth flanks Checking the tooth flanks on cutting/ scraper wheels Checking the profile and slope of worms Checking of hobs

Condition: used, Year of construction: 1980, max. wheel diameter 400 mm gear width NA mm max. module 5 min. module total power requirement kW Itedpfxst Hw Ebs Aacon weight of the machine ca. t dimensions of the machine ca. m Manual Two Flank Gear Tester

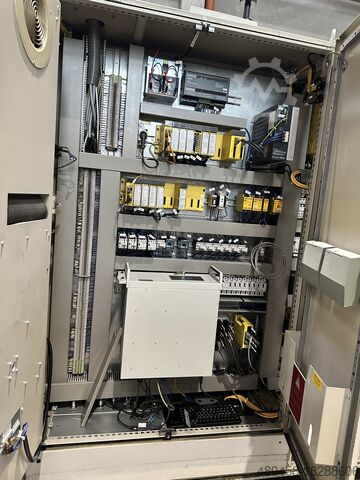

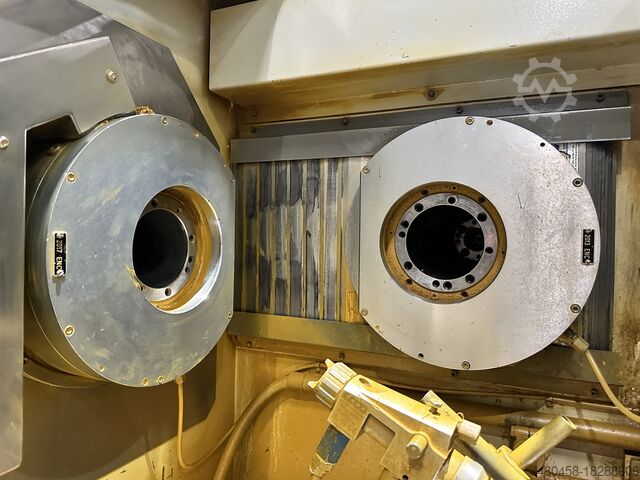

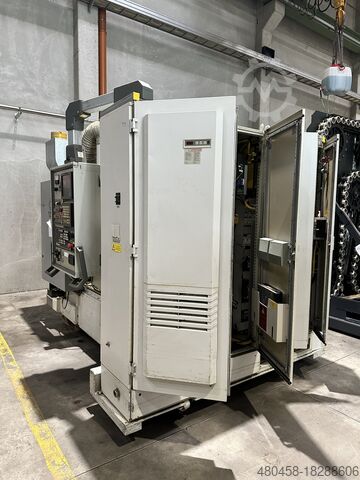

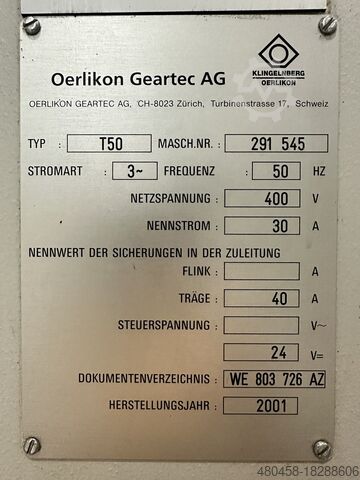

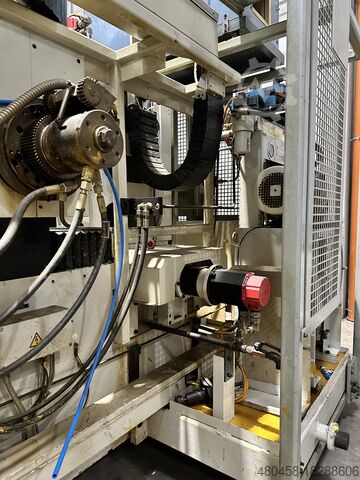

Condition: good (used), Year of construction: 2001, operating hours: 31,789 h, functionality: fully functional, machine/vehicle number: 291545, travel distance X-axis: 70 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 200 mm, gear diameter: 500 mm, helix angle: 90 °, 3-axis CNC testing machine for fully automatic hard and soft testing of spiral and hypoid bevel gears with an axis angle of 90° TECHNICAL DETAILS Bevel gear analysis: ROTEC T50 GA2 Color unit: Binks X-axis: ±70 mm Y-axis: 200 mm Z-axis: 200 mm CNC control: GE FANUC Series 160i-M Technical specifications Wheel diameter: max. 500 mm Pinion diameter: max. 400 mm Circular gear diameter: max. 500 mm Axis angle: 90° Speeds Speed range R: 0 - 3,000 rpm Speed range T: 0 - 5,000 rpm Ijdpfxjvrd T To Aacotn MACHINE DETAILS Rated current: 30 kVA Machine weight: approx. 6.2 tons Space required: approx. 3.2 m x 2.5 m x 2.3 m

Condition: excellent (used), Year of construction: 2010, Material Testing Machine: ZwickRoell GmbH mod.Z005 TN Designed to perform standard tests on materials and components, allowing for precise measurements of strength, flexibility, and other material properties, which are crucial in engineering and material research. With advanced technology and intuitive software, these machines offer efficient and safe operation. The device includes accessories for measuring material tensile strength, compression, and bending. Iodpfx Aajuna Iujcjtn Technical Specifications: • Year of production: 2010 • Maximum load (Fmax): 5 kN • Test dimensions: - Height (without accessories): 1070 mm - Stroke height: 1000 mm • Frame dimensions: - Height: 1340 ... 1345 mm - Width: 770 mm - Depth: 439 mm • Weight: approximately 110 kg • Power supply: 230 V, 1Ph/N/PE, power consumption about 800VA The machine allows for the testing of various materials and components, including: • Construction materials: concrete, steel, wood • Plastics: flexibility, tensile strength • Metals: strength, hardness, and fatigue testing • Mechanical components: compression, bending, and tensile tests • Samples in various forms: thin-layered, block-shaped, tubular Thanks to the system's flexibility, tests can be adapted to specific requirements. TAG: Laboratory Equipment, Material Testing, EPS Styrofoam, Polystyrene Production, Mechanical Testing, Thermal Conductivity, Material Properties, Construction Materials, Quality Control, Engineering Research

Condition: refurbished (used), functionality: fully functional, The Klingelnberg PKE 300 H (PSKE 900) bevel gear testing machine was designed as a universal machine for the flexible machining of gears and is used for single flank rolling tests on bevel gears with evaluation Picture shows machine in actual condition as retrofit / modernized. Performance description: Wheel diameter: 450 (300) mm Axle angle: 90 degrees Hypoid: +/- 60 mm Space requirement approx.: 1.4 x 0.8 x 1.5 mm Machine weight approx.: 1,100 kg Further information on possible options, current purchase price on request. Iedpetncnhefx Aacotn *Information, dates are non-binding, subject to prior sale

Condition: excellent (used), Module range: 0,1 – 2 mm Centre distance range: 25 – 85 mm Ijdpfxowk Iamj Aacjtn Vertical stroke of master gear slide: 40 mm Diameter of measured gear, max. (clamped on arbor): 120 mm Diameter of measured gear, max. (clamped between centers): 80 mm Maximum distance between centers for clamping of measured part: 200 mm Weight of measured gear, max.: 0,5 kg Measuring force adjustment, manually adjustable: 0 – 8 N Standard master gear arbor, diameter: 12,7 mm

Condition: used, Year of construction: 2011, machine/vehicle number: 25621, workpiece diameter (max.): 360 mm, Equipped with: Gear Spindle Runout: -Radial (Bore): .00005 -Axial (Face): .00005 Pinion Spindle Runout: -Radial (Bore): .00005 Axial (Face): .00005 Axis Repeatability: -X: .0001 -Y: .0001 -Z: .0001 Axis Lost Motion: -X: .00005 -Y: .00005 -Z: .00005 Fanuc 160I MB Control Base Work Holding Draw Bars Automatic Doors Spindle Chiller Transformer Hydraulic System Festo Pneumatics Automation Interface Available SPECIFICATIONS: Maximum Gear Outside Diameter: 360 mm (14.2") Maximum Pinion Outside Diameter: 340 mm (13.4") Maximum Pinion Drive Speed: 3000 rpm Maximum Gear Drive Speed: 1500 rpm Offset Vertical 150 mm ( 5.9") Pinion Cone Range: (90) (135-350) Iodoxdfanjpfx Aacetn (70) (146-438)* (110) (51-343)* Gear Cone Range: (90) (65-280) (70) (78-306)* (110) (56-284)* Standard Testing Torque Load 2 to 90 Nm (1.5 to 66 ft-lb). Parallel Axis - face-to-face 147 - 362 - Center Distance -7 - 250 Pinion Spindle Bore 39T - Diameter 99.2 mm (3.9") - Depth 419 mm (16.5") Gear Spindle Bore 39T - Diameter 99.2 mm (3.9") - Depth 250 mm (9.8") Floor Space (width & length) 2100 x 2550 mm (82.7 x 100.4") Height (to top of stack light) 2750 mm (108.3") Weight (base machine) 9100 Kg (20062 lbs)

Condition: good (used), Year of construction: 2002, Clampable cutter head type (max.) 460 mm Cutter head weight (max.) 150 kg Mounting disc diameter for cutter heads (Ø) 360 mm Mounting cone for cutter heads Nominal diameter Ø 58,227 mm travel -z axis 200 mm diagram-drawing enlargement ±10 - ± 500 µm weight of the machine ca. 2,3 t dimensions of the machine ca. 2 x 1,5 x 2,03 m In the manufacturing process for spiral-toothed bevel gears, the quality of the gear cutting gear cutting tools used plays a decisive role. Particularly in Ijdpfjw N S E Aex Aacjtn high gear cutting quality and a long service life can only be achieved with precisely can only be achieved with precisely adjusted cutterheads. The Oerlikon cutterhead setting and testing device CS 200 enables quick and easy setting of the individual knives and simple adjustment of the individual knives, it checks the position and documents the measurement results. The measuring sequence on the CNC-controlled testing device is partially automated: The individual actions for carrying out the actions for carrying out the sequence are displayed on the screen via the operator guidance. The positioning of the individual knives in the cutter head and the height of the knife tips is largely automatic thanks to a special sequence and is simultaneously documented by means of a run-out diagram. A subsequent measuring sequence checks the radial position of the inner and outer cutting edges of all knives in the cutterhead. If individual test parameters on the knives do not correspond to the the tolerance specifications, this can be individually repositioned. The combination of semi-automated setting sequence, operator-guided set-up actions and automatic operator-guided set-up actions and automatic measuring sequence, cutterheads can be can be set conveniently, quickly and with high precision. Operator-guided setting and test sequence - Graphic display of the cutter head design and the measurement results with tolerance check - Instructions for the operator in plain text Instructions for the operator in plain text (without coded information) - Simple assignment of the measurement results to the knives - Documentation of the setting and measurement results via printer- Setting and test sequence suitable for ARCON®, RSR, Spirapid, SPIRON®, TRI-AC® types - Interface for neutral data

Condition: used, Year of construction: 1999, Technical details: max. wheel diameter: 5 - 260 mm gear width: 400 mm max. module: 15 Isdpfx Aaeqvcnnecjtn min. module: 0,5 gear hobbing diameter - internal: 30 mm max. helix angle: > 85 ° Aussenverz. max. helix angle: > 45° Innenverz. Testing Range vertical: 400 mm dist. between centers: 5 - 600 mm table diameter: 260 mm max. table load: 100 kg speeds: 30 1/min total power requirement: 1,6 kVA weight of the machine ca.: 900 kg dimensions of the machine ca.: 200 x 1300 x 2150 mm CNC Gear Tester in good condition, out of OEM Test Lab. For measuring of spur and helical toothing, additional of rotationally symetric parts as true running, coaxiality, axial runout, etc. with tool changer ( 4 nos.) *

Condition: excellent (used), Module range: 0,1 – 2 mm Centre distance range for basic slide: 16,5 – 90 mm Vertical stroke: 50 mm Diameter of measured gear, max. (clamped on arbor): 120 mm Diameter of measured gear, max. (clamped between centers): 80 mm Weight of measured gear, max.: 0,5 kg Measuring force adjustment, manually adjustable: 0 – 8 N Measuring accuracy: up to 1 μm Itodewkhmtspfx Aacjn Standard master gear arbor, diameter: 12,7 mm

Condition: good (used), workpiece diameter between centers: 2,286 mm, The No. 61 Angular Hypoid Tester is designed to test large bevel and hypoid gears up to 90" diameter and with shaft angles from 0 - 135 degrees. Spur, helical and internal gears can also be accommodated. The drive or pinion spindle can be rotated in either direction at a recommended spindle speed of 600 RPM. It is mounted in a head which is vertically adjustable on a column, so that the spindle can be offset either above or below the center line of the gear spindle for testing hypoid gears. The pinion head column is adjustable angularly in a horizontal plane to permit testing of gears of any shaft angle from 0 - 135 degrees. Specifications: Centerline of Drive Spindle to Nose of Brake Spindle (90 degrees shaft angle and without face plate): 38-1/2" Max. / 7-5/8" Min. Centerline of Brake Spindle to Nose of Drive Spindle (90 degrees shaft angle and without face plate): 60" Max. / 10" Min. Centerline of Brake Spindle to Nose of Drive Spindle (90 degrees shaft angle and with 54" face plate): 60" Max. / 28" Min. Centerline of Brake Spindle to Centerline of Drive Spindle (For Spur Gears): 56" Max. / 6" Min. Distance Between Nose of Brake Spindle and Nose of Drive Spindle (for spur gears): 36-1/2" Max. / 0" Min. Iodpfertrzdox Aacstn Offset of Drive Spindle Either Above or Below Centerline of Brake Spindle: 10" Range of Shaft Angles: 0 - 360 Degrees Maximum Diameter of Gear: 90" Diameter of Face Plate: 54" Outboard Bearing: 3" Diameter Hole Spindles: RPM of Drive Spindle Pulley Set No. 1: 100 - 400 RPM of Drive Spindle Pulley Set No. 2: 250 - 600 Diameter of Taper Hole (large end): 6" Taper Per Foot: 3/4" Depth of Taper: 8" Hole Through Spindle: 5-1/2" Net Weight of Machine: 20,000# Net Weight of Machine W/Outboard Support and Bed Plate: 24,000#

Condition: good (used), Year of construction: 2004, Clampable cutter head type (max.) 460 mm Cutter head weight (max.) 150 kg Mounting disc diameter for cutter heads (Ø) 360 mm Mounting cone for cutter heads Nominal diameter Ø 58,227 mm travel -z axis 200 mm diagram-drawing enlargement ±10 - ± 500 µm weight of the machine ca. 2,3 t dimensions of the machine ca. 2 x 1,5 x 2,03 m In the manufacturing process for spiral-toothed bevel gears, the quality of the gear cutting gear cutting tools used plays a decisive role. Particularly in high gear cutting quality and a long service life can only be achieved with precisely can only be achieved with precisely adjusted cutterheads. The Oerlikon cutterhead setting and testing device CS 200 enables quick and easy setting of the individual knives and simple adjustment of the individual knives, it checks the position and documents the measurement results. The measuring sequence on the CNC-controlled testing device is partially automated: The individual actions for carrying out the actions for carrying out the sequence are displayed on the screen via the operator guidance. The positioning of the individual knives in the cutter head and the height of the knife tips is largely automatic thanks to a special sequence and is simultaneously documented by means of a run-out diagram. A subsequent measuring sequence checks the radial position of the inner and outer cutting edges of all knives in the cutterhead. If individual test parameters on the knives do not correspond to the the tolerance specifications, this can be individually repositioned. The combination of semi-automated setting sequence, operator-guided set-up actions and automatic operator-guided set-up actions and automatic measuring sequence, cutterheads can be can be set conveniently, quickly and with high precision. Operator-guided setting and test sequence - Graphic display of the cutter head design and the measurement results with tolerance check - Instructions for the operator in plain text Instructions for the operator in plain text (without coded information) Itodpfjul Efmjx Aacen - Simple assignment of the measurement results to the knives - Documentation of the setting and measurement results via printer- Setting and test sequence suitable for ARCON®, RSR, Spirapid, SPIRON®, TRI-AC® types - Interface for neutral data

Condition: excellent (used), Module range: 0,1 – 2 mm Centre distance range: 25 – 85 mm Vertical stroke of master gear slide: 40 mm Diameter of measured gear, max. (clamped on arbor): 120 mm Diameter of measured gear, max. (clamped between centers): 80 mm Maximum distance between centers for clamping of measured part: 200 mm Weight of measured gear, max.: 0,5 kg Measuring force adjustment, manually adjustable: 0 – 8 N Standard master gear arbor, diameter: 12,7 mm Isdpowkgr Iefx Aacstn

Condition: good (used), Year of construction: 2007, max. wheel diameter 500 mm gear width 200-400 mm module 12 turning speeds 0-3250 U/min bracke pressure bis max. 95 Nm inner taper Konus #39 Control Fanuc 16 total power requirement 15 kW weight of the machine ca. 6 t dimensions of the machine ca. 2.350 x 2.240 x 2.500 mm HIGHLY FLEXIBLE TESTING OF HARD, FINISHED AND GREEN SPIRAL BEVEL AND HYPOID GEAR SETS The T 60 bevel gear testing machine is a CNC testing machine with three linear axes for the fully automatic hard and soft testing of spiral bevel and hypoid gear sets with a 90° axis angle. It offers versatile objective and subjective Iedpfovr Hf Eox Aacstn testing options with speeds up to 3,250 min and braking torques up to max. 95 Nm.

Year of construction: 2024, condition: as good as new (ex-display), Universal testing machine PM5 Force: 5 kN crosshead stroke: 520 mm working chamber depth: 66 mm total height: 1036 mm Weight: approx.48 Kg travel resolution: 0,01 mm test speed: 1-500 mm / min Return speed: 700 mm / min Force transducer: 5 kN incl. evaluation electronics and basic software. Our testing machines can be operated in stand-alone mode via a numeric keypad, so that a "quick test" can also be carried out without a PC. For tests that require data storage and recording of the curve progression, we offer you the possibility of control and evaluation with the basic software. This enables you to generate different test sequences and to create a test protocol. Furthermore, you have the possibility to process the raw data in your own programs. Optional: Ijdpod R Dqbsfx Aacetn - Delivery & Commissioning -DAkkS or factory calibration according to DIN EN ISO 7500-1 - Clamping fixtures: Pressure plates, bending fixtures, shear fixtures, wedge grips, shear grips, peeling grips, screw grips, pneumatic grips and hydraulic grips.

Condition: excellent (used), Year of construction: 2016, XYZ 1550VS Gap Bed Centre Lathe EX Training College Machine 3 Jaw Chuck 2-axis Digital Readout Toolpost & Chuck Guard Footbrake (Modern Triumph 2000 size machine Manufactured & Installed 2016 Machine Capacity: Swing Over Bed 390mm Swing in Gap 610mm Swing Over Cross Slide 150mm Distance Between Centres 1250mm Cross Slide Travel 230mm Spindle: Spindle Speeds 20 – 2500rpm Spindle Power 5.75kW Spindle Bore 54mm Spindle Nose D1-6 For sale with Jet Machinery Ltd Jet Machinery Stock No: #79010 Machine Serial Number: 7715 Cost: £9,950.00 + VAT Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details. Itedpfoxn Sf Sox Aacsn Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.

Condition: good (used), Year of construction: 2018, Table 1473 x 305mm, Traverses XYZ: 1000 x 410mm x 400mm (knee), Ijdpfx Aasxftqdscjtn quill travel 127mm, Spindle Taper ISO40, Power Drawbar, Spindle Motor 5HP, Spindle Speeds 70 - 3600rpm, Prototrak SMX CNC Control,

Condition: reconditioned (used), Kalmijer Cookie machine if you have further questions please send an message Iodpfx Aaekzi Ulscetn

Condition: excellent (used), Year of construction: 2014, XYZ 1020 Vertical Machining Centre Siemens 828D Control Manufactured & Installed in 2012 24 Station Too Carousel 8k Spindle Machine Capacity: Table Size: 1120 x 500 X Axis Travel 1020mm Y Axis Travel 520mm Z Axis Travel 540mm Itjdpfx Aasxndrdocen Rapid Traverses 20,000m/min Spindle: Spindle Speeds – 8,000ppm Tool Shank ISO40 Tool Storage Capacity 24 Tools Spindle Power 20Hp For sale with Jet Machinery Ltd Machine Serial Number: SMU00143 Cost: £27,500.00 + VAT Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details. Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.  

Condition: ready for operation (used), Hereby we offer a unique Italian ice cream machine from lady B trittico. Works on 220v normal plug connection and on water ideal to take with you on a trip or camping! The Bravo Lady B is a compact pasteurization and cooling machine, specially developed for smaller companies such as restaurants, bakeries or ice cream parlors. It combines two essential processes: 1. Pasteurization in the upper vertical vessel, with an adjustable temperature of +65°C or +85°C, depending on the desired pasteurization process. 2. Cooling in the lower horizontal cylinder, in which the mixture is quickly cooled to the desired temperature. A special feature is the patented system with which the hot mixture is transferred internally - without contact with the outside air - from the pasteurization vessel to the cooling cylinder. This guarantees maximum hygiene and enables efficient production. • Maximum filling quantity: up to 2 liters • Power supply: 230 volts, 3.2 kW • Connection system: ready to plug in • Cooling system: water cooling can be connected to a normal tap • Weight: 95 kg • Dimensions: 63 x 36 x 59 cm Maintenance and parts are still available from lobbia refrigeration technology Carpigiani Telme Taylor Kalte rudi Bravo trittico ice cream machines pasteurization pasteurization Itsdpfx Aewgw Tboacsn
