Used Testing Machine for sale (69,893)

Condition: used, Year of construction: 1999, Technical details: max. wheel diameter: 5 - 260 mm gear width: 400 mm max. module: 15 min. module: 0,5 gear hobbing diameter - internal: 30 mm max. helix angle: > 85 ° Aussenverz. max. helix angle: > 45° Innenverz. Testing Range vertical: 400 mm dist. between centers: 5 - 600 mm table diameter: 260 mm max. table load: 100 kg speeds: 30 1/min total power requirement: 1,6 kVA Klodsqvcnnjpfx Ag Uel weight of the machine ca.: 900 kg dimensions of the machine ca.: 200 x 1300 x 2150 mm CNC Gear Tester in good condition, out of OEM Test Lab. For measuring of spur and helical toothing, additional of rotationally symetric parts as true running, coaxiality, axial runout, etc. with tool changer ( 4 nos.) *

Condition: used, Year of construction: 2007, max. wheel diameter 500 mm Hypoid adjustment ±70 mm axial cross angle 90 ° Distance Y- 150 - 350 mm Kledpfx Ajukitxjg Ujl Distance Z-axis 120 - 340 mm turning speed range - stepless 0 - 5000 U/min max. torque on the spindle 57 Nm Cone 99,2 mm Pull-in force Tool clamping 23000 N Braking torque max. 93 Nm total connected load 20 kVA total power requirement 15 kW weight of the machine ca. 6 t dimensions of the machine ca. 2,35 x 2,24 x 2,5 m

Year of construction: 2007, condition: used, max. wheel diameter 400 mm gear width - mm max. module - workpiece dia. 36-300/400 mm axis distance 135-290 mm spindle turning speed - stepless 3000 1/min dist. between centers 100-550 mm Kodpogr Harjfx Ag Ujll Control weight of the machine ca. 4000 kg dimensions of the machine ca. 2000x3055x2788 mm Test method: - Single flank rolling test - Double flank rolling test - Structure-borne noise test - Heli testing in two-flank contact. Features: - Use of up to 6 test slides - Highest testing accuracy and repeatability - Machine table with workpiece drive - Swiveling pneumatic unit - Spray oil lubrication (type: Vogel) - Oil mist extraction (type: Elbaron)

Condition: used, max. wheel diameter 0 mm gear width 0 mm max. module 40 min. module 1 weight of the machine ca. 0,05 t dimensions of the machine ca. 0,5x0,3x0,3 m pitch and run-out tester unit for gear measuring machines. Kodpovn Unysfx Ag Uoll

Condition: excellent (used), max. wheel diameter 400 mm gear width 400 mm max. module 15 min. module 0,5 Control Klingelnberg workpiece weight 300 kg ical angle 0 - 90 ° centre distance 15 - mm weight of the machine ca. 1,9 t dimensions of the machine ca. 2,3 x 1,8 x 2,4 m Fully automatic CNC-controlled gear measuring center Kljdpfx Agoxqrhxe Usl for spur gears and other gears depending on the software. Equipment for internal gears. Software: - Spur gear, hob measuring, worm checking

Condition: used, Year of construction: 2011, functionality: fully functional, PC/LT Tire Endurance Testing Machine 1. Manufacturer • Manufacturer: Tianjin Jiurong Wheel Tech Co., Ltd. • Country of origin: People's Republic of China 2. Machine Identification • Model: TJR-2-PC/LT (JC) • Machine type: PC/LT Tire Endurance Testing Machine • Internal identification: “Tianjin 8” • Serial number: B1060 • Year of manufacture: August 2011 3. Intended Purpose • Durability and endurance testing of passenger car (PC) and light truck (LT) tires • Designed for high-speed and load-controlled tire testing 4. Test Drum and Capacity • Test drum diameter: 2,000 mm • Test drum width: 500 mm • Tire diameter range: 500 – 1,000 mm • Rim diameter range: 12" – 24" 5. Mechanical and Performance Data • Maximum speed (V/MAX): 350 km/h • Maximum test load: 25 kN (approx. 2,500 kg) • Camber angle adjustment range: –6° to +6° 6. Drive System • High-power AC electric motor • Power transmission via multi-belt drive system 7. Electrical and Performance Data • Rated power: 120 kW • Electrical connection: 400 V / 50 Hz • Rated current: 220 A 8. Control and Automation • Control unit (HMI): Allen-Bradley PanelView 550 9. Electrical Equipment • Stand-alone control cabinet Kodpfx Aox Iunleg Usll • Control cabinet manufacturer: Rittal • Integrated active cooling unit 10. Physical Data • Machine weight: 15,000 kg • Overall dimensions (L × W × H): – 7,064 × 2,795 × 2,050 mm

Condition: used, Year of construction: 2005, functionality: fully functional, 1. Manufacturer • Manufacturer: inmess Gesellschaft für Industrie- und Messtechnik mbH 2. Machine Identification • Model: RRT (Rolling Resistance Tester) • Machine number: 05-U-RRT-08 • Year of manufacture: 2005 3. Physical Data • Machine weight: 6,200 kg • Version: Heavy-duty industrial design • Finish: Yellow/Green 4. Test and Performance Parameters • Test wheel diameter: 67 inches (approx. 1.70 m) • Maximum test speed (V_max): 320 km/h • Maximum test load: 2,500 kg Klodpsx Iuhxsfx Ag Usl • Camber angle adjustment range: 0° – 5° 5. Drive System • High-performance electric motor • Multi-belt transmission system 6. Control and Instrumentation • Control unit (HMI): Allen-Bradley PanelView 550 • Instrumentation: – Digital display units JUMO di 308 – For pressure and load monitoring 7. Electrical Equipment • Standalone control cabinet • Integrated active cooling unit

Condition: used, Year of construction: 2008, functionality: fully functional, • Manufacturer: inmess Gesellschaft für Industrie- und Messtechnik mbH • Manufacturer address (as stated on the nameplate): Frankfurter Str. 74, D-64521 Groß-Gerau, Germany • CE marking: Yes • Country of manufacture: Germany Machine Identification • Machine type (M/C Type): PLU • Machine number (M/C No.): 08-M-PLU-01 • Year of manufacture: 2008 Electrical Data (nameplate on the control cabinet) • Supply voltage: 3 × 400 V, 50 Hz • Control voltage: 24 V DC • Rated current: 12 A • Main fuse: 35 A • Rated connected load / Power: 6 kVA Ksdpex Itu Defx Ag Uoll Weights • Machine weight (as stated on the nameplate): 1,900 kg Construction and Design (visible and verifiable) • Enclosed machine housing with transparent safety guards • Integrated control cabinet mounted on the machine frame • Main control panel with push buttons, selector switches, and emergency stop button • Additional emergency stop button visibly installed on the control cabinet • Mechanical working area fully enclosed by safety devices • Central horizontal spindle unit mounted on a rigid yellow machine base • Opposing spindle/support unit visibly positioned on the same axis • Linear guide rails visible on the machine bed • Pneumatic lines present in the working area • Cable drag chain installed for protected cable routing Safety and Warning Instructions • CE conformity marking present • Laser warning symbol affixed to the machine frame • Emergency stop markings visible • Binder containing lockout/tagout operating instructions attached to the machine

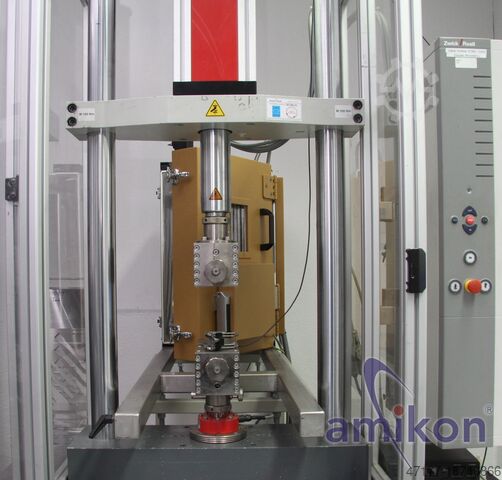

Condition: used, Zwick tensile testing machine Model: Z20 Controller: BX1-EZ020.A4K-000 Technical Data: Stroke: 200 mm Piston dimensions (H x W x D): 1037 x 385 x 180 mm Fmax: 20 kN Vmax: 125 mm/s Accessories: ClipOn extensometer 13.5 mm Extensometer MFA 25 (temperature range up to +200°C) Computer + Software: testXpert II V3.5 Climate chamber: Airtemp LKG-K-TK-50-040/150 Temperature range: -40°C to +150°C Climate temperature range: 20°C to +90°C Humidity range: 10% to 95% Test chamber volume: 50 liters Temperature change rate: 1 K/min Refrigerant: R404, 5 kg Ksdpfx Ajx A Aa Aog Usll Voltage: 400V 3Ph/N/PE/50 Hz 16 A 9 kW Condition: used Total weight: approx. 1500 kg Scope of delivery: (see picture) (Subject to change and errors in technical data and specifications!) For further questions, we are happy to assist you by phone. Written orders possible by email or fax.

Condition: used, Zwick Type: HA 50 Dimensions: H 2685 mm x W 1040 mm x D 750 mm Footprint: 1600 cm² Technical data: Kljdpfx Agex A Aais Usl Fmax: 50 kN Vmax: 1500 mm/s Maximum test chamber height: 1370 mm Test chamber width: 565 mm Accessories: Kistler force sensor 50 kN via NI-Labview Hydraulic power unit 280 bar Mounting surface: 415 cm² Clamping device / specimen holder included (Universal flange, high-strength jaws for specimen holder) Computer + testXpert R V6.0.0 software Condition: used Scope of delivery: (See image) Weight approx. 1200 kg without frame, etc. (Subject to alterations and errors in technical data; all information provided without guarantee!) For further questions, please feel free to contact us by phone.

Condition: used, Zwick Type: Z30 Technical specifications: Overall height 2114 mm, width 748 mm, depth 580 mm Fmax: 30 kN Vmax: 125 mm/s Accessories: Extensometer ClipOn 13.5 mm Extensometer ClipOn 40 mm Kodpfx Ajx Az Skjg Uoll Computer + software testXpert II V3.5 Total weight approx. 500 kg Condition: used Scope of delivery: (see picture) (Subject to modifications and errors in technical data and specifications!) We are happy to answer further questions by phone.

Year of construction: 2013, condition: good (used), Universal testing machine Zwick/roll Type: 1488 Modernized in 2013 with software Test force max.: 200 kN Kjdpfoxw N Uvox Ag Ujll Required space: width: 2,000 mm, height: 2,100 mm, depth: 800 mm, weight approx. 1,000 kg.

Condition: used, Year of construction: 2009, functionality: fully functional, overall weight: 50 kg, total height: 1,090 mm, total width: 330 mm, total length: 530 mm, Used 5 kN tensile and compression testing machine. Can be supplied with load cells ranging from 5 N up to 5 kN, depending on your requirements. The Emperor software works perfectly under Windows 11. Currently, many testers in the Netherlands and Belgium are still operating with this software. The software features an advanced module that allows the programming of highly complex procedures. There is also a basic mode for use in, for example, a production environment. In this mode, tests can be run with a single mouse click, and results are clearly displayed with a pass/fail indication. All data is, of course, stored and can be retrieved later. The price includes a load cell of your choice (subject to availability), delivery within the Netherlands and Belgium, commissioning, and training. We provide a 6-month warranty. If the tester fails within this period, we will repair it if possible; if not, the purchase amount will be deducted as a discount on a new tensile testing machine. Kodpfx Agjx Apnts Uoll

Condition: as good as new (ex-display), Year of construction: 2023, operating hours: 10 h, functionality: fully functional, total width: 330 mm, total length: 570 mm, total height: 1,090 mm, overall weight: 70 kg, Equipment: documentation/manual, The Mecmesin OmniTest tensile/compression testing machine is a robust and precise single-column universal testing machine. Together with the VectorPro MT software, the OmniTest is an excellent choice for product research and materials testing. The sturdy and durable frame accommodates load cells ranging from 5 N up to 5 kN or 7.5 kN. Multiple load cells are available and can be quickly exchanged, allowing for tests to be performed across virtually any required range. Naturally, a wide range of testing setups is available. The tester is designed to deliver outstanding performance and ease of operation at an attractive price. Existing Mecmesin customers are already familiar with the reliable hardware, which is always robust and built for intensive use. VectorPro MT software is user-friendly and available in multiple languages, including Dutch. The intuitive graphical user interface enables any operator to quickly configure and perform tests. Delivery is limited to the Netherlands and Belgium. Key features include: – Simple operation – Load cells from 5 N to 7.5 kN – Software highly suitable for use with touchscreens – Multilingual software, including Dutch – Reporting to Excel, PDF, email, etc. – Various options such as extensometers available – 30 years of experience and satisfied customers – Includes 1-year warranty, commissioning, and training – We select the grippers together with you (not included) A PC (touchscreen) shown in the picture is optional. Klodpfxex Apg Aj Ag Uol

Condition: excellent (used), functionality: fully functional, Universal testing machine for material testing / material inspection Testing of tensile strength, bond tensile strength, and shear strength of masonry & wood joints, and similar applications. Kjdpfjxmv H Rox Ag Uoll - Nail pull-out test - Compression test on cement and mortar prisms - Flexural test on cement and mortar samples - Compaction test - Flexural test on wood, concrete - Shear strength test on wood - Splitting tensile strength test on wood - Scaffold connection test - Shear strength test on masonry - Tensile test on masonry - Tensile test on reinforcing steel - Tensile test on wood - Pull-out test on reinforcing steel - Reverse bending test on reinforcing steel - Dowel pull-out test - Adhesion tensile test I have made a video demonstrating the machine's operation. I can send this video to a mobile number via WhatsApp or Signal!

Year of construction: 2024, condition: new, Universal testing machine H 5 TMNI ( L ) 250mm Extended mechanical construction: according to DIN EN ISO 7500-1 and ASTM E4 2 backlash-free ball screws, brushless drive motor, Fmax = 5 kN, rigidity 9.4 kN/mm 1 work area up to nominal load: Working area width: 420 mm max. test stroke without test tools, adapter and KMZ: 1270 mm max. test area height (between lower fixed and moving crosshead) without test tools, adapter and KMZ: 1325mm Travel speeds: Test speed 0.001 - 1200 mm/min up to nominal load Return speed 1200 mm/min Force measurement: Measuring range depending on the force sensor used 0.4 - 100 % of the nominal load class 1 (optionally class 0.5) in accordance with DIN EN ISO 7500-1 and ASTM E4. Resolution of the force measurement depending on the integration time between: +/-160,000 and +/-900,000 digits. The machine is supplied with a factory test certificate. If a factory or DAkkS calibration is carried out at the installation site at the customer's request, this must be charged separately. Kedpfxjiq Hxvo Ag Ujll Crosshead travel measurement: Incremental rectangular input with encoder monitoring, storage of traverse position Resolution of the crosshead travel measurement:

Year of construction: 2022, operating hours: 10 h, condition: new, Universal testing machine H5TMC mechanical construction: according to DIN EN ISO 7500-1) 2 backlash-free ball screws, drive via AC servo motor, Fmax = 5 kN, stiffness 10 kN/mm 1 working area up to nominal load: working chamber width: 420 mm (optional extensions: +190mm / +330mm / +620mm) max. test stroke without test tools, adapters and KMZ: 1025 mm (optional extensions: +250mm / +500mm) Optional: conversion to floor model, required additional assembly: substructure table Travel speeds: Test speed 0.001 - 2000 mm/min at full load Return speed 2000 mm/min Force measurement: Measuring range: in the range 0.4 - 100 % of the nominal load class 1 (optionally class 0.5) (+/- 1 % of the displayed value according to DIN EN ISO 7500-1) Resolution of force measurement: +/-180,000 digits at 20ms integration time The machine is delivered with a factory test certificate. If, at the customer's request, a factory or DKD calibration is to be carried out at the installation site, this expense must be invoiced separately. Crosshead travel measurement: Incremental rectangular input with encoder monitoring, storage of crosshead position. Kedpfjiq Hw Uex Ag Uoll Resolution of the crosshead travel measurement:

Year of construction: 2023, operating hours: 5 h, condition: as good as new (ex-display), functionality: fully functional, Universal testing machine H5TMCI 250mm Extended mechanical structure: 2 backlash-free recirculating ball screws, drive via AC servo motor, Fmax = 5 kN, stiffness 10 kN/mm 1 working area up to nominal load: working chamber width: 420 mm (optional extensions: +190mm / +330mm / +620mm) max. test stroke without test tools, adapters and KMZ: 1025 mm (optional extensions: +250mm / +500mm) Optional: conversion to floor model, required additional assembly: substructure table Travel speeds: Test speed 0.001 - 2000 mm/min at full load Return speed 2000 mm/min Ksdpfx Asmdpafog Uell Force measurement: Measuring range: in the range 0.4 - 100 % of the nominal load class 1 (optionally class 0.5) (+/- 1 % of the displayed value according to DIN EN ISO 7500-1) Resolution of force measurement: +/-180,000 digits at 20ms integration time The machine is delivered with a factory test certificate. If, at the customer's request, a factory or DKD calibration is to be carried out at the installation site, this expense must be invoiced separately. Crosshead travel measurement: Incremental rectangular input with encoder monitoring, storage of crosshead position. Resolution of the crosshead travel measurement:

Year of construction: 2024, condition: new, Universal testing machine H50TMCI / 900 Watt mechanical construction: according to DIN EN ISO 7500-1) 2 backlash-free ball screws, drive via AC servo motor, Fmax = 50 kN, stiffness 65 kN/mm 1 working area up to nominal load: working area width: 510 mm (optional widening: +240mm / +530mm) max. test stroke without test tools, adapter and KMZ: 1095 mm (optional extensions: +250mm / +500mm) Optional: conversion to floor model, required additional assembly: substructure table Travel speeds: Kljdjiq Hxcepfx Ag Ujl Test speed 0.001 - 800 mm/min at full load Return speed 800 mm/min Force measurement: Measuring range: in the range 0.4 - 100 % of the nominal load class 1 (optionally class 0.5) (+/- 1 % of the displayed value according to DIN EN ISO 7500-1) Resolution of force measurement: +/-180,000 digits at 20ms integration time The machine is delivered with a factory test certificate. If, at the customer's request, a factory or DKD calibration is to be carried out at the installation site, this expense must be invoiced separately. Crosshead travel measurement: Incremental rectangular input with encoder monitoring, storage of crosshead position. Resolution of the crosshead travel measurement:

Year of construction: 2024, operating hours: 4 h, condition: as good as new (ex-display), functionality: fully functional, machine/vehicle number: H2,5TMNI, Universal testing machine H 2,5 TMNI L Please always send your mail address. mechanical construction: Single spindle universal testing machine with backlash-free ball screw in C-frame design with spindle protection and brushless drive motor, Fmax = 2.5 kN 1 working chamber up to nominal load: Working chamber depth: 105 mm max. test stroke without test tools, adapter and KMZ: 1375 mm max. test area height (between lower fixed and moving crosshead) without test tools, adapter and KMZ: 1375 mm Travel speeds: Test speed 0.005 - 1200 mm/min up to nominal load return speed 1200 mm/min Force measurement: Measuring range depending on the force sensor used 0.4 - 100 % of the nominal load class 1 (optionally class 0.5) according to DIN EN ISO 7500-1 and ASTM E4. Kodpfxomdn Trj Ag Uell Resolution of the force measurement depending on the integration time between: +/-160,000 and +/-900,000 digits. The machine is delivered with a factory test certificate. If, at the customer's request, a factory or DAkkS calibration is to be carried out at the installation site, this expense must be invoiced separately. Crosshead travel measurement: Incremental rectangular input with encoder monitoring, storage of crosshead position. Resolution of the crosshead travel measurement:

Condition: not inspected (used), functionality: unexamined, machine/vehicle number: 0032703, Accessories: - Reference plate 63.3 HRC - Reference plate 58.5 HR30N - Test weights 150, 100, 60, 45, 30 kgf - Preload weight - V-anvil - Spirit level - Diamond indenter Klodpfx Agsx E U U Hs Ujl - Steel ball indenter 1/8" - Steel replacement balls 1/8" - Dust cover - Operating manual The diamond indenter is slightly damaged below the tip (minor chipping – see photos).

Condition: used, functionality: fully functional, Year of construction: 2009, 1 Universal Testing Machine Type H 10 KM Used device with Windows 11 software for tensile, compression, and bending tests; comes with one pair of wedge grips up to 10 kN and a certificate for tensile and compression displacement measurement. For testing in tension, compression, shear, bending, etc. • This is a dual-spindle benchtop model. • The machine complies with DIN 51220 and 51221, Class 1. • Digital display for force and displacement, 4½ digits, with peak value memory. • Five-range automatic switching for force and displacement measurements. • Digital speed adjustment from 0.5 to 1000 mm/min in increments of 0.1 mm. • Break detector and automatic return function are standard features. • Driven by a precision servo motor with high-frequency chopper control unit and digital feedback for load-independent, constant speed. • Quiet operation thanks to toothed belt drive and ball screw spindles with bellows cover. • Fully computer-controllable via RS 232 interface. Max. load: 10 kN in tension and compression Max. travel: 1150 mm without grips Force measurement: Strain gauge Ksdpfjxghlfsx Ag Usll Measurement principle: Temperature-compensated Displacement measurement: Built-in optical encoder, 0.01 mm resolution Power supply: 220-250 V, 50-60 Hz Power consumption: 1.0 kW Dimensions: Height 1575 mm, Width 635 mm Clear width of frame: 410 mm Weight: approx. 95 kg Includes: 10 kN load cell and certificate for force and displacement.

Year of construction: 2024, condition: new, machine/vehicle number: H3000-H5000TM, Universal testing machine H3000TM-H5000TM according to DIN EN ISO 7500 The universal testing machine of the H3000TM-H5000TM series is a single-spindle machine, a robust construction made of aluminum and V2a with ball screws, ball bushing guides and toothed belt drive. The bellows cover protects the spindle and guides. The testing machine is microprocessor controlled and has a membrane keypad. The 2-line LCD display shows the force and travel. The testing machine can be used as standalone or with a PC via USB interface. The displacement is measured by means of an encoder 0.01 mm visible resolution on LCD (internal 0.0001mm). The machine is manufactured with a standard load cell: 0.03% linearity and the corresponding calibration. Optionally it is possible to add a second channel for a second load cell or a displacement transducer. The universal testing machine is manufactured with two different travels, 500mm or 1200mm (without load cell and testing tool). Further scope of delivery: One load cell up to nominal load, 220 Volt cable, USB cable, description, CE declaration of conformity. For more information, please refer to the attached description. Load cell 3000N-5000N Measuring range: 5-5000N tension and compression, with nom. 2mV/V output signal, overload protection: +/- 1000%, linearity: +/- 0.05%, hysteresis: +/- 0.03%, repeatability: +/- 0.02%, with, incl. 1.5m connection cable incl. calibration certificate Long travel extensometer HE 900mm measuring travel, measuring arms motorized, including electronics Accuracy class class 1 from 1mm travel according to DIN EN ISO 9513 Measuring principle optical incremental Measuring path 900 mm , minus measuring length Display error 6 µm or 2 Ksdpeiq Hxkefx Ag Uoll Resolution 1 µm Actuating force 10 cN Standard initial device measuring length (Lo) 10-100 mm, in 5 mm steps Lo adjustment is manual Measuring arm opening and closing is motorized specimen diameter 0-30 mm specimen thickness 0-30 mm sample width 0-100 mm Weight approx. 32kg Scope of delivery strain gauge complete with electronics Cutting edges round: 1 set each carbide / rubber wear parts measuring blades optional rectangular cutting edges ATTENTION: When using optional cutting edges a readjustment of the lo a readjustment of the lo stop is necessary.

Condition: good (used), Year of construction: 2014, functionality: fully functional, machine/vehicle number: H50KS, tractive force with load: 50,000 N, Universal testing machine, type H50kS up to 50KN for tension and compression Load cell 50KN 10KN 1KN and Windows software 8-9-10-or 11 Klsdpfeq Ruw Nex Ag Uel for tension, compression, bending, shear etc., according to EN ISO 7500-1, ASTM E4 The H50kS is a universal testing machine developed according to the latest standards. The machine operates in accordance with the relevant radiation protection and safety directives in the EC. (EN 50081-1, 72/23/EEC, EN 61010-1) The maximum voltage within the machine is 48 volts. Special features - large, easy-to-read liquid crystal display with backlighting - Graphical or numerical display mode - alpha-numeric file input - speed range 0.001 to 500 mm/min. - high return speed 0.001 to 500 mm/min. - exact crosshead positioning - Robust load frame - Output report of results with mean value and standard deviation via printer - Large selection of test software under Windows for various standards - RS232 interface mode for use with computer system - Accuracy of load cell force display 0.5 % over the entire range - Displacement display accuracy 0.001 mm - Equipped with a force and displacement alarm system - 32bit motor controller - 20% digital weight blanking during load cell capacity check - Automatic motor alarm in case of over or under voltage and overheating Specifications: - Force measurement accuracy +/- 0.5 % of the displayed force in the range 2% to 100% - Accuracy of position measurement +/- 0.01 % or 0.001 mm - Speed accuracy +/- 0.005 % of the selected speed - Operating temperature 0 to 38°C - Humidity range 10% to 90% Technical data: - Two-spindle table model - maximum load 50kN in tension and compression - maximum stroke 1100 mm without clamping fixtures - for further details please refer to the brochure Dimensions: Height: 1613 mm width: 720 mm Depth: 500 mm Weight: 140 kg Connection: Machine: 50-60 Hz - 2000 W Power supply: 220/240VAC

Condition: used, Year of construction: 2001, max. wheel diameter 400/500 mm Ksdpfx Aovxwxcjg Usll CNC-Control GE FANUC Series 160i-M pinion diameter - max. 400 mm crown gear diamter max. 500 mm x-axis +/- 70 mm y-axis 200 mm z-axis 200 mm axis angle 90 Grad speeds: R T min rated current 30 kVA weight of the machine ca. 6,2 t dimensions of the machine ca. 3,2 x 2,5 x 2,3 m
