Used Dowel Drilling Machine for sale (65,348)

Condition: used, Year of construction: 2017, Number of drilling spindles: 21 units Pitch: 32 mm Drill chuck: Clamping surface, drill shank: 10 mm Operation: Foot pedal Tools: Yes, in mm Drilling direction: from below and from the front Swiveling: Manually Swiveling angle: only 0° or 90° Dedpfx Aasihghrj Hjcl Max. pass-through height: 80 mm Max. pass-through width: 750 mm Number of material clamps: 3 units Type of material clamping: pneumatic Design: Stationary Stop system: only for this series Weight approx.: 400 kg Motor power: 1.5 kW Dust extraction diameter: 120 mm Location: Customer

Condition: used, Dowel drilling machine, dowel drilling machine, drilling and dowel station, row of holes dowel drilling machine, knothole drilling machine, row drilling machine, drilling beam, multi-spindle drilling head, articulated multi-spindle head, row drilling machine, dowel drilling head, dowel drilling machine, drilling gear -Workpiece clamping; pneumatic -Number of drills: 21 pieces. 32 mm grid -Bore head: swiveling -Bore depth: max. 80 mm -Height adjustment: max. 80 mm Dcsdpjf Dlurjfx Aa Hol -Underframe: transport castors that can be steered on 4 pieces -Dimensions: 1090/1330 / H1460 mm -Weight: 433 kg

Condition: used, Year of construction: 1993, Used machine Year of manufacture: 1993 Features and technical data: 2-jaw drill chuck up to 20 mm shank diameter Pneumatic positioning adjustment on 2 levels 0-100 mm Max. drilling depth: 150 mm Precision indexing rail 12 mm Center locking and cross adjustment 2 pneumatic safety clamping cylinders Motor 1.5 kW Dodpew I Uy Tjfx Aa Hecl Speed: 2800 rpm Long hole drilling device, lowerable, with 2 program cams Machine weight approx. 310 kg Machine dimensions (W x D x H): 1100 x 1100 x 1500 mm (without stop) Availability: short-term Location: Röllbach

Condition: used, Year of construction: 1992, Number of spindles per row of holes: 16 Dcjdpfswv Nb Nsx Aa Hjl Number of horizontal spindles: 5 Cup hinge drilling head: yes Drill pitch: 32 mm Hold-down device: yes / pneumatic Power consumption: 2.2 kW Drilling unit: swivelling

Condition: used, Year of construction: 2018, 1 x CNC-CONTROLLED DRILLING, GLUING AND DOWEL INSERTING MACHINE GANNOMAT "INDEX 130 PRO" (with options as Index 180 Pro) 400V, 3Ph, 50Hz complete in standard design with: - Support with linear guide consisting of: 1 x single-spindle horizontal drilling unit, 1.1 kW motor, tool speed selectable via operator software (3000/5000/8000 rpm) 1 x blow-out, gluing and dowel inserting station in reinforced design for dowels Æ 8 mm, dowel length 30 mm - fully automatic, electronically controlled central lubrication - X-axis NC controlled, with working length 1300 mm, travel speed max. 78 m/min. - Z-axis, position via support table 5-40 mm programmable with NC-controlled Z-axis option - Dowel driving overhang of 7-20 mm, programmable with NC-controlled Y-axis option, drilling depth of 0-35 mm (with drill length GL 70 mm) is automatically set with driving overhang - Closed glue system with 6 bar glue pressure via glue nozzle, for glues with a viscosity of 150 to 350 mPas - Glue quantity continuously adjustable via operator software - GL/WATER selector switch for rinsing the glue system, 1 stainless steel container each for 5 kg glue and 5 l water - Control lamp for residual glue quantity display in the glue container - 1 side stop left, 1 side stop right and 1 center stop (all removable) - 4 start buttons for individual working with 1-4 workpieces - 4 pcs. Pneumatic inclined clamping cylinder 10° for workpiece thicknesses up to max. 80 mm, workpiece length (Y) min. 70 mm - 1 pc. suction funnel, connection Æ 80 mm - 1 pc. TCT control with: built-in industrial PC, incl. Soft PLC type Beckhoff TWINCAT, operating temperature range 0-50°C, TFT industrial display 15" resistive touchscreen, resolution 1024 x 768, CPU 2 GHz, 256 MB RAM, 2x network interface adapters, IDE hard disk, 4x USB rear, 1x USB front, operating system: WINDOWS 7 - programming via menu-driven user software, drilling distances freely programmable with ABSOLUTE, RELATIVE or GRID dimensioning, automatic workpiece mirroring and work step optimization, 4 work fields can be assigned with different programs, graphic workpiece display, parametric programming, 0-point shift, programmable work lists, error diagnosis with plain text OPTIONS: 1 electronic, optical glue monitoring system G.I.C. (Glue Insert Control) for 1 glue nozzle 4 vertical inclined clamping cylinders 10° with holder, additionally, (total 8 clamping cylinders) 1 surcharge for machine bed length 1800 mm with working length 1800 mm 1 surcharge for: 1 horizontal drilling unit, motor 1.5 kW, with multi-spindle drilling head with 3 individually controllable drilling spindles, pitch 32 mm arranged in X-axis, tool speed 3000 rpm. (The standard working length is not reduced) 1 Y-axis NC-controlled, with recirculating ball screw and dynamic traversing speed of 300 mm/sec. The dowel driving overhang 7-30 mm and the drill hole depth 0-42 mm can be programmed via software. (with drill length GL 77 mm) for vertical drilling unit drilling from TOP, Y-axis position 5-42 mm 1 surcharge Y-axis NC-controlled position 5-62 mm instead of 5-42 mm 1 surcharge for: 1 vertical drilling unit drilling from TOP, motor 1.5 kW, with multi-spindle drilling head with 3 individually accessible drilling spindles, 32 mm pitch arranged in X-axis, tool speed 3000 rpm. Y-axis position 5-42 mm, workpiece length (Y) min. 130 mm, (the standard working length is not reduced) 1 Z-axis NC-controlled, with K Dedpjxwaz Hefx Aa Hocl

Condition: used, Year of construction: 1985, Second-hand machine Year of manufacture: 1985 Universal dowel drilling machine with a swivelling drilling unit with fully automatic control with 2 safety pneumatic clamps Drilling gearbox, 2.2 kW motor with 21 spindles Spindle pitch 32 mm with integrated oil damping Height adjustment: 80 mm Drilling depth 80 mm Weight: 420 kg Availability: at short notice Dcsdpfxozk N A Te Aa Hel Location: Röllbach

Condition: excellent (used), Year of construction: 2002, I sell the CNC drilling machine with inserting BIESSE COMIL INSIDER KTC. Year 2002. 2 pcs. CNC drilling heads from top. 1 pcs. Glue spraying head 3 pcs. 3Master vibratori Vibration dowel inserting device. Part of the BIESSE line consisting of: COMIL Insider drilling - milling - grooving - dowel inserting - gluing - accessories inserting line Dcodpfx Ast N Rixoa Hol Manufacture year 1999-2001. Possible to sell the machines separately. Vibration loaders and conveyors on agreement. For more photos and details please send the request.

Condition: used, Year of construction: 2024, DOWEL HOLE DRILLING MACHINE GANNOMAT "DB 21400V, 3Ph, 50Hz / 1.5 kW, complete in standard design with: - Fully automatic electronic control with pulse operation via foot valve for clamping-drilling-releasing, electric intermittent operation. - Automatic retraction of the drilling unit after reaching the set drilling depth. - Automatic extension of the drilling hole depth when drilling on the end face. This eliminates the need to adjust the drilling hole depth from flat-face to end-face drilling (+10 mm, e.g. for a dowel length of 35 mm, drilling depth on the flat face 14 mm and drilling depth on the end face 24 mm). - 1 drilling bar with 21 spindles, pitch 32 mm, motor 1.5 kW (drilling feed 0-70 mm), incl. 21 quick-change chucks (Ganner system) for easy changing of the drill bits. - Easy pivoting of the drilling unit from 0° to 90°, supported by gas cylinders. - 1 clamping support movable in the Y-axis with 3 pneumatic clamping cylinders, for workpiece height up to max. 80 mm. Ideal stop system consisting of: - 1 stop rail 1800 mm for drilling shelves (aluminum profile 40x40 mm) with 3 stop blocks, with quick-change system, easily interchangeable from right to left stop side for drilling shelves in carcass structures in mirrored fashion, also suitable for row drilling in the 32 system. - Side stops and position settings, as well as the position of the drilling height above the support table, are adjusted by means of mechanical digital counters. - Side stops can be easily pivoted away, for the shortest possible conversion from carcass to frame and row drilling. - Clamping arms for the clamping support designed for row drilling positions up to max. 300 mm. - Ideal three-stage tool system. - 1 set of drill bits for dowels: - 5 carbide dowel drill bits, Ø 8x77 mm, right-hand - 4 carbide dowel drill bits, Ø 8x77 mm, left-hand Basic machine DOWEL HOLE DRILLING MACHINE GANNOMAT "DB 21400V, 3Ph, 50Hz / 1.5 kW, complete in standard design with: - Fully automatic electronic control with pulse operation via foot valve for clamping-drilling-releasing, electric intermittent operation. - Automatic retraction of the drilling unit after reaching the set drilling depth. - Automatic extension of the drilling hole depth when drilling on the end face. This eliminates the need to adjust the drilling hole depth from flat-face to end-face drilling (+10 mm, e.g. for a dowel length of 35 mm, drilling depth on the flat face 14 mm and drilling depth on the end face 24 mm). - 1 drilling bar with 21 spindles, pitch 32 mm, motor 1.5 kW (drilling feed 0-70 mm), incl. 21 quick-change chucks (Ganner system) for easy changing of the drill bits. - Easy pivoting of the drilling unit from 0° to 90°, supported by gas cylinders. - 1 clamping support movable in the Y-axis with 3 pneumatic clamping cylinders, for workpiece height up to max. 80 mm. - Ideal stop system consisting of: - 1 stop rail 1800 mm for drilling shelves (aluminum profile 40x40 mm) with 3 stop blocks, with quick-change system, easily interchangeable from right to left stop side for drilling shelves in carcass structures in mirrored fashion, also suitable for row drilling in the 32 system. - Side stops and position settings, as well as the position of the drilling height above the support table, are adjusted by means of mechanical digital counters. - Side stops can be easily pivoted away, for the shortest possible conversion from carcass to frame and row drilling. - Clamping arms for the clamping support des Dedpfoxnlflsx Aa Hjcl

Condition: like new (used), Year of construction: 2000, functionality: fully functional, Dowel and slot drilling machine GANNER GANNOMAT JUNIOR 323 in very good condition, the machine is in absolute new condition; it comes from a very small carpentry shop and only has some paint damage, as it has not been used for about 18 years. With this machine, you can mill slots and drill dowel holes on 2 levels without re-clamping. 380V, 1500W 2800 rpm Year of manufacture 2000 With this machine, you can mill slots for, for example, lock boxes and similar items, or produce all types of frame dowel connections at right angles, flush, and mitered. Ideal for the production of dowel connections in timber frame construction, furniture, door, window, and stair construction, and for similar applications. Drilling on 2 levels, the grid and stops, and the design of the machine allow dowel connections to be produced in a very short time, which makes the machine very economical. The machine requires a compressed air connection of 6 bar (the air consumption is very low). Right-hand rotation. Mills and drills very well and cleanly. With 2 angle stops (one center stop and one side stop that can be used on both sides). At the front of the machine table, there is a 2000 mm long stop rail with 2 folding stops; the stop rail can be shortened or extended if required. The workpiece is clamped using 2 pneumatic clamping cylinders. The height adjustment from one drilling level to the other is also pneumatic; the pneumatic switch for this is located at the front of the machine, which ensures a quick adjustment of grids and the drilling levels. The heights of the individual drilling levels can be read on 2 mechanical dials; adjustment screws are located above the dials, which can be used to adjust the drilling heights. With a precision 12 mm grid rail, which has a center grid and 12 grids on the left and right. Can be quickly converted for slot milling; the machine can then be used without a grid with 2 adjustable stops on the left and right and then has a working width of max. 420 mm. The max. drilling hole height is 100 mm. The max. drilling hole depth is 150 mm with stop and scale. The max. workpiece height is 160 mm. Dodpfezxuiuex Aa Hecl Everything is in perfect working order. We will personally deliver and demonstrate the machine throughout Germany for 220.00 euros, which means you have no risk when purchasing; delivery to Austria and the EU is also possible upon request. The machine table is 870 mm wide, 140 mm deep on the sides, and 350 mm deep in the center. Professional equipment, not cheap hardware store junk. You can start working with the machine immediately. With 2 chucks up to 20 mm. Very stable and durable design. The precision guides with the play-free ball bearing bushes are OK and move smoothly.

Condition: used, Year of construction: 1983, with 2 drilling beamused, good conditionmanufactured by Scheertype DB 3built in 1983Masch.-No. 83120number of spindles 25 piecenumber of drilling beams 2Spindelabstand / grid 32 mmdrilling from tophydraulic feeder brake 2 pieceguide fence 1 piece ca. 2500 mmworking width ca. 800 mm (768mm)drilling depth ca. 100 strokedrill chuck M 10pendulum fence 3 piececlamp 3 piecedrilling programs 4 piecerequired space ca. 1400 mm x 1300 mm x 1800 mmweight ca. 1000 kglocated in 97447 Gerolzhofen, free on truck, unverpacktsale in current condition as seen,without revision,without guarantee and Gewährleistung Dedpfx Aajvwf N Hj Hocl

Condition: used, Year of construction: 1997, Used machine Year of manufacture 1997 Universal dowel drilling machine with drilling from below heavy cast-iron table pneumatic swivel device; effortless changeover from vertical to horizontal or to any mitre angle drilling unit with digital positioning for zero-edge transfer, touch stops are used which, during horizontal drilling, transfer the tool thickness to the vertical drilling for row-hole drilling, the stop system is slid into guides on the side of the machine table Working width 700 mm Portal clearance max. 850 mm Drilling depth max. 80 mm Operating pressure 6-8 bar Motor 1.9 kW Spindle speed 2800 rpm 21 spindles, pitch 32 mm Spindle spacing min. 32 mm Spindle spacing max. 640 mm Space required L x W x H 960 x 630 x 1140 mm Weight approx. 300 kg Dcjdpfx Ajzlbqfja Hel Availability: at short notice Storage location: Flörsheim

Condition: used, Year of construction: 2005, Second-hand machine Year of manufacture: 2005 Features and technical specifications: - Motor: 400 V, 50 Hz, 3-phase, 1.5 kW - Pneumatic single-head drilling machine with 23 spindles - Aluminium ruler with 4 stops (2 profiles on the right/left, 1500 mm each) - with quick-action chuck - 2 patented, accident-proof pressure clamping cylinders - Connection for extraction system in accordance with EC standards - Aluminium drilling beam, spindle centre distance 32 mm - Work table made of MDF and cast iron - Patented spiral system for fine adjustment of the drilling depth - Pneumatic drilling head oscillation with Lockable in any position between 0° and 90° - Fold-down side stops with fine adjustment via counters with decimal display - Drilling height adjustment via dial gauges with decimal display - Back stop, travel up to 300 mm - Fixed stops 37 mm for fitting pot-type band drills - Complies with EC standards - Max. drilling width 704 mm - Max. drilling depth 65 mm Dsdpfxjzk N S Uj Aa Hecl - Max. workpiece width 960 mm - Max. workpiece length 3000 mm - Max. workpiece thickness 60 mm Availability: at short notice Storage location: 63934 Röllbach

Condition: used, Year of construction: 1970, 3 -- -- Djdpfxozycrms Aa Hscl --

Condition: used, Year of construction: 1997, Second-hand machine Year of manufacture: 1997 Features and technical specifications: - Number of drilling spindles: 21, spaced at 32 mm intervals - Drilling direction: Bottom & end face - Swivel range: 0–90 degrees via handwheel Djdpfx Aaozn Ah Rs Hscl - Pneumatic workpiece clamps: 3 pcs. - Opening: Max. 100 mm in height and max. 640 mm in width - Motor: 1.5 kW - Extraction diameter: 120 mm - Includes a wide range of stops (see pictures) Availability: at short notice Storage location: 63934 Röllbach

Condition: used, Year of construction: 1980, second hand Make Scheer Type DB 5 Year of construction 1980 Machine no. 508054 Number of spindles 21 pieces Number of drilling beams 1 drilling from below pivoted manually Working width 800 mm Drilling depth 80 mm Tensioner 2 pieces Pitch 32mm Space requirement approx. LxWxH mm 1200x800x1300 Weight approx. 300 kg Total connection value 2.2 kW Storage location 97447 Gerolzhofen Handover in the current condition as seen - free loaded - Djdpfxevwfuve Aa Hocl

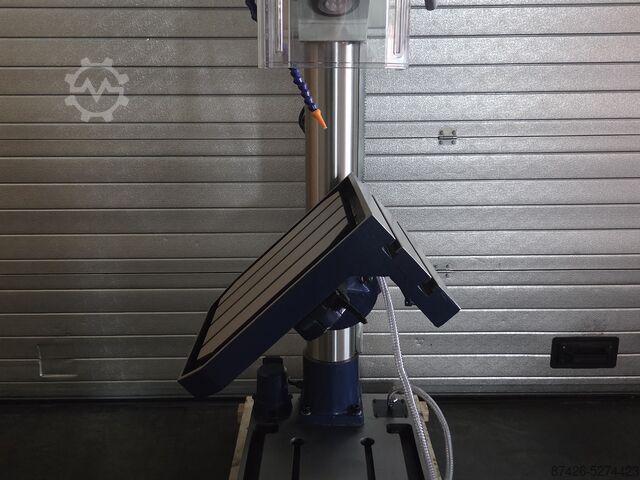

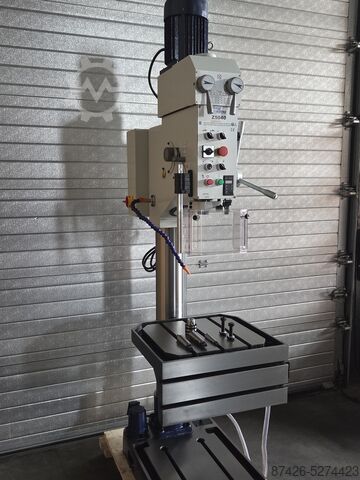

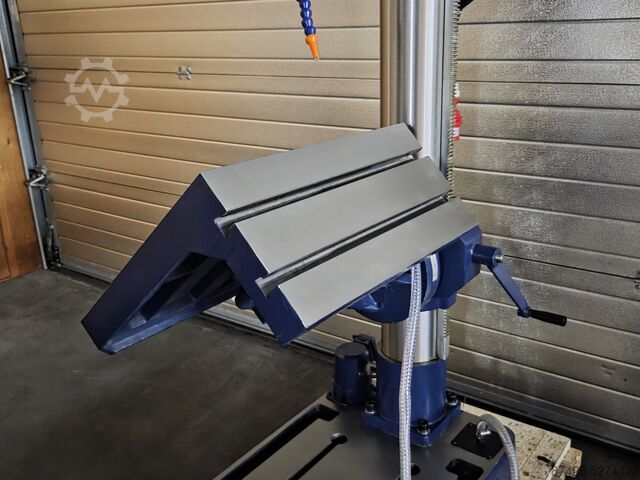

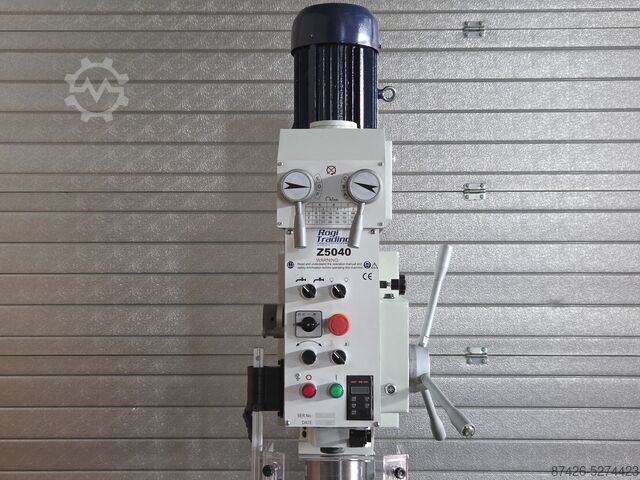

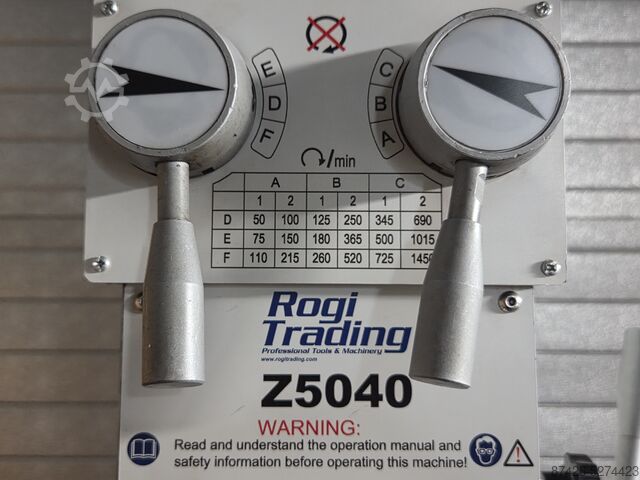

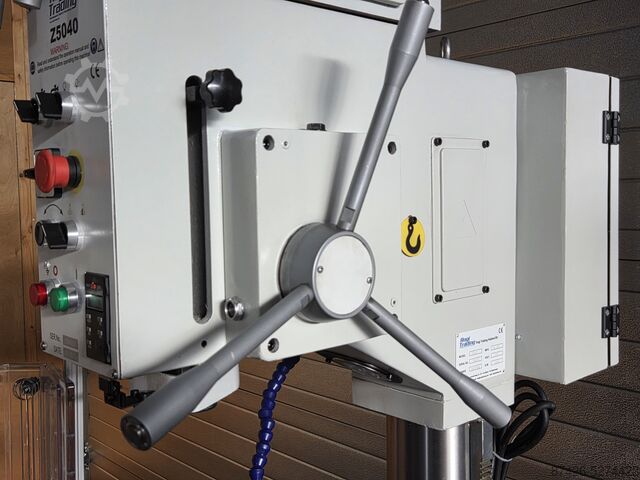

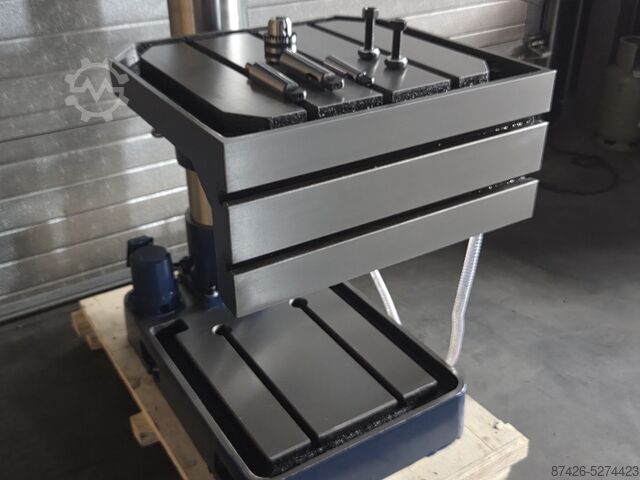

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, input voltage: 400 V, spindle mount: MK 4, drilling depth: 150 mm, total width: 500 mm, total length: 700 mm, overall weight: 290 kg, Equipment: documentation/manual, 3-phase 400V, 2-speed motor is running smoothly! Geared head with 8 spindle speeds. Spindle RPM adjustable from 75 to 3010. Motor runs in both left and right directions. Spindle power downfeed. 8 feed rates adjustable from 0.004 to 0.30 mm/revolution. Adjustable drilling depth. Maximum drilling depth: 150mm MT4 spindle mount. Tool ejector. E-Off switch. Head and table are height-adjustable. Table size: 500x400mm Good overall condition. Made in Sweden. Year of manufacture: 2008 Weight: 290KG Dcodpfozycqcsx Aa Hsl Overall dimensions: 70x50x180CM Contact us for shipping options! €2,850.00

Condition: used, Second-hand machine For dowel drilling on flat or end faces with roller-bearing-mounted drill shaft and tapered claw coupling Driven by any hand-held drill Working width 650 mm with 7 drill shafts Swivelling drilling beam 0° – 45° – 90° Clamping height 80 mm Minimum drill hole spacing: 30 mm Dcsdpfx Aezk Nq Doa Hjl Availability: at short notice Storage location: Flörsheim

Condition: used, Year of construction: 1997, Second-hand machine Dsdpfx Aezk Nuioa Hscl Year of manufacture: 1997 Condition: well-maintained Features and technical specifications: - Number of drilling spindles: 21, spaced at 32 mm intervals - Drilling direction: from below & from the front - Swivel range: 0–90 degrees via handwheel - Pneumatic workpiece clamps: 3 pcs. - Passage dimensions: max. 100 mm in height and max. 640 mm in width - Motor: 1.5 kW - Extraction diameter: 120 mm - Includes a wide range of stops (see images) Availability: at short notice Storage location: Röllbach

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 2800x1100x2200 mm Weight 1100 kg Dedpsvz Hwajfx Aa Hocl Total power requirement 8,8 kw Horizontal and vertical drilling machine MULTI MZ3x8 - Max. Center Distance Between Holes 2440(L)mm x 300(W) mm- Min. Center Distance Between Holes 220(L)mm x 32(W) mm - cess length 2440 mm - cess length 220 mm - Plate thickness 12~40 mm - Total number of drilling bit 32pcs - Horizontal backside drilling rows 4 rows - Max. drilling dia. 35 mm(Single bit) and 13 mm (Multi)- Max. drilling depth 50 mm - Dia. of drilling bit shaft 10 mm - Length of drilling bit 57 mm/70 mm - Drilling bit speed 2840 rpm - Qty of horizontal L&R drilling rows 2 rows - Qty of vertical up drilling rows 2 rows - Air pressure 0.5~0.6 Mpa - Total power 8.8 kw - Net weight 1100 kg - Overall dimension 2800 x 1100 x 2200 mm

Condition: used, Scheer DB 5 dowel hole drilling machine for the precise and rapid drilling of dowel holes (horizontal and vertical) in solid timber and board materials. The machine is ideal for mass production in furniture manufacturing as well as for precise joints in interior fit-out work. Includes a comprehensive range of dowel bits. Technical data: Dcodeztvx Tepfx Aa Hjl - Drilling spindles: 21 - Pitch: 32 mm - Passage width: max. 1,000 mm - Swivel mechanism: pneumatic - Fax: , Mobile: , Machine No. 208695, Jan 2011, Cost price €1,000 - D-89440 Lutzingen, Tel. , Fax: , April 2015, purchase price €500

Condition: ready for operation (used), Year of construction: 1994, overall weight: 7,000 kg, arm length 2150 mm, drilling capacity 80 mm Dsdpfx Aeyzq Dpoa Hocl weight 7000 kg

Condition: excellent (used), Year of construction: 1998, Hofmann HT 200 U frame dowel and elongated hole drilling machine with adjustable angle. Special drilling machine for staircase construction, window construction and universal applications through pneumatic height adjustment. Angled dowel drilling and picket drilling can be easily performed using the rotating drilling unit. Motor with pole change, two speeds Motor power 1.5 / 1.8 kW, 1400 / 2800 rpm Motor start with a practical handle switch Precision chuck with two inserts, 16 mm and M10 thread Table size approx. 1100 x 240 mm Linear laser for precise positioning of the workpiece Drilling unit can be rotated 65 degrees to the left and right Pneumatic adjustment of the machining height, dowel drilling on two levels without retooling The desired drilling heights can be set for each drilling level using a handwheel and digital counter; switching then takes place pneumatically from the front Cross adjustment approx. 320 mm, stepless or in a 12 mm grid Drilling stroke approx. 200 mm 2 pneumatic workpiece clamps, can be positioned at the front and rear of the table 2 swiveling workpiece supports 2 side stops, can also be used as a front support Undercarriage Dedpsyfta Tefx Aa Hecl Dust extraction connection 80 mm 4 used but good drills 9, 12, 16, 19 mm Few paint spots have been touched up, very good condition, see original photos. A used swiveling elongated hole drilling machine in this condition is rarely available. CE marking Operating manual Dimensions approx. 1200 x 1200 x 1200 mm (L x W x H), weight 310 kg. The machine can be demonstrated on site by appointment. We only offer machines that are ready for demonstration and are stored in our warehouse, see "other offers from this supplier".

Year of construction: 2014, condition: ready for operation (used), functionality: fully functional, We are offering this ready-to-use, "DIY" multi-spindle drilling machine, manufactured in 2014. Dcsdpfxsznlype Aa Hol Manufacturer: DIY, pneumatic Overall width: 3200mm Connection: 3-phase Model: See image Year of manufacture: 2014 Condition: ready for use Category ID: 137 Type: Multi-spindle drilling machine If you have any questions or would like more information, please feel free to send us a message or call us.

Condition: used, Year of construction: 2014, Drilling and dowel insertion machine Manufacturer: Weeke Type: OPTIMAT ABD150 Year of manufacture: 2014 Technical data Dcjdpfxozuyn Io Aa Hel Note: The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.

Condition: good (used), functionality: fully functional, fuel type: electric, Core drilling unit / core drilling machine Manufacturer: HILTI with core drilling stand with the core drilling bits shown in the picture with extension, etc. Dodpfx Aaozw Uz Us Hocl Pickup or shipping available! Both options are possible!
