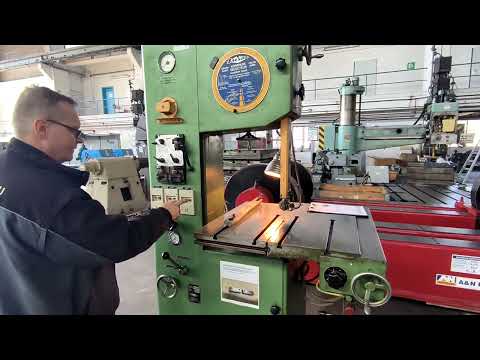

Band Saw - Vertical

JAESPA AS 4

Condition: good (used), Year of construction: 2000, functionality: fully functional, drilling capacity: 40 mm, quill stroke: 200 mm, quill diameter: 80 mm, Machine design - Work table 1800 x 600 mm with 4T-slots - Boom travel 1050 mm - SK 40 drilling spindle with tool clamping device - Infinitely variable speed programming - Infinitely variable quill feed via three-phase servo motor - 2 T-slots 18 mm on the machine base at the rear - 2 T-slots 18 mm on the left machine base frame - Thread cutting device - Central lubrication - Coolant device - Machine light - CE marking - Safety device - USB interface Dimensions and travels Tool holder SK 40 Column diameter mm 195 Table dimensions mm 1800 x 600 Number of T-slots 4 Distance between T-slots mm 125 Quill stroke (Z-axis) mm 200 Column stroke (W-axis) mm 410 Distance spindle bottom edge - min mm 70 Table top edge max. mm 680 Distance spindle bottom edge - min mm 970 Floor max. mm 1580 Drilling radius mm 540 - 1590 Worktable height mm 900 Cutting values Drilling capacity into solid St 60  40 GG 22  50 Thread cutting St 60 M 36 GG 22 M 42 Main spindle drive AC motor, frequency-controlled kW 5.5 at 100 % duty cycle. Speed range: min -1 15 - 2800 Torque Nm max. 250 constant from min -1 15 - 2000 Feed drives X-axis - AC - servo motor kW 0.25 Y-axis - AC - servo motor kW 0.25 Z-axis - AC - servo motor kW 4.50 W-axis - AC - servo motor kW 2.50 Rapid traverse speeds (X/Y/Z): m/min. 7.5 / 7.5 / 5 Rapid traverse speeds (W): m/min. 3 Feed rates stepless mm/min 5 - 2000 Accuracy Positioning accuracy X-, Y-axis to 1200 mm mm ± 0.075 Hjdpfeu Aa I Sox Adbsi Electrical data Operating voltage / frequency V / Hz 400 / 50 Control voltage V 24 Hydraulic unit for clamping kW 0.75 Total connected load kVA 13.0 Weight Danumeric 440 (without packaging) with table 1800 x 600 mm kg 2800 CNC control Axes: 4 (X, Y, Z, W), expandable Processor: 32-bit CPU Screen: TFT flat screen, backlit, easy to read from all sides legible from all sides, 215 x 160 mm Position information: Cartesian or polar, absolute or incremental measurements, Unit of measurement: mm or inch or in degrees Interpolation: 2 axes (X, Y) Technology database: tool management, tool suggestions according to machining type, material-dependent cutting data suggestions Tool management: max. 500 tools Subroutine technology: yes Machining cycles Standard software options: Programming in dialog, 38 zero offsets, rotation and mirroring, teach-in for X, Y, Z, restart in program with selection functions for targeted entry Zero point determination: Cycles for determining zero points by manually probing the workpiece for by manually probing the workpiece for: - any clamped rectangular parts - any clamped round parts - Mediation of cast and flame-cut parts - Angular position detection for round parts by touching reference edges or surfaces Test graphics Graphic display of drilling patterns Data interfaces USB

Condition: good (used), Year of construction: 1997, turning diameter over cross slide: 60 mm, spindle bore: 24 mm, spindle motor power: 7,500 W, rotational speed (min.): 30 rpm, rotational speed (max.): 5,000 rpm, total height: 1,660 mm, total length: 1,700 mm, total width: 1,240 mm, overall weight: 1,420 kg, Turning capacity Ø 200 mm, travel X/Z 180/400 mm, tools turret 8 places VDI 20 (16x16 mm), spindle 7,5 KW, 30 – 5000 rpm, spindle nose A2-4, chuck collet F38, bore Ø 32 mm, control FANUC Series T-20, manuals Hsdpfjvu Tvpex Adbei

Condition: used, machine/vehicle number: 11666, Rotor diameter: 280 mm Rotor width: 300 mm 3 blade rotors Hedjghgq Nepfx Adbji 2 rows of stator blades Inlet cross-section approx. 300 x 280 mm Drive motor 11 kW With noise protection box, noise protection hopper, and exhaust fan

Condition: excellent (used), Working travels 510 x 360 x 300 mm Table size 600 x 360 mm Spindle taper BT30 Spindle speeds -12'000 rpm Tool changer 20 Pos. Control FANUC 18i-MB Coolant through spindle Hedpfx Aouy S Hbedbji misc. accessories MARCELS MASCHINEN CH

Condition: new, back gauge: 750 mm, - Capacity 1050 x 6 mm - NC electric back gauge - Foot switch Hjdpfxogg N Hbj Adbei - Rear photocell protection - Support arms - Cutting line illumination - Brake motor - Emergency stop - Documentation - Weight 1800 kg - 400V

Condition: good (used), Year of construction: 1989, Pressing area 2550 x 1350 mm Number of press cylinders #6 Total pressing force 140 t Opening width approx. 400 mm Operating voltage: 3 x 400 V + N, 50 Hz. Total connected load approx. 26 kW Space requirement (L x W x H) approx.: 3400 x 1600 x 2000 mm Weight: approx. 5500 kg Hydraulic hot plate press Down-piston design Electric hot platens Pressing pressure continuously adjustable via pressure switch Hydraulic pump Central control panel with all operating and Hedpfxswd N Rmo Adbji Digital temperature display for both hot platens Press cycle counter Safety ripcord Rack compensation Main switch Note for used machines: • Errors in technical specifications and subject to prior sale. • Subject to change without notice. • Prices quoted are for pickup from the location - free shipping! • The machines have been cleaned and functionally tested. • All machines are sold as seen, without any warranty. The buyer is free to inspect the machines on site. • Special agreements are only possible in writing. (We will only respond to inquiries if you provide your address and telephone number!)

Condition: excellent (used), Year of construction: 2004, Clamping force: 35 tons Opening stroke: 200 mm Mould height: 150-300 mm Clamping platen daylight: 350-500 mm Tie bar daylight: 221 mm Mould clamping plattens (b x h) : 342 x 250 mm Ejector stroke: 60 mm Screw diameter: 25 mm Screw stroke: 100 mm Injection volume: 70 cm3 Shot weight: 59 g Hodpfxjuykh Ds Adbsi Injection pressure: 1040 bar Working hours: 34.748

Condition: used, Year of construction: 1993, Häwa debarking milling machine H249 / 1000 Year of manufacture: 1993 Log diameter: 0.25 m - 1.2 m Log length: 1.8 m - 7 m Milling head: 30 kW Root reducer: 37 kW Consists of: - Cross infeed conveyor - Debarking Hsdpfjx Rv T Isx Adbji - Conveyor belts - Outfeed conveyor

Year of construction: 2025, condition: new, The manual length stop with hand wheel and electronic dimension display MD 50 h is ideal for frequently changing section lengths and for stopping long materials. A hand crank enables the carriage to be moved quickly and precisely. Hsdpfx Aeidln Tedbsi

Condition: ready for operation (used), Slab recovery line with below machines: Hsdpfxegwqk So Adbsi One 2-blade board edger One single blade horisontal resaw Conveyors system between the machines included.
