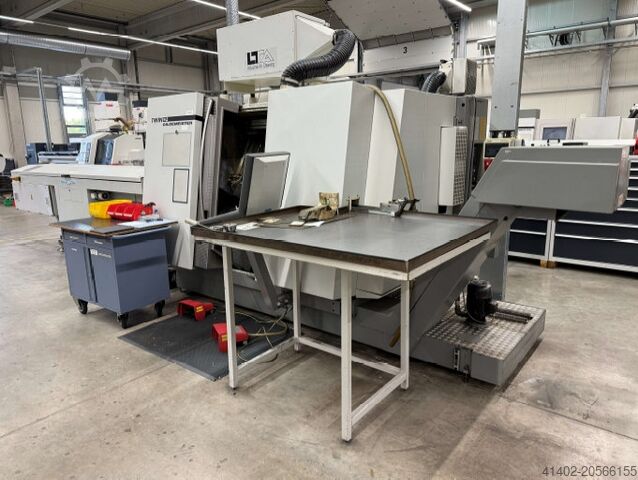

CNC turning and milling center

Gildemeister MF twin 42

Condition: like new (used), Year of construction: 2022, operating hours: 13,116 h, Max. bar capacity mm: 20 Max. Z-axis travel (sliding headstock/fixed headstock) mm: 205 / 80 Max. spindle speed rpm: 10,000 Drive power 100%/40% duty cycle kW: 3.0 / 5.5 Torque 100%/40% duty cycle Nm: 5.73 / 10.5 / max. 17.2 C-axis resolution degrees: 0.001 Max. rapid traverse Z m/min: 20 Tool stations: 8 Gedpfxewuddvj Admjil Driven tools: 8 Max. tool speed rpm: 12,000 / 8,000 Tool holder diameter mm: 45 Drive power 100%/40% duty cycle kW: 1.0 / 2.0 Turning tool cross-section mm: 16x16 / 20x20 Slide travel X mm: 120 / 165 Slide travel Y mm: ±25.4 Slide travel Z mm: 254 / 567.5 Rapid traverse X/Y/Z m/min: 20 / 20 / 40 B-axis swivel angle degrees: 105 Lower turret: Tool stations: 8 Driven tools: 8 Max. tool speed rpm: 12,000 Tool holder diameter mm: 45 Drive power 100%/40% duty cycle kW: 1.0 / 2.0 Turning tool cross-section mm: 16x16 / 20x20 Slide travel X mm: 120 Slide travel Y mm: ±25.4 Slide travel Z mm: 155 Rapid traverse X/Y/Z m/min: 20 / 20 / 40 Back working device: Tool stations: 4 Slide travel X/Y/Z mm: 120 / ±25.4 / 155 Tool holder diameter mm: 25 Sub spindle: Max. spindle bore mm: 20 Max. spindle speed rpm: 10,000 Drive power 100%/40% duty cycle kW: 3.0 / 5.5 Torque 100%/40% duty cycle Nm: 5.73 / 10.5 / max. 17.2 Slide travel X mm: 235.5 Slide travel Z mm: 258 C-axis resolution degrees: 0.001 Rapid traverse X/Z m/min: 20 / 40 Coolant system basic unit: Pump pressure bar: 3 / 8 Tank capacity l: 250 Flow rate at 3 / 8 bar l/min: 80 / 120 Filtration degree µm: 200 Machine dimensions Length x width x height mm: see installation plan* Weight kg: 5,000* Connected load kW: 40 (47 kVA)

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, CNC twin-spindle turning center Control: CNC path control including 19" TFT Siemens Sinumerik 840 D sl solution line with ERGOline control and with ShopTurn 3 G Gedpfx Adowcd S Njmeil TECHNICAL DATA Max. turning diameter 340 mm Spindle distance 1470 mm Turning length 1135 mm Swing over bed 700 mm Swing to tool carrier 2540 mm Travel paths: X1 – Tool carrier I 270 mm Y1 – Tool carrier I 120 mm Z1 – Tool carrier I 1200 mm X2 – Tool carrier II 195 mm Y2 – Tool carrier II 80 mm Z2 – Tool carrier II 1200 mm X3 – Counter spindle slide 180 mm Z3 – Counter spindle slide 1200 mm Main spindle Integrated spindle motor ISM 102 Drive power (100/40% duty cycle) 40/48 kW Torque (100/40% duty cycle) 570/680 Nm Speed range 0-4000 rpm Bar diameter 102 mm Draw tube inner diameter 104 mm C-axis and spindle brake (angular resolution) 0.001° Counter spindle Integrated spindle motor ISM 76 Drive power (100/40% duty cycle) 25/32 kW Torque (100/40% duty cycle) 280/380 Nm Speed range 0-5000 rpm Bar diameter 65/75 mm C-axis (angular resolution) 0.001° Slide 1 Tool carrier (direct drive) Number of tools 12 Tool holder diameter VDI (DIN 69880) 40 mm Maximum power (100/40% duty cycle) 10.9/14.2 kW Maximum torque (100/40% duty cycle) 26/34 Nm Speed range 40 – 10,000 rpm Slide 2 Tool carrier (direct drive) Number of tools 12 Tool holder diameter VDI (DIN 69880) 40 mm Maximum power (100/40% duty cycle) 10.9/14.2 kW Maximum torque (100/40% duty cycle) 26/34 Nm Speed range 40 – 10,000 rpm Slide 3 Rapid traverse speed X/Z axis 30/45 m/min Tool resolution Z axis 0.001° Feed force (40% duty cycle) X/Z axis 16/13 kN EQUIPMENT/ACCESSORIES  IRCO ILS-RBK 100/16 short-bar loader  Various main spindle reducers  NC-controlled workpiece retrieval device from both the main and counter spindles The device consists of an NC-controlled *Horizontal axis *Swivel unit *Vertical axis *2-jaw gripper for interchangeable gripper jaws  Conveyor belt for removing workpieces from the machine  8/20 bar coolant system with immersion cooler  Chip conveyor  Oil mist extraction  Control cabinet cooling unit (up to 40°)  Counter spindle slide  Easy-Tool monitor  1 collet chuck for quick-change clamping head size 100 for the main spindle  1 collet chuck for quick-change clamping head size 100, Nova Achsfix for the counter spindle  Approx. 40 various quick-change clamping heads size 100 (complete inventory)  Pneumatic tool changer, ø 100 mm  Approx. 50 various tool holders, fixed and driven (complete inventory)  Mounting elements  Documentation

Condition: good (used), Year of construction: 2003, Main spindle: Speed range - main spindle max. 6,000 min/-1 Drive power - main spindle 16 kW Max. torque 155 Nm C-axis 360 ° Tool turret: Number of tool positions 12 pos. Number of driven tool stations 12 pos. Speed range - driven tools max. 5,000 min -1 Drive power - driven Tools 10 kW Tool holder (VDI 30) Tool shaft 20 x 20 mm Travel paths: x-axis 160 mm z-axis 450 mm Feed rates: Rapid traverse X: 60 m/min Rapid traverse Z: 45 m/min Feed force X: 2.5 kN Feed force Z: 4 kN Rapid traverse C: 200 1/min Gedsv Drigjpfx Admjil Max. torque C: 155 Nm Total power requirement Machine weight approx. 3.7 t Space requirement approx. 4.5 x 2.5 x 2.5 m Heidenhain control Hollow clamping cylinder C-axis and tool drive a Chip conveyor Oil and emulsion mist separator with electrostatic filter

Year of construction: 2002, condition: excellent (used), GILDEMEISTER LATHE CTX 420 V6 SIEMENS 840 MATR. 2260000551 YEAR OF CONSTRUCTION 2002 Gijdpfsmv H Dxsx Admjl SIEMENS 840 NUMERICAL CONTROL C- and Y-axis WITH 12-POSITION MOTORIZED TURRET RADIAL VDI 40 EQUIPPED WITH: 1) THROUGH CYLINDER DIAMENTRO 66 2) SELF-CENTERING CHUCK AUTOBLOK MOD. 250-66 BHD ON THE MAIN 1) AUTOBLOK SELF-CENTERING CHUCK MOD. 175/52 BHD ON THE COUNTER SPINDLE 1) CHIP CONVEYOR 1) 5-BAR COOLANT PUMP 1) WORKPIECE UNLOADING ARM TRUNCATED FROM BAR

Year of construction: 1996, condition: used, Schütte SF 26S DNT YOM 1996 Number of spindles: 6 Max bar diameter [mm]: 26 Auto bar loader: Cucchi BLT Multi-6 - (YOM 2015) Cross slide pos. 1, 3, 4, 6 CN slide pos 2, 5 Spindle stop attachment for main spindles Bar feeding pos. 6 Pickup spindle pos. 6 Giedpfx Aji Hb Szsdmsl High pressure coolant system Chip conveyor, hinged belt type Oil mist filter ISI RON/A 2500A, ID 26295

Condition: used, Year of construction: 1988, functionality: unexamined, available Berstorff Mill 400 x 900mm Gsdpfx Aor A Dfyjdmsil more details in attached description!

Condition: used, Table size 900 x 460 mm X/Y/Z - 600/400/420 mm Spindle speeds 20-4000 rpm Spindle taper ISO 40 Hydraulic tool clamping Quill stroke in vertical head Vertical head swivels +/- 90 deg. Tool changer w/32 stations Control: Gijdpjl Dvx Eofx Admjl Heidenhain TNC 407 Equipped with: Vice 19 tool holders Coolant

Condition: excellent (used), Year of construction: 2017, SIEMENS 840D SL control Gijdpfx Adewwundemol Working travels 550 x 320 x 420 mm Milling head swivellling +100 / -10 ° Spindle taper HSK A50 Spindle speeds -12'000 rpm Tool changer with 64 Pos. Turning spindle 4'500 rpm NC swivel rotary table with B- + C-axis Tool breakage control system Tool lenght measuring device 3D-measuring tracer Misc. accessories MARCELS MASCHINEN CH

Condition: ready for operation (used), Year of construction: 2005, operating hours: 52,455 h, functionality: fully functional, machine/vehicle number: 2501-0154, turning length: 600 mm, turning diameter over cross slide: 140 mm, turning diameter: 300 mm, spindle motor power: 25,000 W, spindle speed (min.): 5,000 rpm, spindle speed (max.): 5,000 rpm, travel distance Z-axis: 900 mm, rapid traverse X-axis: 3 m/min, rapid traverse Y-axis: 3 m/min, rapid traverse Z-axis: 3 m/min, rotational speed (max.): 4,000 rpm, rotational speed (min.): 4,000 rpm, torque: 239 Nm, bar passage: 80 mm, feed rate X-axis: 165 m/min, feed rate Y-axis: 165 m/min, feed rate Z-axis: 220 m/min, overall weight: 10,500 kg, Equipment: documentation/manual, Machine is still in use and can be seen working at VOVU Machining in Uden. In total there are 6 identical machines here. Godpfx Ajur Hfzsdmjil Fanuc 310is controller

Condition: used, Year of construction: 1965, honing diameter 80 mm stroke 280 mm throat 300 mm total power requirement 6 kW weight of the machine ca. 2,6 t Honing Ø 10 - 100 mm Max. honing depth, approx. 250 mm Max. spindle stroke 260 mm Distance between spindle and column 300 mm Mounting height 1,000 mm Table size 350 x 500 mm Godpfxst Hwupo Admsil Height of table above floor 500 mm Spindle speeds in 2 steps, infinitely variable, approx. 85 - 300 rpm 170 - 600 rpm Stroke speed, infinitely variable, hydraulic 0 - 23 m/min Spindle drive 2 kW Total electrical load 6 kW - 380 V - 50 Hz Weight 2,600 kg Accessories / Special Features * Built-on 2-station tilting table which accommodates 2 workpieces. Mechanical workpiece clamping, using a manual lever. * Hydraulic infeed of the tool. * Switch-off via timer. * Air measuring device (probably). * Honing oil unit. * Various splash shields, etc. Condition : Good. Machine can be inspected under power. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract. Thank you for your interest. We have a selection of honing machines available. Please let us know what you need.
