Deck/Stringer Pallet Nailing Machine

Foudila Oy DNM3500

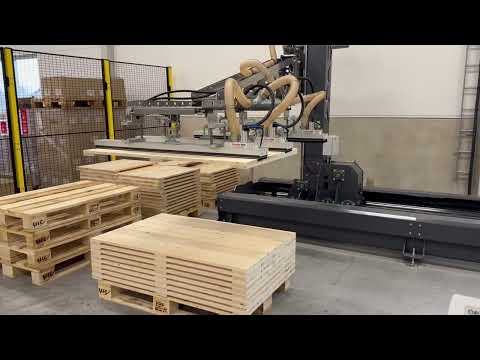

Condition: new, Year of construction: 2026, functionality: fully functional, total width: 440 mm, total height: 1,900 mm, total length: 5,000 mm, Oy Foudila Ab is a company based in Kaskinen, Finland, with over 45 years of experience in wood handling equipment. For 15 years, we have also been active in the pallet industry and over the years have developed a wide range of machines for nailing, automatic feeding, and stacking of timber. We manufacture both standard machines and customized solutions tailored to customer requirements. DNM3500 is a flexible, compact, and efficient pneumatic nailing machine for the production of deck or stringer pallets (2-way pallets). The machine features motorized conversion for stringer channels. Its user-friendly software enables very rapid changeovers, and the machine can store settings for over 100 different deck formats and pallets. It uses Bostitch nail guns equipped with nail magazines for jumbo coils, including indicators. There are options for producing asymmetric deck/stringer pallets. The machine is fitted with flexible cassettes for boards. An acoustic enclosure provides noise reduction and ensures safe operation. The machine is operated via a 10-inch touchscreen. Beckhoff control system. Nedpfx Aoy Izblemnsct Standard machine specifications: - Deck board: length 600–3500 mm, width 75–125 mm, height 16–50 mm - Stringer: length 600–1500 mm, width 50–125 mm, height 16–100 mm - Deck/stringer pallet size: length 600–3500 mm, width 600–1500 mm Capacity: - 3 decks/min (with 5 deck boards) Machine dimensions: - Length 5000 mm, width 4400 mm, height 1900 mm The machine is CE-marked. The machine can be equipped with automatic board feeding and deck/pallet stacking systems. For more information, pictures or videos, please contact us.

Condition: good (used), Year of construction: 1994, functionality: fully functional, power: 75 kW (101.97 HP), Low-speed rotor with push floor Rotor width 2500 mm Rotor diameter approx. 400 mm Ncjdpfxotgqlys Amnot Motor 75 kw Discharge via conveyor belt with magnetic roller

Year of construction: 2001, operating hours: 123 h, condition: ready for operation (used), machine/vehicle number: 123, Metal silo for storage of woodchips, etc. Technical description: silo DM: 5m Height: 8 m with outfeeding unit (screw conveyor connection to output) Cappacity: 42 m3 With outfeeding transport screw conveyor to the top of the silo building. Already dismountled, visit possible by appointment at our warehouse H-2013 Pomáz/Hungary. Nedpfx Amjftdv Usnect

Condition: new, Airplan — Modular Drying Kit for Lumber & Pallets Short Description Airplan is the simplest and most cost-effective solution for drying wood, especially softwoods. It is a ready-to-install kit designed to be mounted inside a structure you construct yourself (according to our supplied drawings), with a capacity of up to 25 cubic meters. With Airplan, you minimize your investment while achieving precise and professional drying results for lumber or pallets. What It Is Airplan is a comprehensive drying kit that includes everything required to convert a simple enclosure into a professional wood-drying chamber. We provide the structural drawing—you build the housing, install our kit, and you're ready to start drying. Main Components - 3 industrial axial fans for controlled air circulation - Electric heating element kit to ensure reliable heat supply - 2 automatic dampers for optimized air exchange and humidity regulation - Electrical control panel with drying software interface, including all necessary power and control connections - Water spray pipe with nozzles Key Benefits - Minimal capital investment—purchase only the essentials, not an entire prefabricated kiln - Reduced transport costs due to the compact kit format - Fast and straightforward installation with user-friendly operation - Professional-grade components and high-quality materials for long service life - Precise drying control suitable for both lumber and pallet production Applications - Small to medium-sized sawmills - Pallet manufacturers - On-site drying operations where a complete kiln is not economical - Pilot installations before scaling up to larger systems Ncjdpfx Amexnbctsnot What We Provide - Complete Airplan kit (see components above) - Structural drawing and installation guidelines - Basic start-up support and commissioning instructions Next Steps / Contact For a quote, technical information (electrical requirements, power ratings), or the structural drawing, please contact us with your desired drying capacity and planned enclosure dimensions. We will tailor the configuration to your needs and provide a detailed offer.

Year of construction: 1993, condition: used, - working width (mm): 2200 Nodon I Twyjpfx Amnect - engine power (kW): 22 - top rollers: with PU rings - bottom rollers: knurled - Saw shaft: included

Condition: good (used), Year of construction: 2006, I sell the automatic pneumatic end cutting saw Weinig Grecon Dimter Opticut 200 Elite Year 2006 Ncjdextxi Iepfx Amnet Motor power 7,5kW Input table automatic feeding 4,10m (throughfeed system) Outut table automatic 6 pcs. kickers on right outfeed table Optimising with mistakes deffect reading and automatic cutting sequence modes. Available immediately. CE version. Documentation included.

Condition: good (used), Year of construction: 2008, functionality: fully functional, heating capacity: 50 kW (67.98 HP), Wood chip system with 50 kW heating capacity already disassembled Nedpfev Ngq Ajx Amnect complete with boiler, stocker unit, and discharge system

Condition: new, Fully automated block cutting machine for pallet legs. Maximum length of raw material 6m. The machine suits all type of pallet production. OKKR-2006 can operate as a separate standing machine or as part of a production line. How does it work? The machine is fed block material on the chain infeed conveyor. The material is fed automatically and the machine cuts the blocks into the preinstalled length. OKKR-2006 can be programmed to cut several different lengths of blocks from the original piece of raw material. Maximum length of the raw material is 6m. Nodjwdutmspfx Amnjct Asssembled block size: Min / max length: 600 mm - 6000 mm Width min / max: 75 mm - 150 mm Thickness min / max: 75 mm - 100 mm Specifications Operators | 0 Length | 7,5 m Width | 2,5 m Height | 1,8 m Power | 7 kW, 3x400 V+N Pneumatic system | 7 bar compressed dried air: 450 L/min Should be filled and controlled | Lubrication points Machine capacity | 36 blocks/min Standard equipment | 1 electric motor for saw blade 1 electric motor for material infeed 1 electric motor for chain infeed Mychrome has various additional machine modules that can be easily docked onto existing machines to achieve a higher level of automation. The ability to change the design and size of the pallets is still available with these additional machine modules.

Condition: good (used), Year of construction: 2022, operating hours: 2,100 h, functionality: fully functional, Equipment: Basic Package Inventhor Type 6 Load-sensing system Fuel tank 500 liters Longitudinal conveyor: length 2,900 mm, width 800 mm Ncsdpswnfwqofx Amnot Centrally arranged lubrication strips 24V electronic control – additional electric pump to operate the following functions when the engine is off: "raise/lower/fold rear conveyor, open/close comb flap, open/close comb, raise/lower folding hopper" Complete radio remote control Large side GRP maintenance doors Maintenance-friendly engine compartment LED lighting package: engine compartment and rear Hydraulically reversible fan Three-sided loading protection Folding hopper Fire extinguisher Service ladder Toolbox Acoustic start-up warning Doppstadt telematics system Paintwork: RAL2011 deep orange Special Equipment: Powertrain 310 kW - EV 3-axle drawbar trailer chassis unit Shredding system Size L 600/4 - 30 Z Additional hydraulic connections 35 - 80 l/min Hydraulic drive Rear conveyor 4.9 m Overband magnet neodymium Frame for overband magnet

Condition: new, Year of construction: 2025, functionality: fully functional, type of input current: three-phase, warranty duration: 12 months, overall weight: 5,000 kg, input current: 44 A, table width: 1,200 mm, table length: 2,700 mm, The compactor is designed to compact the bottoms and tops of pallets. After one cycle one pallet is nailed. Nailing is carried out mechanically. The machine automatically takes nails from the storage bins, where they are in bulk. The pallet components are taken from the external magazines by two people . The XP 1000 nailing machine is designed to produce industrial pallets in the 800-1200/1200-2600 size range . The nailing cycle is adjustable from the control panel , takes a minimum of 10 seconds . Hammer plates adjustable on the full range of hammer . Standard equipment of the nailing machine includes 16 hammers on eight plates and one set of 800/1200 pallet molds . Other molds on request for an additional fee . Nodot Tyn Sopfx Amnjct The performance of the machine depends on the workers and their speed in stacking the parts.
