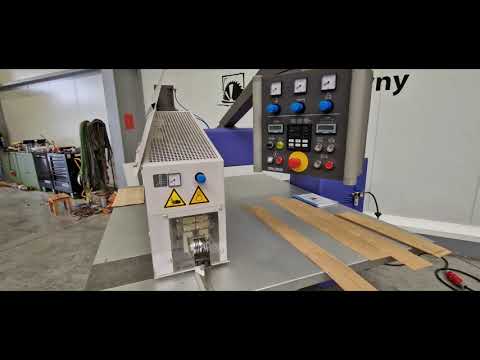

Veneer gluing machine

FISHER+RUCKLE OMNIMASTER

Condition: excellent (used), Year of construction: 2011, operating hours: 216 h, functionality: fully functional, machine/vehicle number: 20MS090000/007, total length: 3,000 mm, type of input current: AC, total width: 2,500 mm, total height: 1,900 mm, overall weight: 1,450 kg, empty load weight: 1,450 kg, working width: 900 mm, compressed air connection: 6 bar, throughput speed: 50 mm/s, Gluing and longitudinal splicing machine For 0.4 to 3 mm thickness with direct gluing. With pre-gluing of edges up to 5 mm. Machine used very little, available ex location. Features: Hfsdpfsw E Rfbsx Ahnoi - Separate electric motors for chain and glue application - Glue is applied to the edge of the newly inserted veneer strip, increasing the strength of the glued joint - Robust, durable stainless steel conveyor chain with weighing joints - Separate temperature, speed, and pressure adjustment - Quick and easily accessible glue reservoir for fast and simple refilling or cleaning - Multiple heating zones for individual temperature adjustment - Extended service life of glue reservoir due to integrated cooling unit - Infinitely variable feed speed INCLUDES GLUE COOLER Technical specifications: Throat depth: 900 mm Minimum veneer strip width: 45 mm Minimum veneer strip length: 300 mm Veneer strip thickness: 0.4 – 3.0 mm (up to 5 mm) Veneer moisture content: max. 8 – 12 % Working height: 900 mm Feed speed: 5 – 50 m/min Heating section length: 1000 mm Maximum heating temperature: 250°C Electrical connection: 9.0 kW, 400 V, 50 Hz Compressed air: 6.0 bar Dimensions (L x W x H): 2400 x 2300 x 1900 mm Weight: 1500 kg
