Sliding table saw

Felder Format4 kappa 550

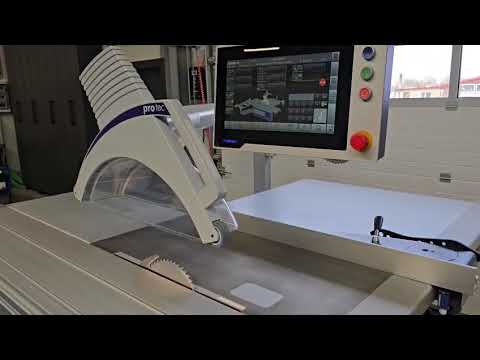

Condition: ready for operation (used), Year of construction: 2021, This Felder FORMAT 4 KAPPA 550 panel saw was manufactured in 2021. It features a sliding table saw with a saw blade diameter range of 250-550 mm, offering cutting heights of 202 mm at 90° and 140 mm at 45°. It supports three speeds: 3000, 4000, and 5000 rpm, and includes a cutting width of 1250 mm and length of 2800 mm. The machine also boasts e-motion control and a telescopic stop for crosscuts up to 3200 mm. Contact us for more information. • Saw blade diameter: 250–550 mm • Cutting height: 202 mm (90°), 140 mm (45°) • Blade speeds: 3000 / 4000 / 5000 rpm • Cutting width: 1250 mm • Cutting length (sliding table stroke): 2800 mm Gbjdox D Exqepfx Acwok • Control: Kappa 550 e-motion • Cantilever table support surface: 1250 x 650 mm • Telescopic stop for crosscuts up to 3200 mm • Crosscut stop swiveling range: 90° to 45° • Rear table extension behind saw axis: 1200 mm • Rip fence: electronically positioned via ball screw, enclosed/dust-free in the table

Condition: ready for operation (used), Year of construction: 2008, Table size: 220 x 820 mm Table size (front table): 250 x 350 mm Grinding wheel dimensions: 150 x 2260 mm Grinding belt speed: 16 m/s Drive motor: 400 V, 1.5 kW Weight: 164 kg Space required: 1200 x 600 x 1250 mm Gbedev Efn Sepfx Acwjk

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, operating hours: 443 h, Format 4 Panel Saw Kappa 550 e-motion - 10 kW, 3 speeds: 3000/4000/5000 rpm - Year of manufacture: 2017 - Scoring unit operation indicator - Crosscut fence 3200 mm, swivels 90°–45°, with 2 flip stops Gjdpfx Asw Tfahocwebk - Outrigger table 1250 x 650 mm - “X-Roll” sliding table, cutting length 3200 mm, mitre fence shoe - Electrically positioned rip fence with digital readout in the operator panel at eye level, cutting width 1250 mm - Overhead guard, hood for 90° cuts and hood for angle cuts, both height adjustable and can be swung out of the working area - e-motion control system with 15" color touchscreen, operating panel at eye level. USB interface and network connection prepared, adjustable & swing-away from the working area - Saw blade diameter 250–550 mm, max. cutting height 202 mm - Electrically positioned height & angle adjustment 0°–46° - Circular saw with table extension up to 1200 mm behind the saw axis, powder-coated steel - Weight: 1300 kg - Scoring unit operation indicator (duplicate in original) - Total operating hours: 443.47 h - Including many as-new saw blades and groove cutter blade Price ex location Transport available at additional cost!

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, Carriage length: 3800 mm Scoring unit Electric adjustment of blade and scorer height and angle Electric positioning of right fence Touchscreen digital control panel Table equipped with additional blade switches Maximum blade diameter: 550 mm Gbedpfx Ajymwy Tjcwjk Total power: 7.35 kW Year of manufacture: 2014 Power supply: 380 V

Condition: new, Year of construction: 2023, New machine Year of manufacture: 2023 Partnership Edition Technical Specifications: Cutting height: vertical: 0–2,150 mm, horizontal: 80–2,000 mm Cutting length: 5,300 mm Cutting depth: 80 mm (55 mm with clamps) Saw blade: Diameter 303 mm, bore 30 mm, Z=60 hollow flat-top tooth Blade speed: 5,000 rpm Required air pressure: 6 bar Measurement readout for horizontal cuts: - via scale from 0–2,070 mm - via strip cutting fence from 75–500 mm Measurement readout for vertical cuts: - via scale from 0–1,300 mm Extraction connection: 1 x 100 mm, 1 x 120 mm Features: - ADVANCE clamping system, consisting of 2 pneumatic clamping grippers, motorized on vertical axes via a ball screw, moving from top to bottom. The grippers handle panels weighing up to 150 kg. - Torsion-free, free-standing machine frame - Round bar guides, vertical and horizontal - Pneumatically retractable slat bed Gedpfx Ajw I U D Ejcwebk - Fine-adjustable flip stop with extension - Fine adjustment for horizontal cuts via handwheel - Strip cutting fence - Manual programming rail with 5 T-slot nuts - Pneumatic immersion of the saw unit - 25 material support rollers - 1 infeed and 1 outfeed roller - Pneumatic workpiece clamping device between the support rollers - 3 intermediate support elements, pneumatically extendable - Pneumatic saw head locking - Control panel with documentation holder - Switch unit on the saw unit: start button, stop button - Tool cabinet - Scale illumination for vertical cuts Partnership Edition Features: - Digital display for the flip stop - Digital display for the saw unit with incremental mode - Pneumatically tiltable saw unit - Scoring system with controlled counter-air nozzle, numerical display for scoring or grooving depth setting, and activation indicator - 5.5 kW motor including star-delta starter - Cutting line laser Availability: Short-term Location: Flörsheim

Condition: excellent (used), Felder kappa 550 panel saw, format 4 Sliding table 320 cm, Blade tilt and height adjustment motorized, Right-hand fence motorized adjustable up to 1600 mm, Main motor 7.35 kW, Max blade diameter 500 mm Gbedpfx Ajx Swzvecwek Used machine, in very good condition.

Condition: like new (used), functionality: fully functional, Dowel inserting machine with operating gun for simultaneous glue application and dowel insertion Standard dowels Ø8 mm Dowels lenght 25 - 80 mm Nominal capacity 1 dowel/second (includes glue application) Uses PVA adhesives (glue) in water dispersion viscosity 200-400mPa 1 pcs TANK FOR GLUE capacity 8 kg Gedpfsqu N U Djx Acwsbk 1 pcs TANK FOR WATER capacity 8 kg Maximum pressure 5 bar

Condition: used, Year of construction: 2006, Numerical Control XP 600 Working range on X-axis mm 3060 Working range on Y axis mm 1140 Working range in Z axis mm 160 N ° 2 work fields Bar worktop No. 6 adjustable bars for suction cup support No. of pneumatic bakelite bars for panel lifting (?) No. 2 adjustable suction cups for each bar with vacuum seal for fixing the panel during processing No. 1 vertical electrospindle with C-axis 12 kW motor 10-position tool change system - positioned on the drilling head of the machine, ISO 30 type cones BH19L drilling head with 18 spindles arranged as follows: - No. 7 verticals on X axis - N° 6 verticals in Y axis - N° 4 horizontal on X axis - No. 2 horizontals on Y axis - No. 1 independent blade group for making grooves on the X axis Front protection and safety system with photocells Automatic lubrication system (?) Air conditioning system for cooling and cleaning of machine control Vacuum pump mc/h 250 TECHNICAL DETAILS TO BE CHECKED Gedpov Aacfofx Acwebk

Condition: used, Year of construction: 1995, Used machine Year of manufacture: 1995 Equipment and technical specifications: - Dowel driving unit for simultaneous gluing and dowel insertion - Dowel feed via maintenance-free vibratory feeders - Fully automatic, maintenance-free electronic control with selector switch FLUSH/GLUE/GLUE-INSERT - Self-contained gluing system - 1 stainless steel container 5 l for glue and 1 stainless steel container 5 l for water Gbjdpfx Acsw Rhlhewsk - Lightweight, handy, and recoil-free gun for 8 mm dowels - Capacity: 45 dowels per minute - Electrical connection: 220 V, 1 Ph, 50 Hz - Compressed air connection: 6 bar - Dimensions: 650 x 650 x 1100 mm - Weight: 110 kg Availability: short notice Location: Röllbach

Condition: reconditioned (used), Year of construction: 2007, Connection 220V, compressed air connection 6 bar, weight approx. 110 kg, mobile, dowel feed via vibratory feeder, automatic dowel length and diameter control, fully automatic electronic control system, rinsing-gluing-gluing+driving in, rotary switch for glue/water to rinse, glue residue indicator, stainless steel container for glue, stainless steel container for water, 1x gun for dowels with diameter 8 mm length 20-50 mm, operating instructions - Gbedpfx Acewrruqowok
