Used thread milling- and hobbing machines for sale (12)

Condition: good (used), Year of construction: 2009, functionality: fully functional, Technical details max. wheel diameter 2-45 mm gear width 250 mm max. module 1,5 mm min. module 0,5 mm Control Fanuc 18i-MB Giedpfx Ajx Sqiysdmol weight of the machine ca. 2,2 t dimensions of the machine ca. 2100 x 1440 x 1700 m Additional information The combined CNC gear hobbing and worm milling machine KOEPFER MZ 120 is characterized by its flexible usability and is used in the small module area. Just by swiveling the milling spindle from the horizontal to the vertical position and selecting the corresponding operating mode of the CNC control, the worm milling machine becomes a gear hobbing machine and vice versa. CNC control Fanuc 18i-MB (Dialog/ISO) CNC axes = X-axis plunge axis Z-axis longitudinal axis C-axis workpiece spindle B-axis tool spindle V-axis loader axis longitudinal A-axis swivel axis tool spindle head (included as an option) Y-axis shift axis (included as an option) With the following production programs: Worm milling Hobbing Worm hobbing Bevel gear and spur gear milling Bevel gear hobbing Milling cycles = straight, oblique, crowned toothing, radial, radial-axial, co- and counter-rotating milling, roughing, finishing, worm gears, straight-toothed bevel gears, face gearing (option only in the partial process) Worms [Equipment] Coolant tank 300 liters KF with LNS Turbo MS 250 Chip conveyor, built in 2021!!! Kraft and Bauer fire extinguishing system Spiral conveyor Machine documentation [Technical data] Workpieces: Workpiece diameter 2-45 mm Max. workpiece length 250 mm Tooth length 150 mm Max. module in steel= 1 mm (gear hobbing) 1.5 mm (worm milling) 0.5 mm (bevel gear hobbing) Tools: Cutter diameter= 16-32 mm (gear hobbing) 40-63 mm (worm milling) Machine: Max. setting angle of milling head= +/- 45° (gear hobbing) +/- 30° (worm milling) Shift travel= 34 mm (manual adjustment) 34 mm (CNC axis) Collet/retraction mandrel W 20 Max. speed of workpiece spindle 770 rpm. Milling spindle drive 0.55 kW Max. milling spindle speed 8000 rpm Axis drives = X-axis (plunging) / travel 80 mm via CNC Z-axis (longitudinal feed) / travel 190 mm via CNC C-axis (workpiece axis) via CNC Rapid traverse = X-axis 6000 mm/min. Z-axis 6000 mm/min. Hydraulic unit 0.37 kW

Condition: excellent (used), functionality: fully functional, machine/vehicle number: 2623, workpiece weight (max.): 4,200 kg, WMW Heckert Horizontal Thread Milling Machine Model: ZFWVG 250 x 2000 Very good mechanical condition, located in Rostock This machine is a highly versatile universal horizontal gear hobbing machine. It can be inspected under power for a short period. The machine is equipped with a differential mechanism and a large selection of miscellaneous tooling and features. It conforms to the following technical specifications: General machine specifications: - Max. workpiece diameter: 20" / 500 mm - Max. cutting length: 80" / 2000 mm - Max. center distance (chuck face to tailstock): 86" (approx. 2180 mm) - Module range: 3 – 12 module - Max. hob diameter x length: 5.5" x 4.5" (140 x 115 mm) - Max. hob swivel: 180° (±90°) - Minimum number of teeth: 2 - Work spindle bore: 4" / 102 mm - Hob spindle speed range: 45 – 900 RPM - Electrical system: 220 Volt - Machine weight: approx. 18,000 lbs (8,165 kg) - Machine dimensions (L x W x H): 160" x 98" x 63" (4060 x 2490 x 1600 mm) Gedsx R Efyopfx Admeil The machine is equipped with: - Differential mechanism for cutting helical gears - 12" diameter 3-jaw chuck - Tailstock with pinion support - Coolant and oil return pumps - Automatic forced lubrication system - Large assortment of change gears - Miscellaneous tooling - Manuals and electrical documentation Further details and inspection upon request.

Condition: used, MONNIER + ZAHNER MZ 130 is a Worm gear cutting machine designed for high precision, excellent accuracy and reliable performance. Capacities: workpiece diameter 2–55 mm; module max. 1.5/2.0 mm; workpiece length max. 300 mm; max. cutting length 230 mm; cutter diameter 16–40 / 53–100 mm; max. cutter travel 60 mm; swivel head +/-45°; axes X70 Y30 Z250 mm. Key specs: milling spindle speed max. 8000 t/min; workpiece spindle speed 950 t/min; collet attachment 25 W; voltage 50 Hz 3x400 V; machine weight ≈3500 kg; overall L2200 x W1800 x H1850 mm. Delivers tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical sectors. Gsdpfx Aex Iudgjdmjil

Condition: used, Year of construction: 1988, weight of the machine ca. 5 t working width max. 300 mm 6 extensive accessories viele Wechselräder +++++ Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Godpfx Adsvrk Ecjmjil Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. +++++

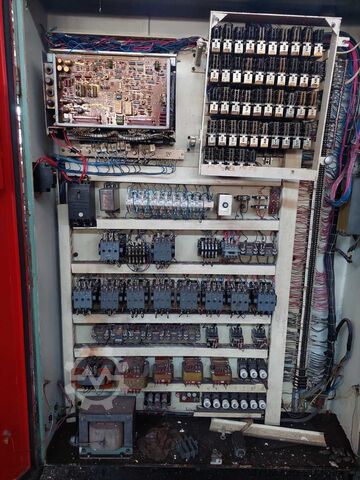

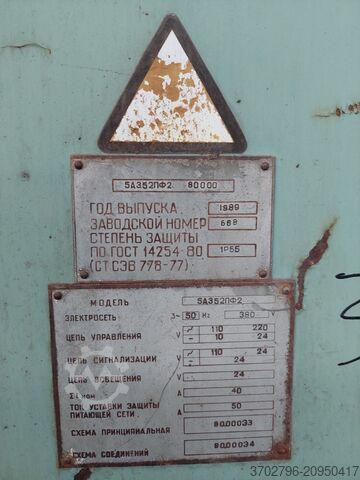

Condition: ready for operation (used), Year of construction: 1989, operating hours: 2,100 h, functionality: fully functional, workpiece weight (max.): 200 kg, thread length: 880 mm, feed length X-axis: 1,060 mm, feed length Y-axis: 500 mm, feed length Z-axis: 400 mm, feed rate X-axis: 1 m/min, feed rate Y-axis: 5 m/min, position of the milling head: Horizontal, swivelling, center height in crank: 250 mm, center height: 250 mm, type of input current: AC, power of feed motor: 1,500 W, milling spindle length: 200 mm, spindle bore: 90 mm, spindle speed (max.): 400 rpm, spindle speed (min.): 25 rpm, mandrel length: 200 mm, collet bore: 90 mm, clamping length: 880 mm, workpiece diameter (max.): 500 mm, Thread Milling and Gear Hobbing Machine MSZ 5A352ПФ The MSZ model 5A352ПФ is a universal thread milling and gear hobbing machine, designed for machining threads, worms, and spur gears by milling and hobbing processes. Manufactured in 1989, the machine is intended for industrial applications requiring reliable performance, versatility, and repeatable accuracy. The machine is suitable for workpieces with a maximum length of 1060 mm and a maximum diameter of 500 mm. The maximum thread length is 880 mm, and the machine supports gear cutting up to module 8, covering a wide range of thread and gear machining tasks. Helix and thread angles up to 30° can be machined, allowing flexible use in mechanical engineering and transmission manufacturing. The milling and hobbing spindle features a 90 mm spindle bore and supports cutting tools with a maximum hob diameter of 160 mm and a maximum hob length of 200 mm. The spindle operates in a speed range of 25 to 400 rpm, providing suitable cutting conditions for different materials and tool diameters. The main drive motor offers multiple power and speed stages (5 / 6.3 / 10 kW at 750 / 1000 / 1500 rpm). The machine is equipped with stepless longitudinal and radial feeds, with longitudinal feed rates from 2 to 100 mm/min and radial feed rates from 2 to 50 mm/min, enabling precise control during machining operations. A complete set of change gears allows accurate synchronization for thread milling and gear hobbing. With overall dimensions of approximately 3100 × 2270 × 2100 mm and a total weight of about 7890 kg, the 5A352ПФ features a rigid, heavy-duty construction that ensures excellent stability and vibration damping. The machine operates on three-phase AC power and is supplied with original factory documentation. Condition: *Used machine Godpfsx Unpvjx Admsil *Ready for operation *Fully functional *Operating hours: approx. 2,100 h Scope of delivery: *Complete set of change gears *Technical passport (Russian) *Operating manual (Russian) Typical applications: *Thread milling *Gear hobbing (spur gears, worms) *Machining of transmission components *General mechanical engineering *Repair and small- to medium-series production

Condition: good (used), amount ca. 103 STK Various gear shaping tools (approx. 103 pcs.) Make: Lorenz/Liebherr/PWS/Deltal etc. Various gear shaping tools (approx. 103 pcs.) in different sizes and modules. Godpfx Adew Ny Tbjmjil an: - Disc cutting wheels with and without staircase grinding - Bell cutting wheels with and without step grinding - Shank cutting wheels Year of manufacture: unknown

Condition: good (used), WANDERER 16/E milling machine, made in Germany. Year of manufacture: 1962. The machine is operational and in working condition. Gisdpfsw Al U Eox Admel For more information, please contact us.

Condition: new, center distance 2000 3000 4000 5000 6000mm Godpfjvnmlqox Admoil

Condition: ready for operation (used), Year of construction: 1981, functionality: fully functional, VEB Fritz Heckert ZFWVG 250×2000 Maximum workpiece length: 2,000 mm Gijdpfxjw Dvans Admol Maximum workpiece diameter: 250 mm Accessories: 2nd milling head, hob cutters in various modules, steadies, clamping devices, etc.

Condition: excellent (used), max. workpiece diameter 600 mm threading length 7000 mm max. module 8 / 12 min. module 1 swival range ° diameter of hob 63 - 140 mm spindle turning speed - stepless 45 - 450 U/min weight of the machine ca. 12,5 t dimensions of the machine ca. 9,0 x 2,0 x 2,2 m Condition: In good condition, checked and partially overhauled by a specialist. The existing milling head was replaced by an overhauled universal milling head. Furnishing: Gsdpjwgizdsfx Admsil Differential for inclined machining Automatic indexing device (indexing discs changeable!) For multi-wedge, multi-thread parts, then extensive bushings, support rollers and around 70 Change gears. Conversion of the milling head speed to a frequency converter with corresponding powerful motor is a great thing and saves a lot of set-up time. Equipment: Around 70 change gears, 3 bushing sticks of different sizes, around 20 Bushings, 2 roller mountings, 2 tips for direct mounting on the Clamping spindle, 350 mm chuck, 2 spare part disks.

Condition: refurbished (used), functionality: fully functional, Universal Profile Hobbing and Thread Milling Machine ZFWVG 250x5000 / S7 • Thread milling • Gear hobbing • Longitudinal milling Max. workpiece diameter over saddle: 250 mm Max. workpiece diameter over bed guideway: 500 mm Spindle bore: 102 mm Tailstock quill travel: 100 mm Main motor: 4.0 kW Cross-feed motor (X-axis): 4.3 kW Longitudinal feed motor (Z-axis): 3.8 kW Electrical configuration Operating voltage: 400 V Control voltage: 24 V Frequency: 50 Hz Programmable logic control (PLC) for fixed machine functions Total connected load: 9.5 kW Milling length: 5,000 mm Space requirements: Length: 7,000 mm Width: 2,500 mm Height: 1,600 mm Net weight: 6,700 kg Standard accessories: • Standard thread milling attachment ApG • Max. milling diameter: 150 mm • Spindle taper: Morse 3 • Max. module for hobbing: Module 3 • Min./max. number of teeth for hobbing: 4–50 Options: • Hobbing attachment ApFW Hobbing of parallel and helical profiles up to module 7 Max. milling diameter: 150 mm Spindle taper: Morse 4 • Heavy-duty thread milling attachment ApGS Hobbing of parallel and helical profiles up to module 5 Max. milling diameter: 150 mm Spindle taper: Morse 4 Godpfx Aow Hquxedmeil

Condition: ready for operation (used), thread length: 3,000 mm, Thread milling and hobbing machine Gsdpfx Adev Huihomjil Maximum spindle bore: Ø 80 mm Depending on the travel, max. Ø 250 mm and min. Ø 20 mm are possible. Machining length: 3000 mm With accessories: change gears, steady rest For further technical data, see the PDF file.
