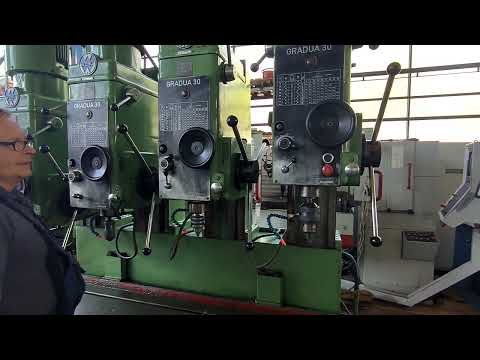

Gang Drilling Machine

WMW WEBO Gradua 30

Technical details:

number of spindles: 4
bore capacity in steel (diameter): 30 mm
bore stroke: 200 mm
drill spindle - Morse Taper: MK3
spindle throat: 350 mm
spindle distance: Mittenstand: 490 mm
headstock adjustment: 500 mm
feed:: 0,07; 0,15; 0,25; 0,33 / 4step mm/U
feed:: manuell und automatisch
spindle speed:: 70 ... 1.600 / 8step U/min
distance between table/spindle: max. 430 mm
Crsdpfx Asu Idt Nec Hsh
distance between table/spindle: min. 180 mm
table surface area: 1820 x 400 mm
table adjustment: 250mm mit Handkurbel mm
total power requirement: 10,8 kW
dimension machine xH: ca. 1,0 x 2,1 x 2,8 m

All spindle heads with clockwise and counter-clockwise rotation
Drill head 1 to 3 clockwise and counter-clockwise rotation without tapping function
Drill head 4 with automatic thread-cutting function, rawhide chuck up to Ø 33mm
All drill heads and the table are height-adjustable.

Equipment:
Coolant supply
i.D.

*
