Four sided planers Weinig Unimat 23 1998

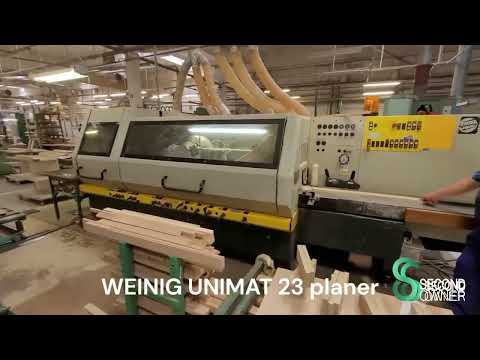

Weinig Unimat 23

Condition: used, Number of spindles 6 St. Working width 230 mm Working height 120 mm Length of the planing table 2000 mm Feed motor 4 kW Feed speed 5-24 m/min. 1 WEINIG Unimat 23 E Planer and moulder ----- 6 spindles (with 2 rigth spindles, reinforced motors, 8,000 rpm, ATS control Machine will be cleaned and functionally checked before delivery Working width 20 - 230 mm Working height 8 - 120 mm 1st spindle (bottom) 5.5 kW (motor replaced) ----- Diameter 40 mm Speed ??6,000 rpm Tool swing diameter 125 - 180 mm Rebating unit including tool Hardened table insert in front of 1st (bottom) spindle 2nd spindle (right) 12.1 kW (motor replaced) ----- Shared motor with left vertical spindle Diameter 40 mm Speed ??8,000 rpm Tool swing diameter 112-250 mm Max. Tool diameter behind stop plane 203 mm Max. groove depth 35 mm Axially travel 80 mm 3. Spindle, left ----- Shared motor with 2nd spindle Diameter 40 mm Speed ??8,000 RPM Tool swing diameter 112-200 mm Max. groove depth 35 mm Axially travel 80 mm Pressure shoe in front of left spindle, including spring-loaded lateral roller pressure 4. Spindle, right 8.3 kW (motor replaced) ----- Diameter 40 mm Speed ??8,000 RPM Tool swing diameter 112-250 mm Max. tool diameter behind stop plane 203 mm Max. groove depth 35 mm Axially travel 80 mm 5. Spindle, top 7.5 kW ----- Diameter 40 mm Speed ??8,000 rpm Tool travel 112-200 mm Max. groove depth 35 mm Axially travel 45 mm Split pressure shoe in front of upper spindle, adjustable to the tool travel and pivoting away from the tool, spring-loaded. 6. Lower spindle 4.0 kW Iedpjxz Hh Ujfx Amietg ----- Diameter 40 mm Speed ??6,000 rpm Tool travel 112-250 mm Max. groove depth 15 mm Axially travel 45 mm Spindles in general ----- All groove spindles with high concentricity. Lubrication points for the axial spindle movement. Feed system ----- Motor with mechanical brake, 4 kW Mechanical feed infinitely variable 5-24 m/min. Feed roller in front of the first lower tool pneumatically controlled up/down, Durofer pointed tooth rollers (Weinig patent) with depth limiter and self-cleaning Adjustment travel of the feed rollers relative to the left spindle, axial 35 mm Machine electrical system ----- Operating voltage 440 V (voltage range 380 - 420 V), 50 Hz. Machine frame, tables and stops ----- Infeed table 2.0 m long (incl. jointing guide) Manual Waxilit pump for table de-resin removal One driven rubber roller (spring-loaded in the outfeed table) Two driven rollers in the machine table, hardened Machine operation ----- Pressure shoe in front of the upper spindle with mechanical digital display. Extraction after the upper spindle with mechanical digital display. ATS/System, automatic 2-axis positioning for spindles 3 and 5 Minimum working height 12 mm Electric height adjustment of the upper spindles and the feed Central lubrication points on the front of the machine Electronic digital displays on spindles 3 and 5 (axial), spindle 6 (radial) and spindle 4 (axial and radial) Safety and noise reduction ----- Full safety enclosure Easily hinged safety hood with window. Covers the e...

Condition: good (used), Year of construction: 1992, Single-piece sanding machine sanding from top and bottom electric height adjustment with digital display continuously variable feed speed star/delta starter pneumatic belt tensioning main switch sanding belt oscillation finishing brush unit top and bottom, manual height adjustment Working width: 190 mm Working height: 4 - 150 mm Min. workpiece length: approx. 280 mm Abrasive belt dimensions (L x W): 1850 x 200 mm Feed speed: 5 - 25 m/min Installed power: approx. 14 kW Extraction port diameter: 2 x 180 mm Dimensions (L x W x H): 2000 x 1000 x 2050 mm Weight: approx. 1800 kg Incl. infeed and outfeed roller conveyor (L = 1600 mm, non-driven) Note on used machines: • Technical data subject to errors and prior sale. Iedpfx Ajwyda Uemistg • Quoted prices are ex-works – loaded free of charge! • The machines have been cleaned and function-tested. • All machines are sold as inspected, with no claims to warranty. Buyers are welcome to inspect machines at the location. • Special agreements are only valid in written form. (We answer inquiries only when your address and telephone number are provided!)

Condition: used, Number of boring spindles 4 St. Ijdpfxsw I Dcds Amiotg Working width 230 mm Working height 120 mm Feed motor 5,5 kW

Condition: used, Number of boring spindles 10 St. Working width 230 mm Working height 160 mm Feed motor 5,5 kW Feed speed 6-36 m/min. Itjdpfx Aew H Iv Tomijg

Condition: used, Year of construction: 2006, Technical details: x-travel: 800 mm y-travel: 800 mm z-travel: 800 mm turning speeds: 12.000 1/min tool taper: SK 50 control: SIEMENS 840D shopmill Itedpfxepumdce Amijg tool change unit: 240 fach size of pallet: 630 x 630mm mm spindle: 52 kW / 430Nm total power requirement: 87 kVA weight of the machine ca.: 15 t horizontal machining center, NC-round-table pallet-changer (2 pallets), Internal Coolant Supply 40 bar, prepared for Infrared Touch Probe Renishaw MP 10 without probe, tool-breakage control (mech.), MQL, airblast through spindle, oilmist suction, TRANSMIT funbction, accuracy package, mode 4, glass window right door, incl. FASTEMS FPC 1000 pallet pool for 14 pallets, incl. setting up station, control, and 10 pallets approx. 98.500 h main switch on apprax. 45.500 Spindle hours *

Condition: used, Year of construction: 2000, Number of boring spindles 5 St. Working width 230 mm Itsdewztw Sopfx Amiog Working height 160 mm Feed motor 4 kW Feed speed 5-24 m/min.

Condition: used, Width: 1,550 mm Height: 1,100 mm Length: 1,150 mm Protective cover / lid / flap for a planer machine Weinig type Unimat 23 SP or similar. Iedpewuub Sjfx Amistg

Year of construction: 2015, condition: used, workpiece length 1.500 - 6.000 mm work piece width 50 - 200 mm workpiece height 20 - 100 mm Max. Layer weight 450 kg Max. Stack size 6 x 1,2 x 1,35 m Paternoster stacking system, destacking or outfeed mechanization Sicko type X-Stacker for automatic stacking of workpieces after planing systems. The system is designed for a continuous material flow and enables the formation of layers and bundles in several fixed lengths. Ideal for the efficient stacking of wooden workpieces. The system consists of an infeed roller conveyor after the planing machine with a length of 10.3 m, the stacking unit and a roller conveyor (buffer section) after stacking with a length of 7 m. Iedpfx Aoyz Df Temistg Technical details on request. Also available is the complete planing line, the planing machine or the Weinig High-Mech loading magazine.

Condition: used, Number of boring spindles 6 St. Working width 230 mm Iedpfx Aov Ec Ntemistg Working height 160 mm Length of the planing table 2.500 mm Feed motor 5,5 kW

Condition: excellent (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: 86573, planing height: 120 mm, spindle diameter: 40 mm, planing width: 230 mm, rotational speed (min.): 6,000 rpm, number of spindles: 6, Spindles: 6 Working width: 230 mm Working height: 160 mm Itedpfjy Rrgkjx Amieg Spindle 1: Bottom (4.0 kW) Spindle 2: Top (4.0 kW) Spindle 3: Right (7.5 kW) Spindle 4: Left (7.5 kW) Spindle 5: Top kW Spindle 6: Bottom kW

Condition: excellent (used), Year of construction: 2005, Heidenhain digital display Fehlmann cross table KS 322 D Working area: Z-axis quill stroke 110 mm Machine head travel 450 mm Table spindle nose 0 – 527 mm Itedpowkrp Eofx Amiog SF 32 quick-change system Work spindle 2.9 kW Speed range continuously adjustable 50 – 6300 rpm Clamping surface 320 x 670 mm Dimensions and weight: Space required W x D x H 1.5 m x 1.35 m x 2.1 m Weight approx. 850 kg

Condition: good (used), Year of construction: 1993, functionality: fully functional, working width: 230 mm, planing height: 170 mm, spindle diameter: 50 mm, planing width: 230 mm, working height: 170 mm, power of feed motor: 7,500 W, height adjustment type: electric, planer shaft diameter: 50 mm, number of spindles: 8, input frequency: 50 Hz, Equipment: cabin, motor brake, 8 spindles, Working width: 230 mm, working height: 180 mm, Itsdpfxjr Axwno Amisg spindle diameter: 50 mm, feed rate: 7.5 kW / 6 - 36 m/min, Spindle arrangement: 1-bottom (7.5 kW) - scoring spindle 2-bottom (7.5 kW) 3-Right (11 kW) 4-Left ( 11 kW) 5-Top (11.0 kW) 6-Bottom (22.0 kW) 7-Bottom (7.5 kW) 8-Top (7.5 kW) 8 driven rollers in the table

Condition: good (used), functionality: fully functional, working width: 255 mm, planing height: 160 mm, spindle diameter: 40 mm, planing width: 255 mm, working height: 160 mm, power of feed motor: 3,000 W, spindle speed (max.): 6,000 rpm, spindle speed (min.): 6,000 rpm, height adjustment type: electric, planer shaft diameter: 40 mm, type of input current: three-phase, number of spindles: 5, input frequency: 50 Hz, Equipment: cabin, motor brake, Weinig Unimat 23 E with 5 spindles, Working width: 255 mm, Working height: 160 mm, Spindle diameter: 40 mm, Feed: 3 kW / 6 – 36 m/min, Spindle arrangement: 1-Bottom (5.5 kW) 2-Right (5.5 kW) 3-Left (7.5 kW) 4-Top (5.5 kW) Itjdpoxg Sa Hefx Amieg 5-Bottom (4.0 kW) One driven roller at the outfeed table.

Condition: good (used), Studer S30-12 cylindrical grinding machine TECHNICAL DATA Main dimensions Center height: 125 mm Center width: 400 / 700 / 1025 mm Largest longitudinal slide path: 400 / 700 / 1000 mm Longitudinal slide Table speed: 50 - 5000 mm/min Reversing delay: 0-6 s Smallest automatic travel: 1.5 mm Max. stroke: 400 / 700 / 1020 mm Max. Table inclination: 12 / 30 / 78° Cross slide Swivel range: +- 45° Quick adjustment: 40 mm Feed path with handwheel: 20 mm Largest plunge depth: 1.7 mm Sanding headstock Grinding wheel diameter x width x bore: 450 x 80 x 203 mm Speed: 1340 / 1500 1625 / 1800 / 2000 / 2200 rpm Coarse adjustment: 210 mm Workpiece headstock Swivel range: 0 - 90 Speed range: 30 - 675 rpm Mounting cone: Morse 5 Collets: W25 Tailstock Itsdpfx Amjvca Izoisg Mounting cone: Morse 3 Adjustment travel of the center: 30 mm Total power requirement: 5 / 8.25 kW No liability is assumed for the correctness, completeness and up-to-dateness of the information.

Condition: excellent (used), functionality: fully functional, working width 230mm working height 160mm 5 spindles spindles set: bottom/right/left/top/bottom spindles diameter 40mm (last one 50mm) manual jointer on last head rolls in the table electric regulation of top head variable regulated feeder to 36m/min chrome table pneumatic pressure of feeding rolls Itjdpfxoy N N T Ss Amisg
