Takisawa TC 200

Takisawa TC 200

Condition: used, Year of construction: 1969, max. wheel diameter 160,175 mm gear width 355 mm max. module 4,5 spindle bore 75 mm centre distance 410 mm min. number of teeth 2, 3 cutter diameter max. 115 mm cutter length max. 105 mm axis distance between cutter and workpiece - max. 138 mm axis distance between cutter and workpiece - min. 30 mm milling head -swivable 120 ° milling spindle speeds 70 - 400 U/min axial-feeds 0,25 - 4,0 mm/U radial feeds 0,09 - 1,5 mm/U total power requirement ca. 9,5 kW weight of the machine ca. 3,5 t dimensions of the machine ca. 1730x1400x1440 mm Equipment/accessories: - Interchangeable wheels - Milling arbors - Clamping devices - Documentation Hodpfxevzhf Sj Acvsk

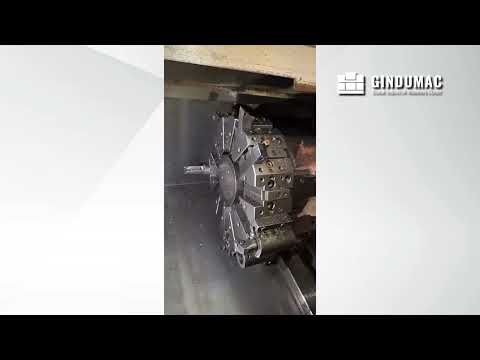

Condition: used, Year of construction: 1999, total height: 2,000 mm, total length: 3,000 mm, total width: 1,800 mm, Empty weight: 4.000 kg Price: On request Driven tools included Barfeeder included Hjdpfx Acewqf I Usvjk - Year: 1999 - Documentation available: Yes - CE marking present: Yes - CE certificate present: No - Serial number: HT23372E - Drive system: CNC - Control system brand: Yasnac - Power [kW]: 15.0 - Centre height [mm]: 230 - Swing over bed [mm]: 450 - Distance between centres [mm]: 380 - Spindle bore [mm]: 59 - Min. spindle speed [rpm]: 30 - Max. spindle speed [rpm]: 5000 - Options: Bar feeder, Live tools - Transport dimensions: 3000mm x 1800mm x 2000mm (l x w x h) - Transport weight [kg]: 4000kg - Transport packages [pcs.]: 4 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Year of construction: 1995, condition: ready for operation (used), A CNC rigid board milling and drilling center Bimatec Soraluce is available. Travel X/Y/Z: 2500mm/900mm/1600mm, speed: 2000rpm, spindle mount: ISO40/M16, tool positions: 30, transport dimensions X/Y/Z: approx. 5300mm/3450mm/3500mm, weight: approx. 13500kg, control: Heidenhain CNC 415, operating hours: 31507h. Including fixed table, movable stand, automatically indexing milling head, manual measuring probe, coolant device and filter system. Documentation available. On-site inspection is possible. Hodpfeu T Rgwsx Acvjk

Condition: good (used), Year of construction: 2001, Gildemeister NEF 520 CNC Lathe TECHNICAL DATA Working Area Swing over bed: 500 mm Swing over cross slide: 290 mm Chuck diameter: 250 mm Cross travel: 260 mm Center distance: 850 / 1350 mm Turning Spindle Spindle head DIN 55027 Size: 8 Spindle bore diameter: 70 mm Spindle mount: metric 80 Spindle diameter in front bearing: 120 mm Main drive AC Drive power: 12 kW Max. torque: 920 Speed range: 10 – 3000 rpm Gear ratios: 2 Switchable speeds: Continuously variable Feed drive X-feed force: 5000 N Z-feed force: 10000 N X-rapid traverse: 8 m/min Z-rapid traverse: 10 m/min Multifix tool carrier; Size: C Tailstock Quill diameter: 80 mm Quill stroke: 180 mm Quill mount: MK5 Hedpfx Aowftviscvek Dimensions L x W x H: 2900 x 1953 x 1825 mm Weight: 2700 kg SCOPE OF OFFER INCLUDES (list not exhaustive): Gildemeister lathe SMW Autoblok Hi-Grip high-precision chuck Chuck jaws Multifix tool holder Complete operating documentation Exact scope of offer as shown in the photo gallery We assume no liability for the accuracy, completeness, or timeliness of the information provided.

Year of construction: 2002, condition: ready for operation (used), With two machining modules, X-axis: -50 to 725mm, Y-axis: -200 to 300 / -250 to 250mm, rapid traverse X-, Y-, Z-axis: 18/12/30m/min, control: Siemens Sinumerik, temperature range: 5–40°C, power type/frequency: 3 PEN / 50Hz, rated voltage: AC 400V, control voltage: DC 24V, auxiliary voltage: AC 230V, connected load: 102kVA, rated current: 148A, rated current (fast): 148A, fuse (slow): 160A, length: 8000mm, width: 3000mm, height: 4000mm, weight: approx. 17t, operating hours: approx. 80,000h. The machine is fully functional, the ball screw drive (recirculating spindle) of the Z-axis was renewed in 2024 and it has been regularly maintained. Comes with documentation, control cabinet, hydraulic unit, filter elements, and chip conveyor. An on-site inspection is possible. Hedpfswbuyzjx Acvjk

Year of construction: 1992, condition: used, grinding height 50 mm grinding width 120 mm grinding wheel diameter 600 mm total power requirement 85 kW weight of the machine ca. 9500 kg D I S K U S (Germany) CNC Controlled Double Sided Vertical Spindle Surface Grinder with Rotary Workpiece Feed System and IONIC Size Control Model DDS 600 III PLM - CNC Year 1992 erial No. 7924 _____ Grinding wheel Ø x bore x height, each 600 x 150 x 75 mm Approximate Workpiece dimensions: Grinding height, approx. 1.5 – 50 mm Grinding width, appox. 20 - 120 mm Vertical quill adjustment, each, approx. 150 mm Infeed of grinding wheels via CNC 0.0001 mm Feed of workpiece transportation device, infinitely variable 40 – 235 mm/sec Grinding wheel speed, each (30 m/s) 191 - 955 rpm Grinding spindle drive, each infinitely variable 37 kW Total electrical load, approx. 85 kW - 380 V - 50 Hz Weight, approx. 9,500 kg Accessories / Special Features * SIEMENS CNC Control, Model SINUMERIK 810 G, with monitor, for 4 axes i.e. Hjdpfst Hw Nasx Acvsk * Movement of 2 spindle quills, dressing device, WP Rotation. Direct programming of Grinding Process data on keyboard. In connection with a IONIC Size Control No. 17 A / 68.000 with two tracers for measuring the thickness of the workpieces after grinding process, and corresponding infeed of the grinding wheels. Continuous display of measuring results on the monitor, with statistics, workpiece counter, etc. Digital Display Ampere for both grinding wheel drives and for grinding spindle speeds, etc. . * Positioning control device for supervising the height of the lower grinding wheel.. * Double column design as a portal for extra stability and higher accuracy * Rotary workpiece transportation device with infinitely variable feeds. The workpieces are Manually stacked in a device and forwarded by a transportation carrier disk thru the grinding wheels, there are two WP- down holders, one equipped with a overheight stop-control. * Angled grinding wheel dressing device, with automatic dressing process, integrated in the control as CNC axis, with safety switch-off. * Separate large switch cabinet. * Automatic central lubrication. Large pneumatic control system * Large Coolant device 6 (F) with filtering unit and magnetic separator. * Various Grinding wheels, WP transport carrier disks, 2 flanges, large Olimist separator, etc. This machine is very suitable for simultaneous double-sided grinding of large series of workpieces, e.g. punched parts, piston rings, hydraulic parts, rotors, distance rings, etc. Condition : Very good. Machine can be soon inspected under power. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract.

Condition: excellent (used), Year of construction: 2004, operating hours: 7,987 h, functionality: fully functional, travel distance X-axis: 1,120 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 460 mm, rapid traverse X-axis: 48 m/min, rapid traverse Y-axis: 48 m/min, rapid traverse Z-axis: 36 m/min, controller manufacturer: FANUC, controller model: 160 is-MB, table width: 500 mm, table length: 500 mm, table load: 400 kg, spindle speed (max.): 12,000 rpm, operating hours of spindle: 7,979 h, spindle motor power: 22,000 W, spindle nose: SK 40, number of slots in tool magazine: 30, input voltage: 380 V, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Japanese-built high-speed machining center with full 5-axis simultaneous capability, in excellent condition with 29,000 power-on hours and only 7,900 spindle hours (as the spindle was overhauled by the manufacturer a few years ago), complete with: remote electronic handwheel; high-pressure through-spindle coolant; chip conveyor; random tool changer; laser tool inspection system; RENISHAW MP 10 wireless part probe; FANUC high-speed package; network interface; serial interface; memory card. Hodpex H Tx Hofx Acvsk

Condition: good (used), TECHNICAL DATA AXLE Rapid feed X,Y: 15000 mm/min Rapid feed A,B: 15000 mm/min Rapid feed Z1,Z2,E: 18000 mm/min Rapid feed C: 90000°/min Smallest input unit: 0.001 mm Smallest input unit, C-axis: 0.001° MACHINING PERFORMANCE Max. turning diameter: 20 mm Max. Headstock stroke: 205 mm Max. Drilling capacity: Stationary: 14 mm; Driven: 8 mm Hedpeu Uic Tsfx Acvok Max. Tapping capacity: Stationary: M10 x P1.5; Driven: M6 X P1.0 MAIN SPINDLE Spindle speed: 500 - 10000 rpm Drive: Spindle drive Main spindle motor: 3.7 / 5.5 kW Main spindle bore: 26 mm WHEELING SPINDLE Max. Clamping diameter: 20 mm Max. Part length for ejection to the front: 150 mm Max. Clamping length: 75 mm Spindle speed: 500 - 10000 rpm Pick-up spindle motor: 2.2 / 3.7 kW Indexing angle: 1°, 15° CONFIGURATION Operation mode: Right-handed Dimensions: 2700 x 1400 x 2400 mm Weight: 3400 kg SCOPE OF OFFER U.A: (list not exhaustive) Control system: Fanuc Fire extinguishing system: Siemens Oil mist separator: Donaldson Transformer Hydraulic unit Parts conveyor Chip conveyor Bar feeder: LNS Tool holder Exact scope of supply according to photo gallery We assume no liability for the correctness, completeness and up-to-dateness of the information.

Condition: ready for operation (used), Year of construction: 1999, overall weight: 70 kg, number of axes: 5, This 5-axis TOS VARNSDORF W 100 A was manufactured in 1999. It operates on a voltage of 3PE ~ 400 V, with a frequency of 50 Hz and a current of 22 A. The machine's power capacity is 15 kVA, and it weighs 70 kg. Consider the opportunity to buy this TOS VARNSDORF W 100 A horizontal machining centre. Contact us for more information. Hodpfsyblnuox Acvjk • Voltage: 3PE ~ 400 V • Frequency: 50 Hz • Current: 22 A • Power: 15 kVA • Control voltage: 24 V

Condition: good (used), Year of construction: 2000, operating hours: 53,776 h, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 380 mm, rotary table diameter: 500 mm, rotational speed (max.): 18,000 rpm, For sale is a 5-axis simultaneous milling machine from Deckel Maho, model DMU 50 eVolution. The machine is in good condition and ready for immediate use. Technical Data: Hodpfx Acewxd Agjvok Year of manufacture: 2000 Control: MillPlus Power-on hours: 53,776 h Spindle hours: 18,512 h X-axis: 500 mm Y-axis: 400 mm Z-axis: 380 mm B-axis: 0-180° C-axis: 360° Clamping surface: Ø 500 mm Max. table load: 200 kg Spindle taper: SK40 Max. speed: 18,000 rpm Spindle power: approx. 15 kW Tool magazine: 60 slots Dimensions: approx. 3,400 x 2,400 x 2,500 mm Weight: 5,500 kg Transport and loading can be arranged Europe-wide at an additional cost upon request. Prices are subject to VAT. Viewing possible by appointment. Please contact us—our team is happy to assist you. Trade-in or exchange possible! Machinery Purchase / Sale BUYING / SELLING OF PRODUCTION & METALWORKING MACHINES AND MORE. Are you looking for a high-quality yet affordable metalworking machine for your production? Or would you like to sell your equipment? For further information or contact options, please visit our website.
