CNC lathe

Tacchi HD-1450 CNC

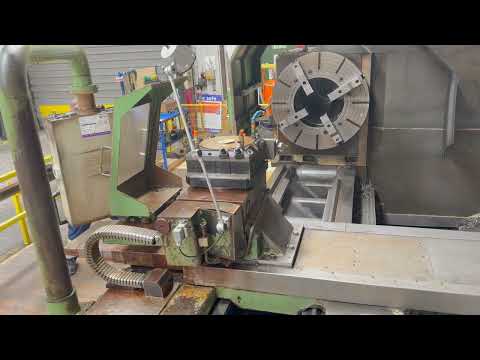

Condition: excellent (used), Tacchi HD/1450 – 725 x 4000mm CNC Lathe (2012) Serial Number: 7264 Year: 2012 Control: Fanuc OiTD CNC Dedpfx Aqoxc In Sovskn Condition: Used – good working order Technical Specifications: Centre height: 725mm Swing over bed: 1450mm Swing over cross slide: 1000mm Distance between centres: 4000mm Main drive motor: 60 kW Maximum weight between centres (unsupported): 15,000 kg Spindle speed range: 1.9 – 560 rpm Features & Equipment: 2 x 3-point steady rests Handwheel Swarf conveyor 4-position hydraulic toolpost 4-jaw chuck Fanuc OiTD CNC control

Condition: refurbished (used), Year of construction: 2012, functionality: fully functional, travel distance X-axis: 7,000 mm, travel distance Y-axis: 3,500 mm, travel distance Z-axis: 2,000 mm, feed rate X-axis: 50 m/min, feed rate Y-axis: 50 m/min, feed rate Z-axis: 30 m/min, spindle speed (max.): 18,000 rpm, rapid traverse X-axis: 50 m/min, rapid traverse Y-axis: 50 m/min, rapid traverse Z-axis: 30 m/min, torque: 38 Nm, overall weight: 65,000 kg, Initial commissioning: 2012 Control system: Heidenhain iTNC 530 X-axis: approx. 7,000 mm Y-axis: approx. 3,500 mm Z-axis: approx. 2,000 mm A-axis: ± 100° C-axis: ± 360° Clamping table: 6,000 x 3,000 x 160 mm (sunken) with 18H12 T-slots / 250 mm spacing 2-axis milling head VH 12 Spindle power: 24 kW Spindle speed: max. 18,000 rpm Torque: max. 38 Nm Dkjdpfxjyrdc Es Aqvon Tool holder: HSK 63A Linear axis drives Feed rate X, Y, Z axes: up to 50 m/min / 30 m/min Axis acceleration X, Y, Z axes: up to 2.5 m/s² Connection data Voltage: 400 V Frequency: 50 Hz Main fuse: 200 A Power consumption: 85 kVA Dimensions, weights Machine footprint without peripherals: approx. 10,000 x 6,650 x 5,900 mm Total weight: approx. 65,000 kg Additional equipment - Double-sided access doors - 10-position tool changer Optional at extra cost: - Wireless probe - Heidenhain remote diagnostics Machine condition Fully functional, very good condition. Can be inspected under power. !!! The machine was completely mechanically overhauled in 2022 !!!

Condition: good (used), Year of construction: 1996, Manufacturer: Tacchi Model: HD 1450 CNC STI Year of manufacture: 1996 Control: NUM With accessories. In excellent condition. Technical specifications: Swing diameter over bed: 1,450 mm Dkedsy Ny I Topfx Aqvon Swing diameter over cross slide: 1,000 mm Chuck diameter: 1,200 mm Maximum turning length: 4,000 mm Spindle bore: 150 mm Spindle speed: 560 rpm Capsule holder Machine weight: approx. 15 tons

Condition: excellent (used), Year of construction: 2015, operating hours: 3,900 h, functionality: fully functional, travel distance X-axis: 762 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 610 mm, spindle speed (max.): 18,000 rpm, operating hours of spindle: 3,900 h, We offer in very good condition Hurco VMX30 HSi with HSK-A63 spindle and 18k RPM. X-Axis travel: 762mm Y-Axis travel: 508mm Z-Axis travel: 610mm The machine has following options: Internal coolant 20 bar 40 Tool changer 18k RPM Spindle hSK-A63 Dksdpfox N E H Usx Aqven Linear Scales Touchprobe Renishaw OMP40 Toolprobe Renishaw TS27R Ultimotion software Tool change optimization software Please not vices are not with sale of machine

Condition: used, Year of construction: 1965, There are two WMW SU 315x3000 available, connected load machine 1/ 2: 12.6/ 12kW, weight machine 1/ 2: 8.2/ 9t, machines need overhauling. Dkodpjxg Ihgsfx Aqvjn

Condition: good (used), Year of construction: 2006, Brand: GEMINIS Dkjdpfxsxdub Is Aqven Model: GHT4 G2 700x 2000 Cnc: FANUC 21 TB Distance between centers: 2000 mm Ø Swing over bed : 720 mm Ø Over carriage: 470 mm Spindle diameter : 104 mm Maximum piece weight between points : 2.560 kg Spindle nose: DIN 55027-11 Spindle speed: 0-1600 m/min Total power : 28 kw

Condition: good (used), TECHNICAL DATA AXLE Rapid feed X,Y: 15000 mm/min Rapid feed A,B: 15000 mm/min Rapid feed Z1,Z2,E: 18000 mm/min Rapid feed C: 90000°/min Smallest input unit: 0.001 mm Smallest input unit, C-axis: 0.001° MACHINING PERFORMANCE Max. turning diameter: 20 mm Max. Headstock stroke: 205 mm Max. Drilling capacity: Stationary: 14 mm; Driven: 8 mm Max. Tapping capacity: Stationary: M10 x P1.5; Driven: M6 X P1.0 MAIN SPINDLE Spindle speed: 500 - 10000 rpm Drive: Spindle drive Main spindle motor: 3.7 / 5.5 kW Main spindle bore: 26 mm WHEELING SPINDLE Max. Clamping diameter: 20 mm Max. Part length for ejection to the front: 150 mm Max. Clamping length: 75 mm Spindle speed: 500 - 10000 rpm Pick-up spindle motor: 2.2 / 3.7 kW Indexing angle: 1°, 15° CONFIGURATION Operation mode: Right-handed Dimensions: 2700 x 1400 x 2400 mm Weight: 3400 kg SCOPE OF OFFER U.A: (list not exhaustive) Dsdpfx Aqsu Uic Tevokn Control system: Fanuc Fire extinguishing system: Siemens Oil mist separator: Donaldson Transformer Hydraulic unit Parts conveyor Chip conveyor Bar feeder: LNS Tool holder Exact scope of supply according to photo gallery We assume no liability for the correctness, completeness and up-to-dateness of the information.

Condition: good (used), Year of construction: 2002, max. wheel diameter 275 mm gear width 55 mm max. module 6 Dkodpfx Aqstumrpsvsn min. module 1 Control 840 C Siemens total power requirement 100 kW weight of the machine ca. 16,7 t dimensions of the machine ca. 5,2 x 2,3 x 2,4 m m

Year of construction: 1993, condition: used, TYPE : DEA 400/2000 Type YEAR : n.d. Year MAXIMUM SLEDGEHAMMER PRESSURE : TON. 400 Ram capacity SLIDING STROKE : mm. 1,100 Slide strok MAX VERTICAL LIGHT : mm. 1,600 Max shut height TABLE DIMENSIONS : mm. 2,000 x 1,600 Table size RAPID SPEED : mm/sec 650 Fast stroke TABLE PRESS CAPACITY : TON. 160 Cushion capacity PRE-MILER stroke : mm. 400 Cushion stroke HEIGHT ABOVE GROUND : mm. 5,800 Djdsihf R Uopfx Aqvekn Ground up to floor FRONT LIGHT : mm. 3,400 Distance btw uprights LATERAL LIGHT : mm.1,600 Lateral window

Condition: good (used), Year of construction: 2017, travel distance X-axis: 500 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 400 mm, 5-axis machining center DMG MORI CMX 50 U including robot Year of manufacture: 2017 Control unit: Siemens Operate Technical Data Travel paths: X-axis: 500 mm Y-axis: 450 mm Dodpfoy Ry N Tex Aqvskn Z-axis: 400 mm B-axis: -5 to +110° C-axis: 360° Main spindle: Tool holder: SK 40 Spindle speed range: 20 - 12,000 rpm Drive power – main spindle (100/40% duty cycle): 13 / 9 kW Worktable: Table size: Ø 630 x 500 mm Tool changer: Number of tool stations: 30 positions Feeds: Rapid traverse (x/y/z): 30 m/min Operating hours: Spindle hours: Technical features & accessories: - Direct absolute measuring system in x, y, and z, including air purge - Blowing air switching via M-function - Production package, consisting of: • Internal coolant supply 12 bar • Chip conveyor, tank 250 L • Enclosure roof • Tool changer door can be opened • Signal lamp • Touch probe PP40 • Tool measurement TS27R • Tool breakage monitoring Robot ROBOJOB Type: Mill-Assist-E Year of manufacture: 2018 Spindle bearings replaced in autumn 2025.
