Used Scm Minimax Me 35 for sale (651)

Condition: new, - New -Description:- Top equipment for high productivity in a small space!- Intuitive operation with the eye-S control and 10"large touch screen: HMI Maestro Active Edge,Graphic display of all machining units and theiroperating status, Graphic simulation of machining operations,Control of all machining units, Regulationof glue tank temperature, Assistance functionsfor setting up the machine according to the machining program,Fault diagnosis for quick elimination of simple errors,Statistics on machining parameters, USB connection,Preparation for network connection, Preparation for Industry 4.0with data transmission protocol API REST- Excellent accessibility to the working aggregatesthanks to the large hood that ensures protection and noise reduction- Monoblock construction made of steel ensures high stabilityand rigidity of the machine- Automatic aggregate positioning when changingthe panel thickness- Automatic application of the strip edges with edge magazine(me 35 t s): The strip edges of solid wood areautomatically loaded and synchronized with the panel guide- Panel feed is made by feed chain with rubber glides- Extendable workpiece support- Adjustment of the infeed ruler via spacer platesTechnical data:Dimensions and weightsLength approx. 3314 mmHeight approx. 1300 mmWidth/depth approx. 1085 mmWeight approx. 545 kgflush radius milling unitflush radius milling unit input power 2 x 0,35 kWflush radius milling unit cutter speed 12000 min¯¹flush radius milling unit cutter diameter HM 55.3 mmFlush radius milling unit suction port diameter 2 x 60 mmElectrical dataSupply voltage 400 VMains frequency 50 HzGlue unitGlue tank input power 0,25 kWGlue tank suction port diameter 60 mmGlue tank working temperature 190 °CGlue tank filling quantity 0.8 kgPneumatic connectionOperating pressure 6.5 barAir consumption 470 l/minFeed rateFeed input power 5 kWFeed speed 7 m/minEdgesEdge thickness roll material 0.4 - 3.0 mmEdge thickness strip material - 5.0 mmPre-milling unitPre-milling unit input power 3 kWPre-milling unit diamond cutter diameter 80 mmPre-milling unit material removal ,5 / 2 mmpre-milling unit cutter speed 7200 min¯¹pre-milling unit cutter height 56 mmpre-milling unit exhaust diameter 2 x 80 mmscraper unitradius scraper 2 mmbuffing unitbuffing unit input power 2 x 0,14 kWbuffing unit speed 2800 min¯¹workpieceworkpiece thickness 8 - 50 mmworkpiece width min. 110 mmWorkpiece length min. 120 . 5507235 Kdedpfx Akovwfmlepou

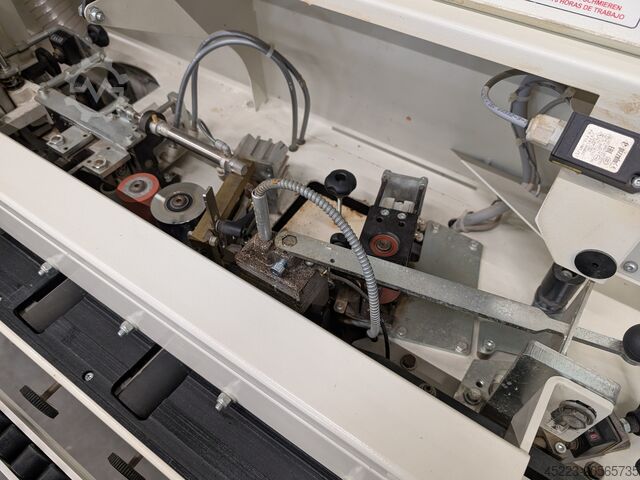

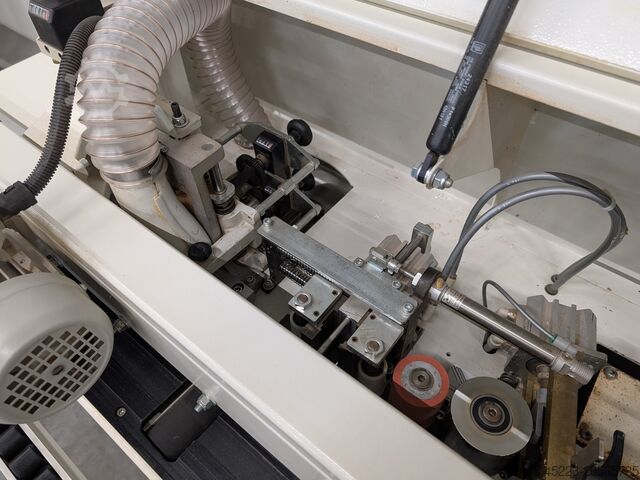

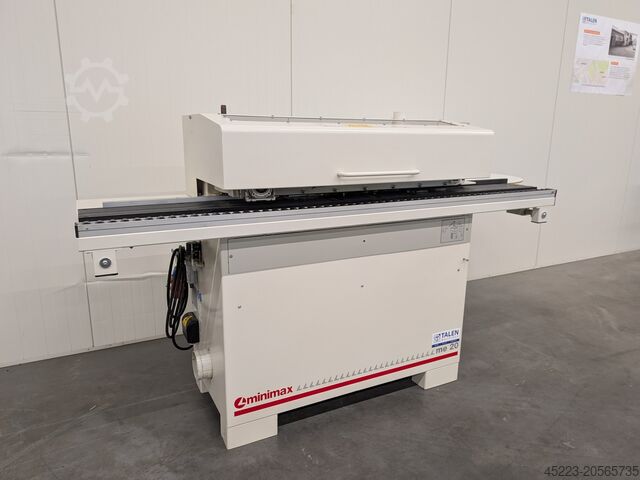

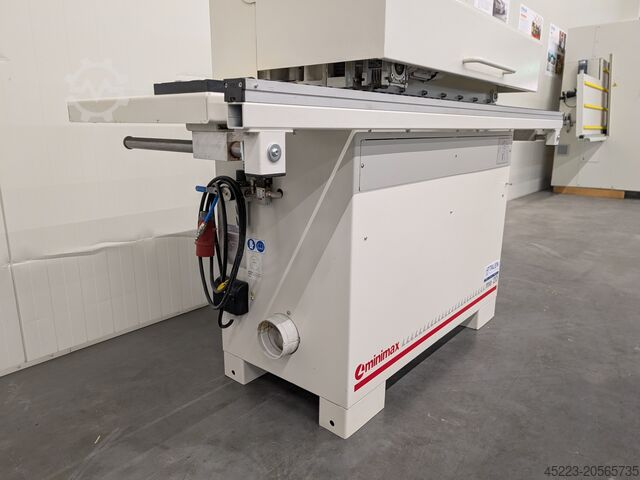

Year of construction: 2014, condition: good (used), Edge banding machine, edge bander, finishing unit, buffing unit, modular unit, format processing unit, double-end tenoner, edge processing machine, sanding unit, edge banding unit -Handover: in its current condition as inspected -Accessories: see pictures -Manufacturer: SCM HOLZKRAFT, Edge banding machine type Minimax ME 20 -Minimum workpiece length: 180 mm -Minimum workpiece width: 65 mm -Workpiece thickness: approx. 12 to 50 mm -Edge thickness (rolled edges / strip edges): 0.4 to 2 mm -Feed rate: max. 5 m/min -Adhesive system: Hot melt adhesive granules in the glue pot below Kedpfxsz Rxb Ro Akpedu -Dimensions: 2000/720/H1235 mm -Weight: 300 kg

Condition: good (used), Code: 0414 Brand: SCM MINIMAX Model: ME 25 - CE Standard Automatic edge bander for joinery, furniture, custom-made furniture, panels, doors, kitchens and various – CE Standard – Year 2017 Kdjdpfx Aszfapmskpju Technical data: Thickness of roll edge 0,4–3 mm Max edge thickness 5 mm Min/max panel height 12/50 mm Panel feed speed 7 mt/min Work surface height 904 mm Min panel length/width 190/65 mm High-grip toothed feed belt Panel support roller conveyor along the entire length of the machine Composition: Gluing unit: Glue tank capacity 1 kg – Motor power 0,18 Kw End cutting unit: Motor power 0,37 Kw – End trimming blade diameter 90 mm Z 20 – Blade rotation speed 12000 rpm Overlapping trimming unit: Upper and lower motor power 0,75 Kw – Vidia cuttersn diameter 75 mm Z 4 – Cutter rotation speed 12000 rpm Edge scraper unit for finishing Pvc/Abs edges Glue scraper unit for removing any excess glue Suction inlet diameter 120 mm Overall dimensions mm 1950 x 700 x 1250 h Weight kg 430

Condition: used, Year of construction: 2015, Four-knife 120 mm cutterblock Four selectable feed speeds Heavy cast iron construction Precision thicknessing table with central column guidance 520 mm working capacity 2015 CE Kedsz N Hfbspfx Akpjdu

Condition: ready for operation (used), Year of construction: 2023, functionality: fully functional, spindle diameter: 40 mm, spindle speed (max.): 8,000 rpm, spindle speed (min.): 8,000 rpm, input voltage: 400 V, number of spindles: 5, table width: 230 mm, Equipment: motor brake, The machine was installed at the plant in 2024. The planer was purchased by us as new and installed at the plant in January 2024. Due to a change in the technological requirements of our production, it was replaced with a different model. The reason for the sale is a change in the plant’s needs. The machine is in very good technical condition and ready for operation. Kedpfx Akoz Rz Hvjpedu

Condition: excellent (used), Year of construction: 2019, Combined jointer and thicknesser SCM minimax fs 41e Year of manufacture: 2019 Power of drive motor: 5 kW Connection voltage: 400 V Mains frequency: 50 Hz Planer cutterhead type: TERSA – 4 cutterheads Speed: 5200 rpm Planing width, max.: 410 mm Feed rate: 6 / 12 m/min Dust extraction port: 2, diameter for thicknessing: 120 mm Jointer Infeed table, length: 1034 mm Chip removal, max.: 5 mm Dimensions and weights, length: approx. 2000 mm Width/depth: approx. 1110 mm Height: approx. 1115 mm Weight: approx. 430 kg TERSA cutterhead system enables particularly quiet operation. Helically toothed steel infeed roller for consistent and uniform material feed. Material feed with two speeds. Numerical display for thickness table height. Kdedpfszi Nhmjx Akpeu The 2,000 mm long jointer tables facilitate easy jointing of large workpieces. Work tables are made of gray cast iron, annealed and stress-relieved, making them resistant and permanently flat. Sturdy, large aluminum jointer fence with round bar guide (1200 x 160 mm) Thickness table adjustment via handwheel with numerical display for planing height. The high machine weight ensures the highest precision and smooth operation. Powerful industrial motor Robust steel/gray cast iron construction.

Condition: as good as new (ex-display), Year of construction: 2026, machine/vehicle number: AB00040876, functionality: fully functional, input voltage: 400 V, type of input current: three-phase, overall weight: 550 kg, Equipment: CE marking, documentation/manual, Automatic edge banding machine SCM ME 40TR in CE version, manufactured in 2026. Equipped with a glue pot and features compliant with European directives, including a rectifying unit and a special rounding saw unit. Features include: a saw unit with an automatic on/off system, a scraper with an automatic on/off system, a brushing unit, a glue scraping unit with an automatic on/off system, an automatic strip feed system with a magazine, a glue pot for polyurethane adhesive with rapid discharge, an infrared lamp, an anti-stick unit, a spraying system for finishing the edge band, a “Nesting” copy unit for the routing unit and for the edge band scraper, and internal lighting. The optional edge band scraping unit is designed for processing edge bands thicker than 1 mm. Kedpfez Nlmqex Akpjdu

Condition: new, The model ME 40TR is SCM’s ‘bestseller and in this category offering unrivaled price / performance ratio. We can offer the following new machine SCM me 40tr, CE Volt 400 EU, frequency 50 Hz edge thickness coils 0,4 - 3 mm max. edge thickness strips 5 mm min. – max. work piece thickness 8 - 50 mm feed speed 9 m/ min glue pot unit 0,18 kW, capacity 0,8 kg premiling aggregate 2,2 kW, 9000 U/ min Kdodpfjc S Di Rex Akpju end-cutting unit with "Radius" allows you to make a radius on the corners of the edged panel trimming unit 2 x 0,35 kW, 12.000 U/ min OPTIONAL device for panel preheating edge scraping unit flat scraping unit grooving unit 1,1 kW, 12.000 U/ min, notch width 4 mm brushing unit with 2 independent motors magazine for strip edges kid for quick exchange of glue unit ...

Year of construction: 2018, condition: good (used), Underfloor sliding table saw, crosscut saw, sliding table saw, miter saw, panel saw, table saw, circular saw, panel saw -Manufacturer: SCM HOLZKRAFT, Panel saw type minimax SC 2C VRS-08 -Main motor: 4 kW -Pre-scoring motor: 0.75 kW -Speed: 3000/4000/5000 rpm -Saw blade: Ø 300 mm / max. Ø 350 mm -max. Cutting height: 90° 100 mm / 45° 79 mm -Miter cut: up to 45° Kdodpfxjz N Hqkj Akpsu -Cutting width: 920 mm -Table length: -Overall dimensions: 2430/1810/H1030 mm -Weight: 390 kg

Year of construction: 2021, condition: used, Planing width: 410mm, working height: 3mm-240mm, max. stock removal: 5mm, feed speed: 12m/min, thicknessing table X/Y: 775mm/423mm, extraction port diameter: 120mm, operating hours: approx. 350h, weight: approx. 361kg. Equipped with 4-knife TERSA cutterblock for quick knife changes without adjustment or screws, solid gray cast iron thicknessing table with 4-column guide on four large spindles, integrated lifting device for a stable table position without additional locking, manual thicknessing table adjustment with numerical readout and reading accuracy of 1/10mm, helical-toothed steel infeed roller for gentle stock removal from 0.2mm and satin-finished steel outfeed roller. The machine is currently in storage. Ksdpszzdyujfx Akpsdu

Condition: excellent (used), SCM minimax thickness planer Planing width: 400mm, Motor: 5 KW, 3 planer blades, 1 feed speed for the thickness planer, Manual adjustment of the thickness planer table, Maximum planing thickness on the thickness planer: 230mm, Planer bed length: 180cm, Planer fence adjustable to an angle, Very good condition. Kodpjz Izcdsfx Akpedu

Condition: used, SCM M3 double edger, in good condition, 300 mm cutting width, 100 mm cutting height Kdedpsxlnpnefx Akpju

Condition: excellent (used), Year of construction: 2001, functionality: fully functional, working width 410mm tables lenght 2630mm 4-knives shaft motor with brake horizontal drill included drill table 250x570mm year 2001 Ksdpfs Aay Uiox Akpsdu

Condition: used, Year of construction: 2018, total width: 1,899 mm, total height: 2,264 mm, total length: 2,580 mm, working width: 1,350 mm, grinding width: 1,370 mm, overall weight: 1,890 kg, table height: 900 mm, Wide-belt sanding machine Manufacturer: SCM GROUP spa Brand: Casadei Kdjdpfez Ippxox Akpsu Type: Libra 55 RTC 135 Year of manufacture: 2018 Weight: 1,890 kg Technical specifications: Max. working width: 1,350 mm Working height (adjustable table): 4 to 170 mm Working height (optional fixed table): 4 to 200 mm Sanding belt width: 1,370 mm Sanding belt length: 2,620 mm Feed rate: 3 stages: 4, 5, and 9 m/min Power of feed motor: 0.45 / 0.8 kW Power of main motor: 11 kW (15 hp) Purchase price net: €30,000 plus applicable VAT. VAT will be shown separately on our invoice. Note: The equipment text or equipment description is taken from the original purchase invoice and has not been checked for accuracy or completeness. Deviations are possible! Financing available Upon request, we can arrange suitable financing through our company. Please feel free to contact us. Subject to changes, errors and prior sale.

Condition: excellent (used), Year of construction: 2018, machine/vehicle number: AB00007338, functionality: fully functional, power: 3.5 kW (4.76 HP), input current: 8 A, input frequency: 50 Hz, workpiece height (max.): 84 mm, overall weight: 177 kg, SCM Minimax E10 manual edge banding machine manufactured by SCM Group (Italy). The machine is designed for edge banding straight and curved panels using ABS, PVC, and melamine edge banding. Ideal for custom furniture production, reception desks, counters, curved components, and interior fit-out applications. The machine is in very good condition, fully functional, and ready for immediate operation. Specifications: Manufacturer: SCM Group Model: Minimax E10 Year: 2018 Power supply: 400V / 3 phase Foot pedal control Heated glue pot system Glue application roller Suitable for straight and curved panels Mobile edge tape support arm Compact industrial construction Easy operation and setup Technical data: Edge thickness: 0.4 – 3 mm Edge height: 10 – 84 mm Panel thickness: 8 – 80 mm Minimum inner radius: approx. 25 mm Feed speed: 4 / 8 m/min Kedpfxjy Uwq Ns Akpjdu Installed power: approx. 3.5 kW The machine can be inspected and tested while powered on.

Condition: excellent (used), SURFACE PLANER model SCM MINIMAX F1 second hand machine in Excellent working conditions CE regulation: YES instruction booklet and CE certification: YES security protection Kdedpfx Akon Dw N Dspju working width mm. 410 tables length mm. 2610 n.4 knives "Tersa" tilting guide up to 45° motor power Hp 5,5 volt. 380/50 OTHER Surface Planer machines available as in photos

Year of construction: 2004, condition: good (used), I sell the multiple boring machine SCM TOP 35, Year 2004. Number of spindles 35 Offset 32mm 6 positions for pre-set drilling depths 2 Aluminium fences 2 x 1500mm 4 stoppers for Aluminium fences 4 material pressures pneumatic 2 electromotors 2 x 2,2KW Tilting 0-90° full servomotorical Two-step drilling with pneumatic active piston / max. Drilling depth140mm ! Max. Element width over the drilling head 1280mm. Total weight 693kg. Kodsiu Urpjpfx Akpodu Very good condition. Available immediately.

Condition: good (used), Code: 0486 Brand: SCM MINIMAX Model: CU 410 CLASSIC - CE Standard Universal professional high quality 6-works combined machine for joinery, production of furniture, custom furniture, panels, doors, window frames and various - CE Standard Technical data: Sturdy construction: the base consists of a single, fully welded steel monoblock Surface Planer: Max working width mm 410 Length of cast iron worktables mm 1800 Tiltable surface fence 90-45° Planer spindle rotation speed rpm 5200 Max removal at planer mm 4 Thickness planer: Thickness table size mm 605 x 410 Feed speed at thickness mt/min 7 Min/max working height on thicknesser mm 3/230 Circular saw: Squaring carriage length mm 2250 Squaring frame Blade inclination 90-45 degrees Max diameter of saw blade with installed scoring unit mm 315 Max saw blade projection mm 100 Scoring unit blade unit diameter mm 80 Cutting width at parallel fence mm 1050 Telescopic guide with 2 squaring stops Spindle moulder: Spindle diameter mm 30 Max spindle length mm 100 Spindle rotation speed rpm 1400/3500/6000/8000 Max tool diameter mm 210 Mortiser: Cast iron mortiser with spindle diameter 16 mm Work surface dimensions 470 x 220 mm Workpiece clamping press N° 3 Three-phase motors Hp 5,5 Kdsdpez E Sgusfx Akpeu Suction connections N° 3 ports diameter mm 120 Overall dimensions of assembled machine mm 2500 x 2800 x 1200 h Overall dimensions for transport mm 2500 x 1600 x 1200 h Weight kg 630

Condition: like new (used), Year of construction: 2021, operating hours: 30 h, functionality: fully functional, machine/vehicle number: AE00002612, grinding width: 1,350 mm, overall weight: 6,250 kg, grinding height: 170 mm, working height: 170 mm, table height: 900 mm, workpiece height (max.): 170 mm, The machine has only been in use for a few hours and is practically brand new. It is in perfect working order. See below for the full specifications: DMC system T5C 1350 PF170-4M Lifting unit for a fixed work table, 900 mm from the ground * Working thickness: 3 to 170 mm BL 16 Infeed panel with reading bar for 'epics' sectioned pads, pitch 16 mm, or with PWM3 POSITION 01 TIE-5000 Working unit for an extractable internal cross pad PE 16T 'EPICS' sectioned electronic sanding pad, pitch 16 mm Working pressure control of the sectioned pad via the Pro-Sand control system Motor driven by an inverter, power up to 15 kW POSITION 02 DO 19 Oscillating unit fitted with 19 rotating 125 mm disc brushes 1.1 kW main motor driven by an inverter Independent motor for controlling the oscillating movement Electronic auto-set for the unit Sliding movement with motor driven by an inverter POSITION 03 BF 300 Working unit for a brush roller, diameter 300 mm 4 kW main motor driven by an inverter Double rotating direction of the brushing roller Electronic auto-set for the brush roller Side oscillation of the brush roller POSITION 04 BF 300 Working unit for a brush roller, diameter 300 mm 4 kW main motor driven by an inverter Kedpfx Aozcmcvjkpjdu Double rotating direction of the brushing roller Electronic auto-set for the brush roller Side oscillation of the brush roller POSITION 05 SC-2620 Operating unit for a superfinishing pad Sanding belt rotation against the conveyor feed direction Electronic sanding belt swing control Disc brake ◦ Chevron belt dimensions: 1370 x 2186 mm ◦ Sanding belt dimensions: 1370 x 2620 mm PE 16/C 'EPICS' sectioned electronic sanding pad, pitch 16 mm 16 mm center-to-center distance of sectors Double-action pneumatic cylinders with adjustable push/counter-push Graphite cloth with quick extraction device Total management of its functionality by the "Pro-Sand" electronic control Working pressure management of sectioned pad via the Pro-Sand control system Timed oscillating clearing blowers 15 kW motor driven by an inverter OUTSIDE THE MACHINE SB/U 200 Outfeed working unit for abrasive cloth-coated rollers, diameter 200 mm Roller rotation against the conveyor feed direction / Manual adjustment of the roller working position / Abrasive cloth-coated roller, diameter 200 mm, 'Ultra Fine' type with silicon carbide fibers / 2.2 kW motor / Side oscillation of the brush roller OTHER DEVICES Perforated worktop and conveyor belt with a vacuum motor powered by an inverter up to 7.5 kW, integrated into the machine frame Front supporting worktop equipped with five idler rollers Rear supporting worktop equipped with five idler rollers 4 kW feed belt motor driven by an inverter Console with integrated PC "eye-M" and "Maestro Pro-Sand" electronic control with Tele Service system 1999 working programs / Virtual keyboard for fast settings of the machine / Production report / Interactive trouble-shooting program and self-diagnosis of the electronic cards / Display of electric and pneumatic diagrams / Display of the user manual, spare parts catalog, electric and pneumatic diagrams Vision panel door positioned on the service side Internal LED lighting for the machine

Condition: used, Year of construction: 2019, Edge banding machine Manufacturer: SCM Type: Minimax E10 Year of manufacture: 2019 Technical data Edge thickness (strip material): 0.4 - 3.0 mm Edge thickness with shear cutter at 80 mm edge height: 0.4 - 1.5 mm Edge thickness with shear cutter at 50 mm edge height: 0.4 - 2.5 mm Edge thickness with shear cutter at 45 mm edge height: 0.4 - 3.0 mm Edge height: 10 - 84 mm Workpiece thickness: 8 - 80 mm Minimum workpiece width: 50 mm Minimum edge length: 210 mm Minimum inner radius (concave) at 0.4 mm edge: 25 mm Minimum outer radius (convex) at 0.4 mm edge: 5 mm Feed speed: 4 / 8 m/min Processing temperature: 140 - 220 °C Edge feed Integrated shear cutter for cutting edge material from the roll. Roll table for holding roll material. Suitable for ABS edges, melamine edges, veneer edges, and other pre-fabricated edge strips. Gluing system Teflon-coated glue tank below the table top. Continuous glue circulation to prevent glue deposits. Kedpfx Akjzuykpepodu Fast heating time of approx. 7 minutes. Standby function with timer. Glue tank capacity: 1.5 liters. Pressure system Motor-driven glue application roller. One free-running pressure roller. Foot pedal for start and stop control of the working cycle. Note: The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.

Condition: new, Year of construction: 2025, Table saw/router combination minimax tw 45c With aluminum sliding table and pivoting router spindle – high performance at a low investment Article number 5502045 Brand Holzkraft / SCM TECHNICAL DATA Dimensions and weights Net weight approx. 290 kg Dust extraction connection Dust extraction port diameter 2 x 120 mm Work table Work table length 1000 mm, Sliding table length 1000 mm Work table width 435 mm, Sliding table width 270 mm Table height 900 mm Installation information Space requirement length 1945 mm, Machine body width/depth 710 mm Space requirement width/depth 2220 mm, Working area length 1600 mm Explanation of space requirement: The dimensions take into account maximum travel distances or usable lengths. Working area width/depth 1600 mm Machine body length 1000 mm, Explanation of working area: Please add the specified dimensions to the space requirement to obtain the recommended free installation area for the machine. Electrical data Connection voltage 400V, Power of drive motor 5.0 kW Mains frequency 50Hz Router spindle Kdsdpfx Aohp Rcyokpou Spindle inclination 0 to -45°, Spindle speed 3500/7000/10000 min⁻¹ Usable length of the spindle 100 mm, Spindle arbor diameter 30 mm Maximum spindle overhang above the table 130 mm Maximum router tool diameter Maximum tool diameter, plunge-cut 180 mm, Maximum tool diameter, mortising cutters 275 mm Maximum tool diameter, profile cutters 210 mm DELIVERY SCOPE Arched router guard Anodized aluminum sliding table Telescopic miter fence Aluminum fence cheek

Condition: used, Year of construction: 2000, functionality: fully functional, – very good condition – Italian manufacture – year of production: 2000 TECHNICAL PARAMETERS: SURFACE PLANER: – working width: 410 mm – number of knives: 3 pcs – infeed table dimensions: 1030 x 410 mm – outfeed table dimensions: 930 x 410 mm – adjustable fence – noise-reducing comb THICKNESSER: – planing height: 3–230 mm – shaft diameter: 72 mm – shaft speed: 5300 rpm – table size: 700 x 410 mm – feed speed: 7 m/min Kdjdjxl D Nqepfx Akpeu – main motor: 4 kW – machine dimensions (L/W/H): 200 / 90 / 120 cm – weight: 400 kg

Condition: used, Year of construction: 2019, overall weight: 1,047 kg, Combined Surfacing and Thicknessing Planer Manufacturer: SCM GROUP spa Model: SCM Type: L Invincible FS7 Year of Manufacture: 2019 Weight: 1,047 kg Usable Working Width: 520 mm Kedpfx Asz Iqqkjkpsdu Total Table Length: 2310 mm Cutterhead Diameter: 120 mm Planerhead Speed: 5000 rpm 4 Knives: 35 x 3 x 520 mm Aluminum Surfacing Fence: 1200 x 190 mm Surfacing Fence Angle Adjustment: from 90° to -45° Min./max. Planing Height: 3 / 250 mm Feed Rate (Thicknessing): 5 - 8 - 12 - 18 m/min Dust Extraction Port Diameter (Surfacing): 120 mm Dust Extraction Port Diameter (Thicknessing): 120 mm Purchase Price (Net): €15,000 plus applicable VAT. VAT will be shown separately on our invoice. Note: The equipment text or equipment description is taken from the original purchase invoice and has not been checked for accuracy or completeness. Deviations are possible! Financing possible Upon request, we can arrange suitable financing through our company. Please feel free to contact us. Subject to changes, errors and prior sale. Sale is made without guarantee or warranty and only to commercial customers. Inquiries will be processed from Monday to Friday between 8 a.m. and 4 p.m.

Condition: used, Year of construction: 2021, CNC MACHINING CENTER Morbidelli N100 KEY FEATURES "BUMPERS": THE PERFECT COMBINATION OF SAFETY AND PRODUCTIVITY "PRO-SPACE" SAFETY DEVICES: SAFE AND COMPACT "HE" TABLE - FOCUS: EFFICIENCY AND SAVINGS AXES Morbidelli N100 12 Morbidelli N100 15 Morbidelli N100 18 Morbidelli N100 22 Working area in X-Y-Z axis * mm 2486-1255-150 3686 TECHNICAL DATA -1555-150 3686-1860-150 22-31 = 30862185-150 22-43 = 42862185-150 Travel X-Y-Z axes mm 3120-1685-250 4320-1985-250 4320-2285-250 22-31 = 37702585-250 22-43 = 49702585-250 Traverse speed of X-Y axes m/min 35 WORK TABLE Type Multifunction table made of aluminum Stops for "A" working area No. 4 Vacuum pump (Opt.) m³/h 250/300 DRILLING UNIT Vertical spindles No. – RPM 7 (4X-3Y) 8000 – 12 (8X-4Y) 8000 Horizontal spindles (Opt.) No. – RPM 4 (2X-2Y) 8000 – 6 (4X-2Y) 8000 Integrated saw blade in X (Opt.) Ø mm – RPM 125 – 10000 Motor power kW (HP) 2.2 (3) ELECTROSPINDLE Motor power Std. (S6) kW (HP) 6.6 (9) – 9.5 (13) Max. speed RPM 24000 Lateral tool changer 8 positions 10 positions 11 positions 13 positions INSTALLATION Installed power kVA 23÷28.5 Compressed air requirement l/min 400 Extraction air requirement m³/h 5300 Extraction air speed m/s 30 Extraction nozzle diameter (electrospindle + drilling unit + kit) mm 250 Machine weight kg 1950 2200 2500 22-31 = 2550 22-43 = 3200 * X Distance between stops - Y Max. panel width - Z Workpiece passage only electrospindle or electrospindle + drilling unit: diameter 200 mm; Extraction air requirement 3,400 m³/h In conjunction with the strip for panel ejection, the extraction nozzle diameter is always = 250 mm GENERAL FEATURES CNC machining center for processing panel materials. Self-supporting structure and work table Box construction made of cold-rolled steel, consisting of rectangular sections welded together; multifunctional work table made of aluminum with a single working area. Holes in a grid of 120 mm for vacuum connection, easily removable via a magnetic device (patented system). The entire surface is grooved at a distance of 20 mm so that the workpieces can be clamped using rubber seals, MODULSET or suction cups. Automatically retractable reference stops that ensure accurate positioning of the workpieces to be machined. Moving gantry It is a gantry structure made of cold-rolled steel in a box construction, consisting of rectangular sections. The working units are installed on the gantry. Working unit consisting of a drilling head with vertical spindles, horizontal spindles, an integrated grooving and sawing unit and an SCM electrospindle with a quick-change tool system of type HSK63F. Travel of the gantry and aggregate carrier The movement in the X, Y and Z axis takes place on linear prismatic recirculating ball guides by means of pre-tensioned ball screws. The movement transmission of the X and Y axes (moving column and carriage) takes place via a reduction gearbox with rack and pinion drive. The movement of the aggregate carrier in the Z direction takes place via pre-tensioned ball screws. Positioning of the working units and control of the machine functions takes place via "Brushless" three-phase servo motors and digital control units. CONTROL The control unit consists of a numerical control. Kedpfx Akez Iyvpjpjdu

Condition: like new (used), spindle diameter 35 mm 5 speeds from 3,000 to 10,000 rpm Kjdpfxszx U Nuj Akpsdu motor power 5.5 kW Maggi 4-roller feed with stepless speed control tenoning carriage with angle setting scale worktable 120x730 cm 760 kg year of manufacture 2001 can be purchased without feed unit
