Used Saeilo for sale (18)

Condition: used, Year of construction: 2017, spindle bore 58,0 mm turning diameter 430 mm turning length 760 mm turning dia. in gap 690 mm centre height 235 mm turning speeds 20 - 2000 U/min quill: 4 MK bed width 300 mm weight of the machine ca. 1700 kg Features: - Digital display - 3-jaw chuck - Multifix - Tool holder - Removable bridge - Machine light - Chuck guard - Lockable emergency stop - Machine light - Coolant system Nodpfjzlulisx An Iold - Operator's manual

Condition: good (used), Year of construction: 2000, center width: 2,000 mm, Control system: SIEMENS 840 D (manual turning) Spindle module replaced in 2008. Nlodpfx Ansy A I I Is Iod Swinging diameter over the bed: 630 mm Swinging diameter over the carriage: 370 mm Spindle bore: 105 mm Distance between centers: 2,000 mm The machine is supplied with a 250 mm manual chuck. Spindle speed range 1: 4 - 430 rpm Spindle speed range 2: 430 - 2500 rpm Power of the main motor: 18.5 kW S6-40%

Condition: used, Year of construction: 2017, functionality: limited functionality, machine/vehicle number: 1950, turning diameter over cross slide: 225 mm, turning length: 425 mm, turning diameter: 320 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 165 mm, travel distance Z-axis: 400 mm, spindle motor power: 7,000 W, rapid traverse X-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, total height: 1,729 mm, total length: 3,255 mm, total width: 2,612 mm, quill diameter: 80 mm, quill stroke: 100 mm, type of input current: three-phase, For sale is a SAEILO ACE 12+ CNC turning center, manufactured in 2017 and first commissioned in July 2018. It includes a BOSS 552 bar feeder with 32 tool positions, manufactured in 2018. The machine is based on the ACE Designers Jobber LM Elite and is equipped with a FANUC Series 0i-TF control. The machine number is 1950. Njdpfxozl D Ruj An Ield The machine is currently connected and can be inspected while powered on. It is in used condition with typical signs of wear from industrial use. The scope of delivery includes an IEMCA Boss 552-HD heavy-duty bar feeder, type 32 LL, manufactured in 2018, serial number 021835GA03. The bar feeder weighs approximately 830 kg, operates on 400 V / 50 Hz, and requires 6 bar of compressed air. Technical data of the machine: max. machining diameter 320 mm, swing over bed 500 mm, swing over slide 225 mm, distance between centers 425 mm, X-axis travel 165 mm, Z-axis travel 400 mm, spindle speed up to 5,000 rpm, 8 tool stations, tool cross-section 25 x 25 mm, rapid traverse X/Z 30 m/min, and a machine weight of approximately 4,000 kg. Electrical data: 380/400 V AC, 3-phase, 50 Hz, 24 V DC control voltage, 40 A fuse, 23/22 A rated current, and 15 kVA connection power. Important note: The measuring arm is currently not functioning. Other functions can be tested during an on-site inspection while the machine is powered on. The machine is located in Bocholt. Inspection and pickup are possible by arrangement. Transport and loading are the responsibility of the buyer.

Condition: used, Year of construction: 2012, machine/vehicle number: 12030320, travel distance X-axis: 810 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 500 mm, controller manufacturer: Heidenhain, controller model: TNC 620, table width: 900 mm, table length: 400 mm, overall weight: 3,500 kg, spindle speed (max.): 10,000 rpm, number of spindles: 1, number of slots in tool magazine: 23, input voltage: 400 V, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, This vertical machining center, a Saeilo Contur MMV 810 S, was manufactured in 2012 and is equipped with a Heidenhain TNC 620 control unit featuring an electronic handwheel for precise operation. Travel ranges are X = 810 mm, Y = 400 mm, Z = 500 mm, with a table measuring 900 x 400 mm and fitted with 3 T-slots (size 14 mm). The machine includes a double-arm tool changer with 23 positions, BT40 tool holder, and a high-performance spindle capable of up to 10,000 rpm, oil cooling, and an internal coolant supply system with 20 bar pressure. Spindle speed: 0-10,000 rpm Axis travels: X: 810 mm Y: 400 mm Z: 500 mm Double-arm tool changer with 20 positions Tool holder: BT40 Spindle oil cooling // Internal coolant supply 20 bar Disc-type scraper in coolant tank Air blast cooling through or around the spindle External coolant gun Chip conveyor (spiral type) Central lubrication system Table clamping surface: 900 x 400 mm with 3 x 14 mm T-slots Njdpex N E Acofx An Isld Machine weight: 3,500 kg Includes documentation.

Condition: good (used), Year of construction: 2013, turning diameter over bed 520 mm Nlodpfx Anszl Hb Ns Iod turning diameter over slide rest 330 mm turning length 1500 mm spindle bore 80 mm spindle turning speed - stepless 20-2000 U/min spindle drive 7,5 kW weight of the machine ca. 2,2 t

Condition: excellent (used), Year of construction: 2014, machine/vehicle number: 120001, travel distance X-axis: 1,120 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 600 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, total height: 3,000 mm, total length: 4,500 mm, total width: 3,600 mm, table width: 1,200 mm, table height: 800 mm, table length: 700 mm, table load: 1,000 kg, overall weight: 8,500 kg, spindle speed (max.): 12,000 rpm, For sale is a CNC vertical machining center, Macro Micro Tech MCV 120. The machine is in very good condition. Model: MCV 120 Year of construction: 2014 Serial number: 120001 Machine No.: 1500567 Weight: approx. 2,400 kg Mains voltage: 380 V Control system: Heidenhain Machine hours: 22,170 h Nodpfx Anszk H S Eo Ijld Program runtime: 8,700 h Spindle hours: 8,089 h Axis hours: 8,297 h Spindle system: Maximum spindle speed up to 12,000 rpm Spindle taper: SK40 Travel in X-axis: 1,120 mm Travel in Y-axis: 600 mm Travel in Z-axis: 600 mm Distance from spindle nose to table: 700 mm Transport and loading can be arranged throughout Europe for an additional fee, upon request. Prices are exclusive of VAT. Inspection is possible by appointment. Contact us, and our team will be happy to assist you. Trade-in or exchange is possible! Machine buying and selling WE BUY / SELL PRODUCTION AND METALWORKING MACHINES, AMONG OTHER THINGS. Do you need a high-quality, yet affordable, metalworking machine for your production? Or would you like to sell yours? For further information or to contact us, please visit our website.

Year of construction: 2008, condition: ready for operation (used), A CNC vertical machining center by Saeilo requiring repair is available. Travel X/Y/Z: 1120mm/700mm/700mm, table dimensions X/Y: 1200mm/700mm, max. table load: 1000kg, spindle nose to table distance range: 100mm-800mm, tool holder: SK40, power: 16.5kW, tool stations: 30, rapid traverse: 20m/min, feed rate: 15m/min, positioning accuracy: +/-0.005mm, repeatability: +/-0.003mm. Machine dimensions X/Y/Z: approx. 4000mm/3000mm/2650mm, weight: approx. 7800kg, control: Heidenhain, operating hours: approx. 50550h, spindle hours: approx. 13000h. The machine geometry must be checked. Furthermore, the tool changer is sticking, leaking oil and the lighting has defects. Documentation available. An inspection on site is possible. Nlodpfx Anszidile Ijd

Condition: ready for operation (used), Year of construction: 2012, operating hours: 12,316 h, functionality: fully functional, machine/vehicle number: 11080297, travel distance X-axis: 1,100 mm, travel distance Y-axis: 585 mm, travel distance Z-axis: 600 mm, controller model: Heidenhain TNC530i, spindle speed (max.): 8,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 1,100 mm Travel range, Y-axis: 585 mm Travel range, Z-axis: 600 mm Spindle speed (max.): 8,000 rpm Spindle type: SK 40 Number of tool positions in the tool magazine: 30 MACHINE DETAILS Control system: Heidenhain TNC530i Input voltage: 400 V Total weight: 7,000 kg Operating hours (according to image) Control system operating hours: 42,480 h Machine operating hours: 38,123 h Spindle operating hours: 12,316 h EQUIPMENT Nlodpfszd Aigex An Isd Documentation/Manual Chip conveyor Electronic handwheel

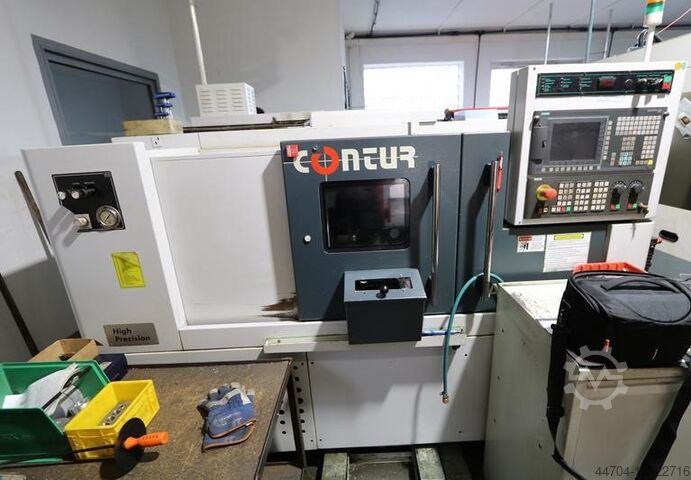

Condition: good (used), Year of construction: 2014, 1 used 1 CNC lathe Manufacturer Saeilo Contour Model ACE-15MC, Njdsvzkw Rjpfx An Ijld Type LT-2XL500M, Year of manufacture 2014, with Sinumerik 828D BASIC T control Technical data: Max. turning diameter 270 mm Max. turning length 425 mm Bar capacity 51 mm Spindle speed 5000 rpm Number of tool positions 12 Tool holder VDI 30 Main drive power 12/18 kW Travel paths X/Z axis 183/500 mm Dimensions LxWxH without chip conveyor 2600x2100x1800 mm Net machine weight approx. 4000 kg Equipment: driven tools C axis

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: 110532, turning length: 1,980 mm, spindle bore: 105 mm, spindle speed (max.): 2,500 rpm, turning diameter over bed slide: 600 mm, controller model: Siemens 840DSL mit ShopTurn, TECHNICAL DETAILS Swing diameter over bed: 600 mm Distance between centers: 2,000 mm Turning length: 1,980 mm Spindle bore: 105 mm Nsdpfsy Ex Hmex An Ield Speed: 2,500 rpm Power: 18.5 kW MACHINE DETAILS Control: Siemens 840DSL with ShopTurn Number of gear stages: 2

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, machine/vehicle number: 7001203, turning diameter over cross slide: 438 mm, spindle bore: 152 mm, turning diameter over bed slide: 860 mm, center width: 2,300 mm, spindle speed (max.): 680 rpm, bed width: 510 mm, TECHNICAL DETAILS Centre distance: 2,300 mm Swing diameter over bed: 860 mm Swing diameter over cross slide: 438 mm Nsdpfxoy Edw Rj An Iold Bed width: 510 mm Spindle mounting: A2-11 Spindle bore: 152 mm Spindle speed range: 8 - 680 rpm Number of speeds: 12 Tailstock quill diameter: 120 mm Tailstock quill travel: 165 mm Quill taper: MT6 MACHINE DETAILS Motor power: 22 kW

Condition: good (used), Year of construction: 2018, Distance between centres: 2300 mm Swing over bed: 860 mm Swing over cross slide: 438 mm Nledpey D I Nusfx An Isd Bed width: 510 mm Spindle mount: A2-11 Spindle bore: 152 mm Spindle speed range: 8 - 680 rpm, 12 steps Motor power: 22 kW Tailstock quill diameter: 120 mm Tailstock quill travel: 165 mm Quill taper: MK6

Condition: good (used), Year of construction: 2011, functionality: fully functional, Saeilo Dialog H 66 Control: Siemens 840DSL with ShopTurn Nledey D I Hmspfx An Ijd Swing diameter over bed: 600 mm Centre distance: 2,000 mm Turning length: 1,980 mm Gear stages: 2 Spindle bore: 105 mm Spindle speed: 2,500 rpm Power: 18.5 kW

Condition: used, Year of construction: 2009, functionality: fully functional, CONTUR MSL-400 Compact and powerful for flexible use: fast servo turret, (VDI-30) with 12 tools 700 mm turning length 52/74 mm bar capacity Robust roller guides Nljdpeu Rtp Ejfx An Iod CNC controls: SIEMENS, compact dimensions

Condition: used, Year of construction: 2011, turning diameter 320 mm turning length 600 mm control Fanuc Oi-TD spindle bore diameter 74 mm number of controlled axis 2 turning speed range 3000 U/min rapid speed 20 m/min number of tapers in turret head 12 direkt Nljdpfx Asyxr Hton Ijd tail stock Ja power requirement 15 kW weight 5,0 t dimensions 3,7 x 1,6 x 2,0 m Used CNC- Lahte 2 axis - 3 jaw chuck Ø 250 mm - chip conveyor - oil dust collector - Tool presetter

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 1,350 mm, travel distance Y-axis: 675 mm, travel distance Z-axis: 635 mm, rotational speed (max.): 7,500 rpm, number of slots in tool magazine: 24, TECHNICAL DETAILS X axis: 1,350 mm Y axis: 675 mm Z axis: 635 mm Distance spindle nose – table: 745 mm Control: Siemens Sinumerik Work Table Length: 1,450 mm Width: 685 mm T-slot size: 18 mm Number of T-slots: 5 T-slot spacing: 100 mm Table load capacity: max. 1,500 kg Spindle Spindle speed: 30 – 7,500 rpm Gearbox: 2-step Spindle taper: NT-40 Motors Spindle motor (30 min duty cycle): 12 / 16 kW X-axis drive motor: 4.7 kW Y-axis drive motor: 4.7 kW Z-axis drive motor: 4.7 kW Tool Changer Magazine capacity: 24 stations Taper: SK 40 Max. tool diameter: 90 mm Max. tool length: 300 mm Max. tool diameter (without adjacent tool): 110 mm Max. tool length (without adjacent tool): 350 mm Max. tool weight: 6 kg Tool selection: shortest path Feed Rapid traverse (X/Y/Z): 18 m/min Nledpfx Anox Iuicj Ijd Feed range (X/Y/Z): 1–10,000 mm/min MACHINE DETAILS Machine dimensions: Length 3,324 mm / Width 2,746 mm / Height 2,840 mm Machine weight: 7.5 t Required floor space: 4,500 mm × 3,500 mm EQUIPMENT ICS / internal coolant supply Paper band filtration system with high-pressure pump

Condition: excellent (used), Year of construction: 1997, Manufacturer SAEILO (Germany) Model CONTUR TV 1000 Year of issue 1997 Control system HEIDENHAIN X/Y/Z-axis movement 1016 / 610 / 508 mm Nljdeugltxspfx An Isd Table size 1080 x 580 mm Max. Table load 600 kg Tool change 40 Spindle taper SK 40 Cutting feed speed X / Y / Z 0.25 to 5080 mm/min Rapid traverse X / Y / Z 20000 mm/min Rapid traverse Z 1500 mm/min Spindle speed 5-8000 rpm Spindle power 11 / 16.5 kW Machine weight 6000 kg

Condition: ready for operation (used), Year of construction: 2012, operating hours: 25,243 h, functionality: fully functional, machine/vehicle number: 12030320, travel distance X-axis: 810 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 500 mm, controller model: Heidenhain TNC 620, spindle speed (max.): 8,000 rpm, TECHNICAL DETAILS Travel X-axis: 810 mm Travel Y-axis: 400 mm Travel Z-axis: 500 mm Table width: 900 mm Table length: 400 mm Spindle speed (max.): 10,000 rpm Number of spindles: 1 Nlsdpfx Asyaq Sisn Iod Number of tool magazine positions: 23 Tool holder: BT40 MACHINE DETAILS Control unit: Heidenhain TNC 620 Total weight: 3,500 kg Input voltage: 400 V Controller on-time: 25,243 h EQUIPMENT Documentation/manual Continuously adjustable speed Chip conveyor Internal coolant supply: 20 bar Disc wiper in coolant tank Air blast cooling through spindle or external External coolant gun Spiral chip conveyor Centralized lubrication
