Used Finishing Line for sale (17,748)

Condition: ready for operation (used), Year of construction: 2015, Working container volume: 200 l Usable volume: 125 l Bjdpfxowcd Nzj Afwjwg Max. workpiece diameter (diagonal): 170 mm Screen area: 2190 cm² Max. centrifugal force: 49,000 N Two systems are available!

Condition: good (used), Connecting line, connecting cable -Type: SIM-M8-3GD-2.5-PU Bwodpfx Aob A Sakofwjg -Number: 159420 -Quantity: 23 pieces available Price: per package -Weight: 0.2 kg

Condition: good (used), Used Bosch bottling line for sale. Was filling plastic bottles with mouthwash but fine for drinks etc. Does not include the tanks shown in the photos. We don't have much information on this regarding specs etc but it was all in working until the factory went Bankrupt and we had to dismantle the line. Price shown is non negotiable and priced to clear. Bjdpfxoiqfk Ts Afwswg

Condition: used, machine/vehicle number: 006500, Position 1: Vertical Storage Systems PRIESS-BMA DLS-CNC Position 2: CNC for Flexible Drilling PRIESS-BMA DLS-CNC Position 3: CNC Flexible Drilling & Inserting PRIESS-BMA DLS-CNC Position 4: CNC Flexible Drilling & Inserting PRIESS-BMA DLS-CNC Position 5: Brushing Machines PRIESS-BMA DLS-CNC Bedpfxjwucmvs Afwewg Position 6: Roller Conveyors PRIESS-BMA DLS-CNC

Condition: ready for operation (used), Now available! Bjdpfsx H Sapjx Afwewg Complete dumpling/knödel production line In very good condition. Production line capacity: 1,200 kg per hour For further specifications of this line, please see attachments. The line can be inspected in Stavenhagen, Germany. The installation is still fully operational and connected to power, making live demonstrations possible. The line is complete and starts with the storage of potato flakes. These are subsequently mixed in the correct ratio. The system can also process other raw materials, such as bread dough or alternative ingredients – for which an additional big bag station is available. After mixing, the product is weighed and further blended before being conveyed to the Rheon forming machines. The Rheon machines form the product; if desired, an internal filling can also be applied. The product is then transferred to the breading drum and subsequently to the spiral freezer, where the exterior is hardened to guarantee good packability. After freezing, the product is weighed by a multihead weigher and packed in doypack pouches. It then passes through the pasteurization tunnel, ensuring a longer shelf life. The packaging is subsequently dried with an air blower. Finally, a weight and metal detection check is carried out before the products are automatically packed into cartons via a repacking machine. The boxes are then automatically palletized, after which the products are ready for transport. Multiple photos available (please contact us for further information).

Condition: excellent (used), Year of construction: 2009, total length: 3,900 mm, total width: 1,450 mm, total height: 1,500 mm, overall weight: 1,500 kg, type of input current: three-phase, input voltage: 400 V, working width: 600 mm, Equipment: type plate available, For Sale: 2x Tromp Make-up, Rolling and Cutting Unit Machines These machines can be integrated into a laminating line, for example in a Tromp, Rademaker, or Fritsch line, etc. Inspection on location is possible. Bwedex Eb Abepfx Afweg Specifications: - Length x Width x Height (each): 3900 mm x 1450 mm x 1500 mm - Conveyor belt - Module for dough rolling (for baguettes, etc.) - The module can be lifted if no rolled products are needed - Flour duster - Cutting unit for smaller rolled products - Moulder for dividing into 4 dough pieces - Mechanically adjustable height - Almost as new, well maintained - Delivered complete - Belt width: 650 mm - Working width: 600 mm - Output width / exit working width: 1x 800 mm and 1x 900 mm Price per unit: €50,000 Transport upon agreement If you have any questions or comments, please let us know. Best regards, Leo Holland

Condition: used, Year of construction: 2015, functionality: fully functional, Manufacturer, Modell: Xeikon 3500 + GM Converting System Scope of delivery: Xeikon Press + GM Inline Finishing System Status: Xeikon Service Date of Installation: June 2016 Year of Manufacture: 2015 Counter: ca. 5,6 Mio running meter Operation hours: ca. 5070 h Print Technology: Dry toner electrophotography Imaging Head: High-Precision LED Matrix Printing Engines: One-Pass, 5 (CMYK+White/Spot) Media Input: Web-fed Media Output: Rewinder Imaging Quality: 1200 x 3600 dpi, variable dot density Media Width: 250-516 mm Toner: QA-I dry toner Printing Speed: Up to 594 sqm/h Media Weight: 40-350 g/m?, 550 ?m Substrates: coated/uncoated Papier, PE, PP, PET, Vinyl, Coex-Folie Digital Front End: Xeikon X-800 Xeikon 3500 | Digital Label B2 Press, Year of manufacture 2015, First Installation June 2016, Print Counter: around 5,6 Mio. meters (status May 2024), Operating hours: around 5.070 hours (status May 2024), Digital Front End: Xeikon X-800 with control PC and 2 monitors, Xeikon Software My Press Version 6.63.x, Machine is expected to be dismantled in week 24, Machine is still in service contract GM DC 500 | Converting System, the DC500 can be set up as an in-line extension to a digital label printing system, allowing the web to continue directly into the converter from the digital press, Year of manufacture 2016, First Installation June 2016, Web Width 100 mm ? 500 mm, Substrates 50-200 gsm, Buffer for manual change of rools in production, Full or Spot Varnish possible, Semi-rotative Die-Cutting Station, Semi-Rotary Speed 40 m/min, Die Plate Size (repeat) 50-558,8 mm, Slitting | 1x Dish Knife and 15x Razorblades, 2 Rewinders with 75 mm diameter, Waste Matrix Rewinder, 4 Anilox Roller, 4 Print Cylinder for varnish, Machine is expected to be dismantled in week 24, Machine was in service contract, Pictures and datasheet attached Bwjdevitwpspfx Afwjg Through many years of serious and professional development, JORG Graphische Produkte GmbH has established itself as one of the world's leading providers of certified pre-owned digital printing and finishing systems. Since we have started the Digital Press business in 2009 we have sold more than 190 High-End Digital Printing Systems for commercial, packaging and label printing worldwide. Meanwhile, the scope of services of JORG includes qualified advice according to customer specifications, Machine Sales, On-Schedule Delivery Service, On-Site Installation with Operator Training as well as After-Sales Service and Support. The machines of the brands such as Xeikon, HP Indigo, Epson etc. are currently located in the following countries: Austria, Belgium, Botswana, Brasil, Bulgaria, China, Chile, Croatia, Cyprus, Denmark, France, Germany, Ivory Coast, Guinea, Hong Kong, Hungary, India, Israel, Iran, Italy, Jordan, Kenya, Kyrgyzstan, Latvia, Madagascar, Mali, Malta, Mauritius, Macedonia, Morroco, Netherlands, Nepal, Panama, Romania, Russia, San Marino, Switzerland, Sweden, Serbia, Slovakia, Slovenia, Syria, South Africa, Tahiti, Taiwan, Turkey, UK, Uruguay, USA, Wales

Year of construction: 2004, condition: used, For rounding, backing and casing-in of book blocks in hard, flexible or plastic cases. Alternative gluing, backlining, and headbanding, depending on the equipment of the machine, is possible depending on configuration. Hard cover book line Kolbus BF 527 Bwjdpfx Afjx Dkk Soweg Year: 2004 - Automatic setting - Co-Pilot with touchscreen - Product counter - Book measuring table - Starfeeder - Pre-heater (hot air) - Rounding and backing station - Glue unit - Excluding gauzing station - Book mark suction device - Glue unit - Head and tail banding station - Pressing station - Casing-in station - Case pre-stacking conveyor - Case bending station - Case forming station - Coldglue circulation pump Building in machine Kolbus FE 604 - Co-Pilot with touchscreen - Automatic setting - Right hand infeed - Integrated hydraulic - Heater monitoring unit - Straight delivery Book stacker Kolbus DS 391 - Compensating stacker - Straight delivery Kolbus: BF 527 Book block format (max): 305 x 375 x 80 mm (WxHxT) Book block format (min): 100 x 100 x 2 mm (WxHxT) Size range opened case (max): 660 x 385 mm Size range opened case (min): 210 x 105 mm Max. mechanical speed: Up to 60 cycles/min Net production is subject to sizes, materials etc. Note!: Specifications are subject to typographical errors and changes in comparable models by the manufacturer!

Condition: reconditioned (used), Year of construction: 1995, functionality: fully functional, cutting width (max.): 1,370 mm, BM5150 CUTTING LINE - refurbished: Bwedpfjv Ic H Dox Afwsg 1) Polar 137EMC-MON AT Guillotine 1995 2) Transomat Downstacker/Palletiser 3) Jogger With Air Removal & possibly Bizerba sheet-count-scale 4) Paper Lift Contact us for further info and for personal price negotiations

Condition: used, Used machine Equipment and technical data: - Double-sided line boring machine - 2 drilling motors, each 1.8 kW, with oil brake cylinder - Stroke max. 130 mm - With pneumatic directional control valve - 21 spindles, spindle pitch 32 mm - Max. drilling distance 640 mm (by moving the workpiece up to 2656 mm) - Portal clearance 850 mm - Air consumption at 5 bar approx. 11 l per cycle - Extraction nozzle 160 mm Dimensions: approx. 3100 x 1100 x 1800 mm Weight: approx. 350 kg Bsdpfx Aewlwpgefwewg Availability: short-term Storage location: 63934 Röllbach

Condition: used, Year of construction: 2008, Overview  This complete PET water bottling line was manufactured on average in 2006 by European manufacturers including Siapi, Melegari S.p.A, P.E Srl, k, Comag, TMG, Domino and Atlanta. The line will remain in production until the end of June 2025, offering the possibility to see it live in operation. All equipment is in very good working condition with complete maintenance history, making it an immediately operable turnkey solution. Technical data  Capacity: up to 6,800 b/h for 0.5L bottles, up to 6,000 b/h for 1.5L bottles Formats: 500ml PET, 1500ml PET Neck finish: 30/25 Packing: 500ml bottles: 24-pack shrink film 1.5L bottles: 6-pack shrink film Bottle diameters: 203mm (0.5L), 317mm (1.5L) Equipment condition: very good, complete maintenance history available Scope of Delivery Blow molding machine: Siapi EA4 Filling machine: Melegari S.p.A Fill Jet 20/20/4 Labeling machine: P.E Srl 8T.540.1S.1E Shrink tunnel: k Tunnel 70S Shrink wrapper: k Nice Wrap35 SFUSO Handle applicator: Comag H 40/1 Palletizer: TMG Inkjet printer: Domino A200 Bwodpfx Afowz H Ahsweg

Condition: good (used), Year of construction: 2000, working width: 900 mm, total width: 1,800 mm, total length: 12,000 mm, total height: 3,550 mm, overall weight: 8,000 kg, For sale: Konig combi bread line 8/7/6/4 rows Includes: - TRO 240 hopper with oiling system - Konig Industrie Rex head machine Model A - Spreading conveyors - Proofing cabinet model: KGV V L Type: (900/500) K8 - V0 - (W) - R - RR900 - SCHN7/B - MO(WB) 1000 - STb8/7/4 - Stamping unit - Long roller - Seed station Bwsdpfexnb Iiox Afwog - Drop tables (8/7/6/4) (4 different drop tables with various belts included) - Storage trolley for the drop tables - Storage trolley for the flour sprinklers - Spare parts - Control cabinet - All documents and electrical diagrams Weight range: 20 to 30 grams up to 110 grams Output: 18,000 / 24,000 pcs per hour Working width: 900 mm New drum in the Industrie Rex Many spare parts such as spreading belts, etc. It is possible to inspect the line on site. We can carefully load the line onto a truck/container. Do you have comments or questions? Please feel free to contact us. Best regards, Leo Holland

Condition: new, functionality: fully functional, Year of construction: 2025, control type: CNC control, degree of automation: automatic, actuation type: electric, laser type: fiber laser, laser source manufacturer: MAX Photonics, laser power: 6,000 W, laser wavelength: 1,080 nm, sheet thickness steel (max.): 30 mm, sheet thickness stainless steel (max.): 15 mm, sheet thickness aluminum (max.): 12 mm, travel distance X-axis: 3,050 mm, travel distance Y-axis: 1,550 mm, travel distance Z-axis: 120 mm, input voltage: 400 V, type of cooling: water, overall weight: 3,500 kg, door opening width: 3,000 mm, door opening height: 600 mm, Equipment: CE marking, cabin, centralized greasing system, cooling unit, documentation/manual, dust extraction, emergency stop, fume extraction, safety light barrier, New laser cutting machine with 6kW fiber laser Delivery time approx. 6-8 weeks Our goal is to offer highly precise, long-term stable, and yet cost-effective laser machines. Our machines are ideal for workshops and repair businesses. A perfectly developed cutting parameter library is included in the delivery, as well as first-class service. - Machine without automatic shuttle table! Loading is performed on the long side of the machine Bsdpfxexw T Nke Afwewg - Very space-saving design - Extremely energy-efficient cutting system - Requires only approx. 4 x 4.5 meters of floor space - 6kW laser source from MaxPhotonics (G5/German specification) - Laser generator with socket efficiency better than 30% - Suitable for aluminum - Top quality, book a viewing now! Maximum cutting capacities: - Steel sheet up to 30mm - Stainless steel up to 15mm - Aluminum sheet up to 12mm - Brass sheet up to 8mm - Travel range: 1500 x 3000mm (for large formats) - Machine control system in German - Safety light curtain for maximum operator protection - Extensive collision protection for the cutting head - Large laser safety windows to monitor the cutting process - Comprehensive cutting parameter files included - Including nesting module - Very easy to operate - High-performance laser chiller - German service and spare parts supply - Filter extraction system is optionally available (5.5kW with frequency converter for pleasantly quiet operation) Leasing or hire purchase is possible through our financing partner Sale only to commercial customers. Shipping / advice / sales only in Germany / Austria / Switzerland Machine dimensions approx.: Length: 4.0m Height: 2.3m Width: 4.5m Total weight: approx. 4500kg Need a different laser power, table design, or table size? No problem. I am happy to prepare a suitable offer. E.g. 2kW machine from 29,990 Euro Not sure which laser power is suitable for your application? I will of course perform cutting tests according to your requirements. There are many possibilities.

Condition: used, Year of construction: 1973, functionality: fully functional, • 4-roller configuration • Asset description text: "4-ROLLER Z-CALENDER" • Several documented upgrades and overhauls listed (hydraulic system overhaul, electronic systems update, control upgrade, preheating system, bubble destruction device, etc.), including specified due dates Bedpfjx It Spex Afwswg

Condition: excellent (used), Year of construction: 2011, year of last overhaul: 2025, Stürtz Production Line for Fully Automatic Manufacturing of PVC Window and Door Elements Four-Head Welding Machine SE-HSM-30/26 Compact + - Weld bead limitation 2.0mm (0.2mm possible) - Diagonal and parallel joining processes - Gasket limitation and holding stamp - Quick-change system for stamps Bwedox Rpyuopfx Afwjg - Welding parameters individually programmable - Min. welding dimension: 330 x 340mm - Max. welding dimension: 4000 x 2600mm (2600mm in feed direction) - Profile depth min.: 40mm - Profile depth max.: 120mm - Door welding with simultaneous threshold installation possible during the welding cycle - Screen dialog system - Windows operating system - PC with TFT monitor - USB ports - Keyboard and mouse - Data management via database Horizontal Buffer Station P-260-WST - For cooling section and transport - Working area: 3000 x 2300mm - Element size min.: 320 x 320mm - Element size max.: 3000 x 2600mm - Max. element weight: 80kg Corner Cleaning Machine 2MC; CNC Motion Control for processing 90° inner and outer corners on welded plastic windows - 2-axis drive 'Motion Control' - Freely programmable via screen-dialog control - Automatic profile recognition - Screen dialog system - PC with TFT monitor - USB ports - Keyboard and mouse - Data management via database Profile dimensions: - Profile depth 30 – 130mm - Visible width 30 – 130mm - Min. element size: 320 x 320mm (clear internal dimension 180mm) - Automatic compensating support, 60mm travel, for centering combined welded frames or sashes - Frame tip milling unit for trimming protruding frame corners and milling locking grooves - Corner hinge drilling unit for drilling the dowel holes and screw holes with 6-spindle drilling head - Drilling pattern: Winkhaus activ-pilot-concept - Outer contour processing with saw blade - Milling disc for processing rounded sash overlaps, for Trocal 88+ Z-sash Top tool holder equipment - Gasket groove drilling and milling unit - Inner corner knife unit - Groove knife (visible side) Bottom tool holder equipment - Gasket groove drilling and milling unit - Inner corner knife unit - Groove knife (visible side) - Bevel punching unit bottom - Double spring-mounted, for removing welding beads from inner corners >15° - 1x for Elite (45°) - 1x for Knipping and Trocal 88+ (40°) - 1x for Inoutic NL profiles - Contour knife unit for radii - Disc milling unit for processing radii on foiled or acrylic-coated inner corners, spring-mounted - Chip conveyor belt with extraction device

Condition: used, Through-feed drilling machine with automatic workpiece transport for through-feed processing. Left machine side fixed, right side adjustable over the entire machine length. Price €3,900 in untested condition as is, loaded free on truck. >> The MERCEDES among drilling automats with the highest quality, Made in Swabia. Bedsqy D T Topfx Afwjwg

Condition: ready for operation (used), Year of construction: 2006, material width 650 mm Bwsdpfx Aox Ny A Refwsg coil weight 15 t material thickness 16 mm The year of construction is estimated, the system is as good as new

Condition: ready for operation (used), Year of construction: 2010, machine/vehicle number: 101100147, overall weight: 400 kg, type of input current: AC, input voltage: 230 V, working width: 330 mm, Duplo booklet production line with DSF-2000 sheet feeder. Complete with creaser and delivery belt. Bwsdpfx Aexuggdjfwsg

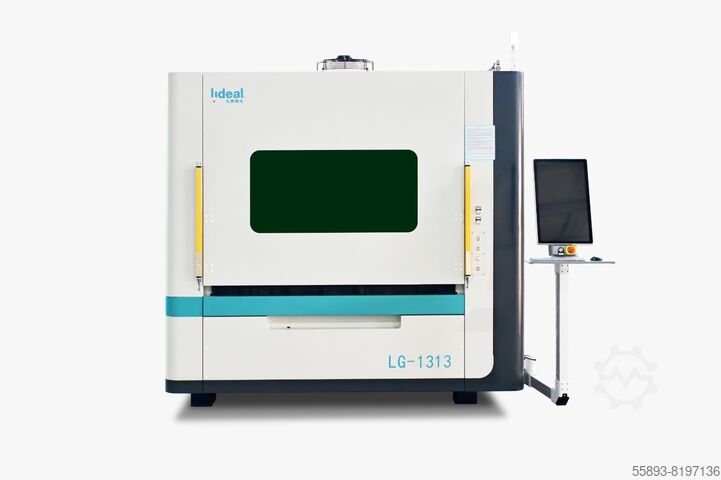

Condition: new, functionality: fully functional, Year of construction: 2025, control type: CNC control, degree of automation: automatic, actuation type: electric, laser type: fiber laser, laser source manufacturer: MAX Photonics, laser hours: 10 h, laser power: 3,000 W, laser wavelength: 1,070 nm, sheet thickness steel (max.): 22 mm, sheet thickness stainless steel (max.): 12 mm, sheet thickness aluminum (max.): 12 mm, sheet thickness brass (max.): 5 mm, warranty duration: 12 months, Equipment: CE marking, centralized greasing system, cooling unit, documentation/manual, dust extraction, emergency stop, fume extraction, safety light barrier, Offered here is a high-precision laser cutting machine with 3000-watt laser power Type: LG-1313/3kW HaiCut Premium Line - Maximum equipment level - Innovative 3-gas switching system (pressure and gas type controllable via software) Cutting with N2, O2, or mixed gas (compressed air) - Automatic front door - Machine bed lined with fireclay - Machine bed and axes measured and aligned with Renishaw interferometer Our goal is to offer the best, most stable, and cost-effective laser machines currently available on the market. Our machines are ideal for workshops and repair facilities. A perfectly crafted cutting parameter library is included, as well as first-class on-site service. New machine, delivery time approx. 6-8 weeks We are happy to demonstrate the machine for you at our facility. Travel range: approx. 1300 x 1300 mm Table size: approx. 2500 x 1300 mm (i.e., the machine accommodates a medium-format sheet) Pull-out cutting table For high-precision metal cutting All systems fully installed and calibrated Cutting software in German Including nesting module Very easy to operate Switch on and start cutting Laser source by Max Photonics (G5/German specification) with 3000 watts of power Bwodpfxei Igaus Afwjg Comprehensive electronic and mechanical collision protection for the cutting head Large laser safety window on the front door Automatic front door Safety light curtain for maximum operator protection Cutting capacity: - Stainless steel up to 12mm - Steel up to 22mm - Aluminum up to 12mm - Brass up to 5mm Heavy-duty industrial quality Complete system / ready for immediate operation LED workspace lighting 200mm duct connection for fume extraction Including exhaust fan Leasing or hire-purchase available through our financing partner Need a different power rating or table size? No problem – we have numerous machines in stock or available at short notice. Sales exclusively to commercial customers. Delivery / consulting / sales only in Germany / Austria / Switzerland Machine dimensions approx.: Width: 3.5 m, Height: 2.1 m, Depth: 3.5 m Weight: approx. 2.5 tonnes

Condition: used, Year of construction: 1995, functionality: fully functional, 1. Pearl Winder – Gadsden • Enclosed winding machines with yellow safety covers • Multiple rotating winding discs and wire guides • Integrated control panels with push-buttons, indicator lights, and emergency-stop switches Bwedpjx Itz Rofx Afwog • Mechanical winding stations mounted on heavy steel frames • Visible wire feed paths and guiding elements 2. Pearl Extruder – Davis • Extruder assemblies with screw and barrel sections • Downstream guiding and forming components • Control cabinets and local operator panels • Auxiliary equipment including heating/control units and material handling components • Safety devices integrated into the system 3. Carousel and Loader Robots • Articulated industrial robot arm by ABB (orange) • Rotary carousel stations with multiple indexed fixtures • Safety fences enclosing the robot working areas • Integrated control panels next to the robot cell 4. Coil Winding Equipment • Multiple wire pay-off and take-up reels arranged in series • Tension and guide rollers • Winding stations mounted on steel frames • Clearly separated parallel winding positions

Condition: used, Year of construction: 2006, machine/vehicle number: M 91317, Decoiler Coil weight: 5 ton Material width: 80 - 500 mm Coil exterior diameter: 1800 mm Expansion range: 508 mm Speed: 50 m / min Leveller / Straightener Material width : 50 - 500 mm Number of levelling rolls: 9 pcs. Diameter of the levelling rolls: 65 mm Number of pull out rolls: 2 pcs. Diameter of the pull out rolls: 150 mm Material thickness: 1 - 8 mm Feeding speed: 50 m / min Feeding length: 0,1 - 9999,9 mm Standard configuration Coil loading unitStroke 500 mm Bjdpfsuqd Udsx Afwowg Load capacity 5000 kg Material width max. 500 mm

Condition: new, functionality: fully functional, Year of construction: 2025, control type: CNC control, degree of automation: automatic, actuation type: electric, laser type: fiber laser, laser source manufacturer: MAX Photonics, laser power: 1,500 W, sheet thickness steel (max.): 15 mm, sheet thickness stainless steel (max.): 6 mm, sheet thickness aluminum (max.): 6 mm, sheet thickness brass (max.): 4 mm, input frequency: 50 Hz, type of input current: three-phase, type of cooling: water, compressed air connection: 8 bar, overall weight: 2,800 kg, Equipment: CE marking, centralized greasing system, cooling unit, dust extraction, emergency stop, fume extraction, safety light barrier, Laser Cutting Machine with 1500 W Fiber Laser ecoline Our goal is to offer highly precise, long-term stable, yet affordable laser machines. Bodpfx Asitu Srsfwswg Our machines are ideal for workshops and repair businesses. A perfectly developed library of cutting parameters is included in delivery, as is first-class service. The cost-effective entry into laser cutting technology - High-quality MaxPhotonics laser source - Extremely energy-efficient cutting system - Requires only approx. 3.0 x 3.0 meters of installation space - Top quality, schedule a viewing now! Cutting capacity: - Steel sheet up to 15mm - Stainless steel sheet up to 5mm - Aluminum sheet up to 5mm - Travel distance approx. 1300 x 1300mm - Table size: approx. 1300 x 2500mm (suitable for a full mid-format sheet) - Machine control system in German - Manual front door - Extensive collision protection measures - Large front window for monitoring the cutting process - Automatic, programmable dual-gas switching (compressed air/nitrogen, oxygen) - Comprehensive cutting parameter files - Including nesting module - CypCut1000 cutting software - Raytools 240 cutting head - Very easy operation - High-performance laser chiller Sales exclusively to commercial customers. Delivery / consultation / sales only in Germany / Austria / Switzerland Machine dimensions approx.: Width: 3.2m Height: 2.3m Length: 3.3m Total weight: approx. 2800kg Leasing or hire-purchase available through our financing partner. Need different laser power, table type or table size? No problem. I will be happy to prepare a customized offer. Not sure which laser power is suitable for your application? Of course, I can carry out cutting trials tailored to your requirements. A wide range is possible. From 0.5 kW up to 20 kW laser power.

Condition: used, Year of construction: 2005, functionality: fully functional, (1) Bead apexing line (1), including AFC, conveyor belt, drum applicator, grinding conveyor, extruder Bwjdpfx Asx Itmysfwsg

Condition: used, Year of construction: 1996, functionality: fully functional, Triple extrusion line Bjdpfx Afjx Itgaowjwg Technical details: Documented notes: The line has been modernized several times since its commissioning. Component arrangement according to diagram: • Head • Cylinder • Gearbox • Motors • Steel frame • Triplex extruder configuration • Control system with Beckhoff interface • Operator screens for displaying extrusion parameters • Winder units designated as “Wickler” • Emergency stop button available • Industrial control cabinets installed

Condition: used, Year of construction: 2016, functionality: fully functional, mileage: 17,500 km, 1. General Description Machine Name: QUADRUPLEX EXTRUDER No. 1 REF No.: FU-FPs 647 2. Functional Scope and System Components The overview presents the complete production line in conjunction with the quadruplex extruder, including material conveying systems, belt guidance, belt scanning, acceleration zones, cross-cutting, and cassette winding stations. 2.1 Main Assemblies - Extruder head - Multiple "swings" (pivoting arms), numbered 0 to 13 - Strip scanning systems ("Scan 1", "Tri Scan", Strip detection 1–4) - Cross-cutting unit ("cross-cutter") - Cutting machine - "Cutting table" - Conveyor belts labeled BELT 1, BELT 2, BELT 3 Winding Section: - Cassette winders 1–4 - Winding stations labeled "Winder 1–4" Note: Winders 1 and 2 marked "out of service" - Cooling water tank - Cooler - Electrical peripheral equipment, TCU units (temperature control units), control cabinets ("control cabinet", "ctrl.cab.") - Steel platform structures ("platform", cooling section platform) 3. Operating Parameters 3.1 Production Speed 0–30 m/min (specified production speed range) 3.2 Acceleration Section (Acceleration Speed Q1) From the provided calculations: - Basic production speed: 30 m/min = 0.5 m/s - Rocker cycle time: 4 sec - Belt shifting cycle time: 4 sec - Gap length: 2 m - Acceleration length: 8 m - Acceleration time: 16 sec - Speed difference: 2 m/s = 7.5 m/min Bwodpox Irz Njfx Afwsg - Resulting acceleration speed: 37.5 m/min 4. Strip (Material) Specifications 4.1 Strip Dimensions - Strip width: 20 mm – 220 mm - Strip thickness: 1.5 mm – 16 mm - Strip temperature: 10 °C – 45 °C - Strip weight: 0.02 kg/m – 2 kg/m 4.2 Strip Lengths Along the Line (Exact lengths between defined mechanical and sensor points) - Extruder head → Swing 0: 3,997 mm - Swing 0 → Swing 1: 10,279 mm - Swing 1 → Strip detection 1: 14,400 mm - Strip detection 1 → Strip detection 2: 39,159 mm - Strip detection 2 → Strip detection 3: 1,812 mm - Strip detection 3 → Strip detection 4: 27,702 mm - Strip detection 4 → Cross-cutter: 22,032 mm - Cross-cutter → Transfer belt pos. 10: 13,956 mm Other splitting and merging sections: - From splitting point pos. 10.1 → Rocker pos. 5: 17,545 mm - From splitting point pos. 10.2 → Rocker pos. 5: 17,542 mm - From merging point pos. 10 → Belt splitting point pos. 1–4: 17,827 mm Final travel lengths to winding stations: Belt position To cassette station – belt end Position 1: 6,050 mm Position 2: 9,072 mm Position 3: 12,376 mm Position 4: 15,393 mm To Spool Core (inner core) Position 1: 6,844 mm Position 2: 10,004 mm Position 3: 13,346 mm Position 4: 16,325 mm 5. Installed and Referenced Equipment The document lists an extensive chain of equipment references from which the quadrup­lex extruder line is "derived" or which it "includes", for example: - FU-FPs 648 – Cassette winders - FU-FPs 649 – Conveyor modifications - FU-FPs 650 – Extruder modifications - Older equipment from Berstorff (1995–1996) - Triplex winding equipment - Steel structural foundations (2005, 2019) - Conveyor control desks (Erhardt + Leimer, 2019) - Axelent safety fence - Various construction and civil engineering modifications (2018–2019)
