Used Faceplate for sale (618)

Condition: used, Technical details: Rodpfx Acju N E Anevsr faceplate diameter: 800 mm width: 140 mm weight: 330 + 50 kg This face plate has no clamping claws. It is clamped using the associated Ø 790 x 26 mm clamping disk. The clamping grooves are 300 mm long and arranged in a radial pattern. T-slots according to DIN 650: a=22mm; h=37mm; b=40mm; c=17mm Flange mounting: Mounting surface outer Ø 410 mm and inner Ø 195 mm 6x clamping bolts in the pitch circle Ø 235 mm Clamping disk: 4x through holes Ø 20.5 arranged in the pitch circle Ø 630 mm Various M20 / M16 and M12 clamping holes arranged in a distributed pattern Equipment: 4 clamping bolts M20 with clamps *

Condition: used, Technical details: Rodpfx Aju Nk T Sscvjr faceplate diameter: 350 mm width: 80 mm boring diameter: 50 mm weight of the machine ca.: 32,0 kg dimensions: 350x125 mm face slide with 4 internal/outer clamping chucks (clamping travel 80mm) clamping area internal: dia 110-350mm and external dia. 40 -300mm flange intake dia. 130mm *

Condition: used, Technical details: Rjdpju N E A Usfx Acvjr faceplate diameter: 900 mm width: 120 mm max. passage: Ø 140 mm weight: 330 kg Equipment: -4x clamping claws Flange mounting: -Ø inside: 410mm continuous x depth: 50mm -12x clamping holes Ø 26mm, pitch circle Ø 460mm *

Condition: used, Technical details: faceplate diameter: 1000 mm width: 150 mm boring diameter: Ø 130 mm Redpfx Aju N E E Nocvor max. passage: Ø 130 mm weight: 475 kg dimensions: Ø 1000 x 255 mm Equipment: -4x external/internal jaws; clamping travel approx. 200mm; clamping range max; approx. Ø 900mm / min. approx. Ø 100mm. -clamping flutes size according to DIN 650: a=22mm; h=43mm; b=40mm; c=16mm x length= 285mm Flange mounting: Ø inside: 195mm, depth 21mm 4x clamping bore pitch circle Ø 235mm *

Condition: used, Technical details: diameter: 630 mm weight of the machine approx.: ca. 275 kg Rodpfx Acou Nkimjvjr Face Chuck - 3-Jaw chuck *

Condition: used, Technical details: faceplate diameter: 500 mm width: 100 mm boring diameter: 90 mm total power requirement: - kW Rodpou Nk Hfofx Acvsr weight of the machine ca.: 0,07 t face slide with 4 clamping chucks (clamping travel 60mm) clamping area internal: 145-500mm and external 140-420mm flange intake size= dia. 200mm with clamping bolts equipment: socket wrench *

Year of construction: 2001, condition: excellent (used), Faceplate diameter 600 mm height 130 mm Redpfed Tyvfox Acver LK Mounting :Diameter 128.5 mm Groove width 16 mm Safety thread 200x 4 mm

Condition: used, faceplate diameter 510 mm max. pitch circle 171,4 mm camlock Gr. 8 Rjdpfx Aefu Tr Ijcvjr

Condition: used, faceplate diameter 400 mm Rjdpfx Asfu Tr Socver max. pitch circle 133,4 mm short taper holder Gr. 6/ DIN55027

Condition: used, Faceplate made of cast steel, probably PUT (Poland), with 4 individually adjustable clamping jaws. Type PUUf-M400C6ZJ, No: 3033. Diameter: 400 mm. Inner diameter: 100 mm. Mounting: short taper DIN 55022 size 6 with 4 M12 mounting bolts. Taper mounting: Ø approx. 106 mm. - 1 set of reversible stepped jaws for turning and drilling. Weight: 56 kg. In good condition. Rjdpfx Asxf Uxcecvsr

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, turning length: 1,300 mm, turning diameter: 1,000 mm, controller model: Siemens Sinumerik 840 D, faceplate diameter: 1,250 mm, Equipment: chip conveyor, TECHNICAL DETAILS Turning diameter: 1,000 mm Swing diameter: 1,250 mm Turning length: 1,300 mm Swing diameter over bed: 1,250 mm Swing diameter over cross slide: 1,000 mm Rodpfx Ajywgrbjcvsr Maximum swing diameter in the gap: 1,250 mm Spindle diameter at front bearing: 500 mm Faceplate diameter: 1,250 mm Chuck diameter: 1,250 mm Maximum torque: 1,200 Nm Spindle speeds: - Speed range 1: 3.15 - 45 - 112 rpm - Speed range 2: 12.5 - 180 - 450 rpm Driven tools speed range: 50 - 1,000 - 2,000 rpm MACHINE DETAILS Control system: Siemens Sinumerik 840 D Total connected load: 80 kW Machine weight: approx. 20 t EQUIPMENT Driven tools Various clamping jaws Tool measuring probe Chip conveyor Filtration system Technical documentation

Condition: ready for operation (used), Year of construction: 1977, functionality: fully functional, machine/vehicle number: K 240/50 662, turning height: 2,150 mm, workpiece weight (max.): 20,000 kg, turning diameter: 2,200 mm, faceplate diameter: 2,000 mm, No minimum price – guaranteed sale to the highest bidder! The machine was overhauled in 2016! TECHNICAL DETAILS Turning height: 2,150 mm Turning diameter: 2,200 mm Face plate diameter: 2,000 mm Workpiece weight (max.): 20,000 kg X-axis feed length: 1,225 mm Redpfx Asyw N Ufocvsr Rapid traverse X-axis: 2 m/min Rapid traverse Z-axis: 2 m/min Spindle speed: 3 – 125 rpm MACHINE DETAILS Number of tool turrets: 1 Total weight: 26,000 kg EQUIPMENT Documentation/Manual

Year of construction: 2021, condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 11105234, TECHNICAL DETAILS Maximum load capacity: approx. 37 kg Rated load capacity: approx. 30 kg Maximum reach: approx. 2101 mm Position repeatability: 0.05 mm (ISO 9283) Number of axes: 6 Operating ambient temperature: 0 °C - 55 °C (273 K to 328 K) Ambient temperature for storage & transport: -40 °C - 60 °C (233 K to 333 K) Positioner Model: KUKA DKP400 V2 Two-Axis Positioner Electrically insulated faceplate Air chiller Model: Thermo Chiller HRS050-AF-20 MACHINE DETAILS Drive Model: Meltio Engine V2.0 Power: 7.5 kW Frequency: 50/60 Hz Full load current: 22 A 3W + N + PE, 200-240 / 380-415 V, 16A 3W + PE, 200-240 V, 25 A 2W + PE, 200-240 V, 40 A Control Model: KR C5-2, KR C5 Integrated software: Melito Engine Dual Wire & Melito Engine Hot Wire Protection rating: IP65 (IEC 60529) Wrist protection rating: IP65 / IP67 (IEC 60529) Dimensions Redpfeyvzuhjx Acvsr Overall dimensions (L x W x H): 5,000 x 4,000 x 4,000 mm Sliding door opening dimensions: 2,000 x 3,000 mm EQUIPMENT Laser safety cabin, lightproof 4 controllers in one system Roof closed and removable Note: Images 1 & 2 show the assembled state at the previous operator.

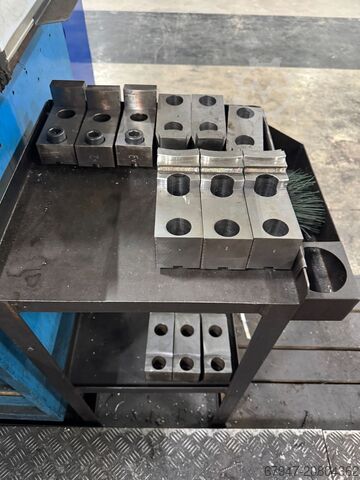

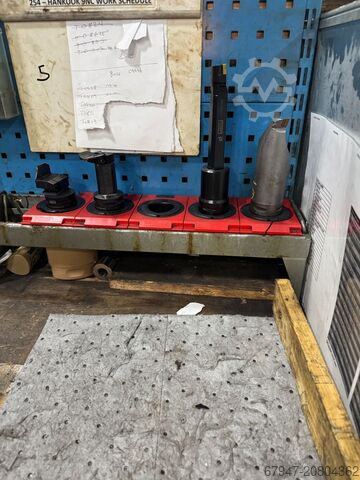

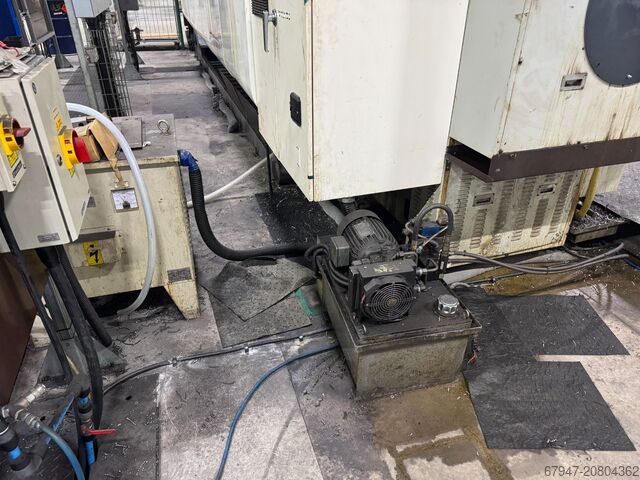

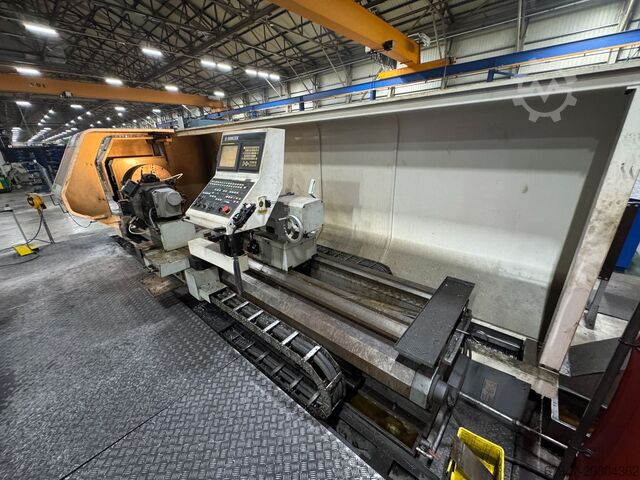

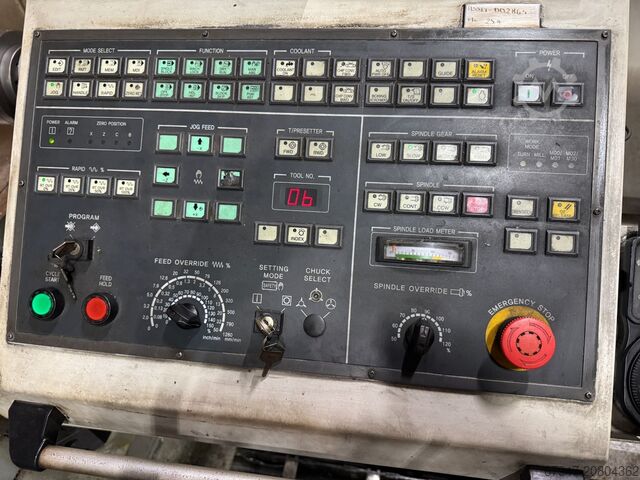

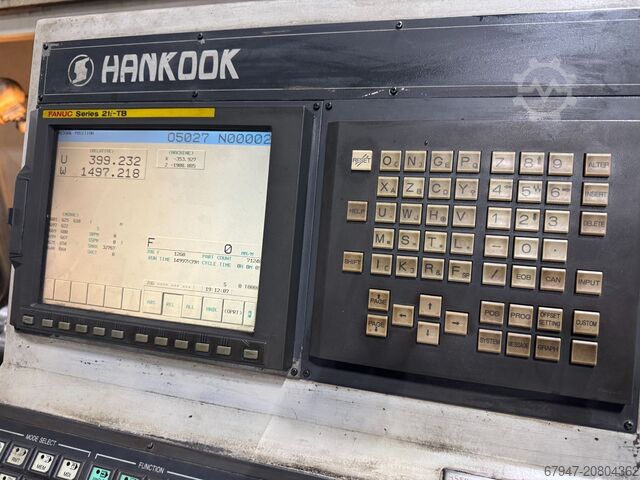

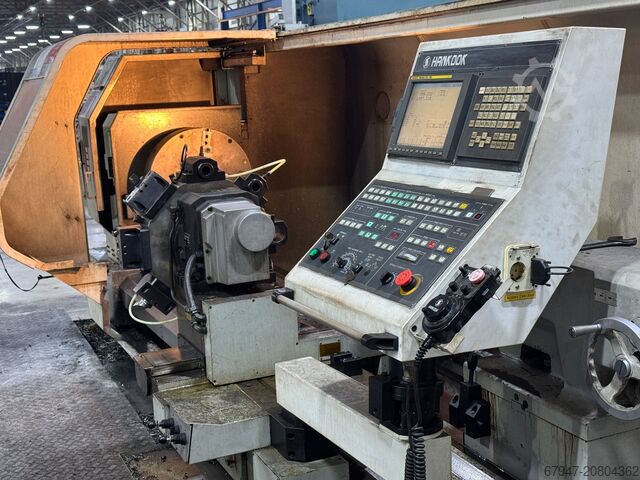

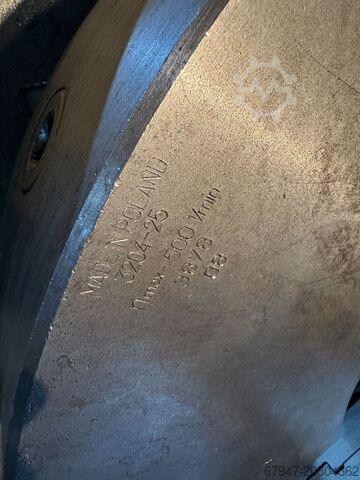

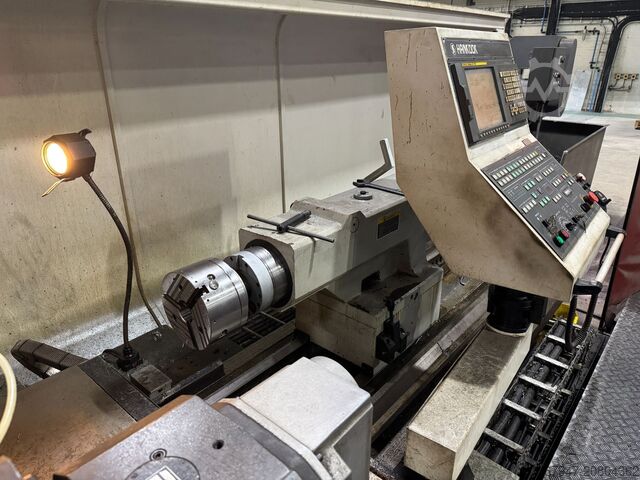

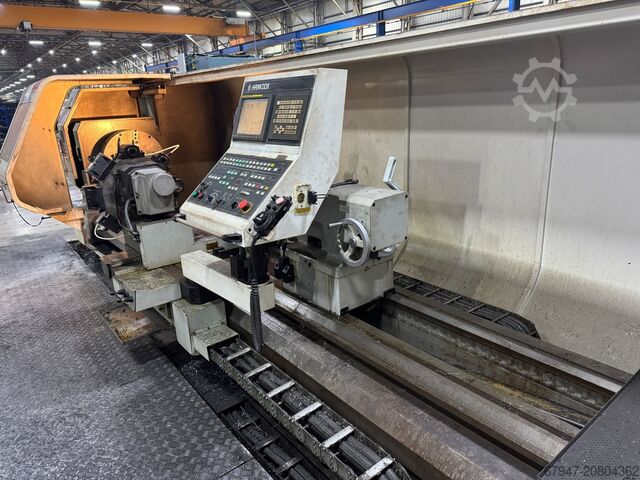

Condition: used, Hankook Protec 9NC/4000 4m Between Centres, fitted with 630mm Diameter 3 Jaw chuck with 250mm bore, also 800mm 4 jaw with 250mm bore , and 770mm rear mounted 4 jaw with 250mmm bore. 720mm Swing Over Saddle, 1000mm Swing Over Bed, Year 2008.3, Swarf Conveyor, Fanuc 21i Control. Available now under power at site to view, available now for supply. Specifications: Swing: 37.4" Machining Length: 157" Power: 26 kW Rodpfx Aox I R Emocvor Max RPM: 630 RPM

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, Technical details faceplate diameter 1800 mm swing diameter 2000 mm turning height 1270 / 1120 mm Control SIEMENS 840 D workpiece weight max. 5000 kg ram head dimension 250 x 250 mm table turning speeds 1 - 320 U/min cross rail - adjustment 400 mm ram head - cross travel (X) -2770 / +2275 mm ram head - vertical travel (Z) 1250 mm c-axis 360° (0,001°) deg milling drive 37 kW turning speed range - milling 10 - 3000 U/min power capacity - table 100 kW Torque 31784 Nm feed range (X/Z) 0,1 - 15000 mm/min weight of the machine ca. 55 t Additional information Used CNC vertical lathe for turning, drilling and milling First machine installation in the year 2011. Max. workpiece diameter: 2040 mm Max. workpiece height: 1270 mm Ram stroke: 1250 mm Max. workpiece weight: 5000 kg (per pallet/chuck) Table speed range: 1.0 - 320 rpm Table drive motor: 100 kW Drilling and milling spindle: 37 kW Crossbar travel: 2 steps of 200 mm each Total electrical connection value: 218 kVA CNC control: Siemens 840 D Number of NC axes: 4 (X, Z, C, crossbar adjustment) Travels: X-axis: -1650 to + 2165 mm Z-axis: 1250 mm Rapid traverse X- Z-axis: 15 m/min Number of tool magazine spaces: 80 spaces in the chain magazine, of which 60 x HSK 100 and 20 x Capto C6 Disc magazine 12-pos. for rotary holders and attachment heads Coolant system with filter and circulation unit Chip conveyor Oil-mist-extractor 1 pallet with jaws, diameter 1800 mm 1 hydraulic chuck with base jaws, diameter 1800 mm Various drilling and milling heads 2 measuring probes Several turning tool holders Special feature: Pallet changer with two stations, equipped with a face plate Ø1800 mm and a six-jaw lever compensation chuck with mechanical centrifugal force compensation Ø1800 mm. Note: The machine is in a pit. Rsdpfx Aceyykxwsvsr Condition description: The cross roller bearing on the Carnaghi was replaced about half a year ago. The Siemens components in the control cabinet were also completely replaced at the end of 2023. The machine also has a measuring probe for tool measurement and an external Renishaw measuring probe for workpiece measurement. As a special feature, the machine also has a measuring probe installed on the Z-axis (Z1-axis). This brings an advantage in terms of accuracy and time, as the tool does not have to be put down for measuring. However, it is currently shut down and should be overhauled when it is put back into operation. The machine also has a Rotomors six-jaw lever compensating chuck with centrifugal force compensation, which was completely overhauled in 2020/21.

Condition: good (used), Year of construction: 1956, Heavy-duty lathe, lathe, lead screw lathe, lead screw lathe -Manufacturer: Meuser, lead screw and feed screw lathe type M3A -Turning length: 1400 mm -Turning diameter over bed: 550 mm -Turning diameter without bed: 800 mm -Turning diameter over support: 300 mm -Spindle bore: Ø 58 mm -Spindle speeds: 15 - 810 rpm -Three-jaw chuck: Röhm Ø 250 mm -Faceplate: 500 mm -Accessories: incl. tool holder/tools (see photos) -Tailstock mount: MK5 -Dimensions: 2770/1160/H1310 mm Rodpjh Uuzysfx Acvor

Year of construction: 2007, condition: good (used), Make: Okuma Type: LVT-300 M Control: OSP-P200L Rodpfjku Aaaex Acver Year: 2007 X Travel 210 Z Travel 360 Power 22 kW Driven live tools 7.5 kw / 3000 Rpm In feed table Out feed table Package jaws Package tool holders Chip conveyor Coolant system 9 Bar Grundfos Specifications Metric US Standard Max. turning Ø 280 mm Table Ø 210 mm Horizontal movement support 360 mm ATC / revolver 12 Speeds / ranges 4000 Rpm C-Axis 360000 ° Dimensions (Estimate) There are no dimensions for this machine (yet). Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, Technical details: faceplate diameter: 5000 mm swing diameter: 6100 mm turning height: 2400 mm ram stroke each side: 1490 mm ram head dimension: 340 x 340 mm max. workpiece weight: 100.000 kg total power requirement: 100 kW weight of the machine ca.: 155 t faceplate turning speed range: 0,4 - 50 U/min with 2 x 2 axes CNC SIEMENS 840 D * Redpfx Aow Rz U Ajcvsr

Condition: ready for operation (used), Year of construction: 2008, controller manufacturer: SIEMENS, controller model: Sinumerik, total height: 2,800 mm, overall weight: 20,000 kg, spindle speed (max.): 16,000 rpm, spindle motor power: 28,000 W, tool weight: 6,000 g, This 3-axis SAMAG MFZ 2-3 was manufactured in 2008. It features a working area of 300x500x450 mm, rapid traverse speeds up to 60 m/min, and a tool magazine with 90 positions. The spindle supports a speed range of 50 to 16,000 rpm with a drive power of 28 kW. Ideal for high precision and efficiency in machining tasks. Contact us for more information about this machine. Machine Benefits Technical Machine Benefits • Required installation space (length x width): approx. 5950 mm x 6700 mm • Weight (kg) including coolant system and chip conveyor: approx. 25000 kg • Operating voltage: 400 v 3 n~ 50 hz • Control/valve voltage: 24 v dc • Machine power rating: approx. 82 kva • Back-up fuse before main switch: 3 x 160 a • Connector cross-section: 70 mm² Extra Information Ott Tool Clamping System Torque (S1/S6): 63/83 Nm Nominal Speed: 4200 rpm Spindle Bearing Diameter: 70 mm Spindle Lubrication: Lifetime grease lubrication 1 Horizontal 180° swivel support (W-axis) Faceplate Diameter (NC drive/counter bearing): 500/345 mm Permissible Tangential Torque: 15000 Nm Positioning Accuracy: ±3 angular seconds Swivel Time (0°/180°): Approx. 6 s Number of Horizontal 360° Workpiece Support Axes Positioning via Face Gearing: 120 x 3° Positioning Accuracy (120 x 3°): ±3 arc seconds Max. Transport Load per A-axis: Approx. 600 kg Permissible Tangential Torque: 5000 Nm Working Area (interference circle x length): Ø700 x 940 (1036) mm Approaching Intermediate Positions Outside the 3° Pitch: Possible (NC position control) Positioning Accuracy: ±25 angular seconds Permissible Tangential Torque: 1000 Nm Tool Magazine: 90 tool positions (3 x 30) Max. Tool Diameter with Free Adjacent Positions: 160 mm Cut-to-Cut Time (within 1 cartridge): Approx. 5.2 s Media Hydraulic Unit Capacity: 160 l Max. Operating Pressure: 160 bar Max. Flow Rate: 12 l/min Pneumatic System: Required Compressed Air Connection, Required Air Consumption (short-term) 6 ± 0.5 bar Factory Air Quality: Class 545 according to DIN-ISO 8573-1 Coolant System: Knoll coolant system with coolant cooling Coolant Tank Capacity: Max. 1400 l Separate Machine Bed Flushing: 160 l/min at 2.6 bar External Tool Cooling and Various Flushing Functions: 120 l/min at 3.5 bar Internal Tool Cooling Through the Spindles: 40 l/min at 60 bar Dimensions Rsdpfx Acoyycizjvjr Machine Depth 5450 mm

Condition: used, faceplate diameter 4.000 mm travel -x axis 4.500 mm travel -z axis 600 mm control Siemens Sinumerik 840D-sl feed range 0 - 8.000 mm/min turning speeds 1) 0,7 - 5,6 U/min turning speeds 2) 2,8 - 22,4 U/min turning speeds 2,1 - 56 U/min tool taper Sauter Facing Lathe | ZERBST - DP05/W08 Scope of delivery: - Chip conveyor Rjdpfx Aoywzxijcvjr - Hydraulic unit The ZERBST - DP05/W08 has been retrofitted in 2010. The machine is in a well-maintained condition. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: DP05W08 | DP05 W08 | DP05-W08

Condition: excellent (used), Year of construction: 2009, turning height: 1,280 mm, total height: 5,600 mm, total width: 3,850 mm, total length: 4,260 mm, rotary table diameter: 1,400 mm, workpiece diameter (max.): 1,600 mm, overall weight: 21,500 kg, CNC Vertical lathe Fremtas - 16FR3 MACH-ID 9467 Make: Fremtas Type: 16FR3 Control: FAGOR 8055 TC Year: 2009 Work load 6300 Kg Cross rail adjustment 660 mm Feed rate cross rail 0 - 400 mm/Min Feed rate 0 - 3000 mm/Min Rapid feed 0 - 8000 mm/Min Central lubrication Chip conveyor RAM with Sandvik COROMONT C8 Tooling C8 with double connector Max. turning Ø: 1600mm Table Ø: 1400mm Rsdsyvh I Uopfx Acvor Horizontal movement support:1000mm Speeds / ranges: 1 - 200Rpm Power: 75kW Maximum turning height: 1280mm Vertical movement support: 700mm Length: 4260mm Width: 3850mm Height: 5600mm Weight: 21500kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: ready for operation (used), Year of construction: 1996, functionality: fully functional, Weiler Condor B universal lathe in excellent condition, ex-educational use, equipped with a new 3-axis digital readout and accessories. Original paintwork. Rsdpfxjyuyrus Acvjr Machine No. 96-2374 with CE certification. Technical specifications: - Year of manufacture: 1996 - Machine number: 96-2374 - Centre height: 165 mm - Distance between centers: 750 mm - Spindle speeds: from 22 to 2800 rpm - Spindle bore: 40 mm - Spindle nose: DIN 55027-5 with bayonet lock - Tailstock: Morse Taper 3 - Feed rates: from 0.016 to 0.5 mm/rev - Thread cutting: metric, imperial, module, and diametral pitch - Metric thread pitch: from 0.18 to 28 mm - Weight: approx. 1100 kg - Switchable spindle brake - Required space: LxWxH 183 x 88 x 129 cm Accessories and equipment: - Rhom steel 3-jaw chuck - New collet set 5C 1-28 mm in 0.5 mm steps with new drawbar - New drill chuck 1-13 mm - Multifix toolpost with 4 steel holders - Bed stop - New live centre - Change gears - Faceplate - Coolant system - Chip guard - Spindle cover with emergency stop - German instruction manual

Condition: good (used), Year of construction: 2007, functionality: fully functional, Control: SIEMENS 840D PL ManualTurn turning diameter: 1.140 mm Rjdpoyxqpmofx Acver turning lenght: 4.200 mm turning diameter over slide: 800 mm faceplate diameter max.: 1.000 mm Support Length of the bed slide: 1.000 mm Travel of the cross slide: 650 mm Width of the cross slide: 425 mm bed width: 710 mm Main Spindle spindle bore: 120 mm spindle diameter in front bearing: 190 mm Accessories Fix steady rest 10 pieces Multifix quick-change steel holder Typ D The machine has been general overhauled in 2007.

Condition: used, Giddings & Lewis 48 Inch CNC Vertical Borer Fanuc 18i-t control Rjdpfx Aceymc N Hjvor 48 inch hydraulic chuck Approx 1.5m under rail to table. Hydraulic turret Swarf conveyor Recent full machine service including; removing Timken bearing and sending for preload test, full refurbishment of oil lube system including replacement of brass oil outlets on table.

Condition: used, Webster Bennett 48 Inch Elevating Rail CNC Vertical Borer. Serial Number 6644-1 Chuck manual 48 inch, supplied with jaws Hydraulic turret Fanuc 18i -T Control. Swarf conveyor Air conditioning Unit on Electrical Panel. Redjymc Ipepfx Acver 1250mm (approx. ) under tool to table.
