Used Camshaft Grinding Machine for sale (64,199)

Condition: ready for operation (used), Year of construction: 2023, centerless grinder grinding wheel: 500 x 150 x 305 mm inspection wheel: 300 x 150 x 127 mm capacity: diameter 5-80 mm weight: 3650 kg Dsdpfxozbb Anj Am Rjch

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, grinding length: 1,000 mm, grinding width: 600 mm, Perfect PFG60100AHR surface grinder year of manufacture: 2005 magnetic table: 1000 x 600 mm max. grinding area: 1000 x 600 mm variable magnetic force automatic feed coolant/filter tank 5 grinding wheels and various grinding stones documentation Dcedpfx Aszbrpfem Rsh machine is powered on for inspection

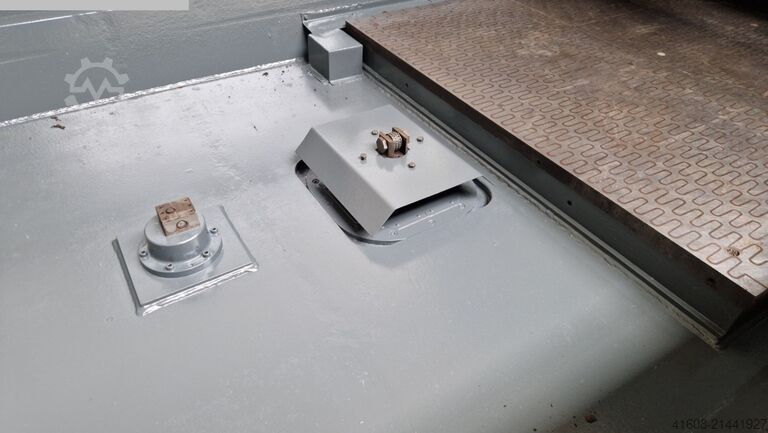

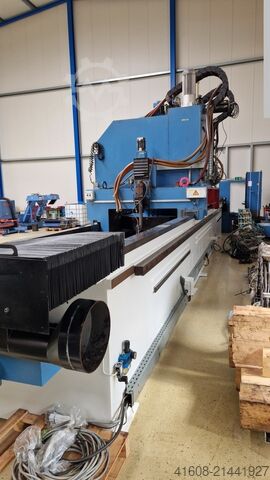

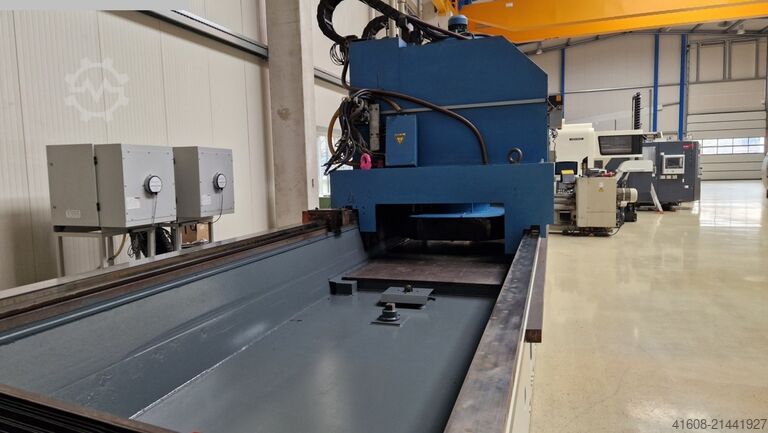

Condition: good (used), Year of construction: 2001, functionality: fully functional, Technical details grinding length 4200 mm grinding width 1300 mm workpiece height 550 mm Control SIEMENS 840 D magnetic clamping plate 4200 x 1300 mm segment head diameter 1400 mm grinding motor turning speeds up to 320 U/min. grinding motor 306 kW weight of the machine ca. 50,0 t Additional information Segment dimensions: 120/106 x 41 x 250 mm Number of segments: 1 set = 26 pieces Grinding motor feed: 0.5 - 35 m/min, infinitely variable Grinding motor feed: - in steps: 0.002 - 1 mm continuous: up to 5 mm/min. infinitely variable Equipment: * CNC-control SIEMENS Sinumerik 840 D * Automatic hydr. swivelling of the grinding motor from hollow to cross grinding * NC-controlled adjustment of the Marposs measuring head by means of precision support. - new grinding dimensions can be entered into the control, whereby the the grinding head automatically adjusts to the corresponding height. Dcodpfjy U Uqgsx Am Rsh * Dresser with adjustment axis in the machine bed * Coolant system * Electro-magnetic table * Switch cabinet * Oil mist extraction * Documentation Dimensions (length x width x height) Bed: 11800x2200x1400 mm, weight 27500 kg Grinding head: 3000 x 2500 x 3100 mm, estimated weight 14 t 2 x Oil mist extraction: 1200 x 800 x 2000 mm each Control panel: 1200 x 800 x 400 mm Small control cabinet: 1400 x 1400 x 800 mm 2 x gears each 1200 x 800 x 500 mm Control cabinet: 1600 x 800 x 2000 mm Control cabinet: 3400 x 600 x 2400 mm

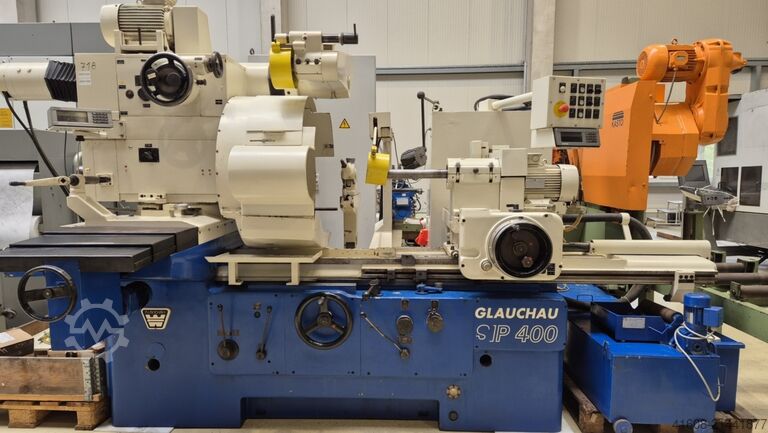

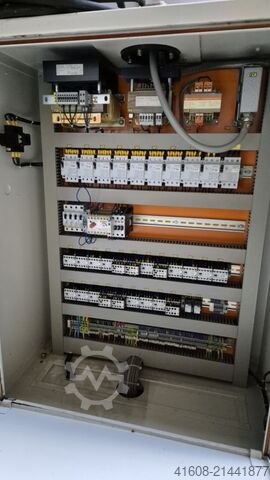

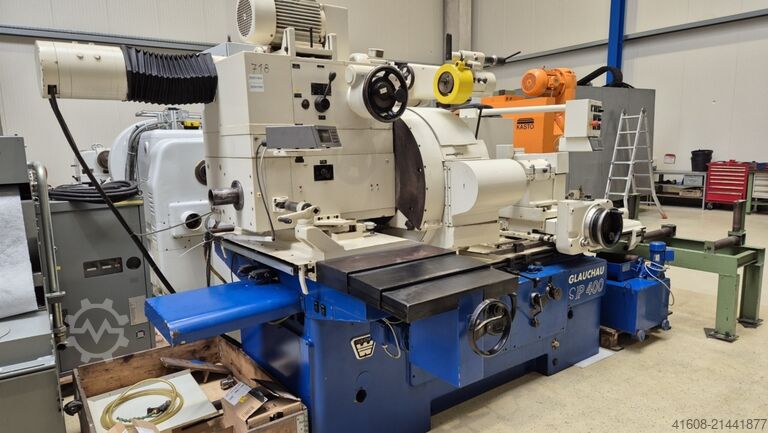

Condition: good (used), Year of construction: 1995, functionality: fully functional, Technical details internal diameter 800 mm grinding depth 500 mm swing diameter 850 mm weight of the machine ca. 6,4 t Additional information Used internal cylindrical grinding machine with face grinding device in special design with enlarged swing diameter and extended, hydraulic transverse movement Reconstructed and modernized 1995 in the Glauchau manufacturer’s plant, put into operation 1996 1. TECHNICAL DATA 1.1 Working area Grinding diameter in the workpiece guard internal grinding, min./max. mm 30/630(800) External grinding, max. mm 800 Grinding depth, up to approx. mm 500 Table stroke mm 800 Workpiece diameter, max. mm 800 Swing diameter in workpiece protection, max. mm 800 Without workpiece protection, approx. mm 850 Distance from workpiece spindle head to grinding spindle carrier, max. mm 1225 Adjustment of the internal grinding device on the table, max. mm 545 1.2 Workpiece headstock Cross shift, max. mm 650 Cross adjustment via gear motor and positioning device with HEIDENHAIN digital position display Swivel, max. degrees 15 Workpiece spindle Speeds rpm 16/22/32/ 45/63/90/ 125/18/250 Load capacity, max 1000 Spindle head (with bayonet flange) DIN 55021 size 11 Machine accessories: 2-axis digital displays made by HEIDENHAIN Coolant system with magnetic separator Fixators (machine shoes) Various grinding wheels Diamond dresser Large face plate Internal and face grinding device Halogen machine lamp Dcedpfx Aoy U Up Ajm Rjh Machine documentation

Condition: used, Year of construction: 2001, Control GE Fanuc Power Mate workpiece dia. 1,5 - 120 mm grinding length 254 mm dimensions of grinding wheel 610 x 254 x 304,8 mm Grinding wheel peripheral speed 35/50 m/s 305 x 254 x 127 mm engine 22/30 kW weight ca. 6.500 kg range L-W-H 4,10 x 2,25 x 2,40 m In our assessment, the machine is in good used condition and can be inspected under power by appointment. Dcjdpfx Amszbvmbj Roh Accessories, tools, and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Technical data and specifications are subject to change without notice and errors. Prior sale is reserved.

Condition: used, Year of construction: 2005, Used straight-line edging machine, BOTTERO Type 108 F, manufactured in 2005. Dsdpfjza Amrox Am Rech

Condition: good (used), functionality: fully functional, Jung F40 sinusoidal magnet, 300 x 150 mm Dedpfx Amozbbklo Rjch cooling water tank 9x grinding disc documentation the machine is powered on for inspection.

Condition: excellent (used), Year of construction: 1988, functionality: fully functional, Jung JF 520 D year of manufacture 1988 magnet 500 x 175 mm max. grinding area 600 x 220 mm variable speed Dsdpfx Ajzba Ngsm Rech variable magnetic field strength automatic start diaform coolant/filter tank 3 x flange 1 x clamp documentation machine is powered on for inspection

Condition: used, Year of construction: 2006, Technical details: grinding diameter: 5-55 mm grinding length: 500 mm total power requirement: 44 kW -- Intended use and general information -- Fully automated external and surface grinding of synchronous rings Djdpfxovg This Am Roch Centre height: 200 mm Grinding length: 500 mm Grinding wheel arrangement: right, 30° angled Grinding wheel dimensions: 600 x 30 x 203.2 mm Drive power: 7 kW X/Z axis drive: ball screw Travel speed: 0.01 - 10,000 mm/min. Resolution: 1 µm Concentricity of workpiece spindle: < 1 µm Workpiece changing system: Fanuc robot Control: Siemens Sinumerik 840-D Machine weight: 7,000 kg Centre height: 200 mm Grinding length: 500 mm *

Condition: used, Year of construction: 1998, Technical details: grinding diameter: 250 mm grinding length: 2710 mm max. module: min. module: total power requirement: 45 kW weight of the machine ca.: 15 t space required L x W X H: 7,1 x 4,7 x2,7 m max. wheel dia.: 450 mm Spindle drives Arena Siemens For Worm grinding we have not module, but pitch. Pitch is freely programmable from 0.001 to big value i.e. 500mm * Dodpfeudf E Asx Am Rjch

Condition: used, Year of construction: 1998, Technical details: grinding diameter: 200 mm Djdpfjvg Thpox Am Rech grinding length: 320 mm total power requirement: 3,5 kW weight of the machine ca.: 9 t space required L x W X H: 5,28 x 4,5 x 2,4 m max. wheel dia.: 200 mm Spindle drives Arena Siemens For Worm grinding we have not module, but pitch. Pitch is freely programmable from 0.001 to big value i.e. 500mm *

Condition: ready for operation (used), For sale here is an optical profile grinding machine by Fritz Werner, type SP. The machine is in very good condition and can be tested on site. Technical data: - Axial relief: 0 to +35 - Lateral relief: ±15 - Grinding carriage stroke, fine adjustment: 36 to 72 per min - Maximum grinding wheel diameter: 175 mm - Grinding spindle speed: 1925 to 3850 per min Dcedowv Havepfx Am Rsh - Maximum workpiece height: 125 mm - Workpiece length: 250 mm - Variable speed motor for grinding spindle: 1400 to 2800 per min Should you have any further questions, please feel free to contact me.

Condition: ready for operation (used), The machine is in very good condition and can be tested on site. Technical Data – Grinding Machine Machining area (mm) Height x Length x Depth: 80 x 110 x 55 Motor power (kW): 0.5 Speed (min-1): 5000 Feed rate (hod/min): 150 Table load (kg): 20 Djdpfxswvgide Am Rsch Control: BOSCH Accuracy: 0.005 mm, reading via CNC, template grinding 1:10, 1:20, or 1:50, suitable for rough grinding. If you have further questions, I am at your disposal.

Condition: good (used), Dividing head, spiral milling attachment, dividing head, tool holder for grinding, drill grinding machine, milling cutter grinding machine, drill grinding holder -Manufacturer: Stankoimport, dividing head/tool holder for tool grinding machine -Type: 36642.M1 -Dividing head: rotatable/tiltable Dodpfx Amjxfhchs Rech -Receiver/Dimensions: MK5 see photos -Dimensions: 300/270/H180 mm -Weight: 21.6 kg

Condition: used, Year of construction: 1998, functionality: fully functional, machine/vehicle number: 80317, input voltage: 380 V, travel distance X-axis: 4,400 mm, travel distance Y-axis: 2,300 mm, travel distance Z-axis: 235 mm, Machine full working order use every week Dcsdpfx Asy Au Rpem Roh

Condition: excellent (used), Year of construction: 1996, functionality: fully functional, travel distance X-axis: 650 mm, travel distance Z-axis: 130 mm, total height: 2,750 mm, feed rate X-axis: 1 m/min, feed rate Y-axis: 1 m/min, feed rate Z-axis: 12 m/min, table width: 630 mm, table length: 770 mm, distance table to spindle center: 585 mm, type of input current: three-phase, table load: 500 kg, overall weight: 4,500 kg, travel distance W-axis: 500 mm, distance between stands: 750 mm, Equipment: documentation/manual, CNC JIG GRINDING MACHINE HAUSER S40-400 TECHNICAL CHARACTERISTICS : Stroke X axis: 650 [mm] Max. Stroke speed X axis: 4000 [mm/min] Working feed X axis: 0 - 1800 [mm/min] Dcedpfxsya Dz Rj Am Roh Stroke Y axis: 450 [mm] Working feed Y axis: 0 - 1800 [mm/min] Stroke Z axis: 130 [mm] Min. Stroke speed Z axis: 0.5 [mm/min] Max. Stroke speed Z axis: 12000 [mm/min] Stroke frequency Z axis: max. 4 [Hz] Stroke W axis: 500 [mm] Planetary speed C axis: 5 - 250 [rpm] Max. Stroke speed W axis: 800 [mm/min] Stroke U axis (radial feed): 5.5 [mm] Distance between columns: 750 [mm] Table length: 770 [mm] Table width: 630 [mm] Clearance between grinding motor and table: 585 [mm] Max. load on table: 500 [Kg] Supply voltage: 400 [V] Weight: 4550 [Kg] ADDITIONAL INFORMATION : x1 HI-CUT pack including: -work area protection -exhaust system with electrostatic air filter -fire protection system (to be assessed by a qualified body) -HTG-RWS-60 automatic belt filter cooling unit x1 MSS (Multi-Sensoric System) tool detection device x1 CBN dressing unit with HF drive for automatic dressing of CBN grinding wheels (ceramic bond and synthetic resin) x1 T16 grinding turbine - speed: 160,000 rpm - reference: 164225 x1 turbine support with filter for use with T10 and T16 turbines - reference: 166497 x1 60S-TC grinding motor, speed 9000 - 60000 [rpm], for SK20 collets - part number: 208450 x1 intermediate plate for aligning motors and urbines - reference: 192940 x1 centring watch holder for grinding motor rotor - reference: 191790 x15 wheel holder cleats x1 cable for grinding motor Various tools Full documentation Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. The HAUSER S40-400 is a high-precision CNC coordinate grinding machine. This machine excels in tight tolerance environments such as contouring applications in the aerospace, automotive and medical industries. Thanks to its robust design and advanced capabilities, the HAUSER S40-400 is comparable to machines from well-known brands such as Moore. It can be integrated into workshops comprising Mägerle (Magerle), Studer, Moore, Kellenberger, Okamoto, Jones & Shipman, and ELB machines. In addition to its performance, the HAUSER S40-400 integrates perfectly into workshops equipped with lathes, machining centres or CNC milling machines, offering a complete solution for high-precision grinding and machining of complex parts.

Condition: excellent (used), functionality: fully functional, type of input current: three-phase, overall weight: 520 kg, input voltage: 400 V, space requirement height: 1,760 mm, space requirement length: 1,100 mm, space requirement width: 800 mm, nominal power (apparent): 2 kVA, Tool grinding machine DECKEL S11 TECHNICAL CHARACTERISTICS: Grinding wheel diameter: 125 [mm] Workpiece spindle nose: ISO 40 Paper filtration unit: No Supply voltage: 400 [V] Total power required: 2 [kVA] Dodpfxoxdkw Ss Am Rech Dimensions: 1100 x 800 x 1760 Weight: 520 [Kg] EQUIPMENT INCLUDED: x1 universal index head - Part N°: 255X0X x10 dividing inserts for universal index head x1 tailstock with transverse adjustment - Part N°: 2621000 x1 tailstock with vertical adjustment - Part N°: 2624000 x1 swivel bracket assembly - Part N°: 2626000 x1 universal wheel dresser - Part N°: 2628000 x1 universal setting gauge - Part N°: 2570000 x1 spiral and relief grinding attachment - Part N°: 2580000 x1 relief grinding slide - Part N°: 2673000 x1 machine vice - Part N°: 2635000 x1 opto-electronic measuring unit with miscroscope - Part N°: 2650012 x2 digital readouts RSF-Elektronik x1 radius grinding attachment - Part N°: 2601X00 x1 LED lamp x3 feet pads Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machine for sharpening tools, milling cutters, taps, and drills. Similar to brands such as Blohm, Elb, Ewag, Favretto, Fenix, Ger, Jones & Shipman, Jung, Karstens, NUMAFFUT, Okamoto, Okuma, Saacke, SMP, Studer, Vollmer, Walter. Also see cylindrical or surface grinders, lathes, machining centers, and milling machines.

Condition: reconditioned (used), Year of construction: 2014, functionality: fully functional, spindle speed (max.): 10,000 rpm, type of input current: three-phase, grinding wheel diameter: 250 mm, overall weight: 8,100 kg, feed rate X-axis: 20 m/min, feed rate Y-axis: 5 m/min, feed rate Z-axis: 20 m/min, travel distance X-axis: 380 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 280 mm, grinding spindle motor power: 15,000 W, table length: 500 mm, table width: 330 mm, input voltage: 400 V, CNC Tool grinding machine SCHNEEBERGER Gemini DMR TECHNICAL CHARACTERISTICS: Year of manufacturing: 2014 CNC control: FANUC 31i B5 Software installed: Quinto Qg1 Colour touchscreen: Yes Number of axes: 5 Stroke X axis: 380 [mm] Max. Stroke speed X axis: 20000 [mm/min] Resolution X axis: 0.0001 [mm] Stroke Y axis: 300 [mm] Max. Stroke speed Y axis: 5000 [mm/min] Resolution Y axis: 0.0001 [mm] Stroke Z axis: 280 [mm] Max. Stroke speed Z axis: 20000 [mm/min] Resolution Z axis: 0.0001 [mm] Table length: 500 [mm] Table width: 330 [mm] Grinding spindle attachment: HSK-50 Djdpfjywzayex Am Roch Max. grinding wheel speed: 10000 [rpm] Grinding spindle motor power: 15 [kW] Max. diameter grinding wheel: 250 [mm] Weight: 8100 [Kg] INCLUDED EQUIPMENT: x1 grinding wheel changer with 8 positions x1 FANUC 6-axis robot, type LR Mate 200iC 5L x3 HEIDENHAIN linear glass scales on all X, Y, and Z axes Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machine for sharpening tools such as milling cutters, taps, and drills. Machine comparable to brands such as Blohm, Elb, Ewag, Favretto, Fenix, GER, Jones & Shipman, Jung, Karstens, NUMAFFUT, Okamoto, Okuma, Saacke, SMP, Studer, Vollmer, and Walter. Also consider cylindrical or surface grinding machines, lathes, machining centers, and milling machines.

Condition: used, Grinding diameter 5-200 mm Max.grinding depth 250 mm Center height 180 mm Max.workpiece length 500 mm Spindle bore diam. 50 mm Workpiece spindle speed 125-1000 rpm Workpiece spindle tilt 90° Dedpfx Ameza Hk Uj Rech Table travel 3/600 mm Table speed 0-10 m/min Spindle speed 3600-40000 rpm Power 8-10 CV Dimensions 3200x1630 mm Weight 2700 Kg

Condition: ready for operation (used), Technical data: Power kW 0.9 Connection 380 V/50 Hz Speed 2,900 rpm Disc dimensions 175/60/51 Weight 117 kg Dcsdpfx Amoza Dwxs Reh Equipment:  2 ATS tables (spring-mounted table)  2 diamond cup wheels 175x60x51 mm  Column design

Year of construction: 2022, condition: new, Robot - Belt Grinding Machine is a belt grinding machine for robotic machining with a contact wheel for grinding parts made of aluminum, steel, brass and zinc die casting. Technical data: Dcodpfogxug Nex Am Rsh Contact wheel: max. Ø 400 mm grinding belt length: 3500 mm grinding belt width: max. 150 mm Suction connection: Ø 160 mm dimensions (LxWxH ): 900 x 700 x 1800 mm Weight: approx. 350 kg Electrical connection: 3 x 400 V, 4 kW Compressed air connection: 6 - 8 bar Noise level: > 85 dB(A) spindle diameter: 35 mm Belt grinding unit for grinding belts max. 150 mm x 3500 mm length with pneumatic belt tensioning, belt tear control, 4 kW drive power, frequency controlled, for contact wheels max. DM 350 mm x 150 mm, drive and deflection rollers

Year of construction: 2022, condition: new, Robot - Belt Grinding Machine is a belt grinding machine for robotic machining with a contact wheel for grinding parts made of aluminum, steel, brass and zinc die casting. Technical data: Dcsdpfxogxug To Am Rjh Contact wheel: max. Ø 400 mm grinding belt length: 3500 mm grinding belt width: max. 150 mm Suction connection: Ø 160 mm dimensions (LxWxH ): 900 x 700 x 1800 mm Weight: approx. 350 kg Electrical connection: 3 x 400 V, 4 kW Compressed air connection: 6 - 8 bar Noise level: > 85 dB(A) spindle diameter: 35 mm Buffer: 50 mm Belt grinding unit for grinding belts max. 150 mm x 3500 mm length with pneumatic belt tension, belt tear control, 4 kW drive power, frequency controlled, for contact wheels max. DM 350 mm x 150 mm, drive and deflection rollers, with buffer 50 mm

Year of construction: 2021, condition: new, for grinding belts Dsdpfxsgxuhme Am Roch max. 80 mm x 2000 mm length with 3 kW drive power, for contact wheel max. diameter 80 mm x 80 mm

Year of construction: 2023, condition: new, We sell a new double belt grinder. The contact wheels can be purchased in different dimensions. Technical data: Weight: approx. 350 kg Electrical connection: see type plate of the respective drive motor Compressed air connection: 3 - 8 bar Noise level: > 85 dB(A) Contact wheels: max. Ø 350 mm x 110 mm grinding belts: max. 120 mm x 3500 mm length Suction connection: Ø 160 mm Djdpfxek D Ex Ts Am Roch If you have any further questions, please do not hesitate to contact us!

Condition: used, Year of construction: 1989, MAKE GER, MADE IN SPAIN MODEL RS 10/60 YEAR Dcodpfx Asy Du N Uom Rsh TABLE LENGTH 1300.0 mm TABLE WIDTH 600.0 mm TRAVEL X AXIS: 1600.0 mm Y AXIS: 600.0 mm MAX DISTANCE (TABLE TO WHEEL) 800.0 mm MAX WORKPIECIE WEIGHT 1000 KGS GRINDING WHEEL SIZE 400.0 x 100.0 x 127.0 mm SPINDLE SPEED MAX 1500 RPM MACHINE DIMENSIONS 4600.0 x 2700 x 2600.0 mm MACHINE WEIGHT 7600 KGS PLUS ELECTROMAGNETIC CHUCK SIZE: 1000.0 X 600.0MM HYDRAULIC PACK COOLANT SYSTEM WHEEL MOUNTED DRESSER
