Used Boring Milling Machine for sale (64,558)

Condition: excellent (used), feed length X-axis: 700 mm, feed length Y-axis: 350 mm, feed length Z-axis: 475 mm, travel distance X-axis: 700 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 475 mm, spindle speed (max.): 1,500 rpm, spindle speed (min.): 25 rpm, quill stroke: 100 mm, table length: 1,360 mm, table width: 300 mm, Cincinnati 2MK Horizontal Mill with Universal Vertical Head Model: 2MK Table Atea: 1360 x 300mm (53.5” x 11.8”) Longitudinal Travel: 700mm Cross Travel: 350mm Vertical Travel: 475mm Spindle Taper: 50 INT Spindle Speeds: 25 – 1500 RPM Machine with: Horizontal Arbor & Arbor Support Angular Double Swivel Head Fedpfeygk Drox Afnopc

Condition: good (used), Year of construction: 2006, functionality: fully functional, spindle diameter 125 mm x-travel 3000 mm y-travel 2000 mm z-travel 1500 mm W-axis (spindle longitudinal) 600 mm table-size 1250 x 1600 mm table load capacity - central/maximum 5000 kg Control Heidenhain iTNC 530 tool taper ISO 60 spindle turning speed range 5 - 3000 U/min spindle drive motor 37 kW max. torque on the spindle 1646 Nm transmission ratio 2 Working hours: - Machine on: 59.078 h - Autom. cycle: 24.207 h * CNC-control HEIDENHAIN iTNC 530 * Coolant equipment * Table B-axis, 360.000 positions Fpedpfx Aeyifnujfnoc

Condition: used, Year of construction: 2001, Union KCU-130 Table Type Horizontal Boring & Milling Machine with Heidenhain TNC430 Control, X/Y/Z = 4000/3000/1500mm, Table Size 2000 x 2500 x 20,000kgs, B-axis 360 Deg, Spindle Taper BT50, 60 Position ATC, W-axis, U-axis, Swarf Conveyor, Through Spindle Coolant, Guarding Enclosure. S/No. 1370022 (2001) Please Note: Toolholders/Tooling photographed in the toolchanger will not be supplied with this machine. Any available tooling will be a specifically described. Fpedpfx Aex T Ddyefnoc Please Note: This Lot is located in Irvine. Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.

Condition: used, Year of construction: 1996, x-travel 850 mm y-travel 630 mm z-travel 500 mm Control Heidenhain Fpodpfouxfz Ajx Afnec total power requirement 16 kW dimensions of the machine ca. 5 x 4,2 m

Condition: used, Year of construction: 1988, control Heidenhain 355 tool adaptor SK50 weight of the machine ca. 8 t +++++ Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Fsdpof Tdvbjfx Afnepc Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. +++++

Condition: used, Year of construction: 1992, Technical details: spindle diameter: 100 mm x-travel: 1500 mm y-travel: 1450 mm z-axis: 930 mm w-axis: 506 mm B-axis (table): 360 ° control for program: HdH TNC 407 tool taper: SK50 number of spindle speeds: 5 - 1.600 / stufenlos table load: 4,0 t table-size: 1100 x 1400 mm table rotating: 360 ° feed steps: X/Y/W/Z-Achse: 2 - 2000 mm/min Rapid feed X axis: X/Y/W/Z-Achse 5000 mm/min. total power requirement: 40 kW dimensions electric cabinet: 2000 x 600 x 2000 mm machine dimensions LxWxH: 4,9 x 3,7 x 3,8 m weight of the machine ca.: 14 t Fedpfju Idqbox Afnepc CNC drilling-milling machine with hydraulic power unit. Working paths from the table: X-axis table transverse 1500mm W-axis table longitudinal 1000mm 9x T-slots according to DIN 650 Equipment: measuring probe electronic handwheel hydr. weight compensation Y-axis universal milling head And some accessories, ask for them! i.D. *

Condition: used, Year of construction: 1987, Technical details: spindle diameter: 120 mm x-travel: 2750 mm y-travel: 1500 mm z-travel: 1250 mm B-axis (table): 360 W-axis (spindle longitudinal): 900 mm control for program: TNC 155 Bahnsteuerung / contouring control tool taper: SK50 table load: 6,3 t table-size: 1600 x 1400 mm table rotating: 360 ° range drill spindle revolution per minute: 3 - 1000 U/min total power requirement: 100 kW dimensions electric cabinet: L: 650 x B: 2800 x H: 2100 mm Fodpfxju Idrfo Afnspc machine dimensions LxWxH: siehe Liste m weight of the machine ca.: ca. 15,0 t Contouring control Facing slide feed 210mm (U-axis) hydraulic unit Boom with control panel Measuring system Heidenhain *

Condition: used, functionality: limited functionality, conventional milling machine - Documentation available: Yes - CE certificate present: No - Serial number: 6029 Fjdeycu Nkspfx Afnepc - FYD 32 JM Year of manufacture: 1989 - Control: Conventional - Spindle head: Vertical - Power [kW]: 12.8 - Number of axes: 3 - X-axis travel [mm]: 900 - Y-axis travel [mm]: 300 - Z-axis travel [mm]: 450 - Table length [mm]: 1250 - Table width [mm]: 315 - Tool holder: ISO40 - Min. spindle speed [rpm]: 56 - Max. spindle speed [rpm]: 1800 - Transport dimensions: 1720mm x 2170mm x 2200mm;

Condition: used, Radial drilling machine with plate field WEBO type HRH 100 / 3000 Machine. No. 10009555/7 -- 1110185 -- 6046 Year of manufacture 1979 Drilling capacity Ø 100 mm in ST 60 at feed rate 0.5 mm/rev. Nominal throat depth 3000 mm Max. throat depth max. 3100 mm Spindle holder MK 6 Spindle speed 22.4 - 1600 rpm 36 steps Feed rate 0.05 - 2.5 mm/rev 18 steps Spindle - base plate distance 970 - 2335 mm Pinol stroke 325 mm Swivel range of the arm 360 movable on bed, bed length 7500 mm Clamping area panel field 8000 x 2100 mm - Electrical central clamping Fpedpfx Afofbt Huonjc - Drilling unit can be moved lengthwise on the machine bed by electric motor - Panel field consisting of 2 clamping plates with 7x T-slot, (length 4000 x width 2100 x panel thickness 360 mm) Space requirement L x W x H 8000 x 4550 x 4300 mm Maximum height 4300 mm Transport height (bed with drilling machine) approx. 3150 mm Transport weight (bed with drilling machine) approx. 20 tons Transport dimensions of panel section L x W x H 4000 x 2100 x 900 mm (2 panels stacked on top of each other) Transport weight panel field approx. 14 ton. good condition

Condition: used, Radial drilling machine CSEPEL type RFh 75 / 1500 Machine no. No. 13704 Year of construction 1985 Drilling capacity in steel Ø 75 mm Drilling capacity in cast iron Ø 90 mm Spindle holder MK 5 Nominal throat depth 1500 mm Largest projection of the spindle 1500 mm (to the column) Smallest projection of the spindle 440 mm (to the column) Distance spindle nose - clamping surface 370 - 1700 mm Cantilever height adjustment 950 mm Table size / clamping surface 1800 x 1100 mm Column diameter 450 mm Pinol stroke 380 mm Spindle speed 19-1900 rpm 21 steps Feed rate 0.047-2mm/rev. 12 steps Fedpfslhwr Rox Afnspc Motor power 11 kW Mains connection 380 Volt, 50 Hz, 15 kW - Clockwise/anticlockwise rotation of the drilling spindle via hand lever switch - Hydr. gear shift for spindle speed and feed speed - Hydro-mechanical central clamping - Motorized boom height adjustment - Without coolant device - Machine light - Operating instructions Space requirement: Length 2720 mm x width 1170 mm x height max. 3770 mm Transport height with motor on the column: 3500 mm Transport height without motor on the column: 3250 mm Weight: 6.3 tons good condition

Condition: used, Box column drilling machine WEBO Series- No 132 Machine No: 9 Drilling capacity 50 mm Spindle cone MK 5 - long quill throat 430 mm spindle stroke 280 mm Height adjustment of drill head 500 mm Table size Ø 725 mm Distance between drill spindle and table max. 740 mm Distance between drill spindle and clamping surface on machine base max. 1240 mm Spindle speed 55-820 rpm Feed rate level 1 0.13 - 0.2 - 0.27 - 0.4 mm/rev. Feed rate stage 2 0.6 - 0.83 - 1.17 - 1.8 mm/rev. Column diameter 300 mm Motor power 2.8 / 3.6 kW pole-changing Mains connection 380 Volt, 50 Hz - Spindle speed via 2 motor speeds and infinitely variable via variator - Manual drill head height adjustment via hand crank, clamping with clamping screws - Rotatable drill table with mechanical clamping - Table height adjustment via hand crank - Clamping surface on machine base 600 x 550 mm Fpjdpfx Afoqa Txqsnsc Top height of drill head 3020 mm Overall height drill head bottom 2520 mm Space requirement L x W x H 1400 x 780 x 2520 mm Weight 1600 kg good condition

Condition: good (used), Year of construction: 2008, Ref. -No.: 10621 Manufacturer: PAMA Type: Speedmat 3/TR16 Year of construction: 2008 Type of control: CNC Control: SIEMENS SINUMERIK 840 D PL Storage location: Halberstadt Country of origin: Italy X-Travel: 3500 mm Y-Travel: 2500 mm Z-Travel: 2200 mm W-Axis: 800 mm Bore Spindle Diameter: 160 mm Table Load: 12000 kg Table surface: 1600 x 2000 mm Tool Taper: ISO 50 BIG PLUS Turning Speeds: 3500 RPM Max. Torque: 2.765 Nm Rapid Travel X/Y/Z: 25000 mm / min Drive Capacity - Spindle Motor: 46 kW Internal cooling: 15 / 45 bar External cooling: 50 / 4 bar Spindle speed gear stage 1: 2.120 1 / min Spindle speed gear stage 2: 2.765 1 / min Further information: Automatic tool changer SK50 DIN 69871, 80 positions. Automatic angle milling head TS 35 with 360 positions, speed 2,000 rpm and torque 2,000 Nm. Automatic universal milling head TU25C (2-axis), speed 3,000 rpm and torque 800 Nm. Automatic accessory changer, 2+1 units. Fodeyagikepfx Afnopc Touch probe (Renishaw). The machine can be inspected under power.

Condition: good (used), Year of construction: 1997, Ref. -No.: 10620 Manufacturer: SKODA Type: W 200 T Year of construction: 1997 Type of control: CNC Control: SIEMENS SINUMERIK 840 Fedpfx Afjyagidenspc Storage location: Halberstadt Country of origin: Germany X-Travel: 16000 mm Y-Travel: 5150 mm Z-Travel: 1600 mm W-Axis: 2100 mm V-axis: 2000 mm B-Axis: 0 - 360 ° Spindle Diameter: 200 mm Table Load: 80.000 kg Tool Taper: SK 60 / SK 50 Turning Speeds: 1000 RPM Rotary table diameter: 3500 x 3000 mm Further information: Including angle head Machine can be inspected under power.

Condition: used, Technical details: spindle diameter: 120 mm x-travel: 1250 mm y-travel: 1250 mm z-travel: 800 mm W-axis (spindle longitudinal): 600 mm Speed of boring spindles: 1- 2000 U/min. spindle taper ISO: 50 table surface area: 1000 x 1000 mm total power requirement: 55 kW weight of the machine ca.: 18 t with CNC HEIDENHAIN TNC 426 autom. toolchnager 40-pockets coolant attachment Fjdpoxt El Ajfx Afnepc *

Condition: used, Technical details: spindle diameter: 130 mm x-travel: 2190 mm y-travel: 1520 mm z-axis: 1520 mm w-axis: 1000 mm Fpedpevclrxofx Afnsc table surface area: 2000 x 1800 mm workpiece weight: 8 t spindle motor: 18 kW spindle taper ISO: 50 spindle turning speed range: 4,5 - 900 U/min faceplate diameter: 785 mm rapid traverse: 5 m/min total power requirement: 40 kW dimensions of the machine ca.: 5,5 x 6,9 x 5,2 m weight of the machine ca.: 35 t Machine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control - inf. variable spindle spped - 4 x 90° table positioning - diverse toolholders - dDust exhauster *

Condition: used, CNC Gantry-Type Boring and Milling Machine ANAYAK Type HVM-3800-P Bed type milling machine, structure similar to a plate-type boring mill with fixed table Machine No.: M-20021203 Year of manufacture: 2002 ("Refurbished 2025") The machine will be completely workshop overhauled in 2025 and can then be inspected in storage at 37235 Hessisch Lichtenau. Travel distances: X: 3,200 mm, Y: 1,200 mm, Z: 1,500 mm Table size: 3,800 x 1,200 mm T-slots: 8 pieces, 22 mm, spacing 130 mm Table load: max. 25 tons (stationary table – virtually unlimited load capacity) Fpodoxcgtgepfx Afnjc Spindle taper: ISO 50 (DIN69871-A) (drawbar: DIN 69872-B) Spindle speed: 60 – 4,000 rpm, stepless Feed rate: up to 10,000 mm/min, stepless Rapid traverse X + Y: 20 m/min Rapid traverse Z: 10 m/min Spindle drive: 22 / 30 kW Electrical connection: 400 Volt, 50 Hz, 50 kVA - Automatic tool changer for 30 tools - Spindle drive with 2 speed ranges - With automatic tool changer and tool magazine - Orthogonal milling head with hydro-mechanical tool clamping - Orthogonal milling head fully automatic swiveling in two 45° planes – B+C axis - HEIDENHAIN iTNC 530 control, with electronic handwheel - Prepared for wireless touch probe (probe and receiver not included) - Additional HF-spindle, 18,000 rpm – for attachment - Free-standing control cabinet - Chip conveyor positioned between the gantry bed and the machine table - 32,078 operating hours recorded - Coolant system - Free-standing hydraulic unit - Operating manual with circuit diagrams Installation area (L x W): approx. 1,000 x 700 cm Installation height: approx. 410 cm Weight (total): approx. 33 tons Good condition

Condition: good (used), Year of construction: 1981, Ref. -No.: 10447 Manufacturer: SKODA Type: WD 200 Year of construction: 1981 Retrofit: 2010 Type of control: CNC Control: SIEMENS SINUMERIK 840D Storage location: Halberstadt Country of origin: Germany X-Travel: 9000 mm Y-Travel: 4000 mm Z-Travel: 1450 mm W-Axis: 2000 mm Bed width: 2000 mm Bed height: 550 mm Spindle Diameter: 200 mm Quill Stroke: 1600 mm Rotary Table (Lxw): 4000 x 4000 mm Table Load: 80000 kg Clamping Area: 3000 x 3000 mm Turning Speeds: 257 - 2570 RPM Spindle taper: 120 Automatic feeds: 342 mm / rev Spindle Turning Speed - Stepless: 1,5 - 630 RPM Max. Torque On The Boring Spindle: 20000 Nm Rapid Traverse: 16000 m / min Drive Capacity - Spindle Motor: 9,8 - 35,5 kW Total Power Requirement: 75 kW Bore Depth: 2000 mm Vertical headstock movement on the column: 3150 mm transverse movement of the stand on the bed: 4000 mm Lowest position of the spindle axis above the bed: 1100 mm Spindle speed when moving the quill forward: 1,6 - 300 max. rpm Drill feeds (spindle, quill) continuously variable in the range: 1,6 - 1600 mm / min Milling feeds (headstock vertical, column horizontal) infinitely variable: 1,6 - 1600 mm / min Machine length: 11350 mm Machine width: 5450 mm Machine Height: 7350 mm Weight Of The Machine Ca.: 65 t Further information: Threading: 22 metric threads, pitch range 0.5 - 12mm 32 Whitworth threads, pitch range 28 - 1 (gears) Accessories: - console for tools - 1 set of operating tools - ejector and fastening wedges for spindle - lubricating press - 1 set of spare parts for electrical equipment - clamping base plate Fsdex Sw Ezspfx Afnepc - setting stick with electrical equipment Machine can be inspected under power by appointment.

Condition: used, Year of construction: 2009, spindle diameter 125 mm Fsdpfswdta Esx Afnepc x-travel 1.500 mm y-travel 1.250 mm z-travel 1.000 mm w-travel 550 mm table surface area 1.000 x 1.250 mm workpiece weight 6.000 kg quill stroke 550 mm tool taper ISO 50 number of spindle speeds 5-3.700 U/min. max. torque 2012 Nm feed speeds 1-6000 (x-Achse) mm/min feed speeds 1-6000 (y-Achse) mm/min feed speeds 1-6000 (z-Achse) mm/min rapid traverse x/y/z 15/ 15/ 15 m/min dimensions of the machine ca. 7,51 x 5,07 x 3,33 m 63 kVA Equipment/ Accessories: - CNC control Siemens 840 D - 60 ATC - Coolant system with high-pressure pump 30 l/min.- 20 bar - documentation

Condition: used, Year of construction: 1987, Technical details: spindle diameter: 110 mm x-travel: 1985 mm y-travel: Spindelstock vert. 1270 mm z-travel: Tisch längs: 1260 m. Setzstock/1490 m. Setzstock mm table adjustment: nein ° B-axis (table): 360 W-axis (spindle longitudinal): axial: 710 mm U-axis: Planschieber radial: 250 mm control for program: Heidenhain 320 tool taper: ISO 50 table-size: 1600 x 1400 mm table rotating: 360 ° table load: 6,3 t range drill spindle revolution per minute: 6,3 ... 1250 / 4 step U/min revolution per minute: Plansupport: 6,3 ... 315 / 2 step U/min feed steps: Tisch: 5...2500 und Spindelstock vert. 5...2500 mm/min total power requirement: ca. 90 kW weight of the machine ca.: 30 t Tailstock Facing slide 700 Electronic handwheel max. turning Ø for drilling: 630mm max. turning Ø for facing: 1250mm At the moment the Horizontal Boring and Milling Machine has an electrical fault in the control (unknown). Our offer/sale is as described and as is! Fpsdou Utwbjpfx Afnec *

Condition: used, Technical details: spindle diameter: 110 mm x-travel: 2000 mm y-travel: 1600 mm z-travel: 2000 mm control for program: TNC Heidenhain 360 B-axis (table): ja W-axis (spindle longitudinal): Planschieber mm tool taper: ISO 50 table-size: 1400 x 1250 mm machine dimensions LxWxH: 8,0 x 6,0 x 4,5 m weight of the machine ca.: 28 t with face slide 700mm , electronic hand control Fsdju Idp Dspfx Afnepc *

Condition: like new (used), Year of construction: 1987, Used Giddings and Lewis Model MC 50 Twin Pallet Horizontal Machining Centre with Live Spindle, 60 ATC and G&L 8000A Control System. Serial # 445-1052.Year of Manufacture: 1987 Machine Formerly Installed at Rolls Royce Plc In Derby UK. Immediately for Sale and now Located in Belgium where it can be Inspected. Spindle Diameter - 130 MM Spindle Taper - 50 ISO Spindle Travel (Z Axis) - 915 MM Spindle Speeds (4 Ranges) - 5 to 1500 RPM Main Motor - 30 HP Pallet Size - 1219 x 1245 MM Pallet Rotation Increments - 0.001 DEG (360,000 POSITIONS) Pallet Changer Max Load - 5000KGS Pallet Max Load Without APC - 9000 KGS Longitudinal Travel (W) - 1700 MM Vertical Travel Of Head (Y) - 1500 MM Cross Travel (X) - 1800 MM Feed Rates Per Minute - 1.00MM/MIN TO RAPID RATE Rapid Traverse Rate Per Minute (X And Y) - 4500 MM / MIN Rapid Traverse Rate Per Minute (Z And W) - 3000 MM / MIN Auto Tool Changer - 60 POSITIONS Electrical Supply - 415V, 3PH, 50HZ Fedpfxou Dahno Afnspc FEATURES AND EQUIPMENT High Pressure (25 Bar) Through Spindle Coolant, High Tolerance Machine. Accurate Machine which was well Maintained and Regularly Calibrated by Manufacturer. Renishaw Probing. Length - 11679 MM Width - 6502 MM Height - 4423 MM Weight - 40329 KGS

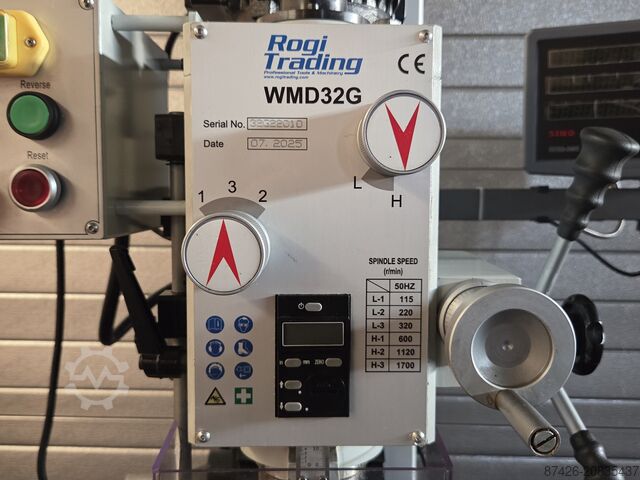

Condition: new, Year of construction: 2025, functionality: fully functional, travel distance X-axis: 375 mm, travel distance Y-axis: 230 mm, spindle speed (max.): 1,700 rpm, spindle speed (min.): 115 rpm, type of input current: three-phase, overall weight: 200 kg, table length: 700 mm, table width: 190 mm, power: 0.75 kW (1.02 HP), distance table to spindle center: 405 mm, WMD32G - ROGI Gear-Driven Milling and Drilling Machine Drilling Capacity ----- 32 mm Face Milling Capacity ----- 63 mm End Milling Capacity ----- 16 mm Work Table Dimensions ----- 700 x 190 mm T-Slot Dimensions ----- 12 mm Spindle Taper ----- ISO30 Max. Distance Spindle - Table ----- 405 mm Spindle Travel ----- 75 mm Head Tilting ----- Left / Right 45 Degrees Table Longitudinal Travel ----- 375 mm Table Cross Travel ----- 230 mm Speed Range 115 - 1700 rpm Weight ----- 200 KG Motor ----- 750W AC Voltage ----- 230V (INVERTER) INCLUDES * 3-axis digital readout SINO * Floor stand * Digital depth stop * ISO30 milling arbor including 6 collets * Drill chuck with shank DIN2080 / ISO30 * Left / Right switch Fpsdpfx Aex N Ndqofnoc * Spindle guard * Drift key

Condition: used, Year of construction: 2000, functionality: fully functional, Spindle taper: ISO 40 RPM.: 35-1800 (variable) Travel: X850 Y290 Z475 mm. Fpedpfox Ex Siox Afnec Table size: 1250 x 280 mm. Automatic feed: X, Y & Z. Rapid speed: X, Y & Z. Motor: 7,5 HP. Digital readout: Electronica EL403M (X, Y & Z) Year: 2000 Country of origin: Spain. Size (L x W x H): 2050 x 2220 x 2050 mm. Weight: 1900 kg. Variable speed with digital readout in 2 gear ranges, variable feed speed with digital readout. With Hurré milling head and supports. All our machines are tested and serviced before delivery.

Condition: used, Radial drilling machine WEBO Type R4bR Serial No. 15 / E195 Year of manufacture: approx. 1965 Drilling capacity: 50 mm Spindle taper: MT 5 Maximum spindle outreach: approx. 1250 mm (to column) Clamping surface: 1400 x 1000 mm Column diameter: 315 mm Fodpfsu T Ty Hjx Afnepc Spindle speed: 30 - 1325 rpm, 9 steps Feed: 0.12 - 2 mm/rev, 9 steps Electrical connection: 380 Volt, 50 Hz - Spindle speed in 9 steps - Motorized height adjustment of the boom Required floor space for operation (L x W x H): 220 x 100 x 285 cm Transport dimensions (L x W x H): 220 x 100 x 260 cm (without motor for height adjustment) Weight: approx. 2.8 t.

Condition: new, Year of construction: 2025, neu 2025 030138 ca. 2 - 4 Wochen ab Auftr Deutschland 3444.77 € 1 13 mm MK 2 220 mm 40 - 4000 U/min 0,54 (230 V, frequenzgere kW M 10 (steigungsabhängig) 520 mm 400 mm 850 mm 62 kg 60 mm 85 - 370 mm 420 mm 300 x 250 mm 70 mm Continuous/normal drilling performance 13/15 (in E335/ST60), 12 Nm Manual feed Digital speed and drilling depth display Thread cutting device Control panel with OLED display Robust, high-quality drill head cover with ergonomically inclined front LED lighting Quickly adjustable and ergonomic drilling depth stop Fpjdpfx Asxcbhrofnec Continuous speed control via central rotary knob Emergency stop push button Thermal overload protection Spindle stop Drill protection with electrical protection Connection cable with Schuko plug OPTIONS: Machine cabinet with door and drawer Drill package 2 (vice & keyless chuck)
