HERMLE C40U

HERMLE C40U

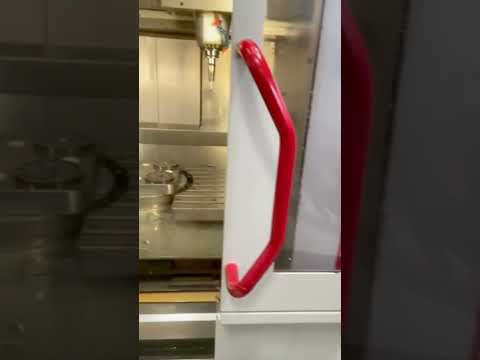

Condition: used, Year of construction: 2012, x-travel 850 mm y-travel 700 mm z-travel 500 mm Control Siemens 840 D rotary table 800 mm c-axis 0.001º ( ±360º) 0 B-axis (table) º mm number of spindle speeds 18.000 U/min/rpm tool taper HSK 63 Tools changer 38 fach/tools Internal cooling system 80 bar total power requirement 43 kVA weight of the machine ca. 10,6 t Equipment- Paper belt filter – 200 l tank- Active control cabinet cooling- Codpfxeyxy E Ro Acvera Infrared probe M&H (Heidenhain)- Laser tool measuring system Blum- Chip conveyor- Cleaning pistol with pump 2 bar / 40 l min- 3D Quick Set- Electronic handwheel

Condition: good (used), Year of construction: 2011, Ref. -No.: 10615 Manufacturer: DMG Type: DMU 210 P Year of construction: 2011 Type of control: CNC Control: Heidenhain ITNC 530 Storage location: Halberstadt Country of origin: Germany Machine-No.: 128/XXXX X-Travel: 1800 mm Y-Travel: 2100 mm Z-Travel: 1250 mm Swivel range: -30 / +180 ° Table Load: 10000 kg Max. rotary table diameter: 1700 O Table speed range: 12 min/-1 Tool Taper: SK 50 Numbers Of Tools In Magazin: 60 Weight Of The Machine Ca.: 41 t Motor spindle: 24000 RPM Feed drive A, C: 30 min/-1 horizontal milling head: 130-1.380 mm Crsdjym Nfhjpfx Acvea vertical milling head: 230-1.480 mm Further information: The machine can be viewed while powered up.

Condition: used, Year of construction: 2003, machine/vehicle number: IntNr231507, 5-axis Universal Machining Centre Hermle Type: C 40 U Year of manufacture: 2003 Control: Heidenhain iTNC 530 Travel paths: X-axis: 850 mm Y-axis: 700 mm Z-axis: 500 mm NC Swivel Rotary Table: Diameter: Ø 800 mm Swivel range A-axis: +25° / -110° Rotary range C-axis: 360° Machine weight approx. 10.5 t Accessories: Complete documentation Coolant system Hydraulic unit Cedpfxoyu Ivuj Acvsra NC swivel rotary table Electronic handwheel Renishaw touch probe The machine can be inspected under power by prior appointment. Technical data and specifications are subject to change and error. Sale subject to prior availability!

Condition: good (used), Year of construction: 2003, For technical data, see images.... Crjdpfx Acex R S R Nsvoa

Condition: used, Year of construction: 2017, AWEA FCV 620 year 2017 FANUC OiMF Manual Guide 2x Tool probe Renishaw X-axis travel: 635 mm Codpjvy H U Nsfx Acvora Y-axis travel: 535 mm Z-axis travel: 460 mm B-axis rotary range: -50° ~ +110° C-axis rotary range: 360˚ Table diameter: Ø 650 mm Spindle taper: BT40 Spindle speed :Direct drive 12,000 Cooling through the spindle Spindle motor (cont./min): 11/15 kW (FANUC 12,000 rpm) X / Y / Z axes rapid feed rate: 36 m/min. Tool magazine capacity: 32T Weight 8500kg

Condition: good (used), Year of construction: 2022, CNC Heidenhain TNC640, table 2,500 x 4,000 mm, X/Y/Z 4,000/2,500/1,300 mm, 5-axis universal milling head 18,000 rpm, tool holder HSK-A63 DIN 69893, 120 tools, internal coolant supply (IKZ). Cedpfx Aeymm Elscvera

Condition: used, Year of construction: 2014, x-travel 600 mm y-travel 500 mm z-travel 500 mm total power requirement --- kW Crjdeycxinepfx Acvea weight of the machine ca. 9,6 t dimensions of the machine ca. --- m

Year of construction: 2015, condition: ready for operation (used), This Zoller smile 400 optical measurement machine was manufactured in 2015. It features a 24V power distribution system, a lighting module Z100-L, and a high-precision spindle SK 50 with a runout accuracy of 0.002 mm. It also includes a 17" panel PC, USB camera with integrated LED lighting, and a servo motor with encoder. Consider the opportunity to buy this Zoller smile 400 optical measurement machine. Contact us for more information. • 24V power distribution with fuses • USB motion controller Cjdpfx Acex Tkblevora • ZOLLER measuring instrument control • 11th generation 17" panel PC • Printer for TH labels • Printing width from 25 mm to 108 mm • Membrane keypad for "smile2" with 3 buttons • High-precision spindle SK 50 • Runout accuracy 0.002 mm • Accessory kit for clamping unit "smile" • USB camera with optics and integrated LED incident light • Transmitted light "pilot" DLR / V-series • Servo motor with encoder and pinion • Software version: Pilot 1.14.18.0

Condition: like new (used), Year of construction: 2012, 12 station, Siemens Sinumerik 840D control, load / unload, Credpfev Igghsx Acvsa VAS air cleaning unit, (2012) Technical Data - Grinding Spindles (With Two spindle ends) Interface - Cone ø 31.75mm Performance 100% / 40 % ED - 11.5 / 14.5kW Standard rotation speed - 8,000rpm Option: One spindle end Interface - HSK 50E Performance - 100% / 40% ED - 11.5/ 14.5 kW Standard rotation speed - 8,000rpm Option: One spindle end Interface - HSK 50E Performance 100% / 40% ED - 11 / 12 kW Standard rotation speed - 18,000rpm Option: One spindle end Interface - HSK 80E Performance 100% / 40% ED - 30/30 kW Standard rotation speed - 8,000 rpm Option: High Frequency spindle - On request Machine Table Clamping surface - 1000 x 500mm Number, distance and width of the T slots - 9 / 50 / 12H7mm Work Range X- Axis - 700mm (optional) 1000mm (optional) 1200mm Y Axis - 410mm Z Axis - 500mm C Axis angle of rotation - 320° Option: X3 - auxilliary axis Work range - 400mm Probing system and feed Resolution of linear axes - 0.0005mm Rapid feed of linear axes - 30,000mm/min Resolution of rotary axes - 0.001° Rotation speed of C Axis - 400rpm Rotary axis ( A axis) Standard tip height - 175mm Rotation speed as spindle - 2600rpm Standard interface - ISO SK 50 / centering 70H5 Optional - HSK 100 / 80 / 63 / 50 Tool Changer option HSK50E Number of tools / Diameter of tools Inner wheel - 5 / 300mm to 9 / 100mm Outer wheel - 7 / 300mm to 16 / 100mm HSK80E Number of tools / Diameter of tools Inner wheel - 5 / 300mm to 8 / 100mm Outer wheel - 7 / 300mm to 14 / 100mm Workpiece size Diameter 340mm Length 550mm Length between tips 500mm Electrical supply Operating voltage 400V / 50Hz fused to 80 A Controller Siemens contouring control - Sinumerik 840 DSL Pneumatics Operating pressure - 6 - 10bar Weight Total weight depending on equipment 10,000kg or more Floor space requirement Length x width (standard) 3227 x 2700mm Height during operation 3550mm Height with option of coolant nozzles 3810mm (min hall height 4100mm)

Condition: excellent (used), Year of construction: 2004, Maier ML 26 E CNC lathe TECHNICAL DATA Number of axes: 11 Spindle bore: 32 mm Path speed: 32 m/min Control: Maier Pro GE-Fanuc Guide bush: 451.001 Main spindle Clearance: 26 mm C-axis: Yes Mechanical indexing 5°: Yes Headstock stroke: 220 m Main spindle, speed: 0 - 6000 rpm Power: 3.7 kW / 5.5 kW (7.5 kW) Collet chuck: 161E Counter spindle Clearance: 26 mm C-axis: Yes Mechanical indexing 5°: Yes Max. travel (Z): 220 mm Counter spindle, speed: 0 - 6000 rpm Crodpfeu S Rivex Acvsa Main spindle, power: 1.1 kW Collet chuck: 161E Cross machining Basic holder for turning rings 5 pcs. 16 x 16: Yes Number of driven tools: 4 Power of the driven tools: 0.5 kW Back machining Drive power: 0.5 kW Number of tools: 4 of which driven tools: 4 Collets: ER16 Tool turret Number of tools: 16 Number of driven tools: 8 Drive power: 0.5 kW C-axis: 360 ° Z-axis: 175 mm X-axis: 200 mm Collets: ER16 SCOPE OF OFFER U.A: (list not exhaustive): Maier ML 26 E CNC lathe Oil mist separator transformer Chip conveyor High pressure pump / belt filter system Fire extinguishing system LNS bar feeder Complete operating documentation Exact scope of offer according to photo gallery No responsibility is taken for the accuracy, completeness and timeliness of the information
