Vertical machining center

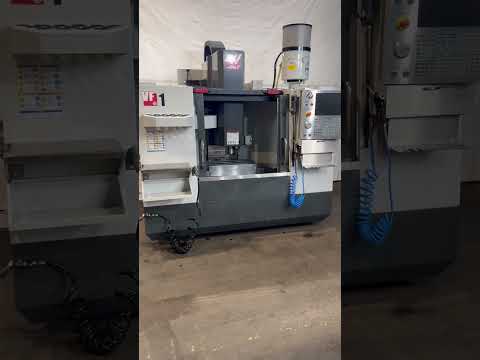

HAAS Vf1 Vertical Machining Centre

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, CNC HAAS VF-2SS 2011 2 units CNC HAAS VF-2SS Bodpfxeyh Rwxs Akaelg 2011 Fully functional

Condition: excellent (used), Year of construction: 2017, x-travel 1016 mm y-travel 508 mm z-travel 635 mm Control HAAS spindle turning speed range 8000 U/min spindle taper 40 Blodpfxsy Aphio Akasg table-size 1219 x 457 mm table load 1,588 t Working speed 16,5 m/min tool piece magazine with 24 total power requirement 22,4 kW weight of the machine ca. 6,3 t dimensions of the machine ca. TBH 2,48 x3,15 x2,5 (2,9) m Well-maintained machine with only 1,603 operating hours - Includes 4th axis HAAS HRT310 - Includes tailstock for 4th axis - Includes Renishaw HAAS WIPS Wireless Intuitive Probing System - Includes 48 tool holders, some with tools - Includes chip conveyor - Includes internal spindle coolant - Includes programmable coolant nozzle - Includes USB interface - Includes network connection

Condition: ready for operation (used), Year of construction: 2005, operating hours: 5,934 h, travel distance X-axis: 406 mm, travel distance Y-axis: 305 mm, travel distance Z-axis: 254 mm, controller manufacturer: HAAS, spindle speed (max.): 40,000 rpm, number of axes: 3, This 3s HAAS Super Mini Mill HE was manufactured in 2005, featuring a robust Haas CNC Control and an IBAG Switzerland spindle with a maximum speed of 40,000 rpm. The machine includes an Automatic Tool Changer with a capacity for 18 tools, ensuring efficient operation. If you are looking to get high-quality machining capabilities, consider the HAAS Super Mini Mill HE vertical machining centre we have for sale. Contact us for further details. • Spindle: • IBAG Switzerland spindle • Water-cooled • Tool holder: HSK E32 • Tool changer: • Type: Automatic Tool Changer (ATC) • Capacity: 18 tools • Working hours (from control): • Servo time: 9,158 h • Motion time: 4,984 h • Spindle time: 5,934 h Blodpsyhfltefx Akaog • Idle time: 0:44 h • Electrical data: • Voltage: 360–480 V • Phase: 3 • Frequency: 50/60 Hz • Full load current: 20 A • Largest load: 35 A • Short-circuit interrupting capacity: 10,000 A Technical Specification Taper Size HSK 32

Condition: used, Year of construction: 2015, functionality: fully functional, machine/vehicle number: 1125318, SPECIFICATION Travel X axis stroke 762mm Y axis stroke 406mm Z axis stroke 508mm Distance spindle nose to table 102-610mm Table Width 536mm Length 914mm Max. Weight on table 1361kg T Slots: width 16mm : pitch 125mm   SPECIFICATION Cont’d Spindle Taper size No.40 Speed 0-8100rpm Bearings Bearing lubrication Air/oil injection Cooling Liquid cooled Motor Spindle motor, max. rating 22.4kW Feedrate Rapid X, Y & Z axis 25.4m/min Max. Cutting feedrate 16.5m/min Bljdpswx I N Dsfx Akaog Toolchanger Capacity 20 tools Type BT40 General Approximate machine weight 3750kg Air supply (min) 113lpm, 6.9 bar MACHINE EQUIPPED WITH: - Haas (Fanuc compatible) CNC Control system Programmable coolant nozzle Automatic lubrication system Enclosed guarding Swarf auger

Condition: ready for operation (used), Year of construction: 2011, Travel X/Y/Z: 1000mm/500mm/635mm, tool holder: BT40, spindle speed: 10000rpm, tool positions: 40, control: Haas, spindle hours: approx. 4500h. 3-axis robot System 3R WorkPartner, year of manufacture: 2005, transfer weight: 80kg, stroke: 1500mm, pallet positions: 20. Including System 3R GPS 240 zero-point clamping system, tool measurement, tool breakage control, Renishaw 3D probe, and oil mist extraction. Documentation available. An on-site inspection is possible. Bodpoxg Riasfx Akaolg

Condition: used, Year of construction: 2000, turning diameter . mm turning length . mm Blodpfeqn A Rnex Akaog control 2x 840 D Kühlmittelsystem chip conveyor ja kW generator - rated current 95,00 A connected load 65,00 kW

Condition: excellent (used), Year of construction: 1998, Heidenhain TNC 426 control Blsdpfoyrirrjx Akasg Travel X/Y/Z: 600/450/450 mm Spindle speed 10,000 rpm Tool magazine for 30 tools, SK 40

Condition: good (used), Year of construction: 1998, Parts shown by hand not come. Technical data are shown on picture. Bledpewb Aqnjfx Akajg

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, In 02/2026 new cooling threw spindle. Including 4th axe and probes. Table mm 914 x 356 Blsdpjyzpwusfx Akaeg Axes: (X) mm 762 (Y) mm 406 (Z) mm 508 max. table loading kg 1361 Tool changer 24 Taper in spindle ISO 40 Spindle revolutions 10000 rpm Machine weight kg 3311

Condition: ready for operation (used), Year of construction: 2009, operating hours: 9,192 h, travel distance X-axis: 1,200 mm, travel distance Y-axis: 900 mm, travel distance Z-axis: 500 mm, controller manufacturer: HEIDENHAIN, controller model: iTNC 530, spindle speed (max.): 16,000 rpm, number of axes: 3, This 3-axis HERMLE C 1200 vertical machining centre was manufactured in 2009. It features an impressive X-axis travel of 1200 mm, Y-axis travel of 900 mm, and Z-axis travel of 500 mm. The machine is equipped with a spindle speed of 16,000 rpm and includes 30 tool stations. If you are looking to get high-quality machining capabilities, consider the HERMLE C 1200 machine we have for sale. Contact us for further details. • X – 1200 mm • Y – 900 mm • Z – 500 mm • Machining Center C 1200 V • Heidenhain iTNC 530 contouring control • Spindle 16,000 rpm • SK 40 • 30 Tool Stations • Rigid Clamping Table • Coolant System • Electronic thermal compensation (iTNC) with temperature sensors on the motor spindle and machine base • Portal design with a closed rear wall for significantly better support during torsional loads • Two axes are located in the tool, providing very good mass distribution and ideal conditions for high rapid traverse and feed rates Blodpfxsylw Sts Akaog • Feed screw diameter and pitch (X and Z axes): 40 / 20 mm • Feed screw diameter and pitch (Y axis): 50 / 20 mm • Direct measuring system • Resolution: 0.0001 mm • Position tolerance (Tp) in X-Y-Z axes according to VDI/DGQ 3441: 0.010 mm • Recommended ambient temperature for maintaining accuracy: 20 °C ± 1 °C • Flushing/wash-down system for rinsing the side work area • Display: 15" TFT color flat screen • Flexible contour programming • Part program memory • Tool diameter capacity: 80 mm • Tool diameter with free adjacent slots: 125 mm • Maximum tool length: 300 mm • Maximum tool weight: 8 kg • Maximum magazine load: 120 kg • Chip-to-chip tool change time according to VDI 2852: 6.5 seconds • Manual control unit includes electronic handwheel, axis direction keys, feed control, rapid traverse, emergency stop, and enable switch • Machine on – 11,927 h • Spindle on – 9,192 h Additional equipment • Chip conveyor • Heidenhain touch probe • Electronic Manual Control Module (iTNC) Technical Specification Taper Size SK 40
