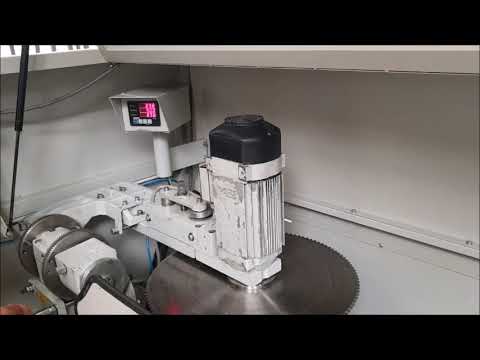

2001 Elumatec AKS 134

Elumatec AKS 134

Year of construction: 2007, condition: excellent (used), functionality: fully functional, machine/vehicle number: 1340020469, Mitre Saw Machine AKS 134/00 1 x Saw Blade Ø550mm 1 x Saw Blade Ø500mm Psdpfx Ajx A D Ihsa Eorf Equipped with digital angle setting readout

Year of construction: 2008, condition: used, Saw blade diameter: 420 mm Max. cutting length: 6,000 mm Min. cutting length: 335 mm Automatic length positioning and angle adjustment via E 555 control with Windows and USB connection Motorized angle adjustment for swiveling both saw heads Prjdpfow Axmbsx Aa Eof Moving roller conveyor Minimum quantity spray device Weight: approx. 1800 kg

Year of construction: 2004, condition: excellent (used), functionality: fully functional, 2004 Elumatec AKS 134 Notching Saw – High-Precision Notching for Curtain Walls, Skylights & Conservatories Manufacturer: Elumatec Model: AKS 134 Year: 2004 Condition: Very Good Now available: Elumatec AKS 134 Notching Saw, manufactured in 2004 and in very good condition. This robust, German-engineered machine is purpose-built for precise notching in aluminium profiles, specifically designed for fabricators working on curtain walls, conservatories, skylights, and other complex architectural aluminium systems. The AKS 134 features a dual-saw unit design — vertical and horizontal — offering exceptional flexibility, accurate angles, and safe operation. Combined with digital angle displays, hydro-pneumatic feed, and automated cutting cycles, this is a premium choice for serious aluminium fabricators. 🛠️ Key Technical Specifications: 🔻 Lower Vertical Saw Unit: Saw Blade Diameter: 550 mm Tilting Range: +45° forward to -60° rear Max Cutting Height: 210 mm Motor Power: 3 kW (with motor brake) Speed: 2,800 rpm Manual Tilt Adjustment with Digital Display 400V, 3~, 50Hz 🔺 Upper Horizontal Saw Unit: Saw Blade Diameter: 500 mm Tilting Range: +55° down to -60° up Max Notching Depth: 190 mm Motor Power: 3 kW (with motor brake) Speed: 2,800 rpm Travel Distance: up to 830 mm Manual Tilt Adjustment with Digital Display 400V, 3~, 50Hz ⚙️ Machine Features: Dual saw blades for versatile and complex notching Workpiece stays fixed – only the saw units move, enhancing precision Simultaneous vertical saw unit height adjustment via handwheel (with analogue readout) Digital angle displays for both saws and pivoting back fence Manually adjustable support table Horizontal and vertical pneumatic clamping Automatic cutting cycle at 90° with two-hand safety control for angled cuts Hydro-pneumatic saw feed for smooth, consistent cutting Compressed Air Supply: 7 Bar (35–45L per cycle) 📏 Machine Dimensions & Weight: Footprint: 3000 × 1420 × 1600 mm Weight: 1,250 kg 🏗️ Ideal For: Aluminium façade and curtain wall manufacturers Skylight and conservatory fabricators Precision aluminium notching applications Workshop environments needing multi-angle notching in high volumes 🧰 Reliable, accurate, and engineered for demanding tasks, the Elumatec AKS 134 is a proven performer in the architectural aluminium industry. Elumatec AKS 134 for sale Aluminium notching saw Ireland Curtain wall notching machine Elumatec saw for curtain wall systems Notching saw for aluminium profiles Predpfx Aoxyupkea Eof Elumatec AKS 134 specifications 550mm notching saw Double blade notching saw Used Elumatec machinery Aluminium construction saw

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, Elumatec AKS 134 – Technical Data Lower Unit (vertical): Saw blade diameter: 550 mm Swivel range: from +45° (forward) to −60° (backward) Max. cutting height: 210 mm Power supply: 230/400 V, 3~ / 50 Hz Motor power with brake: 3 kW Saw blade speed: 2800 rpm Manual tilt angle adjustment with digital display Upper Unit (horizontal): Saw blade diameter: 500 mm Tilt range: from −55° (downward) to +60° (upward) Max. cutting depth: 190 mm Prodpfx Aswvvrzja Eef Power supply: 230/400 V, 3~ / 50 Hz Motor power with brake: 3 kW Saw blade speed: 2800 rpm Manual angle adjustment with digital display Max. saw stroke: 830 mm Work Table: Working height: 990 mm Rotary table range: ±30° (center position 0°), manually adjustable with digital display Compressed air supply: 7 bar, Consumption: 35 l/cycle without mist, 45 l with mist Machine dimensions (L × W × H): 3000 × 1420 × 1600 mm Weight: 1250 kg

Year of construction: 2001, condition: ready for operation (used), A notching saw Elumatec for post-and-beam profile combinations is available. Lower saw blade: diameter: 550mm, tilt range: 45°-60°, max. cutting height: 210mm, speed: 2800rpm, power: 3kW. Upper saw blade: diameter: 500mm, tilt: 60°, max. notching depth: 190mm, speed: 2800rpm, power: 3kW. Stroke: 830mm, working height: 990mm, swivel left/right: 30°/30°. Machine dimensions X/Y/Z: approx. 3000mm/1450mm/1600mm, weight: approx. 1250kg. Documentation available. An on-site inspection is possible. Prjdpfx Aew Nykgea Ejf

Year of construction: 2016, condition: good (used), functionality: fully functional, machine/vehicle number: 6280028128, Machine is provided "free loaded truck". No dismantling and loading costs! TECHNICAL DETAILS Max. profile cutting width: 320 x 160 mm Min. profile cutting width (depending on gripper position): 30 x 10 mm Raw material system Length of the raw bar system: 7,600 mm Finished part system Finished part length: 3,500–4,600 mm Kurt cell Kurt cell (50-150/150-350): optional Feed system Shortest raw bar length: 1,500 mm Swing arm selection: 5 (option 9) Support plate: 10 (over 120 mm 5) Infeed Servo drive: linear Gripper adjustment electric: Y/Z Gripper guide: standard Remnant piece measurement: optional Remnant piece processing: fully automatic Processing station Number of axes: 5 Milling spindles: 8 (can be prepared) Saw Number of axes: 3 Saw blades (diameter): Ø 550 mm, optional Ø 650 mm Saw angle: 22.5°–157.5° (swivel) Notch cuts: standard (from above) Outfeed chip carriage Number of axes: 1 Outfeed conveyor Lifting station: yes Swing selection: 5 Pjdpfx Aajvvu S Ij Eorf Width of outfeed conveyor: 4,000 mm MACHINE DETAILS Dimensions: 20 x 3 x 4 m Weight: 8.8 t Connection power: 39 kW Operating voltage: 3/N/PE 400 V EQUIPMENT - Feed magazine - Loading transport - Processing station with milling unit, saw unit and clamping blocks - Unloading transport of profiles (removal gripper) and unloading conveyor - Acoustic protection cabin - Control panel on the soundproof cabin - Control cabinet - Fencing and protective doors
