Vertical machining center

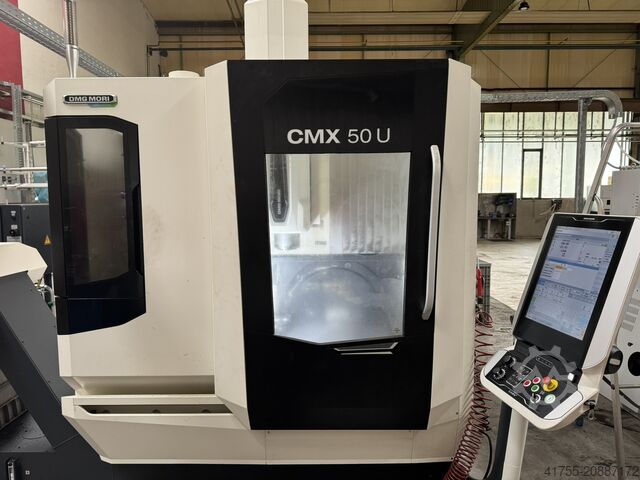

DMG MORI CMX 50U

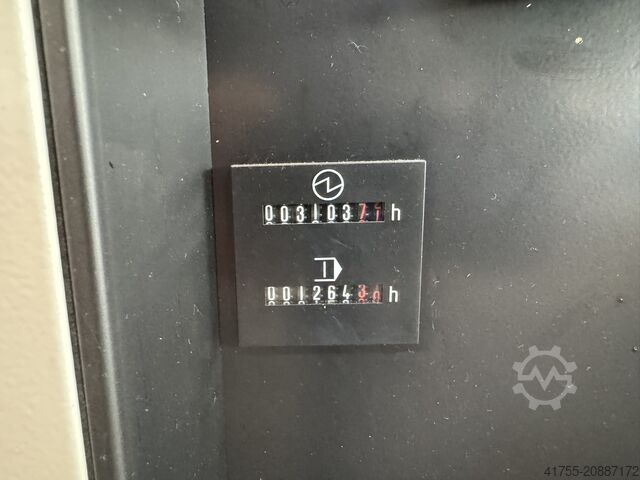

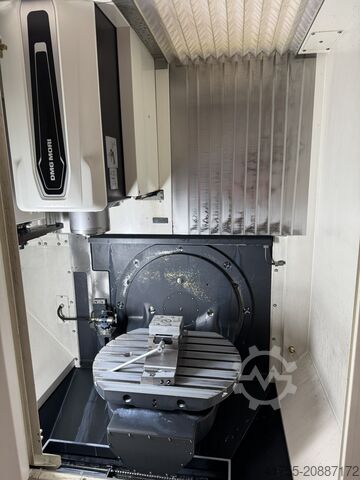

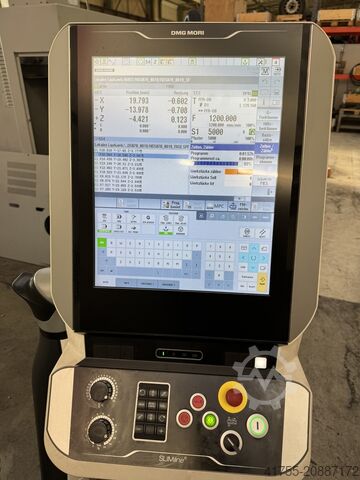

Condition: like new (used), Year of construction: 2023, functionality: fully functional, DMG CMX 50 Year of manufacture: 2023 Spindle hours: approx. 1,300 h Spindle: 15,000 rpm inlineMASTER Tool holder: SK40 Tool stations: 30 slots Redpfxsyg Nqkj Aa Ujp Control: Siemens 840D sl X travel: 500 mm Y travel: 450 mm Z travel: 400 mm Weight: 4,700 kg

Condition: ready for operation (used), Year of construction: 2004, travel distance X-axis: 600 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 450 mm, nominal power (apparent): 10 kVA, overall weight: 6,500 kg, spindle speed (max.): 20,000 rpm, Heidenhain TNC530, 4th axis rotary table spindle 20,000 rpm, HSK 63 table 850x530 mm travels 600x450x450 mm 30-tool changer weight 6,500 kg Rodpfjw Dc Irsx Aa Ujp

Condition: like new (used), Year of construction: 2017, max. wheel diameter 100 mm gear width 26 mm max. module 31 min. module 0,1 Control Siemens 840 D SL Number of working hours 9598 h total power requirement 45 kW weight of the machine ca. 7 t dimensions of the machine ca. 4x3x2,5 m Gleason 100S gear shaping machine for the production of internally and externally toothed cylindrical gears and other cylindrical workpiece circumference regularly occurring profiles and moulds as well as for the production of profiles using the single part process. Technical data: Nominal workpiece diameter 100 mm Largest circumferential diameter 150 mm Machine nominal module approx. 3 mm (Guide value depending on the respective machining task.) Shaping spindle stroke speed range 0 - 3,000 1/min Stroke position adjustment range (manual) 20 mm Largest toothing width 26 mm Smallest pitch height of the hydrostatic inclined guide 400 mm Smallest/largest distance between tool axis - 20/+ 180 mm and workpiece axis Stand inclination range (manual) - 1/+ 11° Tool holder (manual clamping) HSK-D63 (hollow shank taper according to DIN 69063) Weight of the machine approx. 7,000 kg Rsdpfov Ehbbex Aa Uop with robot cell

Condition: ready for operation (used), Year of construction: 2006, Working range X/Y: 1000mm/2200mm, accuracy: 0.8 + L/450µm, max. workpiece weight: 800kg, machine dimensions X/Y: approx. 3000mm/2800mm, weight: approx. 4000kg. Including Wenzel HT 400 hand control, computer with 2 TFT monitors and Kyocera laser printer. Without measuring probe. Documentation available. On-site inspection is possible. Redpfxju T Rhzj Aa Usp

Condition: new, Year of construction: 2022, Power: 1,1kW Drilling capacity steel / continuous drilling capacity: 30mm / 25mm diameter Speed range: 120 - 1810 rpm Speed steps: 9 Spindle mounting: MK-4 Drilling stroke: 120 mm spindle throat: 254 mm Rjdpfx Asgulr Hja Uep table size: 475 mm x 425mm Drilling table lateral tilting / rotating: 45° left / 360°. column diameter: 80 mm Quick chuck: 1 - 16 mm Weight: 132 kg

Condition: used, Year of construction: 2012, operating hours: 5,991 h, functionality: fully functional, machine/vehicle number: 11415584024, For sale is a 5-axis CNC machining center DMG MORI DMU 50, year of manufacture 2012, equipped with Siemens control. The machine is in good, well-maintained condition and was in operation until recently. An on-site inspection under power can be arranged at any time by appointment. Rjdpfxjx S D N Ts Aa Usp The DMU 50 is a vertical machining center with an integrated NC rotary/swivel table, ideally suited for precise 5-axis complete machining of complex workpieces. Typical areas of application include tool and mold making, manufacturing of precision parts, as well as prototypes and small to medium-sized series. Technical Data (excerpt): Manufacturer: DMG MORI / Deckel Maho Model: DMU 50 Machine type: Vertical 5-axis CNC machining center Year of manufacture: 2012 Control: Siemens Number of axes: 5 simultaneous X travel: approx. 500 mm Y travel: approx. 450 mm Z travel: approx. 400 mm Spindle: vertical motor spindle, up to approx. 14,000 rpm Tool changer: automatic, approx. 30 tool stations Country of manufacture: Germany Worktable Simultaneous rotary/swivel table Control 3D control Siemens 840D solutionline Main drive Spindle speed up to 14,000 rpm SK40 Tool magazine Tool magazine 60 positions SK40 vertical chain Automation / Measuring / Monitoring Infrared probe TS649 DMG Direct measuring systems X/Y/Z Coolants / Chip disposal Coolant-air blast switch Rinsing gun for chip cleaning SIEMENS control options Electronic handwheel General options Operating mode 4 Second cabin door Special features Rotating viewing window (S-K3008) Operating hours (according to meter): Machine hours: approx. 31,987 h Spindle hours: approx. 10,489 h Condition & Scope of delivery: Used, fully functional, regularly in operation. Scope of delivery includes the machine as shown, additional accessories by arrangement. Other information: Location: Birkenfeld (75217)

Condition: used, Year of construction: 2007, turning diameter 300 mm swing over bed 430 mm swing diameter over slide rest 300 mm control SIEMENS, SINUMERIK 840 D travel -x axis 160 mm travel -z axis 510 mm Part length max. 480 mm main spindle bore 53 mm main spindle speed 0 - 7000 U/min spindle head DIN 55026 A2-5 max. torque on the spindle 100 Nm main spindle drive 15 kW sub spindle bore 53 mm sub spindle speed 0 - 7000 U/min spindle head DIN 55026 A2-5 max. torque on the spindle 100 Nm sub spindle drive 15 kW C-axis resolution 0,001 ° Rjdpewx R Rksfx Aa Ujp C-axis rapid feed 1000 U/min tool turret 1 x 12 Stat. number of driven tool stations 12 tool shaft (cylinder shaft DIN 69880) VDI 25 speed of driven tools 0 - 8000 U/min max. torque 16 Nm output 4 kW feed power X/Z axis 4000 / 6000 N rapid traverse X-axis 24 m/min rapid traverse Z-axis 30 m/min total power requirement 38 kVA weight of the machine ca. 4 t dimensions of machine L x W x H 2,65 x 1,84 x 2,32 m Accessories: collet fixture 173 E on main spindle, collet fixture 163 E on sub spindle, bar loading magazine make FMB, model turbo 3-36/3200 A, YOM 2018, for bar dia. up to 36 mm and bar length up to 3200 mm, various toolholders for turret (no driven toolholders), coolant

Condition: good (used), Year of construction: 2008, control type: CNC control, actuation type: hydraulic, pressing force: 300 t, CNC crowning Hydraulic tool clamping EFL Easy Form laser measuring & correction system Set tooling Laser guide protection Controlled axis Y1/Y2/X/R/V-Axis Max. bending length: 4000mm Redpfxowrza As Aa Uop Distance between supports: 3150mm Max. pressing force: 320T Distance table mount: 570mm Max. stroke: 300mm Table width: 200mm Support throat: 400mm Descent speed: 120mm/min Working speed: 14mm/min Return speed: 130mm/min X-axis range: 1000mm Control: CADMAN Power: 42kW Length: 5800mm Width: 2300mm Height: 3800mm Weight: 23000kg

Condition: excellent (used), Year of construction: 2005, machine/vehicle number: 1, grinding length: 1,000 mm, grinding width: 600 mm, Geibel & Hotz FS 1050 SD horizontal surface grinder Grinding area 1000 x 600 mm Fine pole pitch of the magnetic plate Many flanges and discs Large paper belt filter Adjustable feet Blade and circuit diagram Balancing scale Machine was in use a maximum of 2 days a week - Not a standard machine Rsdpfsv U Dfusx Aa Usp Pricing: ex-works - unpacked - uninsured Delivery time: immediately - subject to prior sale Errors excepted - technical data is non-binding

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Spindle power : 15 [kW] - Spindle speeds : 5500 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle power : 15 [kW] - Spindle speeds : 5500 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0.001 [°] - Travel : 330 [mm] TURNING-MILLING SPINDLE - X/Z stroke : 410/400 [mm] - Y stroke : 200 [mm] - B Axis stroke : -25/+115 [°] - B axis indexing precision : 0.001 [°] - Tool type : HSK40 - Spindle speeds : 30000 [rpm] - Spindle power : 8 [kW] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 60 - Tool exchange time : 1.2 [sec] - Number of positions : 60 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 3300 x 2900 [mm] - Machine height : 2100 [mm] - Machine weight : 5000 [kg] MACHINE HOURS - Number of working hours : 11659 [h] Rsdpfx Aaeuhampo Uop EQUIPMENT - CNC : Fanuc 31i model A5 - Linear scales - Coolant tank * with high-pressure pump : 70 [bars] * Coolant through spindle - Oil mist extractor : ELBARON RON/A 100 DV - Spindle cooling unit - Workpiece probe : Renishaw OMP40-2 - Parts catcher - 1 NAKANISHI HTS1501S spindle : 150.000 [rpm] - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Bar puller
