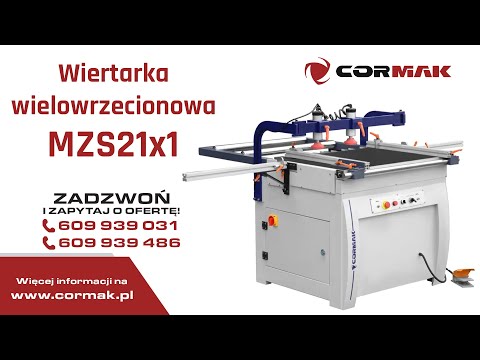

Multi-spindle Drilling Machine

CORMAK MZS21x1

The highest quality CORMAK MZS21x1 multi-spindle drilling machine with 21 alternating left / right spindles, enabling the execution of just such number of holes at the same time.
Each spindle accelerates to 2840 rpm.

Machine description

The distance between the individual spindles is 32mm.

This means that holes can be made at intervals of 32mm and multiples (by inserting drills into the spindle, for example, for a spacing of 128mm, put them in every fourth, and for a spacing of 64mm, leave every second spindle empty).
Advantages

0 ° -90 ° pneumatic head with tilting lock in any position and 45 ° reference point
the spindles are rotated by a 1.5 kW electric motor
collets for quick clamping of 6-8 mm drill bits
two self-leveling pneumatic clamps
left / right aluminum fence extension 740mm without limiter
Foot pedal for pressing-drilling-loosening
high accuracy of components execution ensures precise work
two auxiliary rollers 820mm wide
quick change of device height adjustment and direct reading of drilling depth!
maximum drilling depth of 60mm makes this device meet the expectations of most workshops
holes are made at random intervals
the distance between the first and last spindles is 640mm

Technical parameters
NUMBER OF SPINDLES 21 pcs
DISTANCE BETWEEN SPINDLES 32 mm
Itodpfx Aovuf Rlog Uob
MAX. DRILL DIAMETER 10 mm
MAX. DRILLING DEPTH 60mm
MAX. DRILLING DIAMETER 35 mm
MAX. WORK AREA 3000 x 2500 mm
SPINDLE ROTATION 2,840 rpm
REQUIRED PRESSURE TO WORK 0.6 - 0.8 Mpa
MOTOR POWER 1.5 kW
DIMENSIONS WITHOUT TABLE EXTENSION 1400 x 1300 x 1400 mm
