CNC Machine Centres With Pod And Rail

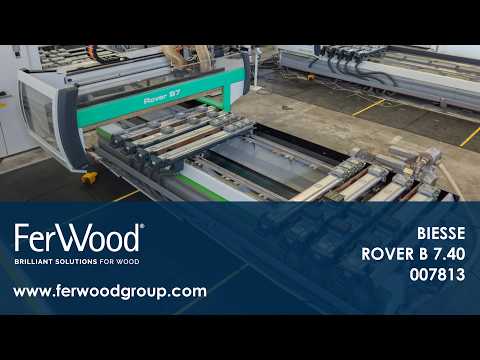

BIESSE ROVER B 7.40

Condition: used, CNC machining center for drilling and milling operations on wood panels and derivatives, plastics and non-ferrous alloys. Gujdpfx Aeywxc Somusb Working area X - Y - Z: 3685 - 1508 - 150 mm Continuous worktable Lateral and frontal reference stops Pendular working mode 2 independent working areas allowing simultaneous machining of 2 identical, mirrored or different parts Five-sided machining of the workpiece “Gantry” structure 4-axis milling unit, HSD brand Tool holder: HSK F63 Max rotation speed: 24,000 rpm Inverter 10-position tool magazine on the head Max tool diameter: 215 mm Max tool weight: 4 kg BiesseWorks software Easy programming File import capability Control panel / remote console Teleservice and video diagnostics: real-time support Automatic guide lubrication Vacuum pump: 1 x 250 m³/h Centralized suction pipe diameter: 250 mm Safety devices Side protection strips for the unit Safety photocells instead of mats Perimeter guards with access door Compressed air consumption: 400 NI/min Operating pressure: 7–7.5 bar Air consumption for extraction: 5300 m³/h Machine weight: 4,600 kg Machine documentation: user and maintenance manual, software manual, spare parts catalogue, electrical diagram, CE conformity declaration.

Condition: excellent (used), Weinig Unimat 500 four-sided planer Working width 230mm Working height 140mm Number of spindles 6 Spindle arrangement: 1.Bottom 7.5kw 2.Right 7.5kw 3.Left 7.5kw 4.Top 11kw 5.Top 11kw 6.Bottom 7.kw Godothk T Ijpfx Amusub Total power 56kw Feed speed adjustable on inverter Memory system Pneumatic pressure divided into 3 sections 4 rows of metal material feed rollers 2 rows of rubber drawing rollers 1 roller in the tabletop driven by a cardan shaft Length of input table top 1980mm Worktops made with Marathon Coating technology CE certificate Extraction stubs 6x140mm Machine dimensions 394x185x195cmH

Condition: used, Year of construction: 2011, Base Machine M800 X5 TV 1 WORKING RANGE X: 5,020 mm Y: 1,830 mm Z: 675 mm Clearance Height: 300 mm (from 50 mm suction cup height) MACHINE STRUCTURE The base structure is a monolithic construction made from thick-walled steel. It is reinforced across the entire machine bed with welded components, providing exceptional stability. The table design, with its large base, is the key to ensuring lasting precision and stability. The machine’s layout enables the operator to achieve optimal workflow with minimal space requirements. The mobile gantry is built as a solid monoblock. It is positioned in the X direction on prismatic, ground guides with recirculating ball carriages. The machining unit is mounted on this mobile support carriage, also on prismatic, ground guides and recirculating ball carriages. AXIS MOVEMENT All axes travel on prismatic linear guides with large cross-section and recirculating ball shoes with a wide contact surface, which ensures optimal sliding, even at high speeds and accelerations. The precise and fast positioning of the movable gantry (X-axis) is achieved via helical rack and pinion. Large cross-section recirculating ball screws ensure accurate positioning of the machining unit along the movable gantry (Y and Z axes). The perfect mechanical dynamics and maximum positioning accuracy are controlled by high-quality drives and brushless motors. Max. axis speeds: · X-axis = 90 m/min · Y-axis = 90 m/min · Z-axis = 30 m/min Safety device with bumper and light barrier 1 Bumpers with sensors are fitted to the movable upright, and a light barrier system is installed at the front of the machine. If the operator enters the active zone, the X-axis travel speed is reduced to a lower value of 25 m/min without stopping the machine. This system allows parts to be loaded during pendulum operation without the limitation of access areas, as seen with pressure mat systems. This prevents unwanted interruptions in the machining cycle and offers greater freedom of movement around the worktable. CE certification for the safety system 1 Safety protection fence 1 Side and rear protection fence Automatic central lubrication controlled via CNC 1 The lubrication of the X, Y, and Z axes is controlled by the CNC; intervals are regulated automatically, without manual intervention. Central extraction connector 1 All individual extraction connections of the machining units are collected into a central extraction port. Inside the port, there are various slider valves controlled by the NC. This reduces the required extraction air volume. Chip conveyor 1 Maxi – 5-axis electrospindle 11 kW HSK-63 “Prisma K 1 5-axis electrospindle, 11 kW at 20,000 rpm S1 (100% duty cycle) Speed: max. 20,000 rpm Rotation direction: left/right Liquid cooling Tool interface HSK 63F Inverter 18 kW, stepless, smooth power delivery Max. rotation B-axis = 200° (+-100°) C-axis = 650° Thanks to the non-orthogonal axes, it is possible to perform complex horizontal positioning in a small workspace. This enables the machining of complex geometries without the risk of collision. Godjxy Tmnopfx Amueub

Condition: used, machine/vehicle number: 007716, X axis working area: 3250 mm Y axis working area: 1220 mm Working Table: Pod and Rail Gjdpfswuz N Nox Amusub Main Electrospindle power: 12 KW Number of controlled axes: 4 axes Total number of drilling spindles: 18 Total number of tool changer positions: 16

Condition: ready for operation (used), Year of construction: 2009, Travel ranges working area 1: X: 6450mm, Y: 1535mm, Z: 250mm, working area 2: X: 6200mm, Y: 1535mm, Z: 250mm, working area 3: X: 6200mm, Y: 1520mm, Z: 275mm, axis travel configuration 1: X: 6820.5mm, Y: 1963mm, Z: 350mm, axis travel configuration 2: X: 6820.5mm, Y: 1963mm, Z: 350mm, axis travel configuration 3: X: 6820.5mm, Y: 1963mm, Z: 663mm (5-axis head), Z: 350mm (additional machining units), control: Biesse XP600. Maintenance: complete C-axis was replaced in 2015 including accessories, vacuum pump was fully replaced in 2016 including bellows, hoses and additional components, in 2021 the machine was equipped with a new high-performance control PC running a current Windows 10 operating system. With extensive documentation. An on-site inspection is possible. Gjdpfx Ameylziieujub

Condition: used, Year of construction: 2005, Processing size: 3000 x 1600 x 180 mm High-pressure pump 60 HP / 45 kW Model E-60 Operating pressure 4,130 BAR Water consumption 4.69 liters/min. Software: Watercad-CAM Automatic cutting optimization Storage location: customer Gsdoxgfbqopfx Amuoub

Condition: excellent (used), Gantry (Portal) machine Movable panel (workpiece), movable working head (Horizontal position of the panel/workpiece) Numerical Control Power Control, Software WoodWOP Safety cabin (enclosure) of the working head and integral safety cabin (enclosure) of the machine In-feeding working table (panel support). Out-feeding working table (panel support) Panels (workpieces) feeding by No. 3 motorized belts - Feeding speed (m/min) max 130 ca. Gedpfegwbbqox Amuoub Minimum workpieces dimensions (X - Y - Z) mm 250 x 100 x 15 Maximum workpieces dimensions (X - Y - Z) mm 2500 x 1050 x 60 Motorized carpet to evacuate chips and wastes. Separate electric and command cabinet Total installed power: Kw 99 N° 2 WORKING GROUPS (TOP) - (SERVO-MOTOR X-Y-Z ): N° 4 Drilling heads (4 x Kw 2.3) with No. 10 vertical spindles each (total top spindles No. 40) N° 3 WORKING GROUPS (BOTTOM) - (SERVO-MOTOR X-Y-Z ) : N° 6 Drilling heads (6 x Kw 2.3) with No. 40 vertical spindles each (total bottom spindles No 240) N° 2 WORKING GROUPS (HORIZONTAL) N° 2 Drilling heads with horizontal spindles N° 21 Horizontal drilling spindles (Right Side) + N° 21 Horizontal drilling spindles (Left Side) N° 8 Dowel Inserting nozzle & glue injectors(Right side) + N° 8 Dowel Inserting nozzle (Left Side) N° 2 Storage tanks for automatic feeding of the dowels OPTIONAL: WIRELESS BAR CODE SCANNER

Condition: excellent (used), Year of construction: 2015, For sale: 4 units of CNC ROVER BIESSE 2231. Years of manufacture: 2013, 2014, 2015, 2016. In very good condition. Guodpex Tbk Rofx Amujb

Condition: ready for operation (used), Year of construction: 2021, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,670 mm, travel distance Z-axis: 500 mm, number of axes: 4, This 4-axis CNC processing center was manufactured in 2020. It features a 12 kW milling spindle with a speed range of 1000-24000 rpm and a C-axis rotation of 0-360°. The machine includes a 12-station linear tool changer and a comprehensive drill head with 16 spindles. It also boasts a robust safety system with a light barrier. Consider the opportunity to buy this Felder Format 4 Profit H 200 CNC processing center. Contact us for more information about this machine. • Automatic central lubrication • Working area: X 3300 mm / Y 1280 mm / Z 250 mm (clearance height from console level depends on clamping system) • Operating terminal on left side of machine Gedjx D D Hmspfx Amujub • Hand terminal with axis speed control and emergency stop • Software: Woodflash (CNC board, tool database, program editor) • Positioning display for workpiece support and vacuum suction cups • Vacuum connection for template milling (left side), connection diameter 12 mm • Vacuum pump: 1x, total suction power 90 m³/h @ 50 Hz or 108 m³/h @ 60 Hz • Milling spindle: 12 kW (S6), HSK F63, 1000–24,000 rpm, full rated power at ~12,000 rpm, air-cooled; C-axis 0–360° • Tool changer: 12-station linear on left side of machine stand, incl. pickup space for aggregates; max tool diameter 250 mm; max tool length 240 mm • Drill head DH 16 4H 2S: 12 vertical spindles (7X / 5Y); 4 horizontal spindles (2X / 2Y); pre-stroke 70 mm; drilling length 70 mm; shank Ø 10 mm • Groove saws: 2 (one X, one Y); max blade Ø 120 mm; max thickness 5 mm; continuously variable speed up to 7,500 rpm • Safety: front light barrier system

Condition: used, Year of construction: 2006, Numerical Control XP 600 Working range on X-axis mm 3060 Working range on Y axis mm 1140 Working range in Z axis mm 160 N ° 2 work fields Bar worktop No. 6 adjustable bars for suction cup support No. of pneumatic bakelite bars for panel lifting (?) No. 2 adjustable suction cups for each bar with vacuum seal for fixing the panel during processing No. 1 vertical electrospindle with C-axis 12 kW motor 10-position tool change system - positioned on the drilling head of the machine, ISO 30 type cones BH19L drilling head with 18 spindles arranged as follows: - No. 7 verticals on X axis - N° 6 verticals in Y axis - N° 4 horizontal on X axis - No. 2 horizontals on Y axis - No. 1 independent blade group for making grooves on the X axis Front protection and safety system with photocells Automatic lubrication system (?) Air conditioning system for cooling and cleaning of machine control Vacuum pump mc/h 250 TECHNICAL DETAILS TO BE CHECKED Guodpfx Asv Aacfjmueb
