CNC Lathe

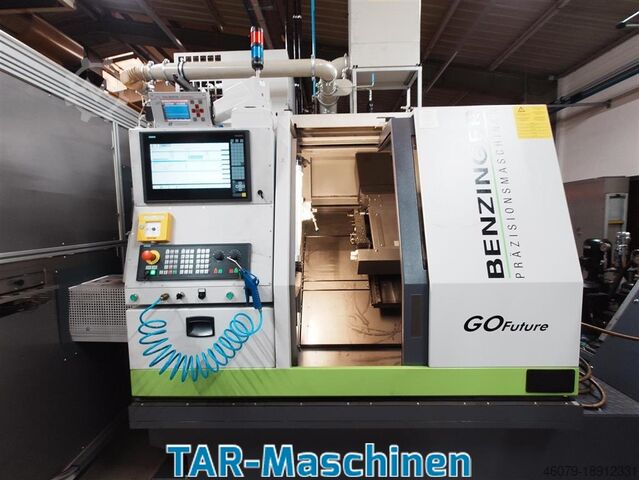

BENZINGER GOFuture B1

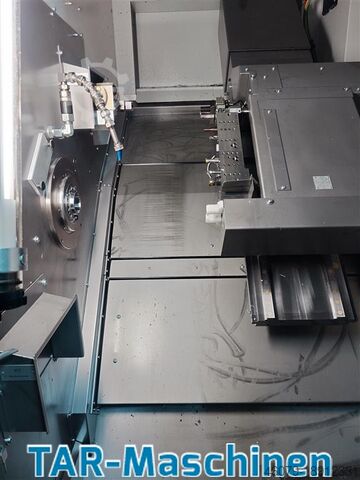

Condition: used, Year of construction: 2022, machine/vehicle number: 71.0363, CNC turning machine with a 12-position turret Travel / Working area Rodpfezggdyjx Aa Row • X-axis: 370 mm • Z-axis (without Y-axis): 260 mm Feeds • Speeds: continuously adjustable • Rapid traverse X: max. 45 m/min (370 mm) • Feed forces X: 3450 N • Rapid traverse Z: max. 45 m/min • Feed forces Z: 4600 N Main spindle • Spindle speed: spindle-dependent, up to max. 8000 rpm • Drive power: 12 kW S1 • Bar diameter: 26 mm Clamping device • Chuck: 80 - 160 mm • Short taper DIN 55026: Form A, size 4 Turret • Type: disc turret • Manufacturer: SAUTER • Number of tools: 12 • Tool holder: tool holder with cylindrical shank according to DIN 69880 VDI 25 • Drive power: 2 kW S1 up to 6000 rpm, up to 6 kW S3 40% duty cycle up to 6000 rpm • Max. tool length: from turret face to tool front edge 140 mm Technical data • Machine dimensions (width x depth x height): approx. 2309 x 1689 x 2014 mm • Weight approx.: 4500 kg

Condition: excellent (used), Year of construction: 2011, CNC Control: FANUC Series 31i-A5 X axis travel mm: 730 Y axis travel mm: 510 Z axis travel mm: 510 B axis (degrees): +160 / -180 C axis (degrees): 360 Number of pallets: 1 Table size mm: Ø500 Table load capacity kg: 300 Cutting feedrate mm/min (X, Y, Z): 50,000, 50,000, 40,000 Maximum rapid traverse m/min (X, Y, Z): 50, 50, 40 Spindle speed rpm: 12,000 Spindle power kW: 18.5 / 15 Taper type: BT-40 Torque Nm: - Tool changer type: Chain Rsdpfx Asydh Hlsa Rjw Tool magazine capacity: 61 Max. tool diameter mm: 90 Max. tool diameter with adjacent positions empty: 125 Max. tool length mm: 300 Max. tool weight kg: 8 Coolant tank capacity l: 750 Through-spindle coolant (bar): Yes EQUIPMENT Rotary table with digital readouts: Included Work light: Included Through-spindle coolant Electronic handwheel integrated in CNC panel Coolant oil skimmer Tool life management 3D tool compensation Cylindrical interpolation MORI-APM programming software MACHINE DIMENSIONS Length mm: 2,771 Width mm: 3,948 Height mm: 3,264 Weight kg: 12,400

Condition: used, Year of construction: 2000, cutting diameter 280 mm saw band length 4930 mm capacity 90 degrees: square 280 x 280 mm capacity 45 degrees: round 280 mm capacity 45 degrees: square 280 x 280 mm capacity 60 degrees: round 220 mm capacity 60 degrees: square 200 x 200 mm feed length 600 mm Rsdpfx Aaew En Efj Rew feed length: multiple 5400 mm cutting speed 17 - 90 m/min length of rest piece min/max min. 30 mm saw diameter min. 10 mm control KASTO, Compact Control total power requirement 5 kW weight of the machine ca. 1,75 t dimensions of machine L x W x H 2,68 x 2,54 x 1,59 m Accessories: coolant, roller track 3300 mm length, 300 mm width; roller track 1350 mm length, 300 mm width

Year of construction: 2012, condition: excellent (used), Used Ras 62.25 CNC Folder Model: 62.25 Ras Year 2012 RAS 62.25 CNC folder Capacity: 2540mm x 2.5mm CNC Auto Bending Machine (Year 2012) Redpfen Tnzfjx Aa Rjw Complete with fitted System 6000 Touch screen control (screen recently replaced) 3.2 Metre J shape back gauge Twin Foot Pedal Control MACHINE GUARD SOLUTIONS Light Guards Complete with segmented and straight tools

Condition: used, machine/vehicle number: 7979, Table diameter: 400 mm Table with 8 T-slots: 12 mm Rodpfx Aeb Ez R Uea Rsw Overall height: 175 mm Space required: 600 x 450 x 175 mm Weight: approx. 100 kg

Condition: ready for operation (used), Year of construction: 2012, Main Drive Redpex D I Rpofx Aa Rsw Number of axis 5 This 5-axis Mazak INTEGREX I-150 turn-mill centre was manufactured in 2012. Consider the opportunity to buy this Mazak INTEGREX I-150 turn-mill centre. Contact us for more information. Application Types Turning

Condition: like new (used), Year of construction: 2017, operating hours: 300 h, functionality: fully functional, machine/vehicle number: 356801, arm reach: 706 mm, We only used the TIG welding robot for 2 months. The machine is in perfect condition. The extraction system was never in operation. The machine enclosure and welding table are included. The “Ready2_pilot” programming and material feed for welding can be retrofitted at any time. Rsdpfxsxw R Nno Aa Rew

Condition: excellent (used), Continuous rotary table HAU R60 - 1800, with 60 workpiece spindles, mounted in a pitch circle diameter of 1800mm, 3 polishing units with 7,5 kW each, polishing shaft diameter of 50 mm, width of polishing wheel 2 x max. 400 mm and 1 x 280 mm, diameter of polishing wheel s max. 420 mm, motorized longitudinal and height adjustment of polishing units, machine equipped with liquid compound feeding system Rsdjm Nbubspfx Aa Row More pictures on demand

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] - Max. machining length : 205 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 8000 [rpm] - Spindle power : 2.2 [kW] - C axis indexing precision : 1 [°] - Number of guide bush holders : 1 GUIDE BUSH HOLDER 1 - Number of positions : 10 - Number of motorized positions : 4 END ATTACHMENT - Number of positions : 7 SECONDARY OPERATION - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 7 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2200 x 1200 [mm] - Machine height : 1700 [mm] - Machine weight : 2200 [kg] MACHINE HOURS - Number of hours under power : 27854 [h] - Number of working hours : 20213 [h] - Number of spindle hours : 13158 [h] Rsdpfx Aaoxlum Ho Rjw EQUIPMENT - CNC : Fanuc 30i-model A - HFT (High Frequency Turning) - Rotating guide bush - Parts catcher - Parts conveying strip - Ejection of workpiece - Coolant tank - Bar loader : FMB turbo 3-26 / 3200 A

Condition: good (used), Year of construction: 2007, Machine is in good working condition. Machine come without automatic line. Rsdpfx Aoxf Iamsa Row Marked equipement with red not come.. Some accesories and machine equipement are also available. More specs of the machine, check last two pictures.
