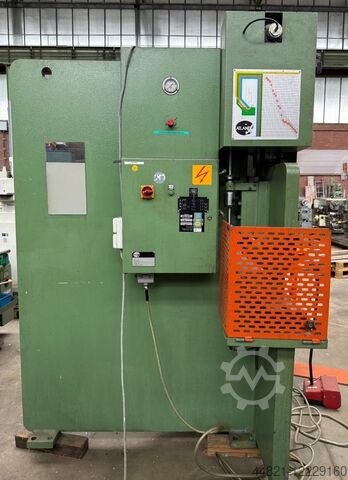

Press brake

ATLANTIC HPA 135/40

Condition: good (used), Year of construction: 2008, control type: CNC control, actuation type: hydraulic, pressing force: 300 t, CNC crowning Hydraulic tool clamping EFL Easy Form laser measuring & correction system Set tooling Laser guide protection Controlled axis Y1/Y2/X/R/V-Axis Max. bending length: 4000mm Distance between supports: 3150mm Max. pressing force: 320T Distance table mount: 570mm Max. stroke: 300mm Table width: 200mm Support throat: 400mm Descent speed: 120mm/min Working speed: 14mm/min Return speed: 130mm/min X-axis range: 1000mm Control: CADMAN Bcodpfxjwrza Aj Aa Uew Power: 42kW Length: 5800mm Width: 2300mm Height: 3800mm Weight: 23000kg

Condition: excellent (used), Year of construction: 2008, The condition of the machine is excellent, it has performed only 14078 operations. CNC controlled machine, designed for processing welded frames. Multiple use of the same time He works in a welding and cleaning line It does not take up additional space in the hall It can work in the line of frames, sashes or mixed All operations are performed during cooling: dehydration vents, grooves venting, holes in colored profiles drilling the frame for the post connector drilling holes for the hinge in door frames (x6) drilling holes for the hinge in the leaf (x2) The center has its own transport of frames from the welder to the cleaner PLC control, NC Bodpfx Aajm Ak R Us Uocw User-friendly visualization

Condition: good (used), functionality: fully functional, Year of construction: 2012, machine/vehicle number: 778 F 319, Lazer Cutting Bjdemx Rrlepfx Aa Uecw Fabrikat: Prima Power Typ: Palatino 1530 Baujahr: 2012

Condition: used, Year of construction: 1986, plate thickness 6,0 mm pressure 18 t cutting angle - upper blade 90 ° blade length 225 x 225 mm voltage 380 V total power requirement 5,5 kW weight of the machine ca. 650 kg Bcsdjg Ip Efepfx Aa Ujw dimensions of the machine ca. 1,10 x 0,80 x 1,05 m - Angular stops adjustable

Condition: ready for operation (used), Pressing force: 300 kN/30 t Tool height: 200 mm Stroke length: 0 – 300 mm Bending capacity with prism tool MW 125/240: 200 x 16 / 200 x 24 mm Bcedpex Apgcofx Aa Uew Bending speed: 0 – 1.3 m/min Drive motor: 380 V, 5.5 kW Weight: 800 kg Space requirement: 1250 x 820 x 1120 mm

Condition: new, Year of construction: 2025, Entry-level sheet fiber laser metal cutting machine Bodpfjhv U U Djx Aa Uocw Lower laser cutting cost and easy operation The modular cutting machine table with stiffeners saves time for disassambly and improves convenience and rigidity. The special fiber laser nozzle and cutting process ensure faster carbon steel oxygen cutting, more gas-saving low-pressure stainless steel nitrogen cutting, and better-quality carbon steel air cutting. Fiber laser heads are able to detect jutting obstacles to effectively reduce the damage rate and save the maintenance cost of a laser cutter. Applicable Material: metal Condition: New Laser Type: Fiber Laser Laser Power: 1000W, 1500W, 2000W, 3000W Cutting Area: 3000*1524mm Positioning accuracy: ±0.05mm Repositioning accuracy: ±0.03mm Cutting Speed: 0-100m/min Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT CNC or Not: Yes Cooling Mode: WATER COOLING

Year of construction: 1972, condition: used, machine/vehicle number: 51512/72, pression: 75 t throat: 300 mm table size: 620 x 800 mm clearance hole in the die: 225 x 325 mm table adjustment: 175 mm tappet area: 180 x 475 mm tappet adjustment: 80 mm stroke adjustment: 16 - 140 mm number of strokes: 90 /min engine: 380 V, 3 kW Bcedpfsb Tdqusx Aa Ujw space needed: 1700 x 1200 x 2500 mm weight: 3,3 t

Year of construction: 2001, condition: used, Pictures to follow - machine is being overhauled Bjdjt Ea Tfopfx Aa Uecw Technical data: - X-axis travel: 7300mm - Y-axis travel: 1000mm - Z-axis travel: 650mm - Swivel angle A-axis: 0-90° freely programmable - Swivel angle C-axis: 0-355° freely programmable - Max. Machining length without end face machining: 7300mm - Max. Machining length with end face machining: 6980mm - Tool changer with 10 places and a saw blade holder - 9 material clamps - SK30 tool holder - 2-layer machining

Condition: excellent (used), Year of construction: 2009, CNC control : FANUC 160i - Accessories available. - Fanuc loading robot - Coolant system (Edge 2 tower from ARO-Technologies) - Oil mist separator (ELBARON SA) Travels: X-axis 650 mm Y-axis 300 mm Z-axis 300 mm C-axis swivel angle +150°/ -60° C' axis swivel angle +/- 180° Grinding spindle: Wheel dimensions up to 250 mm Speed 0 - 10,000 rpm. Bjdpfxer Ha Dvj Aa Uscw Max. spindle power 26 kW HSK 80 holder Max. Number of disks 6 Workpiece headstock Vmax 180°/s Drive power 1.6 kW ISO 50 mounting Precision (resolution) Resolution linear axes 0.001 mm C-axis 0.001° Dimensions: Length 3100 mm Width 1915 mm height 2190 mm Weight 8'500 kg

Condition: used, Combined profile steel shear and hole punch GEKA type HYD 80 / Hydracrop 80/A Machine. No. 9566 Year of construction approx. 2000 Punching force 80 ton. throat 300 mm Punching up to Ø 40 mm in 14 mm sheet metal Flat material shears 450 x 15 mm Angle steel shears 130 x 130 x 13 mm Square shears 45 x 45 mm Round material shears Ø 45 mm Rectangular notcher up to 12 mm Bcedpferz Tutsx Aa Uow Motor power 5.5 kW Mains connection 400 Volt, 50 Hz - Fence with el. stroke release 500 mm - Work table with stop for punching device 550 x 380 mm - Working height of the punching device 1100 mm - Work table with stop for the rectangular notcher 550 x 400 mm - Working height of rectangular notcher 930 mm - approx. 21 different punching tools - operating instructions - Original paint finish, not repainted Space requirement L x W x H 1800 x 1150 x 1950 mm Weight 1.7 tons. very good condition
