CNC lathe

TOPNC I500

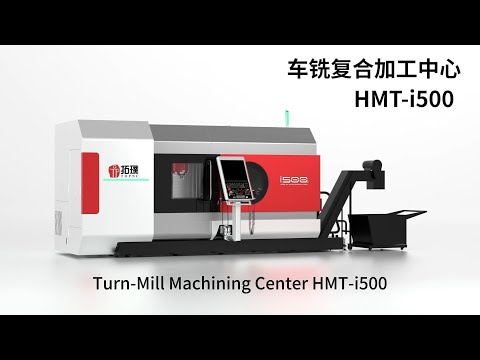

🔷 TOPNC HMT-i500 – 5-Axis Turn-Mill Center
Demo Machine – As New – Available at Short Notice – German Service
For sale is a high-precision 5-axis turn-mill center TOPNC HMT-i500, used exclusively as a demo machine and in mint condition.
This machine combines turning and 5-axis milling in a single setup – for maximum efficiency, precision, and reduced cycle times.
⚙️ Technology Concept
✅ 5-axis simultaneous machining
✅ Complete machining in one setup
✅ Torque motor direct drive (B-axis)
✅ Fully closed control loops (linear encoders)
✅ High rigidity machine structure (monolithic design)
✅ Thermally stable machine construction
👉 Result: highest accuracy + minimal non-productive times + maximum process reliability
📊 Technical Data (Excerpt)
🔹 Machining
Max. machining diameter: 500 mm
Max. turning length: 800 mm
Bar capacity: Ø 74 mm
Travel (X/Y/Z): 500 / 200 / 850 mm
🔹 Milling Spindle
Speed: 12,000 rpm
Power: 22.2 kW
Torque: 45 / 54 Nm
Taper: HSK-T63
Through-spindle coolant: Standard
🔹 Turning Spindle
Speed: 3,000 rpm
Power: 30 kW
Torque: 280 / 420 Nm
Chuck size: 10"
🔹 B-Axis (Swivel Head)
Swivel range: 240°
Direct drive (torque motor)
Torque: 360 / 685 Nm
Holding torque: 1,500 Nm
🔹 Dynamics & Precision
Feed rate X/Y/Z: 30 / 30 / 36 m/min
Resolution: 0.001 mm / 0.001°
🔹 Tool Magazine
Capacity: 24 tools
Max. tool length: 300 mm
Max. tool weight: 7 kg
🔹 Machine
Dimensions: approx. 6000 x 2400 x 2300 mm
Weight: approx. 8 t
👉 All data according to technical datasheet
🧠 Equipment & Features
High-precision ball screws & linear guides
Fully automatic central lubrication system
High-pressure coolant + through-spindle coolant
Chip conveyor + coolant system
Tool measuring system & workpiece probe (optionally integrated)
Automatic door
Oil mist extraction
Servo tailstock
👉 Designed for continuous industrial operation
🖥️ Control
Rjdoyywgbjpfx Acver
TOPNC rocOS (5-axis simultaneous) or
Siemens SINUMERIK 840D sl
👉 Industry standard for demanding applications
🏭 About TOPNC / VECTRIX
TOPNC Shanghai is one of the leading CNC manufacturers in China in the field of 5-axis and mill-turn technology.
👉 Represented in Europe by the VECTRIX Group GmbH
🇩🇪 German headquarters & service in Nordenham
✔️ Spare parts & technicians available in Germany
✔️ Fast response times
✔️ Long-term support
👉 No risk – structured industrial support in Europe
💡 Why this machine?
Demo machine = as new + price advantage
Immediately available – no lead time
Fully equipped
Perfect for demanding manufacturing (aerospace-ready, medical technology, etc.)
💰 Price
List price: €455,000
👉 Special price for demo/stock machine: approx. €355,990 incl. installation
Location: Germany
Machine can be inspected under power
We are happy to send you:
Videos & machining examples
Individual ROI calculation
Technical consultation
👉 Inquire now – these machines are off the market quickly
