Profile milling center

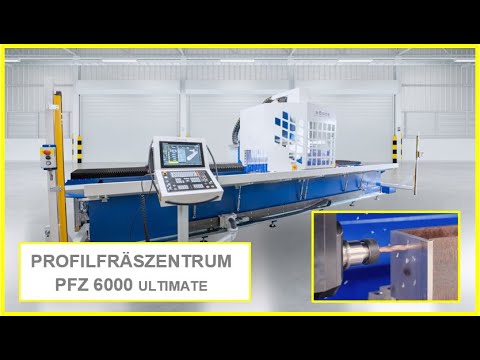

RÖDER Profilfräszentrum PFZ 6000 ULTIMATE

with multi-angle head for efficient and productive 5-sided machining of long parts, such as beams, profiles, tubes, etc.
• Max. travel distances:
X-axis: 6000 mm working range
Y-axis: 800 mm working range
Z-axis: 600 mm
• Max. load capacity: 1500 kg
• Main spindle drive power: 11 kW asynchronous motor
• Main spindle speed: 8000 rpm
• Tool holder: SK 40
• Rapid traverse rate X-axis: approx. 30000 mm/min
• Rapid traverse rate Y-axis: approx. 20000 mm/min
• Drilling capacity: ø 36 mm in S355
• Thread cutting: M20 in S355
• Servomotors for separate drive of the Y and Z axes with ball screw; X-axis with helical and hardened rack and pinion drive
• Limit and reference switches in non-contact design
• Spindle overload protection
• Robust, precise cross table, generously sized
• Safety device combined with light curtain and/or safety fence
Ksdpfjznlkzsx Afxelw
• Tool diameter: max. 100 mm
• Tool length: max. 270 mm
• Approximate footprint (L x W x H): 9050 x 3600 x 3150 mm
• Total weight: approx. 8 tons

• Customer-side connections:
Connection power: 30 kW / 63 A
• Compressed air: 6 – 8 bar
• Control system: Heidenhain TNC7 Basic
• Main computer: MC 355 with 19" FullHD multi-touch screen
• Mobile machine control panel with keyboard TE 350
- Tool changer, 24-position
- Minimum quantity lubrication and/or coolant system
- Chip conveyor including discharge chute
Heidenhain options, such as:
- Heidenhain electronic handwheel
- Heidenhain 3D probing system for workpiece measurement
- Heidenhain CAD import software option
- Heidenhain tool length measuring system
- 6 pcs. Mechanical-hydraulic vises MSH 150, clamping width 300 mm
- Pendulum operation duo (divided working area)

- Multi-angle head (moving, automatically interchangeable, controlled rotary axis 360°, lockable every 15°, automatic tool changer, 10-position, angle head length approx. 215 mm, usable length approx. 160 mm, machine-side mounting: SK 40 with 4-point clamping system, hydraulic, tool-side design: BENZ HSK 50 or comparable, translation 1:1, max. speed 3000 rpm, cycle operation, max. torque: 100 Nm, lubrication: grease/continuous, weight approx. 50 kg, minimum quantity lubrication with 1-2 nozzles.
