Used Schaudt Rfh 500 for sale (28)

Condition: good (used), Hydraulic cylindrical grinding machine Center height 100 mm Center width 500 mm Grinding wheel diameter min./max. 200 - 300 mm 3 grinding wheel revolutions 2,250 - 2,420 - 2,680 rpm Workpiece spindle head: 8 workpiece speeds, adjustable 30 - 750 rpm. Spindle taper or inner taper of the workpiece spindle MK 4 Tailstock: Inner taper of quill MK 3 Quill travel 30 mm Table: Maximum table inclination +/- 6° Table speed, adjustable 0.1 - 6.0 m / min. Motor power 3 kW Hoder E Aziopfx Aacjfn Dimensions L x W x H 1650 x 1350 x 1400 mm Weight 1900 kg Accessories / Special features: - Manual or automatic operation - Automatic infeed - Grinding wheel flange with grinding wheel - Wet grinding device Siegfried Volz Machine Tools Rüschebrinkstr. 151-153 DE - 44143 Dortmund-Wambel

Condition: used, Cylindrical grinder SCHAUDT RFH500 Hsdpfx Asxbt Hksacofn

Condition: refurbished (used), Year of construction: 2025, Schaudt A500 500-2500 Hjdpfod Hfd Njx Aacefn grinding length: 500 / 750 / 1.000 / 1.500 / 2.000 / 2.500 mm center height: 150 mm / 180 mm / 225mm Workpiece weight: 300 kg / 500 kg Other freely selectable options: - Completely new control cabinet with SPS-Basic and panel - Conversion to ball screw incl. DUO-Control (cycle controlled) - "Workpiece memory" for 10/15/30/50 workpieces - Mini operating handset for Duo-Control - Glass scale in X- and Z-axis - Grinding sensor system - Frequency converter external grinding spindle - Swing-in internal grinding unit - Frequency converter internal grinding spindle - CE marking in connection with partial or full enclosure for splash water - remote maintenance - suitable coolant / exhaust system - grinding wheel flange / exchange arm - and much more We can also overhaul your existing bearing machine! Schaudt / Studer / Kellenberger / Bahmüller / Voumard / Overbeck / Fortuna / Tacchella uvm.

Condition: used, Year of construction: 1960, grinding diameter ca. 360 mm grinding length 1500 mm serial number 12013 Hfedpfew Sya Tsx Aacon

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, machine/vehicle number: 510-1986, CYLINDRICAL GRINDER JOTES SCHAUDT A440X1500 Hfedpfx Ajw T Ti Deacon Specifications Maximum longitudinal travel: 1500 mm Grinding diameter: 298 mm External grinding: Yes Internal grinding: Yes Dimensions (L x W x H): 5400 × 2400 × 1600 mm Weight: 4800 kg Operating hours: — Power-on hours: — Condition: Rebuilt Compliant with local standards: — Status: Under power Technical features - Grinding length [mm]: 1500 - Grinding diameter [mm]: 300 - Manual table displacement [mm/rev]: 10 - Table speed range [mm/s]: 0.01–5 - Smallest table stroke [mm]: 3 - Wheelhead swivel [°]: ±90 - Centre sleeve taper [Morse No.]: 4 - Grinding wheel dimensions [mm]: 500 x 63 x 203 - Spindle speed [rpm]: 32–500 - Grinding wheel drive motor power [kW]: 5.5 - Workpiece drive motor power [kW]: 0.75 - Hydraulic pump motor power [kW]: 1.5 - Grinding attachment drive motor power [kW]: 0.75 - Machine dimensions [mm]: L=5400 / W=2400 / H=1580 / Machine weight [kg]: 4800

Condition: refurbished (used), Year of construction: 2025, Schaudt PF5 UB 1000-2500 mm grinding length: 1.000 / 1.500 / 2.000 / 2.500mm Center height: 180 / 225 mm (optionally more possible) Workpiece weight: 350 / 500 / 800 kg (optionally more possible) Other freely selectable options: - completely new control cabinet with Siemens Sinumerik One or Fanuc 0iTF-Plus control system - Fast set-up via GSN user interface - Diatronic measuring device - B-axis freely positionable - second external grinding wheel Hjdpfxjfg Tazj Aacjfn - internal grinding unit - center elevation - dressing spindle for diamond form roll - balancing and grinding sensor system - Tailstock hydraulic clamping / unclamping - Autom. Siemens door drive - 19" / 22" screen - remote maintenance - conversion to needle nozzles - suitable coolant / exhaust system - automation preparation - and much more We can also overhaul your existing stock machine! Schaudt / Studer / Kellenberger / Bahmüller / Voumard / Overbeck / Fortuna / Tacchella uvm.

Condition: used, functionality: fully functional, Maximum workpiece length: 500 mm Minimum workpiece length approx.: 5 mm Maximum workpiece length for plunge grinding: 50 mm Max. grinding diameter without steady rests: 100 mm Max. diameter: 240 mm Workpiece Swivel: 90° Grinding spindle slide Hfodpfewhp D Uox Aacen Min./max. swivel: 30° Min./max. transverse movement including 300 mm quick adjustment: 100 mm Wheel diameter after rotation 1st degree: 320 - 400 mm 2nd degree: 260 - 320 mm Max. workpiece weight between centers: 60 kg Max. workpiece weight in chuck: 20 kg Max. workpiece weight in faceplate: 20 kg 8 workpiece spindle speeds: 45 - 500 rpm Min./max. Tilt: 12° Min./max. longitudinal travel: 2 - 500 mm Infinitely variable table travel: 0.5 - 5 m/min Handwheel adjustment: 2 and 20/rev

Condition: used, Technical details: grinding length: 600 mm Hedpsrkr U Ejfx Aacjfn centre height: 180 mm swing dia.: 360 mm workpiece weight: 80 kg max. dia. of grinding wheel: 500 mm grinding wheel width: 80 mm grinding wheel hole diameter: 203,2 mm peripheral speed: 45 m/sec There is also a 3200 liter coolant tank including cooling unit + fire extinguishing system. *

Condition: good (used), Year of construction: 2002, operating hours: 9,999 h, functionality: fully functional, machine/vehicle number: 120231, Cylindrical Grinding Machine SCHAUDT / Mikrosa PS 51 N 600 Technical Data – Schaudt / Mikrosa PS 51 N 600 Machine type: Universal / External Cylindrical Grinding Machine Year of manufacture: 2002 Control: Siemens 840D Grinding length (between centers): 600 mm Center height / Height over bed: 180 mm Maximum grinding diameter over bed: approx. 300–360 mm Max. workpiece weight (between centers): approx. 150–200 kg, depending on configuration Grinding spindle power: approx. 22 kW Grinding wheel width: e.g., 220 mm on premium versions; diameter depending on equipment approx. 400–500 mm Hfsdexdb R Nepfx Aacjn Grinding wheel speed / surface speed: On some versions approx. 45 m/s; variable depending on equipment Total weight: approx. 10 t

Condition: used, total height: 1,700 mm, total length: 3,200 mm, total width: 1,800 mm, Empty weight: 3.000 kg Price: On request Hfjdpfxswrb Nws Aacjn - Documentation available: No - Control: Conventional - Motor power: 7.5kW - Center distance: 1000mm - Model: inderslijper intern & extern - Travel X: 1100mm - Center height: 180mm - Grinding diameter: 350mm - Table length: 2000mm - Max. spindle speed: 1500rpm - Table width: 180mm - Transport dimensions: 3200mm x 1800mm x 1700mm (l x w x h) - Transport weight [kg]: 3000kg - Transport packages [pcs.]: 2 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Year of construction: 2019, condition: ready for operation (used), This Schaudt GSN PF43 cylindrical grinding machine was manufactured in 2019. It includes 13 grinding wheel holders, multiple chucks, and specialized bezels for versatility. Equipped with three internal grinding spindles and robust electrical specifications, including a 30 kVA connected load and 400V operating voltage. Consider the opportunity to buy this Schaudt GSN PF43 cylindrical grinding machine. Contact us for more information about this machine. Application Types Grinding Hfodpfxsxfcnlo Aacon

Condition: used, Spare or accessory parts for SCHAUDT. Parts stored for a longer period; the flanges are definitely from a SCHAUDT cylindrical grinding machine. All other parts may belong to a SCHAUDT, but no guarantee is provided for this! Hedpjxdwxpjfx Aacsfn

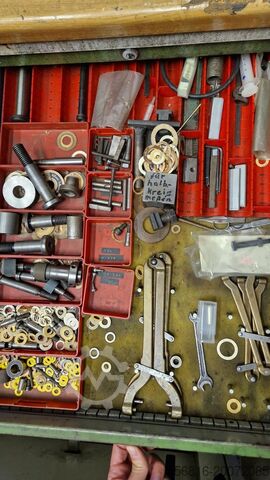

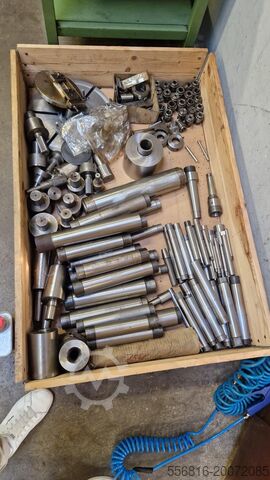

Condition: excellent (used), Year of construction: 1970, Model: AR 1000 - Year of manufacture: 1970 – 1991, geometrically overhauled - Condition: good to very good - Max. grinding diameter: 250 mm - Grinding length: 1000 mm - Plunge grinding length: 100 mm - Centre height: 180 mm - Centre taper: 60 MK4 - Grinding wheel size: max. 500 Ø x 300 Ø x 80 mm - Swivelling grinding head: +/- 45° - Dimensions: 3.2 x 1.7 x 1.6 m (LxWxH) - Required space: 4.13 x 2.02 x 1.6 m (LxWxH) - Weight: approx. 4,300 kg Hfjdpfx Aoxfvyzsacen - Operating voltage: 380 V - Power: 7.5 kW (total 11.6 kW)

Condition: ready for operation (used), Cylindrical Grinder, Surface Grinder, Schaudt MAR/750, Used Machine Overall Dimensions: Length: 2600 mm Width: 1740 mm Height: 1700 mm Weight: 4500 kg Electrical Data: 400 V; 7.5 kW; 16 A Grinding Specifications: Grinding Length: 750 mm Grinding Wheel Diameter: 500 mm Hfodpewhpdhofx Aacon Grinding Wheel Width: 90 mm Morse Taper: No. 4 Work Table Rotatable: ±10° Factory manual included.

Condition: used, Distance between centers: 2000 mm Hfjdpfxov R Ufdo Aacsn Maximum grinding diameter: 360 mm Height at center: 180 mm Wheel diameter: 500 mm Wheel width: 80 mm Restear rest: Yes Internal grinding: Yes

Year of construction: 1988, condition: ready for operation (used), Turning diameter: 550mm, center distance: 1000mm. Includes BEDA universal cleaner and digital position indicator. On-site inspection is possible. Hfodsv Ampxopfx Aacen

Condition: ready for operation (used), Year of construction: 1989, Main Drive Hodpfxsw Nb I Ts Aacofn Number of axis 2 Additional Equipment Optional: Additional equipment available This Schaudt Mikrosa SASL 125 was manufactured in 1989. A centerless external grinding machine, it features NC-controlled operations and hydrodynamic axis bearing. Both wheels can be dressed via a controlled axis. Refurbished by UHLMAN Werkzeugmaschinen-Service in 2021/22, it has been regularly maintained. Consider the opportunity to buy this Schaudt Mikrosa SASL 125 centerless grinding machine. Contact us for more information. Application Types Grinding

Condition: refurbished (used), Year of construction: 2020, Machine Type: Cylindrical Grinding Machine Manufacturer: Schaudt Maschinenbau GmbH Model: PS 4 Year of Original Manufacture: 1986 Renovation/Retrofit: 2020 Control System (Post-Retrofit): Siemens CNC SINUMERIK 840D General Specifications Hodpfxjw Avrzs Aacefn Application: External cylindrical grinding Grinding Method: Plunge, traverse, face grinding Control Type: CNC (Siemens retrofit in 2020) Machine Weight: Approx. 3,500 – 4,500 kg Installation Area: Approx. 3.5 m x 2.0 m Workpiece Capacity Center Height: 180 mm Distance Between Centers: 1000 mm (varies by version) Max Workpiece Diameter: 360 mm Max Workpiece Weight: ~150 kg between centers Grinding Spindle Grinding Wheel Diameter: 400 mm Grinding Wheel Width: 50 mm Bore: 127 mm Peripheral Speed: Up to 45 m/s Spindle Drive Power: ~7.5 kW Spindle Speed Range: Up to 1,500 – 2,500 rpm (depending on wheel size) Headstock Type: Fixed or rotating spindle Speed Range (if motorized): ~30 – 500 rpm Taper: MK4 or similar Drive: AC Servo (post-retrofit) Tailstock Type: Manual or hydraulically actuated Quill Stroke: Approx. 50 mm Quill Diameter: ~75 mm Axes X-Axis (infeed): CNC-controlled Z-Axis (longitudinal): CNC-controlled Resolution: 0.001 mm Drive Type: Digital servo motors with ball screw Position Feedback: Absolute/Incremental linear encoders Coolant System Coolant Tank Capacity: Approx. 150 – 250 liters Coolant Pump: High-pressure, with filtration system Other Features (Post-Retrofit) Siemens HMI with touch interface Electronic handwheels (MPG) Updated safety system and enclosure New electrical cabinet with ventilation and cooling Optional AE sensor for gap detection or touch dressing

Condition: refurbished (used), Year of construction: 2025, Schaudt PF43 1000/1750 grinding length: 1.000 / 1.750 mm center height: 150 mm Workpiece weight: 200 kg (optionally more possible) Other freely selectable options: - completely new control cabinet with Siemens Sinumerik One or Fanuc 0iTF-Plus control system - Fast set-up via GSN user interface - Diatronic measuring device - B-axis freely positionable Hfsdofg Ta Uspfx Aacsn - second external grinding wheel - internal grinding unit - center elevation - dressing spindle for diamond form roll - balancing and grinding sensor system - Tailstock hydraulic clamping / unclamping - Autom. Siemens door drive - 19" / 22" screen - remote maintenance - conversion to needle nozzles - suitable coolant / exhaust system - automation preparation - and much more We can also overhaul your existing stock machine! Schaudt / Studer / Kellenberger / Bahmüller / Voumard / Overbeck / Fortuna / Tacchella uvm.

Condition: used, functionality: fully functional, Grinding length: 973 mm Center height: 250 mm Hfjdpfxowhp Dns Aacjn Maximum worktable tilt: +6° / -9° Centering center: MT5 Maximum grinding head travel: 100 mm Maximum grinding head tilt: +45° / -30° Maximum grinding wheel diameter: 500 mm Speed range: 32 - 600 rpm Maximum workpiece weight between centers: 400 kg Maximum internal grinding device grindable bore: 160 mm Machine weight: approx. 5,000 kg

Year of construction: 2005, operating hours: 5,000 h, condition: repair required (used), functionality: limited functionality, The CBN 2005 model was purchased in 2017 from Mahle AG in Germany. It is currently for sale. Hfsdpjw Rduxsfx Aacjn

Condition: used, Year of construction: 2002, operating hours: 65,434 h, General Specifications Machine Type: Universal Cylindrical Grinding Machine Year of Manufacture: 2002 Control System: SIEMENS 840D Grinding Length: 600 mm (between centers) Max. Swing Over Bed: ~300 mm (approximate, depending on configuration) Max. Workpiece Weight: ~150 kg (depending on setup) Grinding Wheel Grinding Wheel Diameter: ~400-500 mm (standard) Grinding Wheel Width: ~50-100 mm (depending on application) Grinding Wheel Speed: ~30-60 m/s (adjustable) Workhead Workhead Spindle Speed: ~10-500 rpm (variable, depending on workpiece material and grinding requirements) Workhead Spindle Taper: Typically Morse taper or custom taper for specific applications Tailstock Tailstock Quill Travel: ~50-100 mm (adjustable) Tailstock Taper: Morse taper (e.g., MT4 or MT5, depending on configuration) CNC System Control Type: Siemens, Fanuc, or other CNC systems (depending on configuration) Axes: Typically 2-4 axes (X, Z, U, and optionally B-axis for angular grinding) Positioning Accuracy: ~0.001 mm (1 micron) or better Coolant System Coolant Tank Capacity: ~200 L Coolant Pump Power: ~1-2 kW Power Requirements Main Motor Power: ~10-15 kW (grinding spindle) Total Power Consumption: ~20-30 kW Dimensions and Weight Machine Dimensions (L x W x H): ~3000 x 2000 x 2000 mm (approximate) Machine Weight: 5000 KG Hsdpfx Aaovzriujcsfn Applications Precision grinding of cylindrical and non-cylindrical workpieces Suitable for small to medium-sized components in industries like automotive, aerospace, and tool manufacturing

Condition: refurbished (used), Year of construction: 2025, Schaudt PS51 S600 - Premium overhauled - Sanding length: 600 mm - Center height: 180 mm - Grinding wheel width: 220 mm (optionally more possible) - Workpiece weight: 200 kg Further freely selectable options: - Completely new control cabinet with Siemens Sinumerik One or Fanuc 0iTF-Plus - Quick set-up via GSN user interface - In process measuring control DMK / LMK - Dressing spindle for diamond form roll - Balancing and grinding sensors - Hydraulic clamping/unclamping of tailstock - Autom. Siemens door drive - Remote maintenance Hfodpfx Aofg Utdeacon - Conversion to needle nozzles - Suitable coolant / extraction system - Automation preparation - and much more. We can also overhaul your existing storage machine! Schaudt / Studer / Kellenberger / Bahmüller / Voumard / Overbeck / Fortuna / Tacchella and much more.

Condition: refurbished (used), Year of construction: 2025, Schaudt PF61 1000 - 4000 grinding length: 1.000 / 2.000 / 3.000 / 4.000 mm Center height: 260 mm Other freely selectable options: - completely new control cabinet with Siemens Sinumerik One or Fanuc 0iTF-Plus control system - fast set-up via GSN user interface - Diatronic measuring device - B-axis freely positionable - second external grinding wheel - internal grinding unit - center elevation - dressing spindle for diamond form roll - balancing and grinding sensors - Tailstock hydraulic clamping / unclamping - Autom. Siemens door drive - 19" / 22" screen - remote maintenance - conversion to needle nozzles Hfodpfx Ajiqxt Hjacen - suitable coolant / exhaust system - automation preparation - and much more We can also overhaul your existing stock machine! Schaudt / Studer / Kellenberger / Bahmüller / Voumard / Overbeck / Fortuna / Tacchella uvm.

Condition: refurbished (used), Year of construction: 2025, Schaudt ZX11 Hfjdpfxjd Hfqrs Aacsn grinding length: 600 mm Center height: 180 (optionally more possible) Workpiece weight: 80 kg Other freely selectable options: - completely new control cabinet with Siemens Sinumerik One or Fanuc 0iTF-Plus control system - Fast set-up via GSN operator interface - Dressing spindle for diamond form roll - Balancing and grinding sensors - Hydraulic clamping / unclamping of tailstock - Autom. Siemens door drive - 19" / 22" screen - remote maintenance - conversion to needle nozzles - suitable coolant / exhaust system - automation preparation - and much more We can also overhaul your existing stock machine! Schaudt / Studer / Kellenberger / Bahmüller / Voumard / Overbeck / Fortuna / Tacchella uvm.
