CNC press brake 110 t × 3200 mm

Metal Technics Polska MTP SPB 110/3200 DA-66S

CNC press brake 110 t × 3200 mm – MTP SPB 110/3200 with Delem DA-66S, 6+1 axes – NEW, IN STOCK

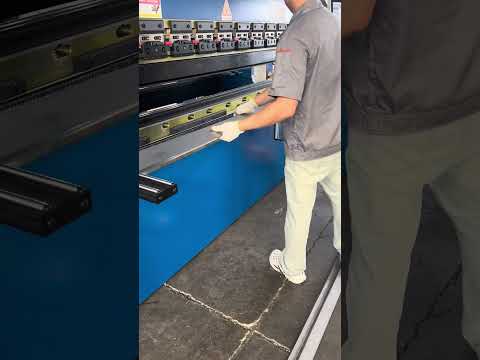

New electro-hydraulic servo-synchronised CNC press brake with 1100 kN bending force and 3200 mm worktable, controlled by the Delem DA-66S 24" touch-screen CNC with 3D graphics. 6+1 CNC axes (Y1, Y2, X, R, Z1, Z2 + V crowning), servo main drive, laser safety guard. The machine is in stock in our warehouse and ready for immediate dispatch.

KEY FEATURES
• Delem DA-66S CNC: 24" full-touch colour screen, 3D graphics, automatic bend-sequence calculation, Profile-S2D offline software
• 6+1 axes: Y1, Y2 (ram), X, R (back gauge depth/height), Z1, Z2 (finger positioning) + V (CNC crowning)
• Electro-hydraulic servo synchronisation of Y1/Y2 with GIVI (Italy) linear scales on both sides, resolution 0.005 mm
• ESTUN servo main motor – up to 60% energy saving, quiet operation
• Rexroth hydraulic valve block and pump, NOK seals, EMB fittings
• CNC motorised wedge crowning (V axis) – automatic deflection compensation along the full table length
• Servo back gauge on Taiwan ball screws and double linear guides, 3-section adjustable stop fingers
• Upper tool quick clamping (accuracy 0.02 mm), height-adjustable front sheet supports
• Safety: DSP (Italy) laser guard, rear light curtain, KACON foot switch, Schneider electrics
• Rigid frame verified by FEA, machined in one set-up on a CNC gantry machining centre

TECHNICAL DATA
• Nominal force: 1100 kN (110 t)
• Worktable length: 3200 mm
• Distance between columns: 2700 mm
• Throat depth: 400 mm
• Ram stroke: 200 mm
• Max. opening height: 480 mm
• Ram speed: rapid approach 180 mm/s, working 13 mm/s, return 170 mm/s
• Ram repeatability: ±0.01 mm; positioning accuracy ±0.02 mm
• Back gauge repeat positioning accuracy: ±0.02 mm
• Workpiece straightness: 0.3 mm/m
• Main motor: 8.5 kW servo
• Dimensions (L × W × H): 3850 × 1650 × 2680 mm
• Weight: approx. 7 t
• Year of manufacture: 2026, CE marked

STANDARD DELIVERY
Codoz I S Dropfx Adhsrh
Press brake, levelling bolts, foot switch, operation manual, CNC manual, hydraulic and electrical schematics, foundation drawing, CE certificate.

Condition: new. In stock – immediate dispatch.
Terms: price net, EXW Sokołów Podlaski, Poland. 12 months warranty on parts. Documentation and manual included. Transport can be arranged to any European destination – delivery quote on contact.
