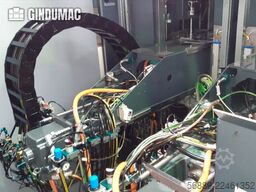

LICON LiFLEX II 766 i3 DT B22

LICON LiFLEX II 766 i3 DT B22

This 5-axis LICON LiFLEX II 766 i3 DT B22 was manufactured in 2016. It features a maximum spindle speed of 12,000 rpm and a tool magazine capacity of 96 tools. The machine is equipped with advanced i³ technology, allowing independent control of the X, Y, and Z axes for both spindles. If you are looking to get high-quality machining capabilities, consider the LICON LiFLEX II 766 i3 DT B22 horizontal turning machine we have for sale. Contact us for further details.

Technical Data

• Machine Type: Twin-Spindle Horizontal Machining Center
• Control Unit: Siemens SINUMERIK 840D sl
• Operator Panel: Siemens OP15T with integrated TCU
• ECO Mode
• Remote Diagnostics (eWON Router)
• PROFIBUS Interface for Automatic Workpiece Loading
• Signal Tower (3-color LED)
Travels

• X-Axis Travel: 750 mm
• Y-Axis Travel: 660 mm
• Z1-Axis Travel: 650 mm
• Z2-Axis Travel: 650 mm
Rapid Traverse

• X-Axis: 60 m/min
• Y-Axis: 60 m/min
• Z1/Z2 Axes: 90 m/min
Axis Performance

• X-Axis Acceleration: 6 m/s²
• Y-Axis Acceleration: 6 m/s²
• Z1/Z2 Axis Acceleration: 9 m/s²
• Feed Force X: 15,000 N
• Feed Force Y: 15,000 N
• Feed Force Z1/Z2: 10,000 N
• Positioning Accuracy: 8 µm
Spindle

• Number of Spindles: 2
• Precision Motor Spindles
• Tool Holder: HSK-A63 (DIN 69893-1)
• Spindle Speed: 12,000 rpm
• Spindle Power: 37 kW (40% ED)
• Spindle Torque: 85 Nm (40% ED)
• Maximum Torque: 100 Nm
• Direct Drive
Axes / Swivel System

• 2 NC B-Axes
• 2 NC Rotary Axes (A-Axes)
• Swivel Range: 0°–180°
• Swivel Time (0°–180°): approx. 5 s
Technology

• Independent X, Y and Z Axes for both Spindles
• Separate Direct Measuring System for each Axis
• Independent Z-Axis Correction Range: 5 mm
Tool Magazine

• 96 Tool Stations (2 × 48)
• Maximum Tool Length: 400 mm
• Maximum Tool Diameter (Adjacent Pockets Occupied): 80 mm
• Maximum Tool Diameter (Adjacent Pockets Free): 250 mm
• Maximum Tool Weight: 20 kg
Lubrication

• Automatic Central Lubrication
• 5-Channel Media Transfer (Oil or Air)
Cooling / Coolant

• 70 bar Through-Spindle Coolant
• Coolant Tank Capacity: 2,300 l
• Coolant Flow Rate: 400 l/min
• High-Pressure Pump: 15 kW
• Automatic Coolant Refill
• Coolant Cleaning System
• Water Cooling
• Cooling Water Temperature: 22 °C
• Cooling Water Flow Rate: 800 l/h
Chip Management

• Scraper-Type Chip Conveyor
• Chip Conveyor Discharge Height: < 1,150 mm
• Dry Machining Ready
• MMS (Minimum Quantity Lubrication) Compatible
Electrical Data

• Power Supply: 400 V / 50 Hz
• Control Voltage: 24 V DC
• Connected Load: 150 kW
Additional Features

• Automatic Workpiece Loading Interface
• Automatic Tool Changer
• Closed Machine Enclosure
• Machine Lighting
• Pneumatic Equipment
• Energy Monitoring System
• Automatic Media Connections
• Modular Machine Design
Additional Information

• Motor Spindle 11 replaced in Week 19/2024
• Motor Spindle 12 replaced in Week 24/2023

Technical Specification
Pjdpfxjzqr Ske Agdspw
Taper Size HSK 63
Through-spindle Coolant Yes
Counter Spindle No
Driven Tools No
