Chiron FZ18W

Chiron FZ18W

Condition: ready for operation (used), Year of construction: 2019, travel distance X-axis: 800 mm, travel distance Y-axis: 530 mm, travel distance Z-axis: 450 mm, controller manufacturer: FANUC, controller model: 31i-B5, spindle speed (max.): 12,000 rpm, spindle motor power: 22,000 W, tool weight: 8,000 g, number of axes: 5, This 5-axis CHIRON FZ18W was manufactured in 2019, featuring a FANUC 31i-B5 control system and continuous 5-axis control. It boasts a spindle speed of up to 12,000 rpm, a tool capacity of 70, and rapid traverse rates of 75 m/min. Ideal for complex machining tasks with its automatic pallet changer and dual rotary tables. If you are looking to get high-quality milling capabilities consider the CHIRON FZ18W machine we have for sale. Contact us for more information. • Number of axes: 5 (X, Y, Z + 2 rotary axes via pallet/rotary table) • Spindle: • AC spindle motor: 7.5 kW (100% duty), 22.0 kW (10% duty) • Max torque: 140 Nm • Taper: HSK-A63 (DIN 69893) • Drilling capacity: Ø 42 mm • Tapping capacity: M30 • Milling capacity: 500 cm³/min (steel E355) • Tool changer: • Type: Fully enclosed chain magazine • Capacity: 70 tools • Max tool Ø: 78 mm (160 mm with free adjacent positions) • Max tool length: 380 mm • Max magazine load: 240 kg Kwodjyaz Emspfx Adtot • Tool change time: ~0.9 s • Chip-to-chip time: ~2.6 s • Feed rates & dynamics: • Rapid traverse (X/Y/Z): 75 m/min • Acceleration: 0.6 – 1.2 – 1.4 g • Drives: Direct digital drives with absolute measuring system • Machine functions/utilities: • Automatic washdown of work area and fixtures • Automatic centralized grease lubrication • Hydraulic unit: 200 bar • Compressed air treatment with filtration to 0.01 µm • Cooling unit for machine components • Measuring, monitoring, software: • FANUC 3D collision control • Tool monitoring and sister tool management • Electrical & interfaces: • Ethernet RJ45, USB, PCMCIA • Remote diagnostics: CHIRON remoteLine • Data monitoring & OEE: CHIRON dataLine • Compliance: CE Additional equipment (robots, automation, peripherals) • Automation/palletizing: • Automatic pallet changer IWV 0°/180° (change time ~3.5 s) • Rotary table ATU 200, 2 units • Positioning accuracy/repeatability: ±5″ • Max clamping torque: 1,200 Nm • Max load per side (APC): 250 kg • Max weight difference between pallets: 0 kg • Coolant and chip management: • Through-spindle coolant (predisposition) • High-pressure coolant system up to 30 bar • Coolant filtration: Drum filter TPF 350 S (50 µm) • Chip conveyor: Hinged belt • Coolant tank: 230 L • Pump: 250 L/min @ 1.4 bar • Probing/tool control: • Renishaw RLP40Q probe (predisposition) • Laser tool breakage control (Single F1000)

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 850 mm, travel distance Z-axis: 800 mm, rapid traverse X-axis: 40 m/min, rapid traverse Y-axis: 40 m/min, rapid traverse Z-axis: 40 m/min, controller manufacturer: HEIDENHAIN, controller model: TNC 530i, table width: 870 mm, table length: 3,500 mm, table load: 3,500 kg, rotary table diameter: 800 mm, overall weight: 24,000 kg, spindle speed (min.): 60 rpm, spindle speed (max.): 12,000 rpm, coolant supply: 20 bar, spindle motor power: 22 W, spindle nose: ISO 40, number of slots in tool magazine: 60, tool length: 300 mm, tool diameter: 76 mm, tool weight: 8 g, input voltage: 400 V, Equipment: documentation/manual, Used 5-axis universal traveling-column machining center with Heidenhain TNC-530 CNC, swivel head, integrated rotary table. Kwjdpfx Ajxixn Nsdtst

Condition: ready for operation (used), Year of construction: 1993, controller manufacturer: SIEMENS, controller model: Sinumerik, This 4-axis CHIRON FZ 18 W was manufactured in 1993. It features dual 4th axes and is equipped with a SIEMENS SINUMERIK control system, enhancing its precision and efficiency. The addition of a chip conveyor aids in maintaining a clean work environment. Consider the opportunity to buy this CHIRON FZ 18 W vertical machining center. Contact us for more information about this machine. Machine Benefits Kedeyaadujpfx Adtswt Technical Machine Benefits • Axes: 4 with 2x 4th axis

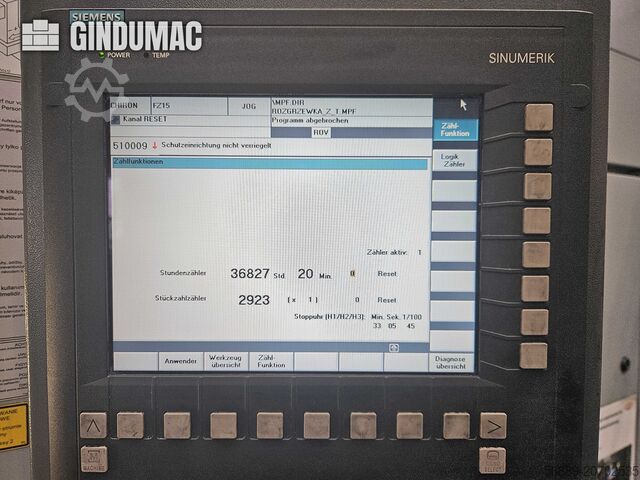

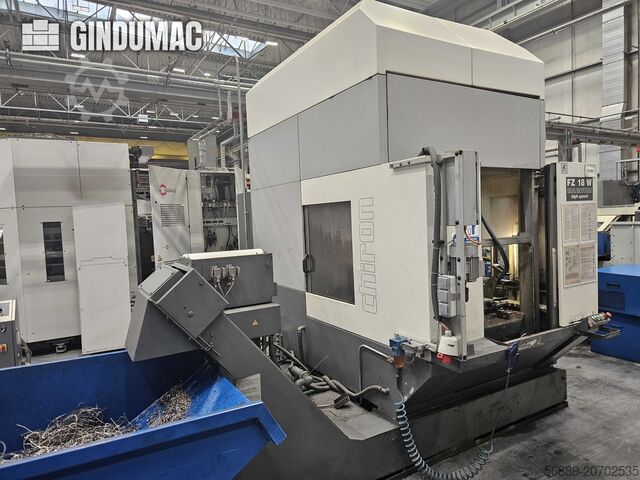

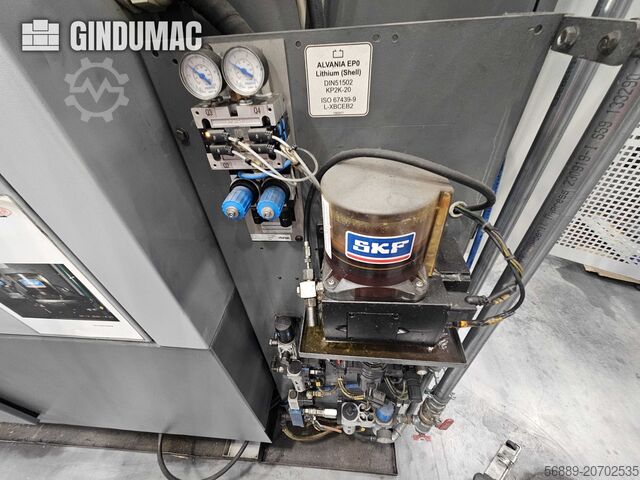

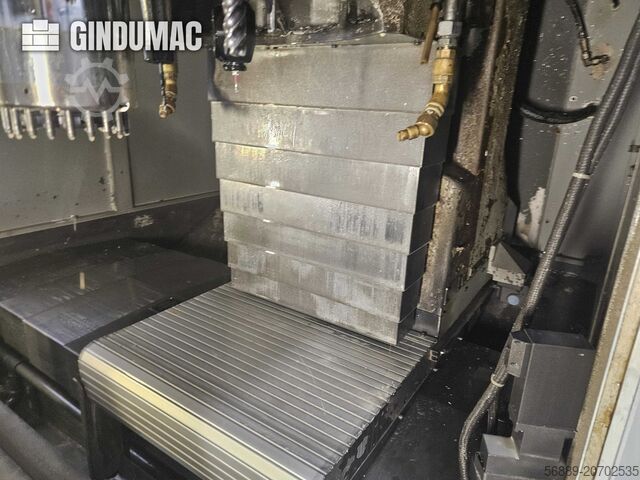

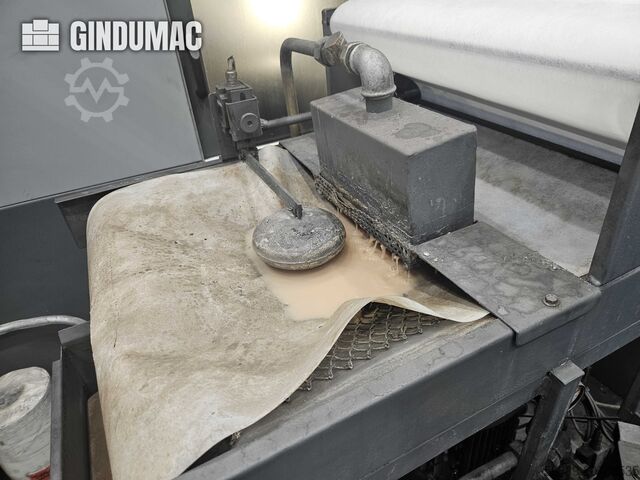

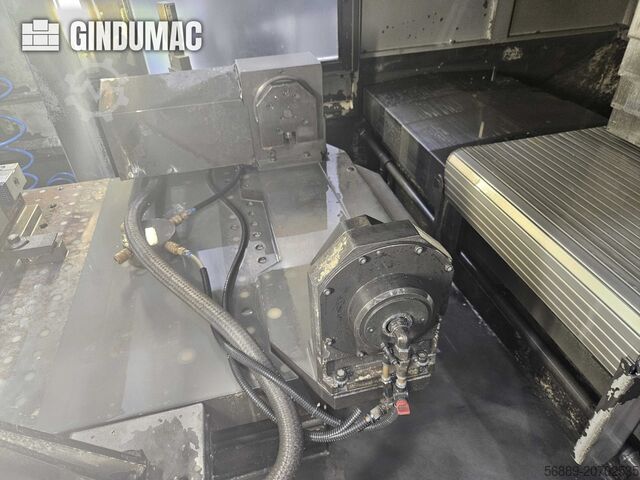

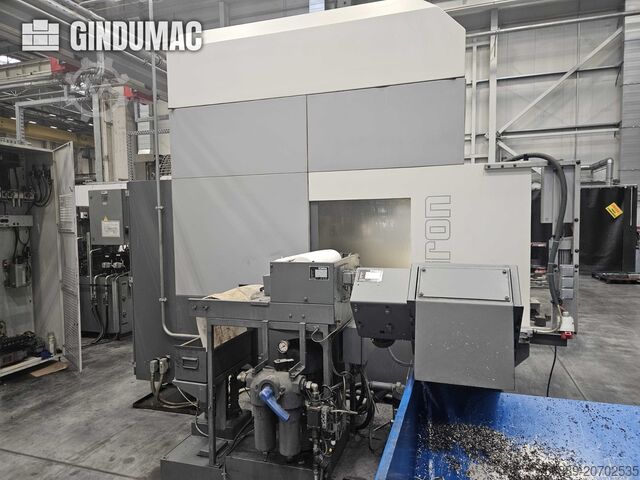

Condition: ready for operation (used), Year of construction: 1998, General Data Measurements width 1920 mm Measurements depth 3143 mm Measurements height 3000 mm Machine weight 5500 kg Control Unit Brand SIEMENS Kjdpfxox D Hmio Adtjwt Model SINUMERIK 810M Main Drive Spindle speed range 10500 Tool taper SK40 Number of axis 3 Movement X-Axis Movement 750 mm Y-Axis Movement 400 mm Z-Axis Movement 600 mm Media Power consumption 29 kVA This CHIRON FZ 18 W MAGNUM HIGH SPEED, manufactured in 1998, is equipped with a Siemens Sinumerik 810M CNC controller, a 1240 × 850 mm worktable, and travels of 750/ 400/600 mm in the X, Y, and Z axes. The machine is still connected and in very good technical condition. If you are looking for high-quality milling capabilities, consider the CHIRON FZ 18 W MAGNUM HIGH SPEED we have for sale. Contact us for more information. Application Types Milling

Condition: used, machine/vehicle number: 006724, Max width workable: 1200 mm Max length workable: 1200 mm Max height workable: 1600 mm Kjdpfxsu A Ev Us Adtowt

Condition: excellent (used), Year of construction: 2014, operating hours: 14,500 h, functionality: fully functional, machine/vehicle number: 11779, turning length: 700 mm, turning diameter: 250 mm, spindle motor power: 26,000 W, spindle speed (min.): 3,200 rpm, spindle speed (max.): 3,200 rpm, spindle bore: 65 mm, overall weight: 8,500 kg, incl. 2x Hainbuch/Ortlieb chucks, conveyor belt, swiveling measuring probe with 2 heads, MANUAL GUIDE_dialog programming, high-pressure pump 18 bar/20 l/min, SBS tool breakage monitoring and wear control. Machine year 2013 – Commissioned 05/2014 Good & well-maintained condition Original price approx. €300,000 Kwedpsrdy Uqefx Adtjt !!! ATTENTION -> Sale without loader!!!

Condition: good (used), Year of construction: 1982, functionality: fully functional, type of input current: three-phase, MCS Jigger High Temperature 144ºC. Type COMBY-JIGGER JP70. Kodpfx Aefqmx Tsdtewt Year 1982. It underwent a complete renovation in 2002 Pressure: 3kg/cm2 Capacity: 9170 l Roller width 2,000 mm. Diameter of fabric 1100 mm. Diameter of rollers 324 mm. Additives tank.

Condition: new, AGRE ALUP ALLEGRO 14+ 13 270 Speed controlled. Space-saving. Inexpensive. Efficient 1:1 direct drive. Easy operation. Low energy consumption. High performance. Suitable for a wide range of applications. Convincing compressed air quality. Cyclone separator and refrigeration dryer built in. Equipment in detail: Compression concept: Oil-lubricated screw compressor Cooling: Air-cooled design Drive: High frequency motor, with 1:1 direct drive Control: Speed controlled with frequency converter Control: Graphic control C55DD Refrigerant dryer: Integrated, refrigerant R513A Filtration: incl. cyclone separator Container: horizontal, painted Performance data: Volume flow at operating pressure 7.0 bar = 0.26-2.26 m³/min Operating pressure min. / max. 5.0 / 12.5 bar Total power consumption at 10.0 bar / full load 16.2 kW Rated power motor 15 kW Oil quantity 5.2 lt Dimensions and weight: L x W x H = 1655 x 655 x 1550 mm weight 400 kg Kjdpfxsixt I Hs Adtswt Compressed air outlet G 3/4'' Capacity compressed air tank 270 lt

Condition: used, Year of construction: 2017, Absolutely as good as new Consists of 1 measuring case 12-20mm Ksdpfx Asvvxvdodtjwt Consists of 1 measuring case 20-50mm Consists of 1 measuring case 50-100mm

Year of construction: 2015, condition: ready for operation (used), A CNC double-spindle lathe Traub overhauled in 2025 is available. Turning length: 450mm, spindle clearance: 65mm, speed: 4000rpm, main spindle/counter spindle power: 18.5kW/11kW, tool positions: 10, driven tools: 10, hydraulic capacity: 150l, hydraulic pressure: 60bar, connected load: 39kW. Rapid traverse X1/X2: 15m/min, feed force: 5000N, feed path: 140mm. Rapid traverse Z1/Z2: 30m/min, feed force: 8000N, feed path: 450mm. Rapid traverse Y1: 6m/min, feed force: 8000N, feed path: +/-35mm. Machine dimensions X/Y/Z: approx. 4150mm/2000mm/1800mm, weight: approx. 4750kg, control: Traub System TX 8F, operating hours: 12938h. Including chip conveyor and bar loader LNS Quick Load. Documentation available. On-site inspection is possible. Kjdpsv Scrbefx Adtswt
