Machining center

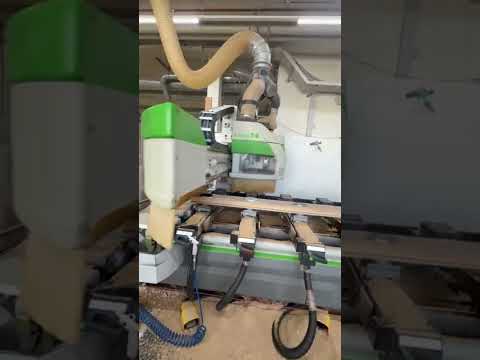

BIESSE Rover 24 XL

Condition: used, Year of construction: 2002, functionality: fully functional, Working range X 6,170 mm Working range Y 1,380 mm Working range Z 155 mm Main motor Kw7.5 kW Max rotation speed 24,000 rpm Aggregate heads 4. axis C-axis tool change positions 10 vertex boring heads 20 Horizontal boring heads X 6 Horizontal boring heads Y 2 Arm structure Work surface Console table Bedpfxer E A U Ij Akaelg Number of bars 10 Positioning aid Vacuum pump capacity 2 x 125m³/h Chip conveyor belt

Condition: good (used), CNC Machining Center for Drilling and Milling Operations on Wood Panels, Derived Materials, Plastics, and Non-Ferrous Alloys Precise and highly reliable thanks to high-quality components, this machine is ideal for both craftsmen and industrial manufacturers aiming to increase flexibility and production quality. The main structure is made of a single welded steel base frame, constructed with thick-gauge steel plates. TECHNICAL SPECIFICATIONS • Working area X - Y - Z: 6,170 x 1,380 x 180 mm Bljdpstuxa Hsfx Akajg • Axis stroke X - Y - Z: 6,635 - 1,780 - 250 mm • Axis speed X - Y - Z: 100 - 100 - 30 m/min • Worktable: 10 bars • Bar carriages: 3 • Vacuum modules: 3 per bar • Pendulum processing up to: 2,975 mm • Two independent work zones allow simultaneous processing of two identical, mirrored, or different parts • Lifting device for easy positioning of heavy and large panels • 5-sided machining capability • "C-shaped" open frame structure • HSD routing unit • Air cooling system • Inverter included • Tool magazine: 1 with 10 positions • Drilling unit: • Vertical drilling spindles: X = 7, Y = 7 • Horizontal drilling spindles: X = 2+2, Y = 1+1 • Integrated saw blade: Ø 120 mm • Control system: NC 500 based on PC • Easy programming and file import • Remote control panel/console • Teleservice and video diagnostics for real-time support • Automatic guide lubrication system • Vacuum pumps: 2 x 100 m³/h • Chip conveyor belt • Centralized extraction duct • Extraction ports: 1 x Ø 250 mm • Safety devices: • Side protective curtains for the working unit • Perimeter safety guards with access door • Total installed power: 25 kW • Compressed air consumption: 400 NI/min • Operating pressure: 6.5 / 7.5 bar • Air consumption for extraction: 3,816 m³/h • Machine dimensions: 8,300 x 4,020 x 2,730 mm (h) • Machine weight: 4,100 kg + 600 kg (electrical cabinet) • Included documentation: user and maintenance manual, software manual, spare parts catalog, electrical diagram, CE declaration of conformity.
