Plate Shear - Mechanical

WIEGER ESW 3/25

Condition: excellent (used), We have a BECK HV600 shrinktunnel available. This machine is ready after complete maintenance and is working like new! Lodpfjhcdhlox Adqjri The measurements are in the pictures.

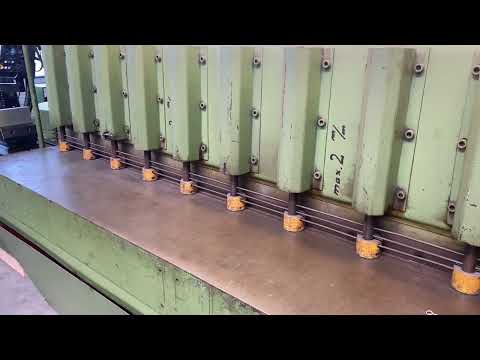

Condition: good (used), Year of construction: 1962, guillotine shears, sheet metal shears, metal sheet shears, crank guillotine shears -mechanical guillotine shears -Cutting width: 2040 mm -max. cutting thickness: 2.0 mm Lrodpfxedzd Huj Adqji -Equipment: back stop, side stop, 3 supports -Drive: 5.5 kW -Installation dimensions: 2650/1900/H1070 mm -Transport dimensions: 2650/730/H1070 mm -Weight: 1378 kg

Condition: good (used), working width: 1040 mm metal sheet thickness: 1,25 mm upper roller-Ø: 56 mm below roller-Ø: 56 mm weight: 190 kg Ledpfx Ajdt Dqwedqsri space needed: 1450 x 460 x 1030 mm

Condition: new, Year of construction: 2023, functionality: fully functional, machine/vehicle number: 61036936, clamping force: 800 kN, screw diameter: 35 mm, displacement volume: 135 cm³, injection pressure: 1,837 bar, injection weight: 123 g, mold height (min.): 150 mm, ejector force: 22,000 N, ejector stroke: 100 mm, opening stroke: 750 mm, installation height: 400 mm, total length: 4,750 mm, total width: 1,670 mm, total height: 1,820 mm, overall weight: 5,900 kg, heating capacity: 8.9 kW (12.10 HP), drive type: Vollelektrisch, clear span: 470 mm, tool weight: 600,000 g, Injection molding machines direct from the manufacturer! As the manufacturer KraussMaffei, we offer you our tested and flexible stock machines here: The basic injection molding machine, precisionMolding, offers the perfect entry-level solution for all-electric injection molding, enabling you to react quickly and innovatively to market requirements. It combines high performance, simple operation and short delivery times. It can be used in a wide range of applications, e.g. in the packaging industry, the electrical and electronics industry, medical technology and the automotive industry. Your benefits: - Optimized price-performance ratio for a wide range of applications - High energy efficiency thanks to all-electric machine concept - Realization of demanding delivery times thanks to basic machine concept with a wide range of options TECHNICAL DATA: KM 80 / 250 PA G01 (order 38670013) (machine no.: 61036936, new, year of manufacture 2023) CONTROL  MC P1 with 15" TFT color screen with multi-touch functions CLAMPING UNIT  Clamping force kN 800  Mold opening force, max kN 120  Clear width (h x v) mm 470 x 420  Clamping platen (h x v) mm 610 x 560  Tool installation height min. - max. mm 150 - 400  Opening width mm 750  Mold opening stroke max. mm 350  Ejector drive electric  Ejector stroke mm 100  Ejector force forwards/backwards kN 22 / 22  Ejector speed forwards/backwards mm/s 300 / 300  Max. Mold weight kg 600 SPRING UNIT  Screw diameter / type mm 35 / standard  Effective Ls/D ratio 20.0  Injection pressure bar 1837  Stroke volume cm³ 135  Shot weight at max. stroke for PS g 123  Injection speed mm/s 200  Injection flow rate cm³/s 192  Screw drive/speed 1/min 382  Plasticizing flow (standard screw)4) g/s 19.5  Nozzle contact force kN 30 ELECTRICAL PARAMETERS  Connected load kW 17.8  Installed heat output kW 8.9  Power supply V / Hz 400 / 50 3 phases with neutral conductor WEIGHT AND DIMENSIONS  Net weight with switch cabinet t 5.9  Length x width x height m 4.75 x 1.67 x 1.82 ADDITIONAL EQUIPMENT  Low-wear plasticizing  BluePower fully insulated plasticizing cylinder  Open nozzle  Air valve 1 - fold (BWAP)  Pneum. Control hot runner valve gate 1 - compartment  Electrical interface cascade 4-fold  Electrical preparation for hydraulic auxiliary unit  Euromap interfaces handling E18, E63  Euromap interface (central computer) E67, E77  Water battery 4 - compartment  Automatic central lubrication  Adaptive Process Control (APC)  Spray embossing circuit  Graphic analysis package  Swivel device Injection unit Lrjdeuggb Depfx Adqji The machine is located in our factory in Parsdorf and is available at short notice. Further additional options can be offered on request. We look forward to your inquiry.

Condition: excellent (used), Year of construction: 1998, A stainless steel filter system with compressed air cleaning in very good condition. Filter area 50 m². Material: V4A (1.4571) 316TI Installed stainless steel radial fan drive power 22kW; volume flow: 6700m³/h; pressure: 8000Pa Compressed air valves: ASCO 24Volt Number of filter pockets: 48 Lsdpofg Iphsfx Adqjri Filter medium: no longer available Insulation: Yes with differential pressure measurement Size L/W/H: 3000mm/ 1700mm/ 2100mm (up to outlet) The filter consists of 2 modules that are divided in the middle. Also available stainless steel cooling screw Ø400mm; length 4100mm

Condition: excellent (used), Maximum cutting length: 2040 mm Maximum sheet thickness: 2 mm steel Lrjdpfeduw Eksx Adqei Weight: approx. 1100 kg

Condition: used, gr. working width: 1100 mm Lrjdpfxecaxvhj Adqoi for sheet thickness (steel sheet) up to approx.: 1 mm electr. drive: 380 V, 0,75 kW space requirement: 2330 x 600 x 1140 mm weight: 357

Year of construction: 1989, condition: used, Standard equipment Lsdpfjbriv Nox Adqjri

Condition: new, Year of construction: 2025, Single band console decoiler (1000 mm Lrodpfx Adjfvbv Soqoi - up to 1,0 t stationary - Inner φ480-530 mm - with 4 clamping arms, ball bearings and with disc brakes - max coil width: 1.000 mm

Condition: used, Heavy-duty shunting trolley, heavy-duty transport trolley Assembly trolley, heavy-duty trolley DIRK PROKOP type 10001-4 Very stable special design Load capacity: 1800 kg Loading area: 2720 x 930 mm Load carrier length: 2720 mm Load carrier width: 140 mm Load carrier height: 135 mm Ground clearance under the load carrier: 100 mm Height of upper edge of load carrier from floor: 235 mm Ground clearance of heavy-duty castors: 15 mm - 2 load carriers made of double-T steel bolted to both sides of the trolleys - Load carriers can be easily separated from the trolley using locking bolts - Chassis with very sturdy swivel castors with central brake - Can be moved in all directions (lengthways, crossways, crab steering, etc.) - Load carriers can be driven under with a normal pallet truck to unlock the trolleys - Ideal for in-house transportation of switch cabinets or machine parts for assembly. - The parking brake device and the support blocks on the longitudinal beams can be easily removed. Lodpfxerktlfe Adqori Overall length with trolleys: 3450 mm Width of the trolleys: 980 mm Unladen weight: 350 kg Very good condition
