Cylindrical grinding machine

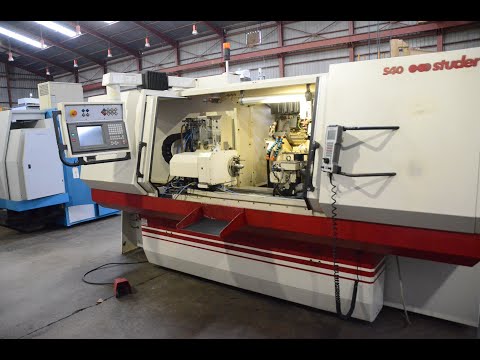

Studer S40 CNC

Condition: used, TECHNICAL DETAILS - distance between centers : 1000 [mm] - centers height : 175 [mm] - strokes (Z/X) : 1050 x 275 [mm] - max. feeds (Z/X) : 10 x 5 [m/min] - grinding wheelhead type : 2 external, 1 internal - left external grinding wheel dimension : 500 x 63 x 127 [mm] - right grinding wheel dimension : 400 x 63 x 127 [mm] - grinding wheel motor power : 7,5 [kW] - rotation speed : 1670 - 2110 [Rpm] - grinding wheelhead orientation : -15 to +225 [°] - resolution : 0.001 [°] - workhead tapper : MT5 - workhead rotation speed : 1 - 1027 [Rpm] - workhead power : 0,785 [kW] - tail stock : MT3 - quill stroke : 35 [mm] - weight : 7000 [kg] - hours under power : 47.959 [h] Lsdsuhbyqspfx Ad Ajrk EQUIPMENT - control CNC FANUC 16 TB - programming through Pictogramming - Release B version B275 - deported electronic handwheel - 2 grinding wheels left-right internal at 180 [°] - B axis for indexing of the grinding wheelhead every 0,001 [°] - high precision C axis for part indexing and form grinding - tail stock with fine concentricity adjustment - sensitron - upper table swiveling fine adjustment - control pedal - lenght positioning device MARPOSS E32R with sensor T25G - measuring scales HEIDENHAIN on X/Z - coolant tank with pump - 1 grinding wheel holder flange - 1 grinding wheel - 1 dry center - 1 electro-spindle : 40.000 [Rpm] - tail stock hydraulic retract through pedal

Condition: like new (used), Year of construction: 2016, functionality: fully functional, operating hours: 100 h, stroke length: 800 mm, operating speed: 9 mm/s, controller manufacturer: CADMAN TOUCH, working width: 12,000 mm, bending force (max.): 1,600 t, back gauge: 1,000 mm, distance between stands: 10,600 mm, control type: CNC control, number of axes: 15, Only 100 Working (table/guiders/tooling still in prohibitor) Ljdpfxoygkuws Ad Asrk Installed never used in production only testing CNC T1 + T2 + T3 Bending help support arm in front 3 x HH 2600 Module backgauge 3 x Z1+R1+Delta1 Lower Tooling set Variable VLA 50-150 mm Upper Tooling set LVD 505; Adjustment V-Axis 59,3 to 249,3 mm Thermotec Oil chiller GC25T-35 max. 2200 kPa CADMAN TOUCH with the best software for pressbrakes Hydraulic top tool clamping Table width 500 mm Troath in column 1000 mm Max. bending length: 12000mm Distance between column: 10600mm Max. pressing force: 1600T Dis. Beam - Table: 1070mm Beam stroke: 800mm Table Width: 500mm Troth beam: 1000mm Approch speed: 80mm/min. Working speed: 9mm/min. Return speed: 90mm/min. Adjustment X-Axis back gauge:600mm Number of controlled axis: 15 (Y1/Y2/X/Z1/2/3, R1/2/3, Delta 1/2/3, T1/2/3 Control: CADMAN TOUCH Crowning: Yes Hydraulic toolclamping: Yes Power: 125kW Length: 14875mm Width: 5430mm Height: 7906mm Weight: 277500kg Why you need 1600 Ton Pressbrake, Bending force depends on: Material thickness Material strength Bend length Die opening When any of those go big, tonnage skyrockets. A 1600-ton press brake is used when: Plate is thick (20–60+ mm / ¾"–2½"+) Material is high-strength Parts are long (6–10+ meters / 20–30+ ft) Tight radii or deep bends are required Forming Heavy Welded structures like: Bridge girders Box columns Large beams and stiffeners Base frames for industrial machinery Shipbuilding Defence & Naval like: Hull sections Deck plates Bulkheads Reinforcement ribs Enegery & Infrastructure like: Wind tower sections Power plant components Pressure vessel shells (pre-forming) Transformer tanks Heavy Machining & Ground & Mining jobs like: Excavator frames Crusher housings Dump truck bodies Mining chute liners Furnace housings Kilns Massive welded assemblies Material to bend on 1600 t machine: Carbon steel: S235 / S275 / S355 A36, A572 Plate thickness: ~20–50 mm+ High strength steel S690 / S700 Hardox, Strenx Much higher tonnage needed even at thinner gauges Stainles steel: 304 / 316 Needs ~1.5–2× the force of mild steel Wear-resistant plate Heat-resistant steels JOB Example: Bending 40 mm S355 steel over 8 meters can easily require 1,200–1,600 tons, depending on tooling. Bending instead of welding: Increases strength Reduces distortion Cuts weld time and cost Improves fatigue life Looks cleaner and more accurate A 1600-ton press brake is used when: The part is too thick Too strong Too long It’s not for sheet metal shops — it’s for heavy industry, shipyards, steel fabricators, and energy projects. Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: as good as new (ex-display), Year of construction: 2025, Studer S40 1000/1600 grinding length: 1.000/1.600 mm Center height: 175 mm (optionally more possible) Workpiece weight: 120 kg Further freely selectable options: - completely new control cabinet with Siemens Sinumerik One or Fanuc 0iTF-Plus control system - Fast set-up via GSN operator interface - B-axis freely positionable - second external grinding wheel - internal grinding unit - center elevation - Dressing spindle for diamond form roll - balancing and grinding sensor system - Tailstock hydraulic clamping / unclamping - Autom. Siemens door drive - 19" / 22" screen - remote maintenance - conversion to needle nozzles - suitable coolant / exhaust system - automation preparation - and much more We can also overhaul your existing stock machine! Lredpfsfg S Uasx Ad Aok Schaudt / Studer / Kellenberger / Bahmüller / Voumard / Overbeck / Fortuna / Tacchella uvm.

Condition: ready for operation (used), Year of construction: 2014, operating hours: 27,608 h, controller manufacturer: SIEMENS, This 5-axis DMG MORI CTX beta 800 TC was manufactured in 2014. It features a main spindle speed of 5,000 RPM and a sub spindle speed of 6,000 RPM, along with a 30-piece tool magazine. Ideal for complex turn-mill operations, consider the opportunity to buy this DMG MORI CTX beta 800 TC turn-mill centre. Contact us for further details regarding this machine. Lodpfsx U D Hqsx Ad Ajrk • Tools: 30 pcs • Incl tools shown on the pictures • Excl barfeeder

Condition: used, Year of construction: 2005, Reishauer RZ150 gear grinding machine Lrjdpsxz E Srofx Ad Aok

Condition: good (used), Year of construction: 2003, functionality: fully functional, workpiece weight (max.): 12,000 kg, feed length Y-axis: 300 mm, feed length Z-axis: 1,080 mm, table diameter: 1,200 mm, feed rate X-axis: 3 m/min, feed rate Y-axis: 500 m/min, feed rate Z-axis: 3 m/min, input current: 195 A, workpiece diameter (max.): 1,600 mm, milling spindle length: 450 mm, table bore: 400 mm, spindle speed (min.): 250 rpm, overall weight: 51,000 kg, power: 115 kW (156.36 HP), Equipment: documentation/manual, Liebherr high-performance gear hobbing machine LC1502 in good condition Controller Liebherr LH90 V4, Bosch Rexroth drives Extensive accessories such as BHG, cooling unit for lubrication and coolant, extractor, cutter arbors, various software packages/limit value extensions, and complete documentation. Lredpfxswqm A Tj Ad Ask We can also assist with setup and commissioning up to production, depending on effort!

Condition: good (used), Year of construction: 1997, TBT ML 200-2-850 deep hole drilling machine TECHNICAL DATA Type: M200-2-850 Number of spindles: 2 Drill carriage stroke: 850 mm Drilling method: Single-lip drilling Drilling depth with: Submersible spindle: 120 mm Sealing housing: 400 mm Sealing housing with bezel: 350 mm Spindle drive Power: 2 / 3.5 / 1.5 kW Voltage: 140 / 350 / 350 V Speed: 14 / 11 / 6 / A Feed - own drive Feed speed: 20 - 500 mm/min Rapid traverse speed NC operation: 12 m/min Feed force: 1.5 kN Motor power: 2.2 Nm at 3000 rpm Clamping tailstock Motor power: 0.75 kW at 1000 rpm Spindle speed: 500 rpm Stroke max: 200 mm Main dimensions L x W x H: 4600 x 2500 x 2100 mm Transport weight: 3200 kg Control: Sinumerik 805 M Lrjdpevca Rcjfx Ad Ajk No liability is assumed for the correctness, completeness and up-to-dateness of the information provided

Year of construction: 2012, condition: good (used), Muratec MW120 GT for sale Used, in excellent condition. The machine can be viewed by appointment. Ljdpfx Adsifi D To Ajrk Delivery is the customer's responsibility, but we can help with packing and loading of need. Delivery: EXW Székesfehérvár

Year of construction: 2001, condition: used, Cazeneuve Maxica 590 Lrodpfxoh Aylvj Ad Ajk With collet Control: SOMAB NUM SP + S 5

Condition: good (used), functionality: fully functional, Year of construction: 1990, machine/vehicle number: 4ROLL, roller (bottom) diameter: 470 mm, roller (top) diameter: 470 mm, side roll diameter: 420 mm, roller diameter: 470 mm, roller length: 3,050 mm, working width: 3,050 mm, working height: 1,800 mm, sheet thickness (max.): 50 mm, sheet thickness steel (max.): 45 mm, sheet thickness aluminum (max.): 45 mm, sheet thickness copper (max.): 45 mm, overall weight: 43,000 kg, total length: 7,700 mm, total width: 2,410 mm, total height: 2,470 mm, power: 37 kW (50.31 HP), input voltage: 380 V, type of input current: three-phase, working length: 3,050 mm, Equipment: documentation/manual, emergency stop, PLATE BENDING MACHINE FACCIN - 4 ROLL HYDRAULIC 3000 X 40 MM MODEL 4HCI3-35/30 YEAR 1990 PLATE BENDING ROLL LINEAR GUIDEWAYS DOUBLE PINCH PRE-BENDING Machine in good working condition Bending capacity -Plate width : 3000 mm -Rolling plate thickness 40 mm Lrsdpfx Ajwb Scmed Ask - Prebend thickness 35 mm Rolls dimensions: -Useful length 3050 mm -central rolls upper/lower 470 mm -side rolls left/right 420 mm • Hardening of the 4 rolls high strength surface • 3 rolls driven powered with gear unit with hydraulic motor • Conical bending attachment side rolls tiltable to form cones, contrast pad roller type. • Opening front hydraulic drop-end to unload the closed shell. • Variable speed working roll bending rotation hydraulic speed fast/slow. • Console electric on wheels with centralized commands joysticks and 3 digital readout. • Digital readouts of the rolls position bending and pre-bending repeatability. • Hydraulic tank capacity oil 350 liters – power electric 37 Kw voltage 380 /50 • Dimension 7700 x2410 x H 2470 mm - weight 43000kgs
