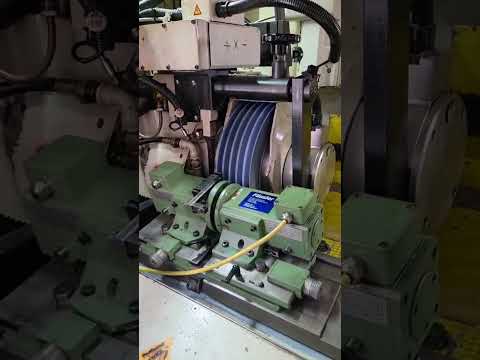

Gear grinding machine

REISHAUER RZ362A

Condition: used, Year of construction: 1997, Technical details: max. module: 7 weight of the machine ca.: 5 t worm grinding diameter: 280-350 mm width of grinding worm: 84-104 mm min. number of teeth: 6 max. number of teeth: 600 max. top circle diameter: 360 mm max. workpiece weight: 60 kg Nedpfjx Aq Egsx Aa Eedf without filter *

Year of construction: 2018, condition: ready for operation (used), A gear flank grinding machine Reishauer, completely overhauled by Burri Werkzeugmaschinen, is available. Grinding spindle speed: 3500rpm, cutting speed: 63m/s, max. gear diameter: 360mm, module range: 0.1-7, number of teeth: 6-600, max. workpiece height: 160mm, max. helix angle: +/-45°, max. workpiece weight: approx. 60kg. Min. wheel root circle diameter: 250mm, grinding wheel dimensions X/Y/Z: 350mm/104mm/160mm, grinding worm diameter range: 270mm-350mm, max. grinding width: 175mm, max. workpiece speed: 800rpm. Includes profiling devices, balancing device, structure-borne noise contact control, compact filter system, cooling unit, cooling water recooler, robot automation, and transport trolleys. Documentation available. An on-site inspection is possible. Nsdpfxsw Rqwaj Aa Eodf

Year of construction: 2000, condition: like new (used), Spares, Grinding and Diamond Dressing tools to Reishauer RZ362A, RZ361S, RZS or Burri generating grinding machines, as well as used flanges for grinding wheels. The grinding wheels are pre-profiled and new. Please ask for module and number of starts? Dressing tools are new or in good condition (at least 50% remaining life time). Please give us your profile requirements in order to select the correct dressing tool? We also have various new mechanical and electrical spare parts on stock. Please ask us? Ndodpfxek Npmuo Aa Esf

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, Reishauer RZ 362A with approx. 60 sets of diamond wheels Grinding worm dimensions: Ndedpsxb Ufuefx Aa Eef Min/Max. outside diameter: 280/350 mm Width: 84/104 mm Max. module with restrictions: MOD 8.0 (DP 3.2) Number of starts: with restrictions up to 3 Max. usable width (axial shift): 90 mm For detailed technical information, please refer to the attached PDF file. Accessories: Dressing device Approx. 60 sets of diamond wheels Grinding stones Turbo separator

Condition: like new (used), Year of construction: 1987, functionality: fully functional, machine/vehicle number: 61373, IT IS IN WORKING CONDITION Nsdpfxjvwlf Ij Aa Esdf

Condition: excellent (used), Year of construction: 2022, operating hours: 5,000 h, functionality: fully functional, center height in crank: 200 mm, center height: 200 mm, workpiece weight (max.): 100 kg, grinding length: 1,000 mm, workpiece weight between centers: 100 g, workpiece diameter between centers: 400 mm, On behalf of a customer, I am offering this machine, which is in nearly mint condition. It is currently still powered up. The machine is equipped with the following options: Glass linear scales in X and Z axes Electric door drive Integrated wheel change assistant Fanuc 0i TF Blue Solution HMI Back Solution Basic Black CAM Profile Security interface Remote diagnostics via mobile network (4G) Grinding head with automatic 1-degree indexing Grinding head UR 1-2-3 (prepared for HF internal grinding spindle) Ndsdpfx Aaew Ed D Rs Eof T1 500; T2 400 mm 3-jaw steady rest Active longitudinal positioning at the head Semi-automatic balancing GAP control A brochure for the K 10 can be provided upon request.

Condition: used, max. wheel diameter 180 mm gear width 45 mm max. module 4 min. module 0,5 stroke length max. 0 - 52 mm spindle taper innen MK 4 table diameter 160 mm table bore diameter 75 mm no. of strokes 355 - 630 Hub/min feed range 0,008 - 0,4 mm/Hub dimensions of the machine ca. 2,30 x 1,50 x 2,36 m Nsdpfju Uu S Tox Aa Eedf power capacity 6 kW weight of the machine ca. 2.500 kg Year of construction: Approx. 1970

Condition: excellent (used), Year of construction: 2003, max. wheel diameter 600 mm gear width 700 mm max. module 20 min. module 0,5 table diameter 300 mm x-travel 300 mm y-travel 600 mm z-travel 700 mm Nodpfx Aaswyxycj Eedf workpiece weight 300 kg Control Zeiss max. workpiece diameter 600 mm clamping length 20 - 1000 mm ical angle 90 ° total power requirement 2 kW weight of the machine ca. 2,5 t dimensions of the machine ca. 3,0 x 2,0 x 2,4 m Form measuring machine, gear measuring machine, coordinate measuring machine -> Primar MX 4 WL Suitable for gear shafts, sprocket waves, gears, pistons, gearbox, connecting rods, camshafts and crankshaft, crankshaft housings, cylinder heads, ... Air suspended, centering and tilting table, retention, highly precise execution! Software: gear, roller milling, piston, bowling wheel, crankshaft, connecting rods New software update 2014!

Condition: used, max. wheel diameter 180 mm gear width 45 mm max. module 4 min. module 0,5 stroke length max. 0 - 52 mm spindle taper innen MK 4 Nsdpfetycg Ssx Aa Esdf table diameter 160 mm table bore diameter 75 mm no. of strokes 355 - 630 Hub/min feed range 0,008 - 0,4 mm/Hub dimensions of the machine ca. 2,30 x 1,50 x 2,36 m power capacity 6 kW weight of the machine ca. 2.500 kg With rack and pinion unit Change gear set Year of construction: Approx. 1981

Condition: used, Year of construction: 2005, weight of the machine ca. 7.800 kg dimensions of the machine ca. 3.380 x 3950 x 3015 m Ndjdpfxeudc S Hj Aa Ejf
