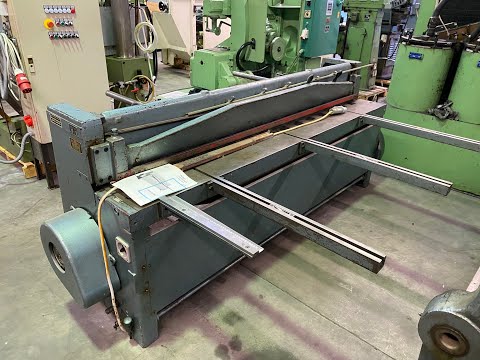

Plate Shear - Mechanical

RAS 53.60

Condition: used, Stop for press brake, bending machine, guillotine shears ..., clamping angle, clamping aid,.Support rail for press brake, bending machine, guillotine shears, stop rail, clamping rail -Manufacturer: RAS, support rails from guillotine shears type RAS 53.60 Todpfx Aet Rl Ulea Ijc -Dimensions: 805/100/H80 mm / groove width 16 mm 3 pieces -Dimensions: 720/75/H85 mm with stop rail 1 piece -Delivery/Price: complete -Transport dimensions: 805/350/H80 mm -Weight 34.8 kg

Condition: used, Year of construction: 2005, Multifunction centre for machining glass, INTERMAC Type Master 23, year 2005 (1700 operating hours) Tedpox Iuhrsfx Aa Ijc

Condition: ready for operation (used), Max. working width: 3060 mm For sheets (at 40 kg strength) up to: 4 mm Tsdpfxexwnltj Aa Ijc Min. bending radius: sheet thickness x 1.25 Min. inside flange height: sheet thickness x 6 Upper beam opening width: 220 mm Lower/bending beam adjustability: 90 mm Max. bending angle: 180° Stroke speed down/up: 40/60 mm/s Hydraulic drive: 380 V, 7.5 kW Weight: 4.3 t Required space: 4150 x 1800 x 2500 mm

Condition: ready for operation (used), Year of construction: 2023, operating hours: 1,904 h, spindle speed (max.): 4,000 rpm, travel distance X-axis: 260 mm, travel distance Z-axis: 795 mm, spindle motor power: 18,500 W, controller manufacturer: MITSUBISHI, controller model: M730UM, number of slots in tool magazine: 12, number of axes: 5, This 5-axis DMG MORI MORI NLX 2500/700 SY was manufactured in 2023. It features a turning length of 700 mm and a powerful main spindle with a maximum speed of 4,000 rpm. The machine is equipped with a 12-station turret and integrated automation for efficient parts handling. If you are looking to get high-quality turning capabilities, consider the DMG MORI MORI NLX 2500/700 SY horizontal turning machine we have for sale. Contact us for further details. Tsdpfx Aaozy N Nls Ijc - Control Unit: MITSUBISHI M730UM with CELOS (MAPPS V) on 21.5-inch Multi-Touchscreen ERGOline Touch- Turning Length: 700 mm- Main Spindle (Spindle 1): 18.5/18.5/15 kW (25% ED/50% ED/cont.), 4,000 rpm, JIS A2-8 spindle nose, Ø91 mm spindle bore- Main Spindle Chuck: 10" Hydraulic 3-jaw chuck (Kitagawa BR10A821, Ø254 mm) with hollow clamping cylinder (Ø80 mm bar passage)- Counter Spindle (Spindle 2): 11/7.5 kW (25% ED/cont.), 6,000 rpm, JIS A2-5 spindle nose, Ø43 mm spindle bore- Counter Spindle Chuck: 6" Hydraulic 3-jaw chuck (Kitagawa BR06A521E, Ø170 mm) with full clamping cylinder- Turret: 12-station BMT60 turret with 10,000 rpm driven tools (5.5/5.5/3.7 kW power, 40/30/14 Nm torque)- Y-Axis Travel: ±50 mm (Rapid traverse 10 m/min)- X-Axis Direct Measuring System: Magnetic linear scale system (0.01 µm resolution)- Tool Setter: Manual swing-type tool presetter for Spindle 1 and removable tool presetter for Spindle 2- Automation & Parts Handling: Integrated parts catcher for main/counter spindle (up to Ø80 mm x 200 mm, 3 kg max), workpiece discharge conveyor belt, pneumatic workpiece ejector (Spindle 2)- Bar Feeder & Interface: Bar feeder interface (multi-brand) with Top Automazioni X-Files 380M 3m bar feeder (80 mm max bar diameter)- Coolant & Filtration System: Hinge-belt chip conveyor (right side discharge), 0.8 MPa high-pressure coolant pump, INTERLIT pump unit with 15 bar high-pressure pump & double cartridge filter, coolant gun- Auxiliary Equipment & Interfaces: Oil mist collector interface (Ø150 mm port), 3-phase autotransformer (45 kVA, 400V/200V, 50 Hz), double foot switch for chuck operation- Machine Operating Hours (from HMI readout):- Machine Power-On Time: 8,120 hours- Program Run Time Head 1: 3,751 hours- Cumulative Cutting Time Head 1: 1,904 hours Technical Specification Counter Spindle Yes Driven Tools Yes

Condition: reconditioned (used), Year of construction: 1990, Universal Tool Milling Machine Make: DECKEL Model: FP 1 Aktiv Year of manufacture: 1990 – workshop-inspected Machine no.: 2102-5866 Milling head type: 2171 Milling head no.: 4613 Geometric inspection with test report Accessories: - 3-axis active digital readout HEIDENHAIN TNC 113 with active function in X, Y, and Z axes - Universal table 590 x 250 mm (T-slot: 12 mm) - Vertical milling head SK 40 with pull stud thread S 20 x 2 - Without coolant system; can be retrofitted if required - Centralized lubrication, electric - Operating manual Tjdsx It Rxspfx Aa Isc Used as seen, sold without warranty The machine is technically in the condition of its year of manufacture.

Condition: good (used), Year of construction: 2008, functionality: fully functional, total width: 1,700 mm, total length: 1,765 mm, travel distance X-axis: 500 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 400 mm, compressed air connection: 4 bar, Wenzel Smart Gear - gear and 3D coordinate measuring machine The machine is in very good condition and fully functional. It has been regularly serviced and well looked after. Machine data: • Machine dimensions L=1765mm W=1700mm H=2232mm Todpfx Aovvudksa Ijc • Max. rotary table workpiece diameter = 5 to 270mm • Measuring accuracy gear testing in accordance with VDI/VDE2612/2613 Group II • Max. rotary table load = 20 daN • Travel paths X= 500mm Y=450mm Z=400mm • Scanning probe - Renishaw SP600M • 7x SP600 change plate for probe included • Module measuring range 0.4 - 10mm • Active air damping of the machine • Year of manufacture 2008 • Accessories such as driver, reference ball etc. as shown • Jaw chuck D=80mm with inside and outside jaws • 24 inch monitor, mouse, keyboard The following software modules are included: Gear cutting software: • TMain - program management • TStylus – Probe management • TCali – Probe calibration • TAmo – Calculated axis position determination • TGear – Spur gear measuring program • TGear – Head and root circle option • TWorm – Worm measuring program 3D software • Metrosoft CM 3.8

Condition: used, weight . kg taper MK . The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Tjdpsyqvk Ejfx Aa Isc Your Markus Hirsch Team

Condition: like new (used), Donau Donauflex 135 High-Speed Radial Drilling Machine Manufacturer: Donau Model: Donauflex 135 Year of manufacture: 2020 Condition: Very good, used but like new Available immediately from stock. Tsdpfozgvmqex Aa Ioc

Condition: used, Year of construction: 1977, functionality: fully functional, Headstock and faceplate lathe with sliding bed This machine can be used for normal turning operations, as well as with the bed shifted by approximately 500 mm, for large diameters up to 2000 mm. This makes the machine very space-saving. It is a special lathe for both normal and large workpiece diameters due to this sliding bed feature. Tjdpfx Aajzxgr Ue Iec Manufacturer: Ravensburg Model: 1500 x 2000 mm Year of manufacture: 1977 Faceplate diameter: 1500 mm Center height in the saddle: 1000 mm with the bed shifted Workpiece diameter in the saddle: 2000 mm Turning length: 2000 mm Simple tool holder: 90 mm high Top slide with automatic feed: 500 mm Top slide, transverse: 400 mm Cross slide: 700 mm 3-way bed, width: 240; 150, 150 mm L x W x H: 5400 x 2300 x 2300 mm Weight: approx. 14 tons

Condition: used, Year of construction: 2001, grinding length 600 mm Todpfxezi Ey Ss Aa Iec grinding width 400 mm workpiece height 350 mm table-size 820 x 350 mm dist. center of grinding spindle - table 140-525 mm table movement 660 mm workpiece weight max. 400 kg diameter / bore of grinding wheel 350 x 50 x 76,2 mm table speeds 2-28 m/min power capacity - grinding motor 3,7 kW total power requirement 8 kW weight of the machine ca. 2100 kg dimensions of the machine ca. 4,5 x 3 x 2,4 m Geipel & Hotz FS 60 AC surface grinder, built in 2001, in good condition
