Used Zps for sale (13)

Condition: ready for operation (used), Year of construction: 2008, travel distance X-axis: 1,010 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 1,010 mm, controller manufacturer: HEIDENHAIN, controller model: 530, table load: 2,500 kg, overall weight: 17,000 kg, spindle speed (max.): 8,000 rpm, spindle motor power: 43,000 W, number of axes: 4, This 4-axis TAJMAC-ZPS H 63 Standard was manufactured in 2008. It features an X-axis travel of 1010 mm, Y-axis travel of 800 mm, and Z-axis travel of 1010 mm, along with a maximum table load of 2500 kg. The machine is equipped with a tool changer that holds 102 positions. If you are looking to get high-quality machining capabilities, consider the TAJMAC-ZPS H 63 Standard horizontal machining centre we have for sale. Contact us for further details. • B-axis rotation: 360.000 deg • Table size: 800 x 630 mm • Tool changer capacity: 102 positions • Direct measurement on X, Y, Z, B axes Rjdpfx Acsyuwwnsvor Additional equipment • BLUM probes • Main Service jobs: 2022 – Z-axis ball screw replacement2017 – B-axis motor replacement2010 – Y-axis scale replacement2009 – High-pressure cooling filter pump replacement Technical Specification Taper Size ISO 50

Year of construction: 1992, condition: ready for operation (used), This ZPS AN6-40 A was manufactured in 1992. It features a spindle bore of 40 mm and is cam-controlled. Equipped with an internal grooving slide "inclined plane" and a marking device, it is ideal for specialized tasks. Contact us for more information about this machine. Additional information Rsdpfxsx D Rb Rj Acvor • Number of spindles: 6 • Spindle bore: 40 mm • Cam-controlled • Includes internal grooving slide "inclined plane" and marking device

Condition: ready for operation (used), Year of construction: 2015, travel distance X-axis: 560 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 560 mm, controller manufacturer: HEIDENHAIN, controller model: iTNC 530, total height: 2,242 mm, table width: 2,170 mm, overall weight: 8,600 kg, spindle speed (max.): 10,000 rpm, tool weight: 7,000 g, product length (max.): 4,177 mm, number of axes: 3, This 4s TAJMAC-ZPS H40 TREND horizontal machining centre was manufactured in 2015. It features a spindle speed range of 40 – 10,000 rpm and an automatic tool changer with a capacity of 45 tools, ensuring efficient operation. With a rapid traverse of 50 m/min and a rotary table indexing range of 360°, this machine offers versatile machining capabilities. Consider the opportunity to buy this TAJMAC-ZPS H40 TREND horizontal machining centre. Contact us for further details. • B axis (table indexing range): 360° • Distances: • Spindle face to rotary table axis: 130–690 mm • Spindle axis to pallet clamping surface: 80–590 mm • Floor to pallet surface: 950 mm • Feedrates: • Feedrates in X/Y/Z: 0–15 m/min (programmable up to 50 m/min) • Rapid traverse in X/Y/Z: 50 m/min • Acceleration in X/Y/Z: 5 m/s² • Rotary table indexing time: • 0–90°: 3.2 sec • 0–180°: 4.6 sec • 0–270°: 5.5 sec • 0–360°: 6.7 sec • Accuracy (VDI/DGQ 3441): • Direct measuring system: Positioning X/Y/Z 0.008 mm; Repeatability X/Y/Z 0.005 mm • Indirect measuring system: Positioning X/Y/Z 0.010 mm; Repeatability X/Y/Z 0.006 mm • Spindle: Rodpfxoykacxs Acvor • Transmission: Belt • Continuous torque (S1): 90 Nm • Torque at overload (S6-40%): 127 Nm • Automatic Tool Changer: • Capacity: 45 tools • Tool search: Both directions • Tool-to-tool time: 3.5 sec • Max tool diameter: 85 mm (with adjacent tools), 125 mm (without adjacent tools) • Max tool length: 300 mm • Max total weight in changer: 200 kg Additional equipment • Automatic pallet changer (APC): • Number of pallets: 2 • Pallet exchange time: 10 sec • Pallet weight: 90 kg • Coolant filtration unit: TECNIMETAL (weight without coolant: 280 kg) Technical Specification Taper Size SK 40

Condition: ready for operation (used), Year of construction: 1999, travel distance X-axis: 1,200 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 600 mm, controller manufacturer: SELCA, controller model: S3045, spindle speed (max.): 3,000 rpm, number of axes: 3, This 3-axis ZPS MCFV 125 EZ was manufactured in 1999. It features a Selca S3045 control system, a spindle speed of 3,000 rpm, and a tool changer with a capacity of 15 tools. The table size is 1,300 × 600 mm, and it includes a gearbox for gear changes. Consider the opportunity to buy this ZPS MCFV 125 EZ vertical machining centre. Contact us for more information. Rsdpfx Asyctt Iecvor • Rotary axes: No • Tool changer: 15 tools • Table size: 1,300 × 600 mm • Optical scales: Yes • Options: Gearbox (gear change) Technical Specification Taper Size ISO 50

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 220 294-0025, travel distance X-axis: 1,650 mm, travel distance Y-axis: 810 mm, travel distance Z-axis: 810 mm, controller model: HEIDENHAIN TNC 426 PB, spindle speed (max.): 6,000 rpm, TECHNICAL DETAILS X-axis travel: 1,650 mm Y-axis travel: 810 mm Z-axis travel: 810 mm Spindle taper: ISO 40 Spindle speeds: 30 - 6,000 rpm Spindle motor: 17 / 20.5 kW Number of tools: 2 x 16 Table dimensions: 1,800 x 780 mm Number of T-slots: 5 Rapid traverse x/y/z: 20 m/min MACHINE DETAILS Control: HEIDENHAIN TNC 426 PB Dimensions & Weight Space required: approx. 5,585 x 2,440 x 2,360 mm Machine weight: approx. 11,400 kg Rodpfeyg Dmmox Acver EQUIPMENT 2x tool magazine with 16 positions each Chip conveyor Cooling system Operating manual

Condition: ready for operation (used), Year of construction: 2014, functionality: fully functional, machine/vehicle number: V370C0062, travel distance X-axis: 1,000 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 600 mm, rapid traverse X-axis: 40 m/min, rapid traverse Y-axis: 40 m/min, rapid traverse Z-axis: 40 m/min, feed length X-axis: 1,200 mm, feed length Y-axis: 1,000 mm, nominal power (apparent): 45 kVA, controller manufacturer: Heidenhain, controller model: 540, workpiece weight (max.): 3,000 kg, table load: 3,000 kg, overall weight: 11,500 kg, spindle speed (min.): 15,000 rpm, spindle speed (max.): 15,000 rpm, spindle nose: Sk 40, number of spindles: 1, number of slots in tool magazine: 30, tool length: 250 mm, tool diameter: 115 mm, tool weight: 6,500 g, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Digital drives Direct linear measurement Thermal spindle stabilization Rjdpfoxcixrjx Acvjr External tool cooling Fully enclosed working area Chip conveyor with integrated coolant tank End of work cycle signaling Tool magazine – 30 stations Through-spindle cooling (chip blaster) Tool measuring probe Workpiece measuring probe – Interface RMI only Rinsing gun

Condition: ready for operation (used), Year of construction: 2018, operating hours: 9,000 h, functionality: fully functional, machine/vehicle number: V374C0020, travel distance X-axis: 1,000 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 600 mm, nominal power (apparent): 31 kVA, torque: 197 Nm, controller manufacturer: Heidenhein, controller model: iTNC 530, workpiece weight (max.): 3,000 kg, table width: 1,000 mm, table length: 1,200 mm, table load: 3,000 kg, rotational speed (min.): 15,000 rpm, rotational speed (max.): 18,000 rpm, operating hours of spindle: 1 h, number of spindles: 1, number of slots in tool magazine: 40, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, CNC Machining Centre – ZPS MCV 1220 – 5-Axis – 2018 Manufacturer: ZPS Model: MCV 1220 Year of manufacture: 2018 Condition: In production, fully operational Availability: Immediately Serial number: On request Machine location: Address visible Control System CNC control: Heidenhain TNC 350 Number of axes: 5 Working Area Rsdpfxeymmd Us Acvjr X-axis travel: 1200 mm Y-axis travel: 800 mm Z-axis travel: 600 mm Table size: 1200 × 1000 mm Max. table load: 3000 kg Spindle Spindle speed: 18,000 rpm Spindle power: 31 kW Tool interface: HSK 63 Coolant through spindle: Yes Tool Changer Number of tool stations: 40 Type: Chain-type tool magazine Equipment - Chip conveyor - Through-spindle coolant - Fully enclosed working area - Electronic handwheel - Renishaw measuring probe - Machine documentation Key Information - The machine is equipped with a fully refurbished CYTEC angle head with 0 operating hours. - Linear guides and carriages have been refurbished. - The complete machine geometry has been verified and recalibrated. - The machine is offered in operating condition. - Power-on test run possible at the seller's premises prior to purchase. - Disassembly and loading after payment to be arranged by the buyer. - Price includes tool holders, tools, and Renishaw probe. Dimensions & Weight On request

Condition: used, machine/vehicle number: 1339, Lederschärfmaschine / Leather sharpening machine ZPS Gottwaldov KS-3 Serial-No. 01339/P2 Online-Video-Inspection by Skype-Video We would be very pleased with your visit - more machines on Stock Redpfxjtzc N Us Acver Available Immediately - Can be inspect On Stock Emskirchen / Nürnberg - Can be test

Condition: excellent (used), Year of construction: 2016, operating hours: 6,900 h, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 760 mm, workpiece weight (max.): 1,350 kg, operating hours of spindle: 5,500 h, Equipment: chip conveyor, DEPO/ZPS MCV 1060 | 3-axis Heidenhain TNC 640 Rjdpfx Acou Db Hxovjr SK40 (white spindle) External coolant (water). Air through the spindle. 30-position tool changer. Very good condition! Flexible payment terms. Available immediately!

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, turning length: 1,000 mm, turning diameter: 430 mm, travel distance X-axis: 275 mm, travel distance Z-axis: 1,070 mm, swing diameter over bed slide: 680 mm, Version with driven tools TECHNICAL DETAILS Spindle bore: 92 mm Bar diameter: 80 mm X-axis: 275 mm Z-axis: 1,070 mm Turning length: 1,000 mm Turning diameter: 430 mm Swing diameter over bed: 680 mm Number of tool stations: 12 (driven) MACHINE DETAILS Three-jaw chuck: RÖHM D 315 mm Rjdpjwtraijfx Acver Control: Heidenhain Pilot 3190 EQUIPMENT - Hydraulic clamping cylinder

Condition: good (used), Year of construction: 1994, functionality: limited functionality, travel distance X-axis: 760 mm, travel distance Y-axis: 410 mm, travel distance Z-axis: 560 mm, nominal power (apparent): 11 kVA, torque: 142 Nm, table width: 470 mm, table length: 920 mm, table load: 600 kg, overall weight: 7,500 kg, spindle motor power: 11,000 W, number of spindles: 1, number of slots in tool magazine: 20, input voltage: 360 V, type of input current: three-phase, Equipment: chip conveyor, rotational speed infinitely variable, Yasnac MX3 control system. The machine has an unknown tool change malfunction, but it can be loaded manually. The encoders have been replaced, as have some screw bearings. See photos for condition. Under power, still in production. Rodpfx Aexggmhscvsr

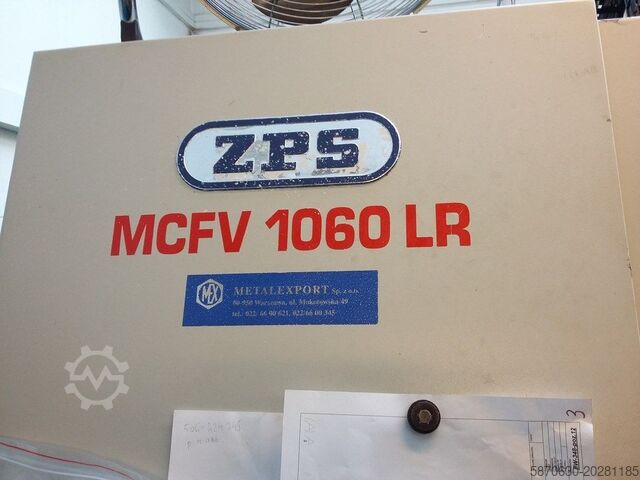

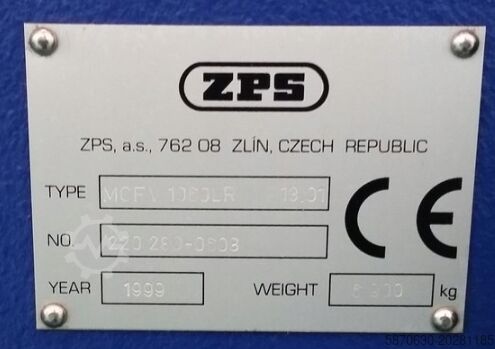

Condition: excellent (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: 220280-0808, controller manufacturer: HEIDENHAIN 426, workpiece weight (max.): 900 kg, table width: 1,270 mm, table length: 590 mm, table load: 900 kg, rotational speed (max.): 8,000 rpm, overall weight: 7,500 kg, spindle motor power: 15,000 W, number of slots in tool magazine: 24, Used machining centre of Czech production, model ZPS MCV 1060 LR. Technical specifications of the machine: Travels: 1060mm x 610mm x 635mm, Control: HEIDENHAIN 426, Redexm S Nbjpfx Acvor Spindle speed: 8,000 rpm, Spindle power: 15 kW, Machine weight: 7,500 kg, Rapid traverse: 20,000 mm/min, Working feed: 8,000 mm/min. Table dimensions: 1270 x 590 mm, Max. table load: 900 kg, Spindle – BT40 taper. Tool magazine: 24-position, umbrella type. The machine is fully operational and in good technical condition. The offered machine is used, sold without warranty and without certification.

Condition: good (used), machine/vehicle number: 224194-0451, Euroturn (ZPS Mori-Say) 6-32 rebuilt multi-spindle screw machine SN: 224194-0451 6 Spindles 32mm Capacity Voltage: 480v Rodetic Hqjpfx Acver With Spindle Stopping Siemens Control System Pickoff and Back Finish Stock Reel Cover and Stand Sedimentation Tank Upgrade: Servo Feed Drive in place of main spindle drive Upgrade: Repair Drum Path Quality Inspection Report Machine Install 1-Year Warranty Turnkey Available Call for more information
