Used Blade Grinding Machine for sale (84,152)

Condition: used, Year of construction: 1981, drill diameter 32 mm drilling length 0 mm Universal Drill Bit Grinder lots of accessories Bedpot Hwn Ajfx Abbjlr

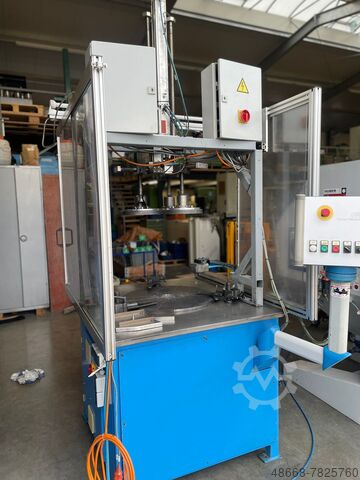

Condition: ready for operation (used), Wolters 3 R 600 lapping machine 3 stations flat lapping machine Year of manufacture: 2001 Grinding wheel: 600mm Rated current: 16A Operating voltage: 400 V Stepless speed 3 workstations no lapping agent pump available. You are welcome to come by for an inspection. You will receive a proper invoice. For foreign customers can also be a net invoice. Prerequisite is a valid Ust.Indent.Nr. Subject to prior sale. Bodpfx Aboir Inaobelr Visit our store and see our other offers. Indicated company names and trademarks are the property of their owners and serve only for identification and description of the products. Deviations from technical data and errors in the description of the article can happen and remain reserved.

Condition: used, Year of construction: 1980, Technical details: Bsdpfx Abowy Ri Nsbslr grinding diameter: 380 mm grinding length: 1000 mm centre height: 180 mm grinding wheel diameter: 400 mm max. workpiece weight between centres: 250 kg total power requirement: 10 kW weight of the machine ca.: 4,1 t dimensions of the machine ca.: 3 x 2 x 1,6 m with internal grinding attachment with fixed and swivelling headstock with coolant tank *

Condition: excellent (used), Year of construction: 2007, Gleason Pfauter G130H CNC vertical gear hobbing machine Control, Siemens 840D Year of manufacture, 2007 Capacity Maximum workpiece diameter, about 130 millimetres Maximum gear width, about 170 to 180 millimetres Maximum module, up to module 3 or 4 depending on the configuration Minimum module, about module 0 point 5 Hob head Hob spindle power, about 11 point 5 to 14 kilowatt Hob speed range, about 10 to 4000 revolutions per minute Hob head swivel, about plus and minus forty five degrees Maximum hob diameter, about 100 millimetres Maximum hob length, about 240 to 317 millimetres Hob shift travel, about 170 to 220 millimetres Axis travels X axis travel, about 200 millimetres Y axis travel, about 170 millimetres Z axis axial slide travel, about 250 to 350 millimetres Work spindle and table Work spindle speed, about 0 to 1000 revolutions per minute Table diameter, about 160 to 168 millimetres Table bore, about 65 millimetres Maximum clamping length, about 245 millimetres Hydraulic clamping included in most units Process Wet cutting Bsdjxxzqljpfx Abbjlr External gear hobbing Two cut cycles and taper or crown hobbing possible ISO thirty hob arbor Optional automatic loading systems Electrical and general Machine weight 11 tons Overall footprint, roughly three metres by three metres with guarding

Condition: excellent (used), Year of construction: 2013, operating hours: 2,730 h, functionality: fully functional, workpiece weight (max.): 150 kg, clamping length: 1,700 mm, grinding wheel diameter: 660 mm, center height: 270 mm, grinding length: 1,500 mm, 1 pc. used crankshaft & camshaft cylindrical grinding machine Brand: BERCO Model: LYNX 2000 Year of manufacture: 2013 Technical Data Max. grinding diameter (plunge grinding): 220 mm Max. grinding diameter (cylindrical grinding): 300 mm Max. workpiece weight between centers: 150 kg Bodpfxju R Nvuj Abbslr Center height above table: 270 mm Distance between centers: 1,700 mm Max. grinding length: 1,500 mm Chuck diameter: 180 mm Tailstock quill travel: 50 mm Max. grinding wheel diameter: 660 mm Min./max. grinding wheel width: 20 / 80 mm Max. circumferential speed: 35 / 80 m/sec Grinding spindle head (X-axis) Axis drive with linear motor - travel: 490 mm Measuring system: optical scale, resolution 0.0001 mm Workpiece headstock (C-axis) Workpiece spindle speed range: 1 - 1,000 rpm Encoder measuring range - resolution: 0.0001 degrees Table (Z-axis) Axis drive with linear motor Measuring system: optical scale - resolution 0.0001 mm Machine dimensions (L x W x H): 5,500 x 2,600 x 2,000 mm Space requirement: approx. 7,500 x 5,000 mm Machine weight: 9,850 kg Accessories: CNC control Siemens 840 D Oil cooler Coolant system with treatment unit

Condition: used, Year of construction: 2022, Plus freight 4,000.00 € and installation and commissioning 5,000.00 € Grinding system B Sand 5 with partial lathe Working principle The panel is placed on the infeed table. It goes into the partial lathe and centered. It is ground in the grinding system, through and back. The panel is turned in the partial lathe. It is ground on the other side in the grinding system. Then there are two options: either the panel goes onto the outfeed table and unloaded or it comes back onto the infeed table and is unloaded there (the second option extends the working time). Grinding system equipment 1 upper grinding lamella roller suitable for surfaces. Power 3 kW; D 420 mm; L 1300 mm. Cross brush suitable for grinding the cross fibers. D 420 mm; L 300 mm. Power 1.1 kW. Cross brush suitable for grinding the cross fibers. D 420 mm; L 300 mm. Power 1.1 kW. 3 upper sanding discs for perfectly trimming the longitudinal and transverse wood fibers. Power 1.5 kW each; D 400 mm. Disc brush for beveling edges. The unit functions as a deep brush. After detecting the panel edges, it will follow the door edges. Power 0.75 kW; D 250 mm. Machine features: -The unique sanding system of this machine guarantees perfect wood sanding and/or intermediate sanding of the panels. -All tools are controlled by frequency converters. -All brushes are equipped with quick-release sanding strips without replacing the hub. -The discs are equipped with air bladders to optimize cleaning and service life. -Sanding discs are equipped with a Velcro fastening system. -The feed and rotation speed are PLC-controlled to prevent edge breakage. -High-quality sanding on 4 sides thanks to the system's constant removal rate. -Automatic and rapid unit changeover. - Constant throughput height, PLC and industrial software enable interlinking in a surface line. - Continuously variable speed of the discs, brushes and feed thanks to the fully equipped frequency converter. - Right/left rotation of the discs and brushes with different abrasive grits. - Individually driven feed of the discs, rollers and belts. - Additional adjustment of the brushes and discs to balance the use of the abrasive and to allow for changing the grinding pressure on the surfaces. - Strong support bed made of tubular steel guarantees the best rigidity, stability and flatness. - Planed upper support bed to ensure the best parallelism of the working surface for the grinding discs. - All unit carriages are designed with linear recirculating ball bearing guides, thus high load capacity and high precision. - Motorized feed belt controlled by a frequency converter, 0.55 kW. Machine doors equipped with safety devices. - Machine doors equipped with windows to observe the workpieces during operation. - Under the units, there are 80 mm rubber-coated pressure rollers to hold the workpieces in place during processing. · Low follow-up costs thanks to individual blade replacement. · Low running noise thanks to the enclosed system housing. · All units have suction housings with their respective suction supports. Cover plate with suction nozzle. · Completely encapsulated machine housing for a clean environment. Bljdpfx Aovvkipjbbsr

Condition: ready for operation (used), Year of construction: 1990, Immediately available ex location: Horizontal surface grinding machine ELB Type: Optimal 6375 ND Year of manufacture: 1990 Table: 1000 x 370 mm Grinding length: 1000 mm Grinding width: 375 mm Installation height: 375 mm Table load: 300 kg Automatic feed Magnetic chuck Drive: 3.7 / 4.7 kW Bjdpfxexzdk Hj Abbjlr Coolant system Weight: 4 t Price: EUR 3,750.-- plus VAT ex location.

Condition: ready for operation (used), Year of construction: 2007, operating hours: 11,960 h, functionality: fully functional, machine/vehicle number: 2416, grinding length: 1,500 mm, overall weight: 24,000 kg, TECHNICAL DETAILS Grinding length: 1,500 mm Bljdpfxexvxn Ao Abbor MACHINE DETAILS Dimensions & Weight Space requirement: 3,900 x 3,500 x 2,500 m Machine weight: 24 t Operating Hours Operating time: 21,727 h Production time: 11,960 h EQUIPMENT Hoffmann KSM filter system 2 spare measuring heads Marposs S/500 Prismatic supports

Condition: used, Year of construction: 1968, Technical details: Blsdpevbzwzofx Abber x-travel: 400 mm y-travel: 250 mm workpiece height: 500 mm grinding diameter: 220 mm table surface area: 600 x 320 mm throat: 310 mm range of angles: 12 ° grinding wheel stroke - vertical: 110 mm stroke speeds: 0 - 6 m/min grinding spindle speed: bis 50000 U/min peripheral speed: max. 35 m/sec capacity: ca. 7 kVA power capacity: 6 kW weight of the machine ca.: 2 t dimensions of the machine ca.: 3 x 3 x 3 m rotary table d = 300 mm frequency changer *

Condition: excellent (used), Year of construction: 2015, Okamoto ACC 64 CA Surface grinding machine Okamoto ACC 64 CA with CA Surface Grinding Control, year of manufacture 2015, excellent condition. CE compliant!! The machine comes from the training workshop of a renowned German mechanical engineering company. Technical Data: - Year of manufacture: 2015 - Table size: 605 x 400 mm - Table travel: 800 x 440 mm - Distance spindle center (min/max): 22.5 – 522.5 mm - Max. load: 1000 kg - X axis longitudinal travel: 3000 – 25000 mm/min - Y axis crossfeed: 0 – 2000 mm/min - Rapid traverse: 4000 mm/min - Z axis infeed: 0.0001 – 0.001 mm - Rapid traverse: 1000 mm/min - Grinding wheel: 355 x 38 x 127 mm - Speed: 500 – 2500 rpm - Motor: 5.5 kW - Weight: 4950 kg Bodpfx Asxp H Ikebbslr - Dimensions: 3550 x 2695 x 2203 mm Accessories and features: About the machine: Offered here is a surface grinding machine Okamoto ACC 64 CA with CA Surface Grinding Control. This universal surface grinding machine is in excellent original condition. It comes from a facility where it was only lightly used for training purposes. The control is very easy to operate. With a grinding path of 800 mm longitudinally and a cross travel of 400 mm, this machine is ideal for toolmaking, jig manufacture, and small batch production. The series stands out for its comprehensive standard equipment and ease of operation. The robust spindle head design and the double V-guideways in both longitudinal and cross axes ensure lasting precision. The intuitive operation of the control elements simplifies handling and significantly increases productivity. The guideways are automatically lubricated via a central lubrication system. The Okamoto has been mechanically and electrically inspected by us. Take the opportunity to inspect and test the Okamoto under power on site. You can find further surface grinding machines from reputable manufacturers on our website.

Condition: used, Year of construction: 1993, table-size 1500 x 550 mm grinding range 1250 x 500 mm workpiece height 500 mm grinding width 550 mm grinding length 1250 mm voltage 400 V Bsdpfx Ajxukn Eebbolr weight of the machine ca. 10 t Machine has cooling arrangement, dressing arrangement and auto. vert. feed. We supply a magnetic plate along with the machine 1500 x 500 mm and a rotary table.

Condition: used, Year of construction: 2022, Oscillating cylinder grinding machine – technical specifications: A possible screwed version for spindle sleeve clamping. Something similar to the ProLoc device is used. Storage location: Nattheim. Bljdpowhqprefx Abbjr

Condition: used, Technical details: Blsdju Ngkmspfx Abbsr grinding length: 630 mm grinding width: 250 mm workpiece height: 300 mm Table dimensions: 2050 x 340 mm magnetic plate size: 600 x 250 (110V) mm feed range: Tisch: 0,005 - 0,045 mm/Hub feed of spindle: 0,001 - 0,045 mm/Hub dimensions of grinding wheel: Ø 220 x 46 mm total power requirement: 8,5 kW dimension machine xH: 2,1 x 1,8 x 1,9 m dimension coolant device LxWxH: 0,8 x 0,31 x 0,5 m -Longitudinal table stroke = 700mm -transverse travel of table = 800mm Coolant pump *

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 2352, center height: 200 mm, grinding length: 500 mm, grinding diameter: 55 mm, rotational speed (max.): 5,970 rpm, controller model: Siemens Sinumerik 840-D, TECHNICAL DETAILS Grinding diameter: 5–55 mm Grinding length: 500 mm Workpiece diameter: 5–55 mm Workpiece length: max. 500 mm Grinding wheel arrangement: right, 30° inclined Grinding wheel dimensions: 600 x 30 x 203.2 mm Drive power: 7 kW X/Z-axis drive: ball screw Travel speed: 0.01 – 10,000 mm/min Resolution: 1 µm Workpiece spindle runout: < 1 µm Spindle speed max.: 5,970 rpm Workpiece changing system: Fanuc robot Control system: Siemens Sinumerik 840-D MACHINE DETAILS Total power requirement: 44 kW Centre height: 200 mm Machine weight: 7,000 kg EQUIPMENT Tailstock Longitudinal adjustment: manual Rotating centre: Junker standard, diameter 75 mm Clamping pressure: adjustable via hydraulic system Tailstock dimensions: diameter 100 mm × 430 mm Blsdpfx Aoxvxl Iebber

Condition: used, Year of construction: 1994, Technical details: grinding diameter: 300 mm grinding length: 600 mm centre height: 190 mm z-axis: 865 mm x-axis: 250 mm clamping length: 1000 mm peripheral speed: 45 m/sec grinding slide swivable +/-: 8 ° grinding wheel width x diameter: 80 x 508 mm work piece spindle speed: 1 - 800 U/min weight of the machine ca.: 5 t Machine with SIemens 840 C control - coolant device - Marposs measuring device Bjdpfx Abevgbzdsbolr *

Condition: used, Year of construction: 1989, table-size 1800 x 900 mm grinding range 1500 x 900 mm workpiece height 690 mm Bodpfx Aboxukqaebslr grinding length 1500 mm grinding width 900 mm table speeds 4 - 36 längs m/min table speeds 1 - 60 quer m/min grinding wheel size 500 x 100 x 203 mm grinding spindle speed 1000 U/min voltage 400 V total power requirement 80 kW grinding spindle drive 28 kW weight of the machine ca. 17 t Machine was complete refurbished and modernized in 2009/23. X-axe and drive were refurbished in 2023 and the machine got new magnetic chucks. Machine has cooling arrangement, dressing arrangement and auto. vert. feed. Machine has mechanical table drive and a Siemens Control.

Condition: used, Year of construction: 2022, Oscillating cylinder sanding machine, technical specifications: A possible screw variant for spindle sleeve clamping. Something similar to a ProLoc device is used. Storage location: Nattheim Bljdpfx Abjwhqplsber

Condition: used, Year of construction: 1987, Technical details: grinding length: 600 mm grinding width: 350 mm workpiece height: 600 mm feed: 1 - 30 m/min magnetic plate size: 610 x 255 mm distance table - spindle center: min./max. 150 / 420 mm grinding spindle speed: 3000 U/min stroke of the table: min./max.: 200 / 650 mm total power requirement: ca. 4,0 kW weight of the machine ca.: 2,5 t dimension machine xH: 1,5 x 1,9 x 2,0 m dimension coolant device LxWxH: 0,63 x 0,40 x 0,65 m Headstock: -vertical travel Y = 0.002 - 0.06 mm -adjustment = 0,001 - 2mm Cross slide: -transverse travel Z = 360mm -feed adjustment = 1 - 60mm/stroke Bedpfx Asu Ngicjbbslr -rapid traverse = 1.2 m/min. Dressing manual Cooling water unit with capacity 140Liter Equipment: -3x support feet -machine lighting accessories: -alignment device for grinding wheel holder *

Condition: ready for operation (used), Year of construction: 2001, operating hours: 87,310 h, functionality: fully functional, grinding wheel width: 400 mm, grinding wheel diameter: 600 mm, grinding diameter: 220 mm, overall weight: 13,000 kg, TECHNICAL DETAILS Maximum grinding diameter: 220 mm Bljdpfxoxvxhcs Abber Regulating wheel width: 400 mm Maximum grinding wheel width: 400 mm Grinding wheel drive: 55 kW Maximum circumferential speed: 45 m/s Regulating wheel dimensions: 350 x 400 x 203 mm CBN grinding wheel dimensions: 500 x 400 x 304 mm Aluminum oxide grinding wheel dimensions: 600 x 400 x 304 mm Grinding spindle headstock Total stroke of grinding spindle headstock: 130 mm Speed of grinding spindle headstock: 150 m/min Rapid traverse adjustment max.: 150 m/min Minimum infeed of grinding spindle headstock: 0.0005 mm Preselectable infeed size of grinding spindle headstock: 0.0005–0.05 mm Grinding wheel dresser Dresser support speed: 15–900 m/min Maximum stroke of dresser supports: 430 mm MACHINE DETAILS Overall power requirement: 75 kVA Dimensions & Weight Space requirement approx.: 4.47 x 2.77 x 2.49 m Machine weight approx.: 13 t Operating hours: 87,310 h

Condition: used, Year of construction: 1982, Technical details: grinding diameter: 600 mm grinding length: 3000 mm centre height: 315 mm Bledevb Dl Ujpfx Abber workpiece weight max.: 3000 kg work piece spindle speed: 8 - 120 U/min grinding wheel motor: 25 kW grinding wheel speed: 45 m/sec grinding wheel width x diameter: 750 x 80 mm table speeds: 30 - 4500 mm/min feeds of grinding head: 0 - 5 mm/min table swivelabel +/-: 7,5 ° total power requirement: 55 kVA weight of the machine ca.: 18 t dimensions of the machine ca.: 11,5 x 4 x 2,2 m - Internal grinding device - taper grinding up to 10,1° based on diameter - automatic grinding cycle - grinding wheels and flanges - dressing device - coolant attachment - dust exhauster, various steady rests *

Condition: used, Year of construction: 1955, grinding length 1000 mm grinding width 400 mm workpiece height 400 mm total power requirement 11 kW Bedpfxexuknxs Abbslr weight of the machine ca. 5 t dimensions of the machine ca. 4 x 2,5 x 2,5 m

Condition: ready for operation (used), Year of construction: 1972, functionality: fully functional, machine/vehicle number: 32300-16, grinding wheel diameter: 400 mm, grinding wheel width: 104 mm, overall weight: 1,500 kg, TECHNICAL DETAILS Grinding wheel diameter: 400 mm Max. grinding wheel width: 104 mm Grinding worm diameter: 270 - 400 mm Max. grinding worm width: 62/84/104 mm Grinding worm speeds during profiling: 18/35/70 rpm Max. module: 7 Min. module: 0.5 Pressure angle: 10 - 30 degrees Longitudinal travel of dressing unit: 156 mm MACHINE DETAILS Bsdpfsxvr A Tox Abbslr Electrical data Total connected load: 3 kW Electrical specification - voltage/frequency: 380 V / 50 Hz Dimensions & Weight Space requirement approx.: 1.5 x 1.4 x 1.3 m Machine weight approx.: 1,500 kg

Condition: used, Year of construction: 1975, Technical details: grinding length: 600 mm grinding width: 300 mm workpiece height: 450 mm Bedpfsvb Dmlex Abbolr total power requirement: 8 kW weight of the machine ca.: 2,2 t dimensions of the machine ca.: 2,8 x 3,0 x 2,0 m grinding spindle speed: 1440 / 2905 U/min with magnetic plate 600 x 200 mm autom. vertical feed coolant attachment *

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: 73866, workpiece weight (max.): 60 kg, rotational speed (max.): 2,300 rpm, overall weight: 5,000 kg, TECHNICAL DETAILS Module, max.: 7 Grinding worm diameter: 280–350 mm Grinding worm width: 84–104 mm Grinding worm speed (grinding): 1,100–2,300 rpm Grinding worm speed (profiling): 50–95 rpm Number of teeth, min.: 6 Number of teeth, max.: 600 Bsdexvrziepfx Abbelr Maximum permissible outside diameter: 360 mm Maximum workpiece weight: 60 kg Maximum grinding stroke: 175 mm Workpiece speed (grinding): max. 250 rpm MACHINE DETAILS Machine weight approx.: 5 t Electrical Data Mains connection: 3 × 400 V 50 Hz Machine voltage: 3 × 400 V 50 Hz Control voltage: 1 × 230 V 50 Hz / 1 × 24 V DC Contactor voltage: 1 × 24 V DC Solenoid valve voltage: 1 × 24 V DC

Condition: used, Technical details: grinding length: 12000 mm grinding width: 2800 mm workpiece height: 2510 mm max. workpiece weight: 24.000 kg table surface area: 11990 x 2500 mm distance between columns: 2820 mm cross rail adjustment: 2510 mm table feed: 1 - 40 m/min total power requirement: 110 kW weight of the machine ca.: 151 t dimensions of the machine ca.: 32,5 x 9 x 6,73 m .....machine is in top condition for high precision work! with CNC SIEMENS 840 D 1 universal grinding head, 22 kW swivelling of the grinding spindle +/-110° grinding wheel dimension 700 x 130 mm vertical stroke 1000 mm Blodpfswc A Snjx Abber with dressing unit 1 surface grinding head, 30 kW grinding wheel dimension 600 x 150 mm vertical stroke 230 mm with dressing unit coolant and filtering unit diverse grinding wheel flanges *
