JigIngersoll
Gantry 5000
Machine data
- Machine type:
- Jig
- Manufacturer:
- Ingersoll
- Model:
- Gantry 5000
- Machine number:
- 573385
- Year of construction:
- 2003
- Condition:
- not inspected (used)
- Functionality:
- unexamined
Technical details
- Travel distance X-axis:
- 525 mm
- Travel distance Y-axis:
- 400 mm
- Travel distance Z-axis:
- 450 mm
- Table load:
- 1,000 kg
Provision
- Location:
- Nordrhein-Westfalen, Germany
– Distance: about 1,080 km
- Availability:
- as of end of auction
- Delivery conditions:
- FCA
free
free
Description
Sinker EDM Machine with MultiChange IMC4

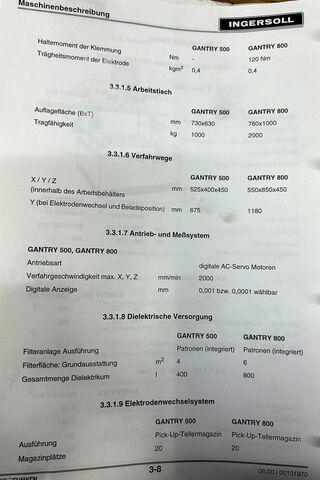

TECHNICAL DETAILS
Travel X-axis: 525 mm
Travel Y-axis: 400 mm
Travel Z-axis: 450 mm
Y position electrode changer: 675 mm
Drive: AC servo motors, digital
Rapid traverse: 2 m/min
Digital resolution: 0.001 mm
C-axis: 1 - 20 rpm
Load capacity with/without changer: 15 / 50 kg
Worktable: 730 x 630 mm
Load: max. 1,000 kg
Dielectric fluid tank: 400 l
Base area filter: 4 m²
Lifting tank: 750 x 650 x 420 mm
Dielectric fluid height: 375 mm
IMC 4
Electrode magazine: Double magazine
Number of electrodes: 182
Gripper: Double gripper
Workpiece pallet magazine: 8 pieces
Size per workpiece: 320 x 320 x 240 mm (optionally)
MACHINE DETAILS
Main dimensions: 2.2 x 2.15 x 2.54 m
Weight, operational: 4.8 t
Connected load: 7 kVA
IMC 4
Base area: 2,800 x 4,101 mm
Connected load: 11.6 kVA
