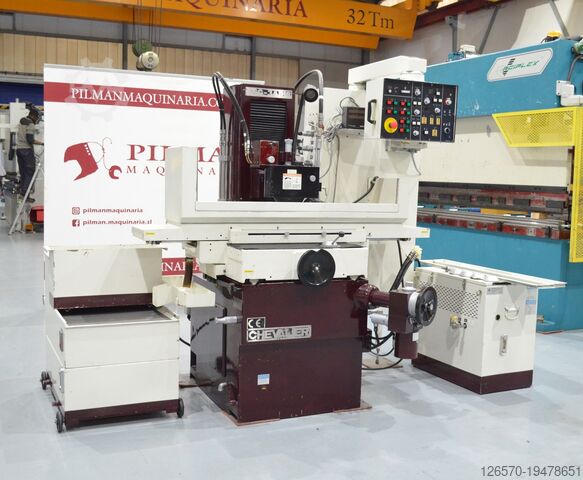

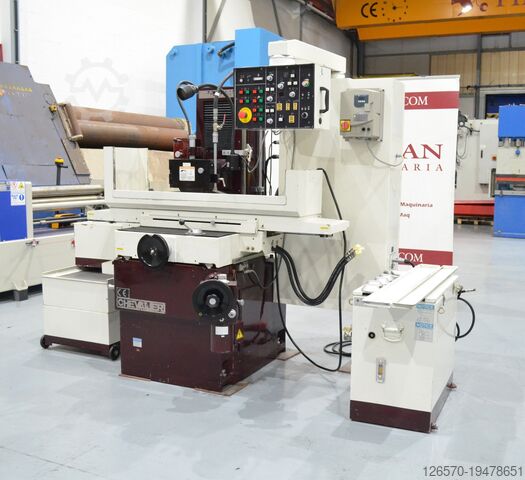

Surface grinding machine

Chevalier FSG-3A818

Condition: good (used), total height: 1,900 mm, total length: 2,180 mm, total width: 1,575 mm, workpiece weight (max.): 250 kg, distance table to spindle center: 457 mm, overall weight: 2,900 kg, grinding spindle speed: 3,450 rpm, Chevalier FSG-3A818 Surface Grinder – Automatic Z Axis Brand: Chevalier Model: FSG-3A818 Serial No.: M3905002 Pedpfowwrd Nox Akiorc Automatic Z-axis feed. Table dimensions: 203 × 557 mm Magnetic table: 200 × 450 mm Max. grinding travel (X, Y): 457 × 203 mm Distance from table to wheel center: 457 mm Longitudinal movement: - Speeds: 5 to 25 m/min - Max. manual travel: 530 mm / hydraulic: 500 mm Cross movement: - Max. movement speed: 960 mm/min - Automatic feed increments: 0.4 to 6 mm Vertical movement: - Automatic feed: 0.002 to 0.04 mm Wheel rotation speed: 3450 rpm Total power: approx. 3.7 kW Wheel diameter: 203 mm Maximum workpiece capacity on grinder: 250 kg (including magnetic table weight) Dimensions: 2180 × 1575 × 1900 (H) mm Weight: 2900 kg

Condition: new, Year of construction: 2026, 540×250 Surface Grinder (MYS1022) is a compact machine designed for precision grinding of small and medium-sized metal components. Its robust construction and advanced technologies ensure high machining accuracy and reliable operation in demanding industrial environments. Main advantages of the 540×250 (MYS1022) surface grinder The 540×250 (MYS1022) magnetic surface grinder is an ideal solution for industrial facilities requiring precise machining in a compact format. Designed for professional users, it combines advanced technologies such as hydraulic feed in two axes and precision guideways with a solid construction, ensuring reliability and high machining efficiency. Its compact dimensions and high accuracy make it an excellent choice for smaller workshops and production facilities where space is limited. Key benefits include: High grinding precision – maximum grinding area of 540 × 240 mm and transverse feed accuracy of 0.02 mm ensure excellent surface finishing quality. Compact construction – dimensions of 1800 × 1400 × 1800 mm and a weight of 900 kg allow easy installation in smaller production facilities. Smooth hydraulic feed system – two-axis feed system enables precise movements with transverse speed up to 600 mm/min, ensuring efficient machining. Stability and durability – robust construction with double guideways minimizes vibrations, guaranteeing stable operation during intensive use. Easy maintenance – centralized guideway lubrication reduces manual maintenance requirements and increases machine availability. Ready for operation – the machine is fully equipped for immediate production, minimizing setup and downtime. Machine design and technology Robust construction and precision components The MYS1022 surface grinder features a heavy-duty construction weighing approximately 1000 kg, providing excellent stability during machining operations. Hardened and ground linear guideways eliminate vibrations, ensuring smooth table movement and high-quality surface finishes. The spindle, driven by a 1.5 kW motor, operates with a grinding wheel measuring 200 × 20 × 32 mm, enabling efficient processing of various metal materials. Technical specifications Parameter Value Table dimensions 500 × 250 mm Longitudinal / transverse travel 560 × 260 mm Maximum grinding area 540 × 240 mm Maximum distance from table to spindle centerline 490 mm Table guideways Double guideway Transverse movement per vernier scale division 0.02 mm Transverse movement per handwheel revolution 2.5 mm Vertical movement per vernier scale division 0.01 mm Manual vertical movement per handwheel revolution 1.25 mm Grinding wheel dimensions 200 × 20 × 32 mm Grinding wheel speed 2850 rpm Main motor power 1.5 kW Hydraulic oil tank capacity 80 L Hydraulic pump motor power 1.5 kW Coolant pump motor power 40 W Machine dimensions 1800 × 1400 × 1800 mm Weight 1000 kg Standard equipment Magnetic table Grinding wheel Grinding wheel holder Cooling system Chip separator with magnetic filter Halogen lighting system Prsdpfx Akekkcm Ujisc Technical documentation (DTR) CE declaration

Condition: new, Year of construction: 2025, neu 2025 050068 prompt, Zwischenverkauf v Taiwan 40360 € 770.88 € 1 Podpfx Ajwirh Eokijrc 457 mm 450 mm 457 x 203 mm 450 x 200 mm 215 kg 500 mm 530 mm 5 - 25 m/min 960 mm/min 0,4 - 6 mm 230 mm 0,002 - 0,04 mm/min 2850 1/min 1,5 kW 0.75 kW 0.04 kW 0.19 kW 3,7 kW 2200 mm 1575 mm 1950 mm 1320 kg 215 kg 250 kg 203 x 12,7 x 31,75 mm control panel on swiveling arm aut. vertical feed grinding wheel spindle on 4 high precision angular contact bearings electro-magnetic chuck coolant equiptment 34 lt with magnetic separator and dust exhaust manual dresser with diamond grinding wheel grinding wheel flange grinding wheel balancing scale balance arbor LED machine lamp machine and equipment according to the CE-regulations user manual in GERMAN and ENGLISH

Condition: good (used), Year of construction: 2009, Control: Heidenhain iTNC 530 Spindle * Diameter: 180 mm * Taper: ISO 50 * Power: 51 kW * Speed: 2,000 rpm (2-speed gearbox) * Torque: 2,668 Nm * Spindle support: 550 mm Prodpfjy R N Ilex Akioc * Internal high-pressure coolant Travel distances * X: 5,000 mm * Y: 3,500 mm * Z: 2,350 mm * W: 1,000 mm (quill permanently extended 200 mm, at maximum travel – total reach 1,200 mm) Table * Size: 2,000 × 2,500 mm * Load capacity: 28 tons * Hydrostatically supported * B-axis positioning: 0.001° (double pinion, backlash-free) Other features * Tool changer: 60 positions * Siemens axis and spindle motors * Linear scales on all axes + rotary encoder on rotary axis * Handwheel HR 410 * Chip conveyor

Condition: good (used), total height: 2,500 mm, total length: 5,300 mm, total width: 2,500 mm, feed length X-axis: 1,550 mm, feed length Y-axis: 600 mm, grinding height: 800 mm, overall weight: 7,800 kg, GER RS 15/60 grinding machine Table 1500 x 600 mm Predpfx Aevli H Sjkiec X-axis travel 1550 mm Y-axis travel 600 mm Maximum grinding height 800 mm Wheel size 400 x 100 mm Automatic infeed Yes Dovetail accessory Yes Cooling system Yes Machine dimensions (width x length x height) 2500 x 5300 x 2500 Weight 7800 kg

Year of construction: 2014, condition: excellent (used), DMG PH 150-8 . year of construction 2014 . with pallets . Prodpjin Dkljfx Akijc Touch screen . plant in very good condition .

Condition: good (used), Year of construction: 2023, functionality: fully functional, DMG Mori M2 Pro, Year of manufacture 2023 / Commissioned in 2024, Siemens Sinumerik ONE control system, Travel range X/Y/Z 1100/550/510 mm, Table size 1400 x 600 mm, 24-position tool changer, Linear axis speeds X/Y/Z 24 m/min, Tool holder SK 40, Spindle speed up to 12,000 rpm, Chip conveyor, Renishaw probing system kit, Coolant spray gun, Enclosure roof, Internal high-pressure cooling 20 bar, Bed flushing via M-function, Job Shop package for SIEMENS SINUMERIK ONE, Mechanical preparation for oil mist separator Ø 150 mm, 4th axis package, LEHMANN rotary table EA-520.L, with automatic spindle clamping, Center height: 180 mm, Compact and stable tailstock with large roller bearing, Prepared for automatic clamping, Psdpjza Apaofx Akierc Permissible hydraulic pressure max. 220 bar, Steel clamping bridge L/W 600/270 mm, Base plate steel, Tropical package, Active cooling unit for control cabinet, Blow-off air externally and internally (through spindle center) can be activated via M-function, External electronic handwheel, Software option - DXF import, Machine with 2100 spindle hours.

Condition: good (used), Year of construction: 2007, control 840 D x-axis 2500 mm y-axis 2500 mm z-axis 1700 mm Control system - Siemens Sinumerik 840 D Prsdpfx Aswzyp Uokijc Max. workpiece weight - 6000 kg Spindle diameter - 130 mm Quill stroke - 700 mm Tool holder - ISO 50 DIN 69871 - AD Max. torque at the spindle - 1847 Nm Total power requirement - 65 kW Machine weight approx. 45 t Space requirement approx. 10.9 x 9.3 x 5.7 m

Condition: good (used), These listed powered tools, VDI 50, are designed for a tool changer manufactured by SAUTER and are in good condition and fully functional. They were used on a CNC turning machine, GILDEMEISTER CTX 600. 6 x powered tools, straight design, manufactured by NACKE + WTO, VDI 50 for tool turret manufactured by SAUTER: Item No.: XVI 24275 1 Drilling and milling tool, straight design, manufacturer: NACKE, VDI 50 mm, similar to DIN 69880, No. 40.5040 / 80 96 / 027.1, collet Ø 25 mm, SAUTER drive B 20 x 17 DIN 5482 Price: € 545.00 plus applicable VAT. Item No.: XVI 24277 1 Drilling and milling tool, straight design, manufacturer: NACKE, VDI 50 mm, similar to DIN 69880, No. 40.5040 / 80 96 / 027.3, collet Ø 25 mm, SAUTER drive B 20 x 17 DIN 5482 Price: € 400.00 plus applicable VAT. Item No.: XVI 2687 1 Drilling and milling tool, straight design, manufacturer: WTO, VDI 50 mm, similar to DIN 69880, collet Ø 32 mm, SAUTER drive B 20 x 17 DIN 5482 Price: € 650.00 plus applicable VAT. Item No.: XVI 2687 1 Drilling and milling tool, straight design, manufacturer: WTO, VDI 50 mm, similar to DIN 69880, collet Ø 32 mm, SAUTER drive B 20 x 17 DIN 5482 Price: € 650.00 plus applicable VAT. Item No.: XVI 2687 1 Drilling and milling tool, straight design, manufacturer: WTO, VDI 50 mm, similar to DIN 69880, collet Ø 32 mm, SAUTER drive B 20 x 17 DIN 5482 Price: € 650.00 plus applicable VAT. Predpfobql S Hex Akisc Item No.: XVI 2687 1 Drilling and milling tool, straight design, manufacturer: WTO, VDI 50 mm, similar to DIN 69880, collet Ø 32 mm, SAUTER drive B 20 x 17 DIN 5482 Price: € 650.00 plus applicable VAT. Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel / Germany

Condition: ready for operation (used), Year of construction: 2015, functionality: fully functional, machine/vehicle number: G551-1586, travel distance X-axis: 800 mm, travel distance Y-axis: 770 mm, travel distance Z-axis: 500 mm, spindle speed (max.): 16,000 rpm, position of the milling head: Horizontal, table load: 1,000 kg, overall weight: 22 kg, input voltage: 400 V, Equipment: documentation/manual, GROB G550 / G551 5-axis machining center with TM167 tool magazine and Schuler LoadMaster LMC 900 Price upon request Important conditions: Please note that the sale of this machine is only possible under the following conditions: • Sale exclusively to end-users/manufacturing companies (no resale to dealers) – corresponding company profile required • Sale only within Germany or the EU • Inclusion of a dual-use statement in the purchase agreement (legally required) Sales/Transfer conditions: • Dismantling, removal, and transport are the responsibility of and at the risk of the buyer. • The buyer is responsible for personnel, tools, and transport equipment. Personnel may only work with appropriate personal protective equipment, and only trained personnel may be used. Technical data Manufacturer: GROB-WERKE GmbH & Co. KG Model: G550 / G551-1586 Machine type: 5-axis universal machining center Year of construction: 2015 Control system: Siemens Sinumerik 840D Axes: 5 Tool holder: HSK-A63 Spindle speed: 16,000 min⁻¹ Spindle power: 35 kW Spindle hours: approx. 19,125 h X-axis: 800 mm Y-axis: 770 mm Z-axis: 500 mm Measuring probe: Renishaw IKZ: 70 bar Tool management GROB TM167 additional tool magazine Year of construction: 2021 167 additional tool positions Total number of tool positions: 287 Fully integrated into the system Automation Schuler Automation LoadMaster LMC 900 Year of construction: 2015 Linear pallet changing system 9 pallet positions Beckhoff/TwinCAT control System is fully functional and ready for operation Condition The production cell is in good condition and has been in continuous operation. The machine has a relatively low number of spindle hours and is equipped with a TM167 additional magazine installed in 2021. According to the operator, there are no known defects. Pedpfozxf Hkox Akisrc The system is ideally suited for the automated production of demanding 5-axis components in the following areas: Mechanical engineering Automotive industry Aerospace Medical technology Tool and mold making Scope of supply GROB G550 / G551 machining center GROB TM167 tool additional magazine Schuler LoadMaster LMC 900 9 pallets Documentation Inspection Inspection possible by appointment. The machine can be inspected while powered on. Location: Germany / Waiblingen If you are interested, we look forward to hearing from you so that we can discuss the further details. Keywords GROB G550, GROB G551, 5-axis machining center, Siemens 840D, TM167, tool magazine, Schuler LoadMaster, LMC900, pallet automation, HSK63, CNC machining center, 5 Axis Machining Center.
