Used Grinding And Lapping Machine for sale (95,379)

Condition: used, Year of construction: 1970, Year ca. 1970 magnetic plate size 520 x 200 mm weight of the machine ca. 1,4 t +++++ Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. +++++ Credeirazpspfx Ahuei

Condition: like new (used), Year of construction: 1995, functionality: fully functional, center height: 225 mm, workpiece weight (max.): 100 kg, grinding length: 1,600 mm, CNC cylindrical grinding machine STUDER S40, year of manufacture 1995. The machine is in good used condition. Technical data: • Control: Fanuc Series 16-GC • Required space approx. (Height/Length/Width): 250 cm / 650 cm / 320 cm Axes: • Distance between centers: 1,600 mm • Center height: 225 mm • 4 axes (X, Z, B, C) • Max. workpiece weight approx.: 100 kg Equipment: • 2 grinding wheels + 1 internal grinding stone (selectable via control) • Face, plunge, internal, and cylindrical grinding • Magnetic chuck, three-jaw chuck, collets, between-centers grinding • Automatic dressing device • Steady rest • Resolution: 0.0001 mm • Polygon grinding Crsdpfxot N Ivce Ahusi • Static balancing unit • Grinding wheels available in corundum, diamond, and CBN • Cycle control • DXF import possible

Condition: used, Year of construction: 2003, Control BWO tip circle diameter max. 700 mm root circle diameter min. 50 mm height of profile max. 35 mm number of spindle speeds 0 - 5400 min-1 table load capacity max. 500 kg Equipment: BWO control system Crsdpfx Ahoxt Ur Ssuoi All axes CNC controlled Oil mist extraction Coolant cleaning system with cooling unit Dittel balancing unit Accessories: Grinding wheels Ø400mm incl. Grinding wheel flanges 1 diamond dressing roller, manufacturer Dr. Kaiser, Ø160mm Counterholder tip

Condition: used, grinding length 1000 mm grinding width 750 mm workpiece height 700 mm Control SIEMENS, SIMATIC S 7-1500 table surface area 1050 x 640 mm table height over floor 1000 mm table speeds 3.000 - 30.000 mm/min cross feed of table continual 5 - 5.000 mm/min cross feed of table intermittent 0,1 - 65,0 mm vertical adjustment, 1 graduation 0,002 mm rapid traverse vertical 0,25 m/min grinding spindle speed 50 - 2.500 U/min grinding wheel size ø 400 x 50 x ø 127 mm workpiece weight max. 1.000 kg table load max. 1600 kg total power requirement 33,2 kW weight of the machine ca. 9,3 t dimensions of machine L x W x H 4,50 x 2,37 x 2,65 m - complete electronic / electric renewed in 2018 Cedpfexukqysx Ahueri Accessories: magnetic plate 1000 x 650 mm, grinding wheel with flange, wheel trueing attachment, extraction

Year of construction: 2001, condition: ready for operation (used), Main Drive Cjdpoxuw Hbjfx Ahujri Number of axis 4 This 4-axis BLOHM Profimat MT 408 grinding machine was manufactured in 2001. It features a robust grinding spindle motor, PEA table, and efficient drives for the X-axis, Z-axis, and Y-axis. Grinding wheels are included, enhancing its readiness for immediate use. Consider the opportunity to buy this BLOHM Profimat MT 408 grinding machine. Contact us for more information about this machine. Application Types Grinding

Condition: ready for operation (used), Year of construction: 2006, grinding length: 500 mm, grinding width: 250 mm, capacity 500×250 mm magnetic 500×250 mm 3 automatic functions Crjdpsww Eywjfx Ahuoi

Condition: used, Year of construction: 1975, max. bore diameter to be ground 6 bis 100 mm stroke - stepless adjustable 550 mm grinding depth ca. 250 mm workpiece weight 150 kg Cjdpfxoucgwko Ahuori total power requirement 15 kW weight of the machine ca. 4.300 kg dimensions of the machine ca. 2,7 x2,4 x 2,2 m

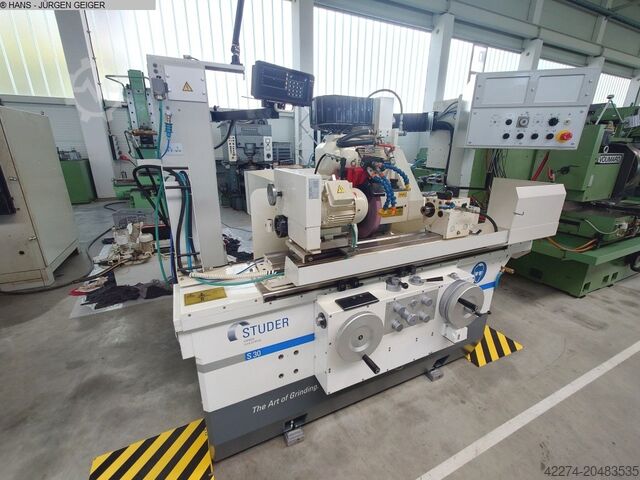

Condition: excellent (used), Year of construction: 2011, grinding diameter 250 mm grinding length 650 mm centre height 125 mm total power requirement 13 kW weight of the machine ca. 3500 t STUDER (CH) High Precision Electrohydraulic Universal Cylindrical Grinding Machine Model S 30-1 Year 2011 19-39xx Height of centers / Grinding Ø 125 / 250 mm Center distance / Grinding length Z-axis 700 / 650 mm Workpiece weight between centers (no steady) max. 130 kg Table speeds 50 – 5000 mm/min Table way automatic, min. 1,5 mm Table reverse delay 0 – 6 s Table swivable ° Cross way X-axis 315 mm Rapid infeed way 60 mm Feeds 0,012 – 6 mm/min Spar-out time 0 – 6 s Universal Turret Wheelhead Swivable, manual B-axis 0 – 180 ° Grinding wheel dimension : bore x width x Æ 127 x 63 x 400 mm Cutting speed max. 35 m/s Crodpfx Ahexvdrtsuji Internal Grinding device for spindle Ø 0 mm Workhead with hydrodynamic bearing Fitting taper / spindle bore MK 5 / 30 mm Speeds 60 / 175 / 270 / 600 U/min Spindle drive 5,5 kW Total electric load approx.. 13 kW - 400 V – 50 Hz Weight approx. 3.500 kg Accessories / Special Features: • Electrohydraulic conventional control and drives with a large variablilty and high und high resolution. • MAGNESCALE 2 axis digital read out for Z- and X- axis (linear and diameter display) • Preinstalled automatic cycles for plunge-in grinding, traverse grinding, internal grinding with roughing, finishing, fine-finishing, spark-out (also prepared for use of structure sound sensor and gauge control) • Turret wheelhead with manual B-axis 0-180° with cylindrical grinding spindle left, 5,5 kW and internal grinding spindle with oilmist-lubrication Ø 0 mm, 40.000 rpm, 1,5 kW • Workhead, hydrodynamic bearing, swivable 90°, sine ruler, aircushion • Precision tailstock with fine setting to correct for cylindricity • Machine base made of mineral catsting GRANITAN S3 for high excellent dimensional accuracy, themal stability and dampening characteristics. • Adjustable Dresser mounted on tailstock, hinged dresser for table mount, swivable dresser for table mount • Collet device with many SCHAUBLIN high precision collets Ø 1 – 25 mm • Wide range of accessories as 2 grinding wheel flanges, various internal grinding mandrels, 2 pieces face plates, balancing arbor, var. centers and mandrels, MK adapters, var. sleeves, var. covers, auxiliary pulley, large bandfilter coolant unit, manuals, etc. Condition : excellent, 7.515 hours, universal machine for all sorts of grinding tasks ! Video : ! Delivery : immediately available, FCA Metzingen Payment : 0 % Net, before loading

Condition: refurbished (used), Year of construction: 2017, functionality: fully functional, External Cylindrical Grinding Machine Manufacturer: NAXOS-UNION (Germany) Model: W500 500 x 2500 mm Year of Overhaul: 2017 Technical Specifications: • Max. distance between centres: 2500 mm (full length can be ground) • Centre height: 250 mm • Grinding wheel diameter: 600 mm • Grinding support travel: 320 mm • Max. workpiece weight between centres: 1500 kg • Grinding spindle speed, stepless: 900 – 1600 RPM • Workpiece spindle speed: 50 – 450 RPM • Workpiece spindle taper: MK5 / Morse 5 • Motor power: 2.2 kW • Approx. machine dimensions (L x W x H): 7800 x 3300 x 1750 mm Crsdpfxoxcvr Ss Ahuji • Approx. weight: 13 tonnes Accessories included: • 1x full machine enclosure incl. front sliding door with safety switch • 2x glass scales for X and Z axes incl. digital display Z300 from RSF-Elektrik, measuring system MSA • 1x new belt filter unit by SEITZ, type PFA 100, incl. 100 l/min pump and control system • 1x electromechanical balancing system by MPM, balancing head mounted on spindle, sensor at grinding spindle bearing • 1x live centre, manufacturer RÖHM MK5 • 6x grinding wheel flanges • 7x steady rests • 14x leveling feet Condition: Completely overhauled in 2017, very little use since. Negotiation basis: Price: ex works, loaded free on truck Collection after payment received and by prior appointment. Disclaimer: The seller shall not be liable for typographical or data transmission errors. Machine condition in terms of appearance, technology and wear corresponds to its age; used equipment is sold without any warranty. All prices are net.

Condition: ready for operation (used), Year of construction: 2010, functionality: fully functional, machine/vehicle number: C798.10, grinding wheel diameter: 508 mm, total length: 5,000 mm, overall weight: 12,000 kg, controller model: SIEMENS SINUMERIK 840 D, No reserve price – guaranteed sale to the highest bidder! The payment deadline for the machine is 04/12/2025. Placing a bid obligates you to collect the item on time between 10/12/2025 and 12/12/2025. TECHNICAL DETAILS Grinding wheel diameter: 508 mm Maximum speed: 63 m/s MACHINE DETAILS Control model: SIEMENS SINUMERIK 840 D Crsdpfoxvbwysx Ahusi Dimensions & Weight Dimensions (L x W x H): 5,000 x 4,000 x 2,500 mm Total weight: 12,000 kg EQUIPMENT Conveying and loading system Belt filter system

Condition: good (used), Year of construction: 1968, Cylindrical grinding machine, manufacturer: STANKOIMPORT, type: XC3, year 1968, with accessories. Model: 3A 161. Centre height: 161 mm, grinding diameter: 322 mm. Centre distance/grinding length: 1000 mm. In good condition. Cedoxq Tlropfx Ahusri

Condition: excellent (used), for automatic resharpening of knife edges, e.g. of chippers, with automatic feed reversal and automatic grinding head adjustment, clamping table 840 mm long x 140 mm wide, swivelling according to scale, grinding motor 1900 watts/380 volts, grinding wheel 175 mm Ø x 60 mm, new cooling water pump with steel tank, new electric cables, including 1 spare grinding wheel 175 mm Ø x 60 mm and 1 set of tools for wheel change Crsdpfeuw T Hkex Ahuji

Condition: used, Year of construction: 1969, Reishauer DS / zum läppen weight of the machine ca. 200 kg +++++ Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. +++++ Crjdpfx Aheg Si R Usuei

Condition: ready for operation (used), Year of construction: 2021, operating hours: 5,073 h, functionality: fully functional, machine/vehicle number: 80171, grinding diameter: 500 mm, overall weight: 10,000 kg, controller model: FANUC SERIES OI-TF, Equipment: bar feeder, No reserve price – guaranteed sale to the highest bidder! The payment deadline for the machine is 04/12/2025! Placing a bid commits you to timely collection between 10/12/2025 and 12/12/2025! TECHNICAL DETAILS Grinding diameter: 500 mm Codpfxsxvbufs Ahuori Lining width: max. 32 mm Cut-off wheel permissible diameter: max. 520 mm Cut-off wheel lining width: max. 3 mm Cut-off wheel lining height: max. 5 mm MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 8,500 x 3,500 x 2,900 mm Total weight: 10,000 kg Control system: FANUC SERIES OI-TF Operating hours Machining hours: 5,073 h Operating time: 12,219 h Control system on-time: 32,335 h EQUIPMENT Bar feeder FMB Minimag 20 Extraction system Various documentation

Condition: used, Year of construction: 1988, width of the strips 100 mm weight 22 kg . Cedpfx Ahoix Az Ajujri +++++ Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. +++++

Condition: ready for operation (used), Year of construction: 2016, operating hours: 8,834 h, functionality: fully functional, machine/vehicle number: 80042, grinding wheel diameter: 500 mm, overall weight: 10,000 kg, controller model: FANUC SERIES OI-TD, No reserve price – guaranteed sale to the highest bidder! The payment deadline for the machine is 04/12/2025! By placing a bid, you commit to collecting the machine punctually between 10/12/2025 and 12/12/2025! TECHNICAL DETAILS Codpexvbn Eefx Ahusri Grinding Wheel Grinding wheel diameter: 500 mm Maximum wheel width: 32 mm Cutting Disc Permissible diameter: max. 520 mm Maximum disc width: 3 mm Maximum disc height: 5 mm Workpiece Holding Left workpiece spindle Chuck type: Hydraulic clamping Right workpiece spindle Chuck type: Hydraulic clamping MACHINE DETAILS Control model: FANUC SERIES OI-TD Electrical Data Operating voltage: 400 V Frequency: 50 Hz Control voltage: 24 V Rated current: 3 x 125 A Dimensions & Weight Dimensions (L x W x H): 8,500 x 3,500 x 2,900 mm Total weight: 10,000 kg Operating Hours Machining hours: 8,834 h Run time: 20,892 h Control on-time: 43,292 h EQUIPMENT Bar feeder: FMB

Condition: used, Year of construction: 1991, working area 225 mm table-size L:550 mm table-size B:200 mm sanding disc diameter 200mm mm Credpfxoud Alge Ahuji magnetic plate size 500 mm weight of the machine ca. 1,8 t dimensions of the machine ca. 2000x1600x2100 m

Condition: ready for operation (used), Year of construction: 2022, operating hours: 2,633 h, functionality: fully functional, machine/vehicle number: OE-70109, workpiece weight (max.): 500 kg, grinding length: 2,500 mm, grinding wheel diameter: 760 mm, controller model: FANUC SERIES OI-TF**, workpiece diameter (max.): 850 mm, No reserve price – guaranteed sale to the highest bidder! The payment deadline for the machine is 04/12/2025! Placing a bid obligates you to collect the machine within the specified window from 10/12/2025 to 12/12/2025! TECHNICAL DETAILS Max. workpiece weight: 500 kg Max. workpiece diameter: 850 mm Grinding length: 2,500 mm Grinding wheel diameter: 760 mm Max. spindle speed: 2,200 rpm Peripheral speed of grinding wheel: 45 m/s Max. workpiece spindle speed: 500 rpm Clamping length: 2,600 mm Grinding wheel bore: 304 mm Spindle taper: MK 6 Tailstock quill stroke: 60 mm Crodpjxvbi Asfx Ahuei MACHINE DETAILS Controller: FANUC SERIES OI-TF Dimensions & Weight Overall dimensions (L x W x H): 5,000 x 4,500 x 2,900 mm Total weight: 9,000 kg Electrical Data Operating voltage: 400 V Frequency: 50 Hz Rated current: 3 x 100 A Connection: 63 kVA Operating Hours Production hours: 2,633 h Operating hours: 7,052 h EQUIPMENT Robot cell by XACTOOLS with loading unit Industrial robot by EPSON, max. payload: 8 kg Documentation

Condition: used, Year of construction: 2017, grinding length 1000 mm centre height 180 mm length 3600 mm width 1650 mm Crjdpfx Aewp Tumshuji height 1800 mm weight of the machine ca. 3,7 t

Condition: ready for operation (used), Year of construction: 2016, functionality: fully functional, machine/vehicle number: VECTOR078, total width: 3,000 mm, total length: 5,000 mm, total height: 2,500 mm, overall weight: 10,000 kg, No minimum price - guaranteed sale to the highest bidder! The payment deadline for the machine is 04/12/2025! Submitting a bid obligates timely collection between 10/12/2025 and 12/12/2025! MACHINE DETAILS Electrical Data Operating voltage: 400 V Frequency: 50 Hz Rated current: 32 A Dimensions & Weight Dimensions (L x W x H): 5,000 x 3,000 x 2,500 mm Crodpfsxvbhrsx Ahusi Total weight: 10,000 kg EQUIPMENT Placement system Coolant system

Condition: used, Year of construction: 2000, grinding length 600 mm grinding width 300 mm magnetic clamping plate 600x250 mm Crjdow Hg Uzspfx Ahuei wheel diameter 220-300 mm weight 2200 kg

Condition: used, Year of construction: 1999, grinding diameter 120 mm centre height 100 mm Stirnschleifeinrichtung Kein Typenschild auffindb Cjdpew Sybdofx Ahuori

Condition: used, Year of construction: 2017, grinding length 1500 mm centre height 180 mm Cjdpfx Aswm Rqgjhueri weight of the machine ca. 3,9 t dimensions of the machine ca. L: 4900 x 1650x 1800 m

Condition: used, Year of construction: 1995, table-size Breite: 800 mm table-size Tiefe: 350 mm Dimensions (L/W/H) 4600 x 3200 x 2500 mm weight of the machine ca. 4,5 t Credpfxswp Tuye Ahuoi

Condition: used, Year of construction: 1960, grinding diameter ca. 360 mm grinding length 1500 mm serial number 12013 Crodpfx Ahsw Sya Tsusi
