Bolster plate

MAKINO A 77 / 81

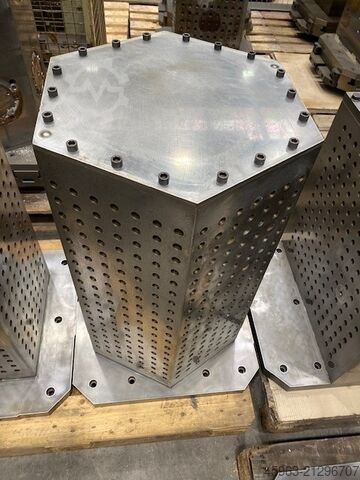

Condition: excellent (used), Hexagonal tower Dimensions 500 x 500 x 500 mm Height 930 mm Base plate 630 x 630 mm Grid 40 mm Double angle bracket Dimensions 630 x 200 mm Height 760 mm Base plate 630 x 630 mm Grid 40 mm Square tower Dimensions 400 x 400 mm Height 930 mm Base plate 630 x 630 mm Grid 40 mm Ljdpeyl Swdefx Ac Aert

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, 5-AXIS MACHINING CENTER MIKRON HPM 1350U TRIPALET, MANUFACTURED IN 2011 EQUIPPED WITH HEIDENHAIN TNC 530 ELECTRONIC HANDWHEEL TRAVEL: Z 1350 AND 1150, Z 895, A +16°/-120°, C ±360° SPINDLE: 24,000 RPM, 38 KW, HSK-A63 (NEW) TABLE: DIAMETER 1100, MAXIMUM LOAD 1600 KG 46-TOOL CHANGER Lrjdoy Tv Nbepfx Ac Ast 3-PALLET CHANGER, 1000 x 840 MM RENISHAW OMP60 PART PROBE LASER TOOL MEASUREMENT APS - Advanced Process System APS Extended ITS - Intelligent Thermal Control CINEMATIC OPTIONS CHIP CONVEYOR WITH TSC MACHINE WEIGHT: 19,000 KG

Condition: used, Year of construction: 2008, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, torque: 46 Nm, controller manufacturer: HEIDENHAIN, controller model: 530, spindle nose: HSK A 63, number of slots in tool magazine: 170, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, CNC Heidenhain iTNC 530 WORKING AREA Longitudinal travel X: 800 mm Transversal travel Y: 600 mm Vertical travel Z: 500 mm B axis: +30° / -100° C axis: n x 360° WORK TABLE Table dimensions: 320 x 320 mm Maximum workpiece weight: 120 kg SPINDLE Spindle taper: HSK A63 Maximum spindle speed: 24.000 rpm Motor power 40% ED: 22 kW Maximum torque 40% ED: 46 Nm AUTOMATION Tool magazine capacity: 170 tools Erowa pallet changer: 7 positions MACHINE EQUIPPED WITH • High-pressure coolant through spindle • Probe • Laser tool presetting Lredpfx Acjy Tam Re Ajt • Chip conveyor • Oil mist cooling system • Rotoclear • ITC Intelligent Thermal Control • ITC-5X 5 Axis Intelligent Thermal Control • APS Advanced Process System • Remote electronic handwheel • Instruction manuals and CE declaration

Condition: used, Year of construction: 2001, STAR sliding headstock automatic lathe S16-R, year of manufacture from 2001. Sliding headstock lathe SA16-R, Ø16mm with FMB Minimag magazine. Sub spindle. Parts conveyor belt. Coolant system has only operated with oil. No chip conveyor. Lrodpfx Asxmurrec Aet

Condition: used, TECHNICAL DETAILS - max. power : 40 [t] - max. workpiece diameter : 40 [mm] - spindle diameter : 80 [mm] - spindle length : 120 [mm] - max. tool diameter : 250 [mm] Lredeuhb Uhepfx Ac Ajt - dimensions : 2400 x 2100 x 2200 [mm] - weight : 7100 [kg] EQUIPMENT - control CNC (base Siemens) - tail stock device - coolant tank with pump - 2 boring wheel 80, diameter : 260 [mm]

Condition: good (used), Year of construction: 2010, Machining Centre Sugino Xion-II-5AX-CE Lodsx Hqwgopfx Ac Asrt Manufacturer: Sugino Machine Limited Japan Model: Xion II 5AX CE Year of manufacture: 2010 Number of axes: 5 Travel distance X axis: 300 mm Travel distance Y axis: 300 mm Travel distance Z axis: 200 mm A axis swiveling range: -90° to +90° C axis rotation: 360° Maximum tool diameter: 40 mm Maximum tool weight: 15 kg Spindle speed: 40,000 rpm Tool holder: HSK-E32 Positioning accuracy X, Y, and Z axes: 0.002 mm Repeatability X, Y, and Z axes: ±0.001 mm Machine weight: 2,800 kg No guarantee is given for the correctness, completeness, or currentness of the information provided.

Condition: like new (used), Year of construction: 2015, Workpiece Ø max. 400 mm Ljdoxy Ac Sjpfx Ac Aort Workpiece length max. 300 mm Chuck Ø max. 500 mm Swing Ø 520 mm Travel X-axis: 1,110 mm Travel Z-axis: 595 mm Main spindle: Power 40 / 100 % duty cycle: 47/34 kW Main spindle: Torque 40 / 100 % duty cycle: 600 Nm Main spindle: Max. speed: 2,850 rpm Control: Fanuc 31i No Y-axis

Condition: good (used), Year of construction: 2009, max. wheel diameter 1200 mm gear width 260 mm max. module 16 min. module 0,5 stroke 270 mm distance between table/spindle 920 mm Lrodpfxjwzmpzj Ac Aet taper of shaper cutter SK control Bosch MTX table diameter 900 mm min. workpiece diameter-at internal hobbing 1200 mm strokes - infinitely variable 50-1000 Hub/min spindle diameter 125 mm table hole 320 mm Distance of shafts Min/Max 0-820 power capacity Stosskopf 30 KW total power requirement 72 KVA weight of the machine ca. 24 t dimensions of the machine ca. 6,5x2,9x4 m Liebherr LH 90 control, 9 axis CNC, top condition.

Condition: reconditioned (used), Robotic welding system with a 2 m, dual-station positioner. For sale is a robotic welding system from Yaskawa Motoman, including an RM2-250 positioner. Safety technology Robot: UP20 XRC Nozzle cleaner and more We can assemble and commission the system for you. Lodpfed Tfb Njx Ac Asrt We also offer training and instruction. The system will be refurbished according to the customer's requirements. We are a YASKAWA system partner and offer you complete service for your Motoman robot and your systems.

Condition: excellent (used), Year of construction: 1999, functionality: fully functional, spindle diameter: 100 mm, spindle speed (min.): 7 rpm, spindle speed (max.): 1,120 rpm, total height: 3,000 mm, total length: 6,000 mm, total width: 3,000 mm, table length: 1,250 mm, table width: 1,250 mm, type of input current: three-phase, spindle stroke: 900 mm, overall weight: 14,000 kg, year of last overhaul: 1999, Machine in excellent condition, used only for small operations. Condition of the slides: very good. Its green color is still the original. Functional and available quickly. Equipped with a Heidenhain visual display and measuring scale, on 4 axes: X/Y/Z/B. Tooling included with this machine: see the photos below. Great deal, priced below market value. Lrsdszunfbopfx Ac Ast Technical specifications: 🔹 Spindle Spindle diameter: 100 mm Spindle taper: ISO 50 Spindle travel (W-axis): 900 mm Rotation speed: 7.1 to 1,120 rpm Main motor power: 11 kW to 15 kW 🔹 Travels X-axis (Longitudinal): 1,600 mm Y-axis (Vertical): 1,120 mm Z-axis (Cross): 1,250 mm W-axis (Spindle travel): 900 mm 🔹 Rotary Table Table surface: 1,250 × 1,250 mm Maximum allowable load on the table: 3,000 kg (3 tons) Table rotation: 360° (manual or motorized) 🔹 Facing Head Facing head diameter: 600 mm Max. boring/facing diameter: 900 mm Facing head speed: 7.1 to 224 rpm Facing head slide travel: 210 mm 🔹 Dimensions and Weight Overall dimensions (L × W × H): ~ 6,000 × 3,000 × 3,000 mm Total machine weight: ~ 14,000 kg (14 tons)
