Used Cnc Up & Down Folder for sale (33,325)

Condition: used, machine/vehicle number: 005836, X axis working area: 3000 mm Dkjdpfewuckujx Aa Hot Y axis working area: 1000 mm Main Electrospindle power: 3.5 KW Number of controlled axes: 3 axes Total number of drilling spindles: 82

Condition: used, Year of construction: 2008, · Working area X-Y-Z: 3,660 x 1,550 x 130 mm · Travel length X-Y: 4,200 x 2,000 mm Description of the units and accessories (base) The structure of the base body is a monolithic construction made of thick-walled steel. It is stiffened by welded triangular plates across the entire machine bed, making it extremely stable. The triangular shape used for load-bearing parts, with a large base, is the secret to ensuring lasting precision and stability. The machine layout allows the user an optimal workflow despite minimal space requirements. The base body constructed in this way therefore offers the machining unit a balanced and secure base with particularly good load distribution. The mobile unit carrier in gantry design is made of a solid monoblock. It is positioned in the X direction on prismatically ground guides via recirculating ball slides. The work unit is mounted on this mobile unit carrier on prismatic, ground guides and a recirculating ball slide. Axis movement: The drive system in the Y and Z axes is provided by ground ball screws of the highest precision class. The X-axis is driven by a backlash-free, preloaded precision rack and pinion drive. This ensures balanced load distribution during the positioning process. Such characteristics are important for ensuring balanced movement even in more complex tasks. The movement of the various axes is controlled by brushless three-phase servo motors/brushless AC motors. These offer excellent positioning speeds thanks to very short ramp times. Furthermore, the measuring system is fully integrated into these motors. These properties make this type of drive completely maintenance-free. · Rapid traverse in X: 40 m/min · Rapid traverse in Y: 60 m/min · Rapid traverse in Z: 22.5 m/min Vacuum system (basic) · Vacuum pump: 100 cbm/h · Power: 2.5 kW · Max. negative pressure (connection) 0.9 bar Control / control cabinet · Office PC or industrial PC (see options) · Basic NC control: ESA-GV KVARA 6.0 · Cable remote control with the most important functions ELECTRIC/ELECTRONIC CNC CONTROL Universal is equipped with a powerful NC control. The integrated office PC gives the NC control an unparalleled level of familiarity: the software runs on Windows XP and allows quick and easy programming, which is easy to learn even for inexperienced users. The system is open and allows the connection of CD-ROM drives, audio cards, barcode readers, modems, printers, scanning systems, etc. Furthermore, the installation of all network systems, as well as all commercially available CAD programs, is possible. To reduce space, the control cabinet is located under the machine table, and the operator works at a separate terminal on casters that can be freely positioned. XILOG PROGRAMMING SYSTEM Software features: - Import of DXF files - Import of ASCII files - User interface in the operator's native language (available for languages I - GB - F - D - E) - Linear and circular interpolation in three axes, linear in space, spiral in the selected plane - Assisted programming - Calculator for direct transfer of calculated data - Graphic and syntax aids for drilling and milling operations - Parametric programming to perform the same panel machining on different P Dedsvvi Nzepfx Aa Hekt

Condition: used, Year of construction: 2016, Working area: X=3300 mm Y=1280 mm Z=150 mm Clearance height Operator terminal: 24" LED colour display Handheld terminal for axis speed control Software: "Woodflash Vacuum pump 90 m³/h/50 Hz or 108 m³/h/60 Hz Milling spindle 12 kW HSK F63 (12,000 rpm) 12-position linear tool changer on the left of the machine frame + pickup station Drilling head DH 16 4H 2S: Vertical 12 spindles Horizontal 4 spindles 2 grooving saws Storage location: Nattheim Dodoxy Tlwjpfx Aa Hskt

Condition: used, Year of construction: 2011, Base Machine M800 X5 TV 1 WORKING RANGE X: 5,020 mm Y: 1,830 mm Z: 675 mm Clearance Height: 300 mm (from 50 mm suction cup height) MACHINE STRUCTURE The base structure is a monolithic construction made from thick-walled steel. It is reinforced across the entire machine bed with welded components, providing exceptional stability. The table design, with its large base, is the key to ensuring lasting precision and stability. The machine’s layout enables the operator to achieve optimal workflow with minimal space requirements. The mobile gantry is built as a solid monoblock. It is positioned in the X direction on prismatic, ground guides with recirculating ball carriages. The machining unit is mounted on this mobile support carriage, also on prismatic, ground guides and recirculating ball carriages. AXIS MOVEMENT All axes travel on prismatic linear guides with large cross-section and recirculating ball shoes with a wide contact surface, which ensures optimal sliding, even at high speeds and accelerations. The precise and fast positioning of the movable gantry (X-axis) is achieved via helical rack and pinion. Large cross-section recirculating ball screws ensure accurate positioning of the machining unit along the movable gantry (Y and Z axes). The perfect mechanical dynamics and maximum positioning accuracy are controlled by high-quality drives and brushless motors. Max. axis speeds: · X-axis = 90 m/min · Y-axis = 90 m/min · Z-axis = 30 m/min Safety device with bumper and light barrier 1 Bumpers with sensors are fitted to the movable upright, and a light barrier system is installed at the front of the machine. If the operator enters the active zone, the X-axis travel speed is reduced to a lower value of 25 m/min without stopping the machine. This system allows parts to be loaded during pendulum operation without the limitation of access areas, as seen with pressure mat systems. This prevents unwanted interruptions in the machining cycle and offers greater freedom of movement around the worktable. CE certification for the safety system 1 Safety protection fence 1 Side and rear protection fence Automatic central lubrication controlled via CNC 1 The lubrication of the X, Y, and Z axes is controlled by the CNC; intervals are regulated automatically, without manual intervention. Central extraction connector 1 All individual extraction connections of the machining units are collected into a central extraction port. Inside the port, there are various slider valves controlled by the NC. This reduces the required extraction air volume. Chip conveyor 1 Maxi – 5-axis electrospindle 11 kW HSK-63 “Prisma K 1 5-axis electrospindle, 11 kW at 20,000 rpm S1 (100% duty cycle) Speed: max. 20,000 rpm Rotation direction: left/right Liquid cooling Tool interface HSK 63F Inverter 18 kW, stepless, smooth power delivery Max. rotation B-axis = 200° (+-100°) C-axis = 650° Thanks to the non-orthogonal axes, it is possible to perform complex horizontal positioning in a small workspace. This enables the machining of complex geometries without the risk of collision. Djdpfx Aaexy Tmno Hokt

Condition: used, Year of construction: 2009, Automatic central lubrication Milling unit 7833 2-stage, 11 kW power 1000 - 24000 rpm 1 double drilling spindle in X-direction 1 integrated sawing unit for sawing / grooving in X-direction, traveling Tool changer 7892, 16-way Linear Pick-up changer, permanently installed on the right-hand side of the machine Laser pointer consisting of 2 laser pointers for positioning the vacuum suction cups or tracing the workpiece contour Automatic console - suction cup positioning 6 consoles including 3 suction cup holders per console including 1 vacuum suction cup 80x80 mm per suction cup holder including 4 feeding aids Additional processing fields at the front for 6 consoles Basic unit pneumatics for frame clamping system 7974 (6 consoles) 2D barcode scanner Video camera in the processing head Vacuum pump 140 m³/h Vario tool Change changing unit package consisting of Consists of: Vector axis 7899 (C-axis), fully interpolating, 0-360° continuously rotatable, including pneumatic tool changer 7890, single-slot magazine pick-up system, permanently installed in front of the machine frame on the left. Tool changer 7894, 6-slot pick-up magazine specifically for Vario Tool Change tool holders, permanently installed in the machine frame on the left, can be equipped with a Vario Grip KSJ F 40 collet chuck, 3 Vario Grip KSJ F 40 tool holders (for 2-20 mm ER32 collets), 1 saw blade holder, 3 collets according to customer selection, 1 carbide circular saw blade, max. 220 mm diameter. Djdpfxsvvi Sps Aa Hekt Storage location: Nattheim

Condition: used, Year of construction: 2005, Working area: X=2970 mm / Y=1725 mm Axis travel speeds: X=60 Y=45 Z=25 m/min Weight: 3200 kg Storage location: Nattheim Dedpfx Aow Dcccea Hjkt

Condition: used, Year of construction: 1995, CNC portal flame cutting machine Manufacturer: Messer Type: Omnimat P 7000 Year of manufacture: 1995 CNC control: Global Control Plus Track gauge: 7,000 mm 8 x oxy-fuel torches, type ALFA 8 x Omnilift 200 Dksdpfx Asyay Dhja Het Without track Without table Without filter 9926ä

Condition: used, Year of construction: 1995, CNC Milling Machine, Universal Manufacturer: HERMLE Type: UWF 902 S Year of Construction: 1995 Operating Hours: 65,071 Control System: HEIDENHAIN TNC 426 Dodpfx Aasv Rxa So Hokt Working Area X/Y/Z: 600 x 450 x 500 mm Spindle Speed Range: 20 - 6,300 rpm Tool Holder: SK 40 M & H 3D Probe (for workpiece probing) Vertical-Horizontal Milling Attachment Drilling Spindle Coolant System Rotary Table: 900 x 458 Weight: 4,000 kg Machine Dimensions: L x W x H approx.: 3,900 x 2,000 x 2,000 mm ä9926

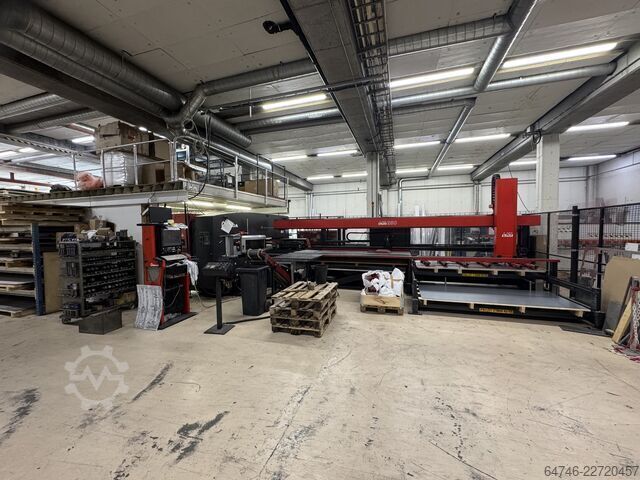

Condition: excellent (used), functionality: fully functional, Manufacturer AMADA Model AC255NT Year 2008 Machine type CNC Turret Punch Press Punching force 20 tons / 200 kN Drive system Single AC Servo Drive CNC control AMNC-F X-axis travel 1,270 mm Y-axis travel 1,270 mm Sheet capacity with repositioning Approx. 2,500 × 1,270 mm Max. mild steel thickness Approx. 3.2 mm Max. workpiece weight Approx. 150 kg Max. punching diameter Approx. Ø88.9 mm Turret configuration Depending on configuration: 45 / 51 / 58 stations Auto Index stations Depending on configuration Turret rotation speed Approx. 30 rpm Auto Index speed Approx. 60 rpm Max. punching speed Approx. 370 strokes/min Marking speed Up to approx. 900 strokes/min Punching accuracy Approx. ±0.1 mm Power requirement Approx. 19 kVA Dsdpfx Aszzn Tlsa Hskt Air pressure Approx. 5 bar Machine weight Approx. 12,000 kg Machine dimensions Approx. 4,100 × 2,560 mm, depending on configuration Feeder Automatic sheet feeder / loading system Sheet size for feeder Approx. 1,250 × 2,500 mm fully functionel

Condition: used, Year of construction: 2013, Technical details: Dkodetv Sdfjpfx Aa Hjt turning diameter: 38 mm Article: CNC lathe Manufacturer: Hanwha Type: STL38H Year of construction: 2013 Control: Siemens 840SL for 8 axes Main spindle: max. turning diameter: 38mm; spindle bore max. 42mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z1 320mm; synchronised guide bush unit; guide bush type JBS or SL38; type collet 173E / F48 Counter spindle: max. pick-up diameter: 38mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z2 320mm; type collet 171E / F42 Tool turret: n max. 6,000 rpm Power max. 2.6 kW; Servo axes: X2, Y2, Z2; Stroke [mm]: X2 = 115, Y2 = 100, Z2 = 120 Bar feeder FMB Turbo 5-55 High-pressure station SFB-301 eco 150bar Please, contact us for getting more information and pictures on mail(at) or *

Condition: good (used), Year of construction: 1999, max. turning diameter 500 mm max. turning length 1400 mm turret with 12 stations Dkedsvi Rcpjpfx Aa Hjt not driven

Condition: new, Year of construction: 2025, Table saw/router combination minimax twf 55 es M 3 UP Professional machine for skilled tradesmen, featuring motorized height and tilt adjustment of the router spindle, four speeds, and electronic control. Article number 5502266 Brand Holzkraft / SCM FEATURES Features Aluminum sliding table ✔ Handle on the sliding table ✔ Router fence FLEX ONE: heavy-duty professional version, automatic adjustment of the entire router fence depending on the tool diameter, manual adjustment of the chip removal, swing-away mechanism, aluminum fence jaws with connecting strips Spindle height adjustment motorized Telescopic miter fence with two folding stops Spindle tilt adjustment motorized Extension table ✔ Control Ready 3: Programmed movement of the routing unit in two axes, automatic adjustment of the entire router fence depending on the tool diameter, stepless adjustment via switch or automatic positioning system Arc routing guard ✔ Position of the controls Control panel at eye level, swiveling Eccentric clamp TECHNICAL DATA Dimensions and weights Length (product) approx. 1200mm Weight (net) approx. 510kg Width/Depth (product) approx. 2000mm Connection for dust extraction Dust extraction port diameter 2 x 120mm Work table Work table length 1200mm Sliding table length 1200mm Work table width 530mm Sliding table width 360mm Table height 900mm Sliding table height 142mm Installation information Space requirement length 2800mm Machine body width/depth 846mm Space requirement width/depth 2910mm Working area length 1600mm Explanation of space requirement The dimensions take into account maximum travel distances or usable lengths. Working area width/depth 2300mm Machine body length 1200mm Explanation of working area Please add the specified dimensions to the space requirement to obtain the recommended clear installation area for the machine. Electrical data Connection voltage 400V Power of drive motor 5.0kW Mains frequency 50Hz Router spindle Spindle tilt 0 to -45° Router spindle speed display Display on the control panel Usable spindle length 125mm Spindle arbor diameter 30mm Spindle speed(s) 3500/6000/8000/10000 min¯¹ Router tool diameter max. Tool diameter max. 240mm Tool diameter max. for profile routing 240mm Djdpfxehp Rc Is Aa Hekt Tool diameter max. for plunge routing 230mm

Condition: used, Year of construction: 2006, Victor V26-II CNC lathe; with C-axis; with driven tools; FANUC 21i-TB control; chuck: 10"; turning diameter: 520 mm; turning length: 1090 mm; spindle speed: 3,500 rpm; upper turret toolholder with 12 positions, 6 of which are driven; tool presetting device; chip conveyor; oil mist extraction. Dkodpsr E Amgsfx Aa Hot

Condition: used, Year of construction: 1990, grinding length 900 mm grinding width 510 mm workpiece height 400 mm table surface area 800 x 400 mm longitudinal feed of the table max. 980 mm table speed -stepless- 1 - 35 m/min grinding wheel size 355 x 51 x 127 mm cross feed of the table 460 mm cross feed 1 - 40 mm/Hub vertical feed autom. 0,005 - 0,04 mm/Hub rapid traverse vertical 0,5 m/min grinding spindle speed 1450 U/min grinding spindle drive 5,6 kW table load capacity max. 1000 kg dimensions of machine L x W x H 3,2 x 2,17 x 2,47 m total power requirement 10 kW weight of the machine ca. 4,4 t Accessories: magnetic plate 800 x 400 mm, various grinding wheels with and Dksdpotqqm Aefx Aa Hst without flanges, wet grinding attachment with paper band filter

Condition: good (used), Year of construction: 2002, functionality: fully functional, 2-axis machine. Largest turning diameter: 1000 mm Largest swing diameter: 1250 mm Vertical slide stroke: 1000 mm Stroke horizontal slide: 1250 mm Spindle head according to DIN 55026: Size A 15 Spindle Ø in front bearing: 240 mm Drive 100% / 40% ED: 4.4 / 5.5 kW Speed range 1: 6.3 90 224 rpm Speed range 2: 25 360 900 rpm Feed rates: max. 14000 mm/min Rapid traverse: max. 20000 mm/min Turret head: 4 stations Round shank: Ø 60 mm according to DIN 69880 Connected load: 110 KW Weight: 25 tons Dodpfx Aajrx R S Us Hskt The machine is still under power. Inspection possible at any time by arrangement. Price ex location. We will be happy to enquire about the costs for free truck.

Condition: good (used), Machining diameter max: 36 mm Maximum spindle speed: 6300 rpm No. of Spindles: 2 Controller: Traub TX8i Toolchanger 1: No. of tools: 12 positions X-axis travel: 50 mm Z-axis travel: 50 mm Toolchanger fronside: No. of tools: 7 positions Speeds: 150 - 3000 Rpm 300 - 6000 Rpm Max. diameter: 40 mm X-axis travel: 370 mm Z-axis travel: 250 mm Dedpfetrvzxex Aa Hjkt Toolchanger backside: No. of tools: 5 Speeds: 150 - 3000 Rpm 300 - 6000 Rpm Max. diameter: 40 mm X-axis travel: 73 mm Barfeeder: FMB Turbo 5-42 Barlength: 3200 mm Bardiameter: 5 - 42 mm Country of origin: Germany Machine LxWxH: 3400 x 1300 x 1700 mm Machine weight: 4000 kg

Condition: excellent (used), Year of construction: 1989, functionality: fully functional, CNC vertical slot milling machine Year of manufacture: 1989 Working range: x-axis 1300mm y-axis 150mm z-axis 200mm Tool holder: SK40 Spindle speed: 350 rpm - 4000 rpm Dksdjuc T S Uepfx Aa Het Max. Slot length: 1200 mm Max. groove width: 40 mm Clamping surface: 1300 mm x 300 mm Weight: approx. 3500 kg Coolant device Dimensions: 1600 mm x 1500 mm x 1800mm (LxWxH) Hydraulic system Partially overhauled, new milling spindle Commissioning within a radius of approx. 200 km included in the price

Condition: excellent (used), Year of construction: 2006, functionality: unexamined, machine/vehicle number: 06.E.400.020, Manufacturing origin CH Voltage 3x400V - 24(V – DC) Netweight 5500 kg Dimensions 237x206x195 cm TECHNICAL DATA Control Fanuc 21i-MB 3 axes U : work wheel axis W : workpiece / dressing axis X: drive wheel axis Through feed grinding Workpiece diameter Ø 1.5 - 50 mm Plunge grinding Workpiece diameter Ø 1.5 - 100 mm Grinding length max 270 mm Grinding wheel Max. external diameter Ø 400 mm Inner diameter Ø 203.2 mm Max. speed 50 m/sec. Drive power 11 kW Optional drive power 29 kW Dksdeiqt S Aspfx Aa Hjt Regulating wheel Max. external diameter Ø 250 mm Inner diameter Ø 127 mm Speed 5 - 1'000 min-1 Tilting angle +5° / -5 Drive power 3.7 kW Positioning accuracy In all 3 axes 0,1 µm Resolution of glass scales 0.05 µm Dimensions Length 2060 mm Width, (with door open) 2370 mm (3120 mm) Height, (with door open) 1950 mm (2100 mm) Weight 5500 kg Compressed air Max. pressure 16 bar Air consumption 165 L/min Air consumption with straightening spindle 250 L/min Temperature +15° / +40° C. errors and omissions excepted-data given without obligation

Condition: used, Year of construction: 2001, Technical data: Okuma Space Turn LB 300 MY Year of manufacture: 2001 Control: OSP U 100 L Max. Turning length: 340 mm Chuck diameter: 10 inch X-axis: 280 mm Y-axis: 120 mm Z-axis: 500 mm C-axis: 360°(0.0001°) Spindle: 4500 rpm Spindle clearance: 62 mm Weight: 6000 kg Dkjdoqucnbepfx Aa Hjt Accessories: -Driven tools -Chip conveyor -Transformer -Manuals

Condition: new, Spindle speed 9000rpm, Spindle motor 4kw, Dkedsn Nwdlopfx Aa Het Cutter cycle motor 0.75kw, Maximum tenon width 100+2RMmm Maximum tenon thickness 30mm Maximum tenon depth (shoulder) 50mm Table tilt upwards 0-15 degrees Table tilt downward 0-30 degrees Table tilt side 0-20 degrees Table fence adjustable 90 to 45 degrees Pneumatic adjustable work place clamps x 2 PLC operation TCT disposable tip cutter block Overall dimensions 1300 x 1200 x 1600mm Weight 950kg

Condition: good (used), CNC control, operator panel, logic unit, path control -Manufacturer: Heidenhain, logic unit railway control -Type: LE 407 A 236 484 10 Dkedpfx Aaepz Sf Ej Hst -Individual components: see photos -Dimensions: 480/330/H140 mm -Weight: 9.5 kg

Condition: excellent (used), Year of construction: 2015, Maximum cutting diameter 640mm, Dedpott Nrtofx Aa Hekt maximum cutting length 1100mm, bar capacity 80mm, B axis -120/+105 degrees, C axis 0.001 degrees, Spindle power 18.5Kw, spindle speed 3,500 rpm, milling power 15Kw, milling speed 12,000 rpm, sub spindle speed 3,500 rpm, 40 station ATC, Y axis travel -/+ 125mm, Fanuc 31i control, magazine barfeed, swarf conveyor, parts catcher.

Condition: used, mileage: 34,050 km, power: 125 kW (169.95 HP), first registration: 11/2021, fuel type: diesel, overall weight: 3,500 kg, color: green, gearing type: mechanical, emission class: euro6, number of seats: 6, total length: 6,156 mm, total width: 2,020 mm, total height: 2,290 mm, loading space length: 2,700 mm, loading space width: 2,050 mm, loading space height: 400 mm, Equipment: parking heater, soot filter, Internal vehicle number: 0367 ----Why autonext? Over 400 cars and commercial vehicles immediately available. One of the largest vehicle showrooms in the region. Over 1,000 satisfied customers annually - top customer ratings. Attractive financing and trade-in options available. Complete vehicle selection available at autonext? Mobility made easy. WhatsApp Chat: ### Offer: Financing from 4.99% ### ----Top condition! 1st owner, German vehicle, non-smoking vehicle Complete service history, serviced exclusively at Mercedes Benz Next service in 159 days Like-new all-weather tires in front Body style: Platform with double cab Number of seats: 6 Tow hitch, increased towing capacity 3,500 kg MB audio system, radio with USB and Bluetooth hands-free system ---- Special equipment: * Audio system: MB audio system, radio with USB and Bluetooth hands-free system * Hands-free system Bluetooth * Tow hitch: ball head, for increased towing capacity - 3.5 t * Trailer socket 13-pin * DAB tuner (digital radio reception) * Suspension: stabilization level II * Generator 250 A * Charging package dashboard (USB connections and 12V socket additionally) * Ladder carrier behind cab * Spare wheel in driving condition * Spare wheel holder under frame end incl. jack * Interior rearview mirror * Rear wall with window * Windshield wipers with rain sensor * Safety belt system with warning system (passenger side) * Storage compartment left and right below platform / body * Underrun protection rear * Rear wall paneling * Front axle reinforced * Heat-insulating glazing (windshield with band filter at the top) * Auxiliary heater (hot water) Standard equipment: Djdpfoyrwvxjx Aa Hokt Storage compartment above windshield, storage compartment below dashboard passenger side, towing eye rear, adaptive brake light, airbag driver side, hill-start assist, drive type: rear-wheel drive, exterior mirrors electrically adjustable and heated, both, outside temperature display, automatic activation of driving lights, driver assistance system: crosswind assist, noise reduction exterior, transmission 6-speed - TSG (Eco Gear), body/structure: platform with double cab standard, communication module (LTE) for digital services, fuel tank: main tank 71 liters, steering wheel (adjustable steering column), headlight range control, truck registration, marker lights on the side, Mercedes-Benz emergency call system, engine 2.0 L - 125 kW CDI CAT, particulate filter, wheelbase 3665 mm, low emission according to emission standard Euro 6d-TEMP, safety belt system with warning system (driver side), seat cover / upholstery: fabric, seats in cab: passenger seat with armrest, seats in cab: passenger seat adjustable, seats in cab: driver seat with armrest, seats in cab: driver seat adjustable, start/stop system, absorbent glass mat (AGM) battery 92 Ah, permissible total weight 3.5 t. ----MOT/emission test can be carried out on request. ----Warranty and "TÜV Profi Check" are of course available with us! We will also be happy to take your vehicle in part exchange! We will also create an individual financing or leasing offer for you! Without a down payment, redeemable at any time and with special repayments. Direct your requests to our sales team, we will be happy to advise you. ----Make an appointment for a test drive and be convinced by the quality of our vehicles. Appointment arrangements: Mon-Fri from 08:30 - 18:00, Sat from 09:30 - 13:30 ----Visit us also on

Condition: good (used), Year of construction: 2016, functionality: fully functional, turning length: 669 mm, turning diameter: 330 mm, travel distance X-axis: 260 mm, travel distance Z-axis: 762 mm, bar passage: 75 mm, CNC control Sinumerik 828D 12-fold revolver Sauter VDI40 driven tools C-axis 3-jaw chuck and collet chuck device Tool Eye part catcher chip conveyor tail stock coolant device with high pressure pump bar loading device Iemca Technische Daten / technical details: Umlaufdurchmesser über Bett / rotary diameter over bed 600 mm max. Drehdurchmesser / max. turning diameter 330 mm Dodpfxjyt Hp Ds Aa Hokt max. Drehlänge / max. turning length 669 mm X-Weg / X-travel 260 mm Z-Weg / Z-travel 762 mm Drehzahl / spindle speed 3400 UpM /rpm Werkzeugrevolver / turret head 12 fach /holes max. Stangendurchmesser / max. bar diameter 75 mm Eilgang X / rapid feed X 20 m/min Eilgang Z / rapid feed Z 24 m/min. Gewicht der Maschine ca. / weight ca. 5700 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: excellent (used), Year of construction: 2020, operating hours: 4,800 h, functionality: fully functional, machine/vehicle number: NL154200702, Manufacturing origin: JP Voltage: 380 V / 50 Hz / 3-phase Dedpfxsw T Sn Ej Aa Hjkt Net weight: 5,400 kg Customs tariff number: 8458.9100 TECHNICAL DATA Maximum turning diameter: 350 mm Turning length: 515 mm CNC control: M730UM MAPPS Celos Swing over bed: 923.8 mm Swing diameter above carriage: 755 mm Standard turning diameter: 260 mm Bar capacity: 34 mm Main spindle: Spindle speed range: 100 – 8,000 rpm Spindle motor power: 11 / 7.5 kW C-axis resolution: 0.001° Chuck diameter: 210 mm Subspindle: Maximum speed: 8,000 rpm Spindle nose: A2-5 Axis travels: X-axis travel: 260 mm Z-axis travel: 580 mm Y-axis travel: 100 mm (±50 mm) Turret: Number of turret stations: 20 Driven stations: 20 Tool shank diameter: 25 mm Maximum driven tool speed: 10,000 rpm Driven tool motor power: 5.5 / 3.7 kW Feed rates: Rapid traverse X-axis: 30 m/min Rapid traverse Z-axis: 30 m/min Rapid traverse subspindle: 30 m/min Rapid traverse Y-axis: 10 m/min Rapid traverse C-axis: 400 rpm Total power requirement: 31 kVA Approximate machine weight: 5.4 t Approximate machine dimensions: 4.0 x 3.0 x 3.2 m Errors and omissions excepted – data provided without obligation.
