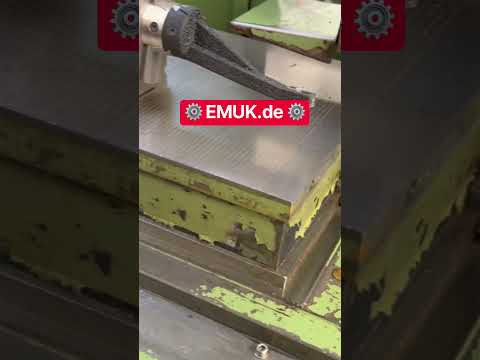

Surface Grinding Machine - Horizontal

ELB-Schliff Optimal 6375

grinding length 600 mm
grinding width 375 mm
workpiece height 375 mm
workpiece weight 300 kg
table surface area 900 * 350 mm
grinding spindle speed 1500 / 3000 U/min
dimensions of grinding wheel 300 x 50 x 76,2 mm
weight of the machine ca. 3,3 t
dimensions of the machine ca. 3,1 x 2,6 x 2,1 m
MICRO GRANIT has excellent properties for high-precision grinding machine
construction.

Damping properties: 1:10 ratio compared to gray cast iron, ensures the best
grinding quality.

Thermal behavior: suitable for grinding operations with µ tolerances.

X-axis – table longitudinal movement:

- Table switching: extremely quiet, contactless.
- Quick adjustment: via cams.
- Work table: Mehanit cast iron.
- Guide system: two precision flat guides.
- Lubrication: plastic coating.
- Drive: hydraulic, automatic.
- Table stroke: 100–250 mm.
- Table speed: 40 m/min.
- Switching: via cams, contactless.
- Hydraulics: horizontal monoblock.
Bedezycnnepfx Ac Tedg
- Table cycle: 30 min.

Y-axis – Vertical adjustment of the grinding wheel:

- Play-compensating mechanism:
> ensures even contact with the guides.
- Vertical movement: > via precision lead screw.
- Drive: adjustable electric motor.
